Description

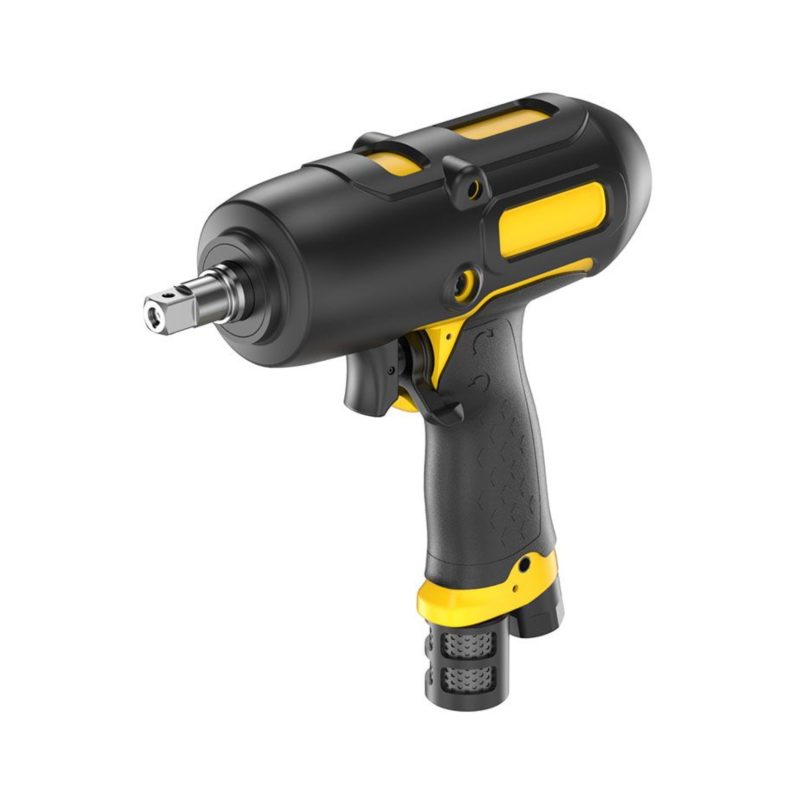

EP5PTX13 SR10-AT-L
8431036801
- Torque range max : 13 Nm
- Torque range min : 8 Nm
- Torque range max : 10 ft lb
- Torque range min : 6 ft lb
- Weight : 0.9 kg
- Bolt size : M5 mm
- Weight : 2 lb
- Air inlet thread : 1/4 inch
- Square drive : 3/8 inch
- Air consumption under load : 4 l/s
- Air consumption under load : 9 cfm
- Max working pressure : 5 bar
- Max working pressure : 72 psi
- Max working pressure : 72 psig
- Model type : Straight
- Sound pressure : 78 dB(A)
- Sound standard : ISO15744
- Sound uncertainty : 3 dB(A)
- Vibration value : 4.6 m/s²
- Vibration uncertainty : 0.8 m/s²
- Nominal working pressure : 4 bar
- Nominal working pressure : 58 psi
- Recommended hose size : 8 mm
- Shut-off : Yes
- Shut-off : Yes
- CS distance : 21 mm
- EAC certified : Yes
- EC standard : EN ISO 11148-6:2012
- EU directives : 2006/42/EC
- Free speed : 4,800 r/min
- Length : 267 mm
- WEEE : 0
- Vibration standard : ISO28927-2
