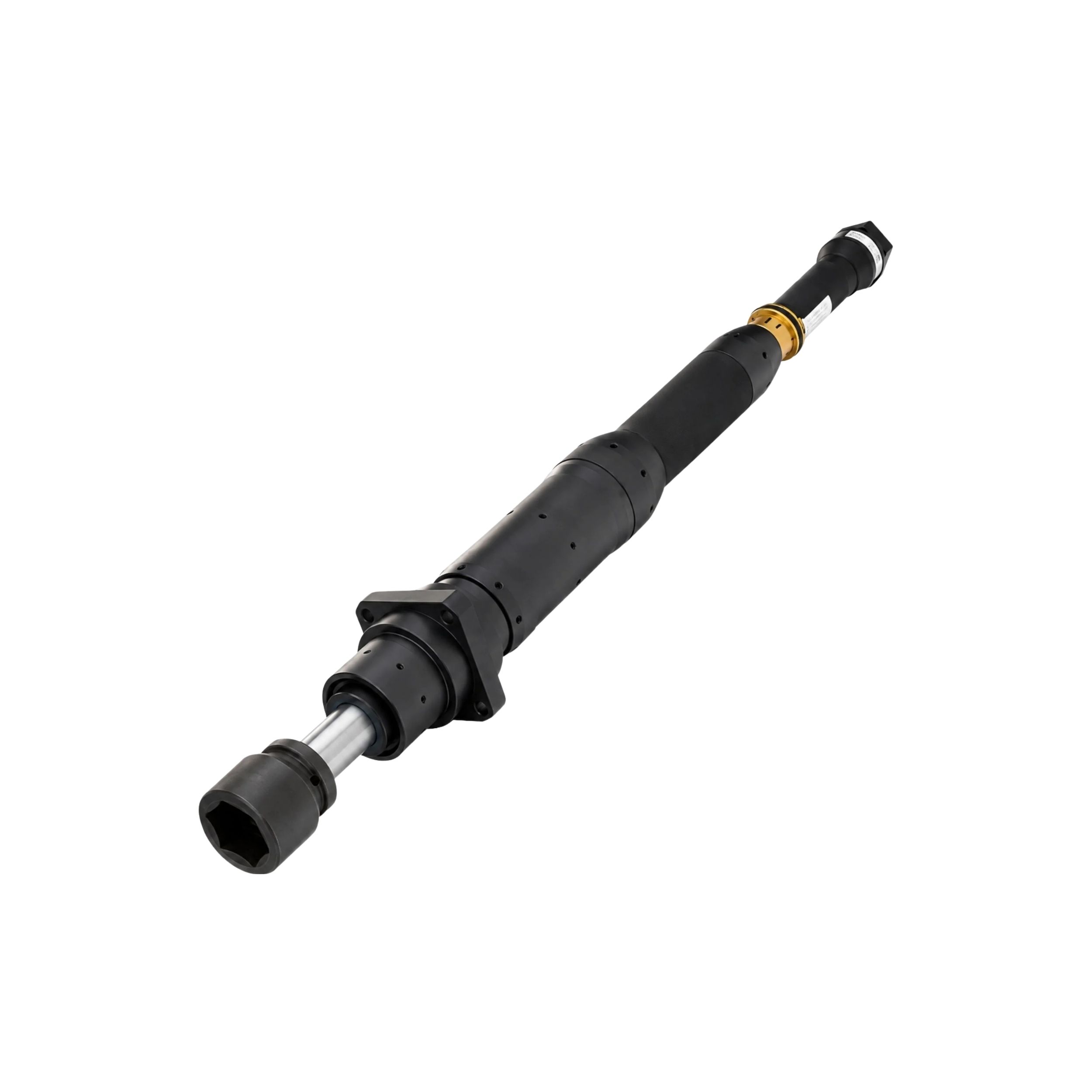

The Atlas Copco ETD ST101-500-20-T40-F is an industrial electric assembly tool designed for precise and repeatable fastening operations in professional production environments. It is developed for applications requiring reliable torque control, consistent assembly performance and efficient fastening processes across demanding industrial operations.
Design & Functions
| Specification | Value |
|---|---|
| Model type | Straight |
| Tensor | ST |
| Spline/Mounting | – |
Torque
| Specification | Value |
|---|---|
| Torque range max | 500 Nm |
| Torque range min | 120 Nm |
| Torque range max | 368 ft lb |
| Torque range min | 88 ft lb |
| Square drive | 3/4 inch |
Speed & Motor
| Specification | Value |
|---|---|
| Speed | 204 r/min |
| Motor power | 1,500 W |
| Motor voltage | 200 V |
| Motor voltage type | 3 a.c. |
Dimensions & Weight
| Specification | Value |
|---|---|
| Weight | 8.4 kg |
| Weight | 18.5 lb |
| Length | 769 mm |
| CS distance | 37 mm |
Noise
| Specification | Value |
|---|---|
| Sound pressure | <70 dB(A) |
| Sound standard | ISO15744 |
Certifications, Standards & Directives
| Specification | Value |
|---|---|
| CCC certified | Yes |
| KC ID | R-REI-50A-ETVST101 |
| KC certified | Yes |
| EAC certified | Yes |
| EC standard | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 |
| WEEE | 4 – Large equipment >50cm |
| EU directives | 2006/42/EC, 2011/65/EU, 2014/30/EU |
Applications
The Atlas Copco ETD ST101-500-20-T40-F is an industrial electric assembly tool designed for precise and repeatable fastening operations where reliable torque performance, accuracy and process control are essential.
This electric assembly tool is developed for professional production environments including automotive manufacturing, industrial machinery assembly, heavy equipment production and other applications requiring reliable fastening results. With its high torque capability, straight configuration and controlled electric operation, the ETD ST101-500-20-T40-F supports demanding industrial fastening processes where consistency and quality are critical.
Key Features
- High torque range from 120 Nm to 500 Nm for demanding industrial fastening applications.
- Tensor ST technology designed for accurate torque control and repeatable assembly performance.
- Straight tool design for professional production environments requiring controlled fastening operations.
- 3/4 inch square drive for heavy-duty fastening applications.
- 1,500 W motor with 200 V 3 a.c. motor supply for reliable industrial operation.
- Speed of 204 r/min for efficient fastening processes.
- Robust industrial construction with 769 mm length and 8.4 kg weight.
- Low sound pressure level of <70 dB(A) according to ISO15744.
- Certified according to CCC, KC and EAC requirements for industrial markets.
Why Choose the Atlas Copco ETD ST101-500-20-T40-F?
The Atlas Copco ETD ST101-500-20-T40-F combines high torque capability, Tensor ST technology and precise electric control to provide reliable fastening performance in demanding industrial production environments. Its accurate torque delivery and repeatability help manufacturers maintain consistent assembly quality and improve process reliability.
Designed for applications requiring controlled fastening results, this Atlas Copco electric assembly tool provides the durability, accuracy and performance expected from professional industrial equipment. The combination of powerful motor performance, advanced assembly technology and robust construction makes it a reliable solution for heavy-duty fastening operations.
