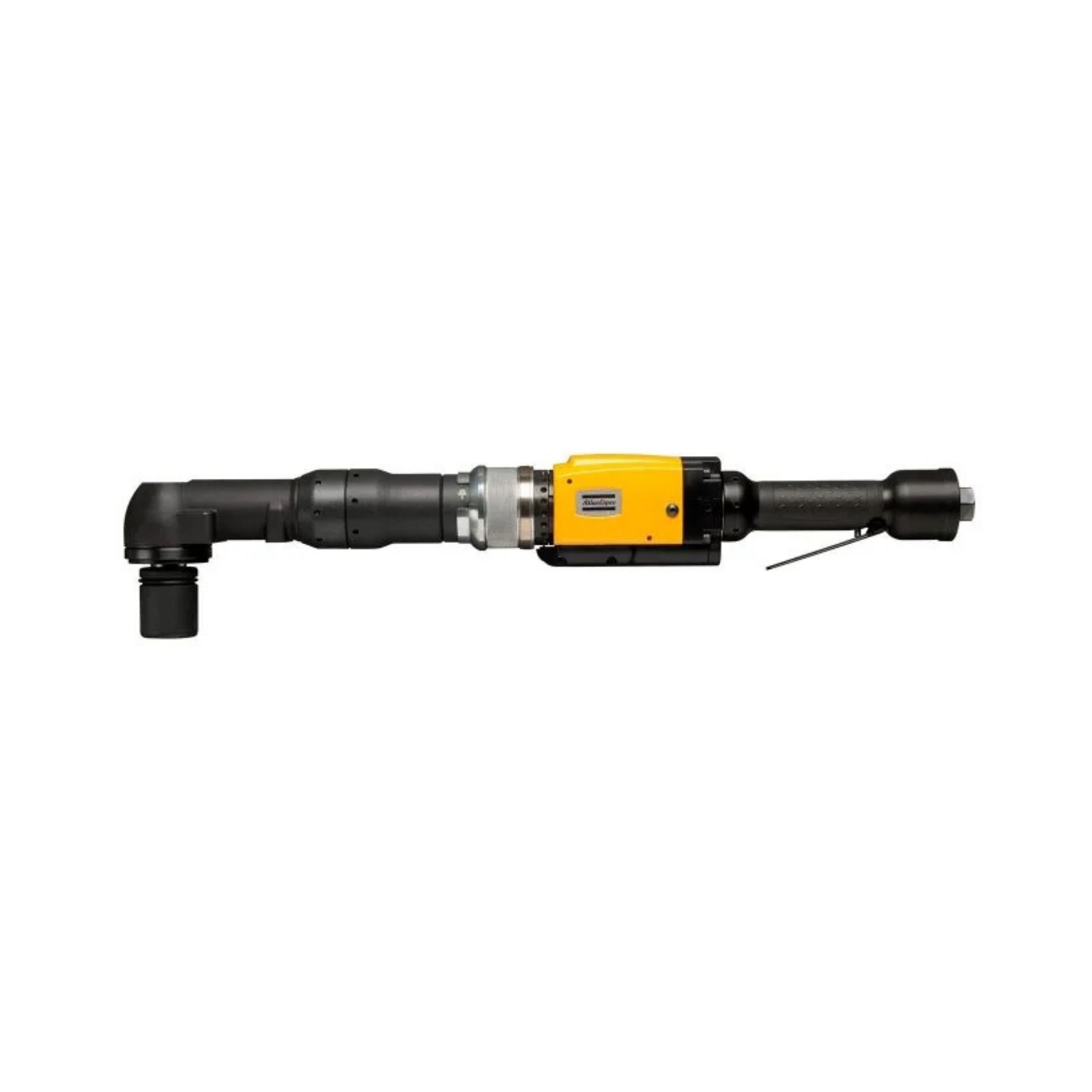

Technical Specifications
| Design & Functions | |
|---|---|
| Model type | Angle |
| Shut-off | Yes |
| Reversible | No |
| Noise & Vibrations | |
|---|---|
| Sound pressure | 80 dB(A) |
| Sound standard | ISO15744 |
| Sound uncertainty | 3 dB(A) |
| Vibration standard | ISO28927-2 |
| Vibration value | < 2.5 m/s2 |
| Speed | |
|---|---|
| Free speed | 280 r/min |
| Certifications, Standards & Directives | |
|---|---|
| EAC certified | Yes |
| EC standard | ISO 11148-6 |
| EU directives | 2006/42/EC |
| Air Information | |
|---|---|
| Air consumption at free speed | 20 l/s |
| Air consumption at free speed | 42 cfm |
| Max working pressure | 7 bar |
| Max working pressure | 100 psig |
| Recommended hose size | 13 mm |
| Air inlet thread | 1/2 inch |
| Dimension & Weight | |
|---|---|
| Bolt size | M22 mm |
| Square drive | 1 inch |
| Length | 661 mm |
| Angle head height | 77 mm |
| Angle head centre to side | 54 mm |
| Weight | 9.7 kg |
| Weight | 21.3 lb |
| Torque | |
|---|---|
| Torque range soft joint max | 600 Nm |
| Torque range soft joint min | 230 Nm |
| Torque range soft joint max | 443 ft lb |
| Torque range soft joint min | 170 ft lb |
| Max torque at 6.3 bar soft joint | 600 Nm |
| Max torque at 6.3 bar soft joint | 443 ft lb |
| Min torque at 3 bar soft joint | 230 Nm |
| Min torque at 3 bar soft joint | 170 ft lb |
| Min torque at 6.3 bar soft joint | 400 Nm |
| Min torque at 6.3 bar soft joint | 295 ft lb |
