B19M 300
B19M 301
B19M 300
B19M 301

B19M

    6151740190

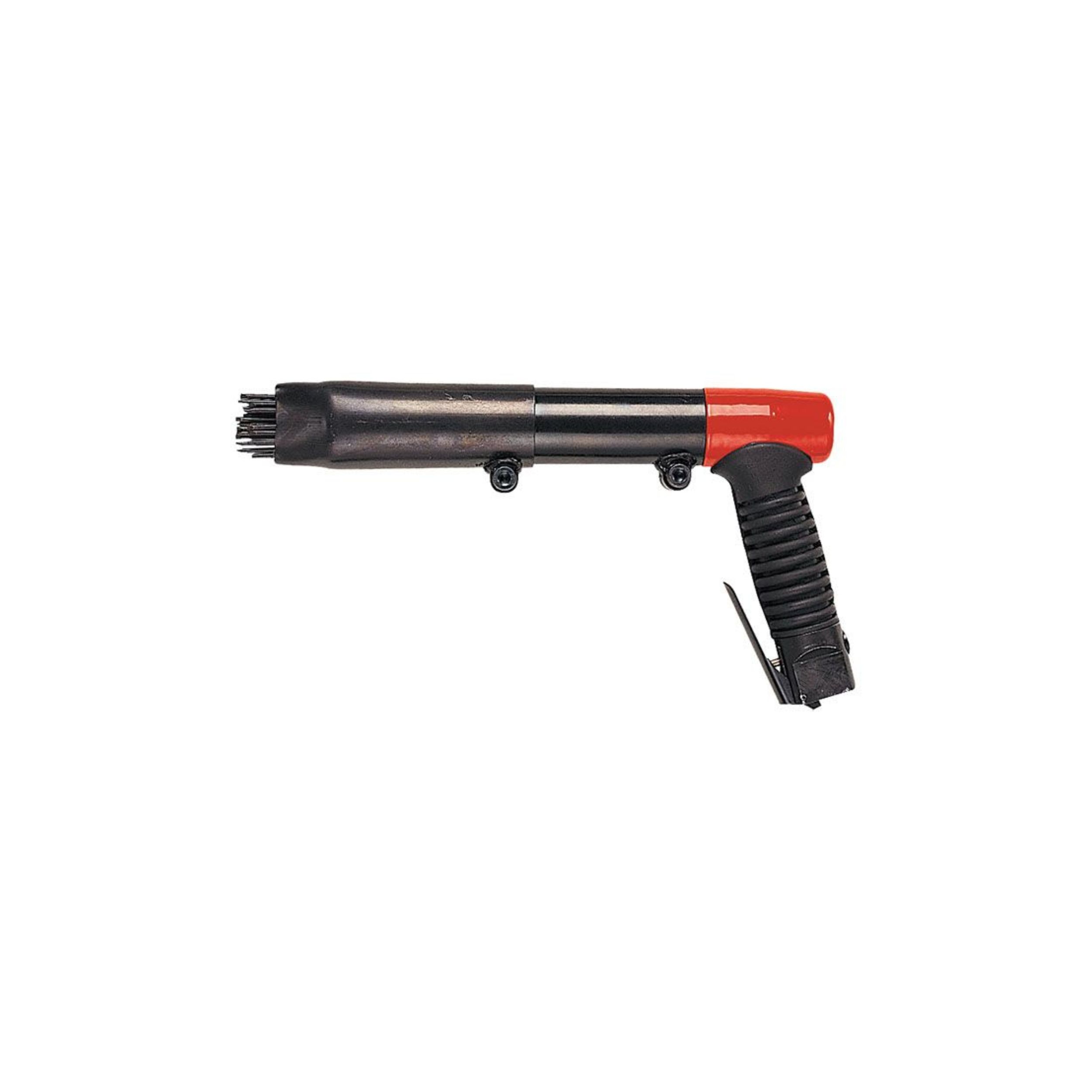

    3/8"(9.5mm) flatnose pneumatic chipping hammer

    Take advantages of this RA1 range of compact but powerfull chipping hammers. The RA1 range is defined by 2 models RA1 with round shank and RA1BL with Flatnose shank. Country of origin is JP. Customs tariff is 84671900

    SEND INQUIRY
    Category:

      Technical Specifications

      Air information
      Air consumption at load3.8 l/s
      Air inlet thread size (in)1/4
      Max dynamic air working pressure6.3 bar
      Min hose diam (16 ft hose length)0.38 in
      Min hose diam (5 m hose length)10 mm

      Design & Functions
      Blow per minute2200
      Energy9.5 J
      Main Material typeSteel
      Needle capacity28×1/8 (3)
      Starting systemLever

      Size & Weight
      Bore diameter28.6 mm
      Length (L)342 mm
      Stroke39 mm
      Weight3.7 kg

      Noise & vibrations
      Sound Power112 dB(A)
      Sound Pressure91 dB(A)
      Uncertainty vibration-K10.3 m/s²
      Vibration16.9 m/s²
      Weight4,29 kg
      Dimensions42 × 26 × 7 cm
