Technical Specifications
| Design & Functions | |
|---|---|

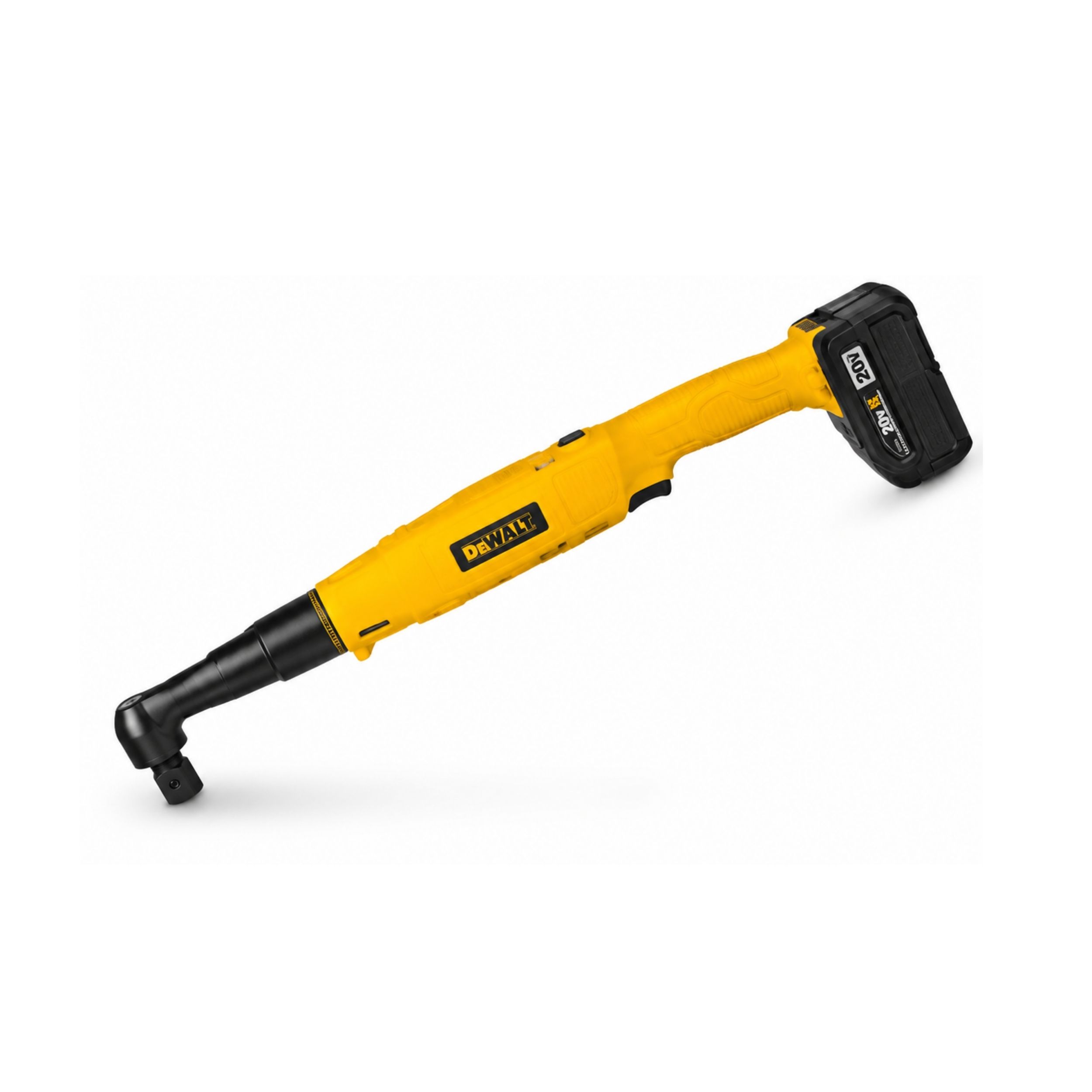

| Model type | Angle |
| Shut-off system | Clutch |
| Square drive | 1/4 inch |
| Communication type | n/a |
| Torque | |
|---|---|
| Torque range min | 2.5 Nm |
| Torque range min | 1.8 ft lb |
| Torque range max | 7 Nm |
| Torque range max | 5.2 ft lb |
| Speed | |
|---|---|
| Speed range min | 120 r/min |
| Speed range max | 360 r/min |
| Power & Battery Information | |
|---|---|
| Battery | Li-Io 18 V |
| Power | 340 W |
| Motor power | 0 W |
| Motor voltage | 0 V |
| Dimension & Weight | |
|---|---|
| Length | 419 mm |
| CS distance | 11 mm |
| Weight | 1.15 kg |
| Weight | 2.6 lb |
| Noise & Vibrations | |
|---|---|
| Sound pressure | <70 dB(A) |
| Sound standard | ISO15744 |
| Vibration standard | ISO28927-2 |
| Vibration value | <2.5 m/s2 |
| Certifications, Standards & Directives | |
|---|---|
| EAC certified | Yes |
| KC certified | Yes |
| KC ID | MSIP-REI-50A-BCPBL |
| EU directives | 2006/42/EC, 2011/65/EU, 2014/30/EU |
| EC standard | EN 60745-1:2009+A11:2010, EN 60745-2-2:2010, EN 61000-6-2:2005, EN 61000-6-3:2007+A1:2011 |
| ETL control number | 3008099 |
| ETL listed | Yes |
| ETL text | 1 – 60745-1, -2-2 |
| WEEE | 5 – Small equipment <50cm |
