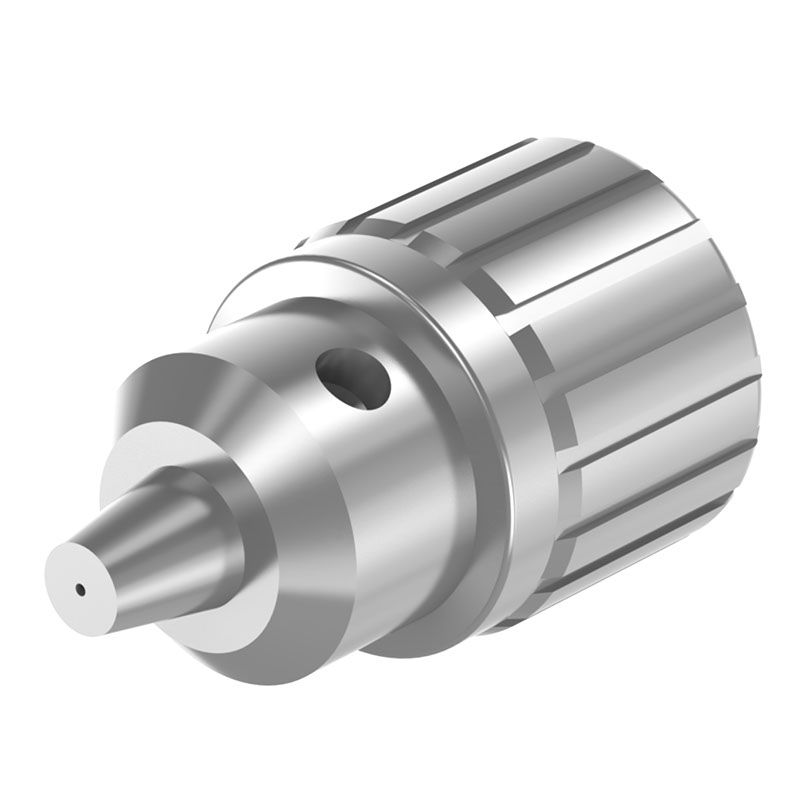

Drilling Solutions: BHM45SC-5-0 MKII. It belongs to the Atlas Copco Drilling Solutions range.
Technical Specifications
| Design & Functions | |
|---|---|
| Front type | Collet |
| Gear ratio | 0.93 |
| Unit type | Drill head |
| Dimension & weight | |
| Collet size | 5 mm |
| Delivered collet size | 3.3 mm |
| Diameter | 0.67 in |
| Diameter | 17 mm |
| Front length | 2.8 in |
| Front length | 71 mm |
| Head height | 1.26 in |
| Head height | 32 mm |
| Height | 1.1 in |
| Height | 28 mm |
| Length | 4.4 in |
| Length | 111 mm |
| Weight | 0.2 kg |
| Weight | 0.44 lb |
| Product Benefits Group | |
| Benefits | Low run out, Great operator ergonomics, Low operating costs, Very low noise level, Easy to use |
| Features | Quick disconnect system, Slim design allowing great accessibility, Small and light, Collet chuck or threaded spindle, Modularity |
| Air information | |
| Max working pressure | 100 psig |
| Design | |
| Head angle | 45° |
| Head type | Short |
