CP1117P05

6151580170

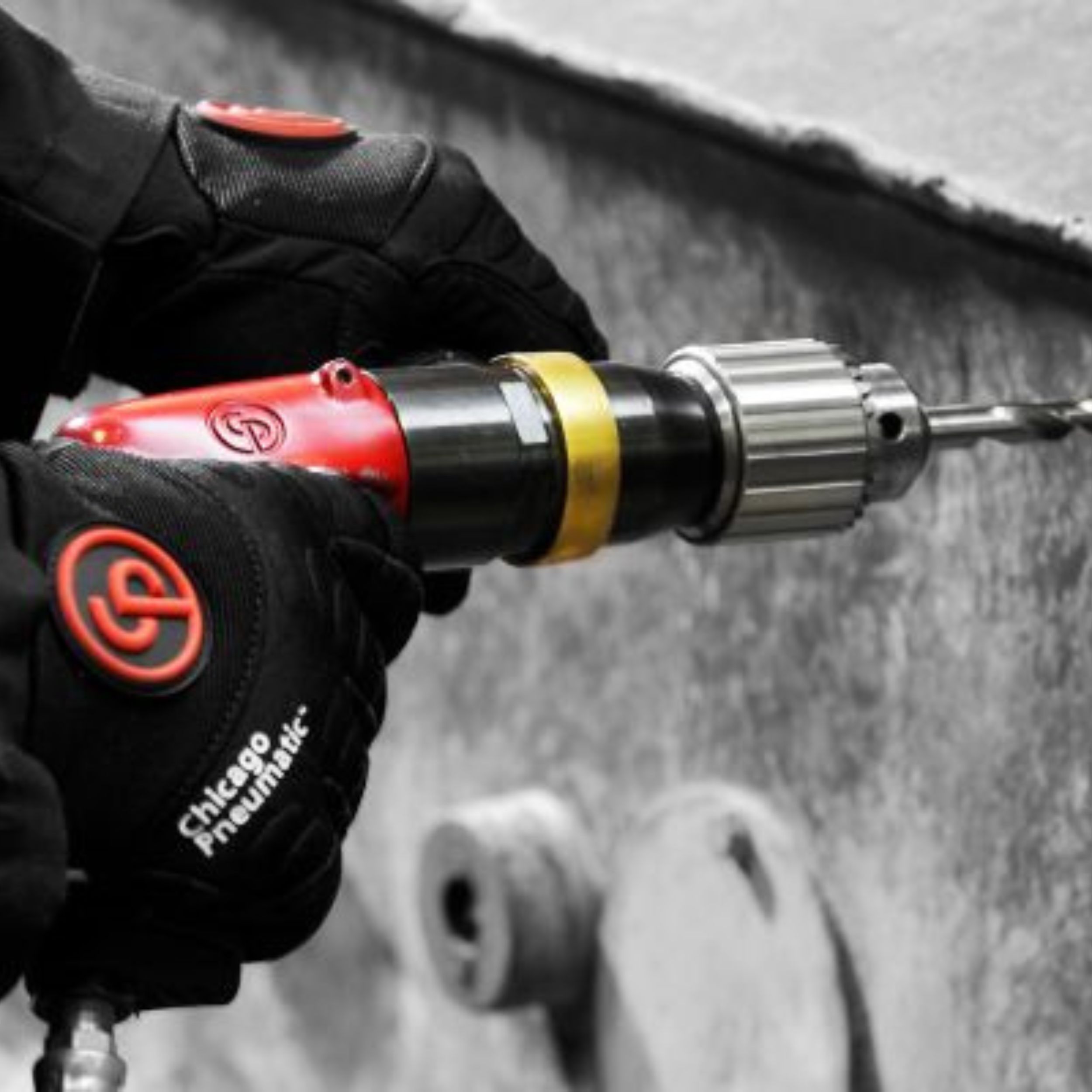

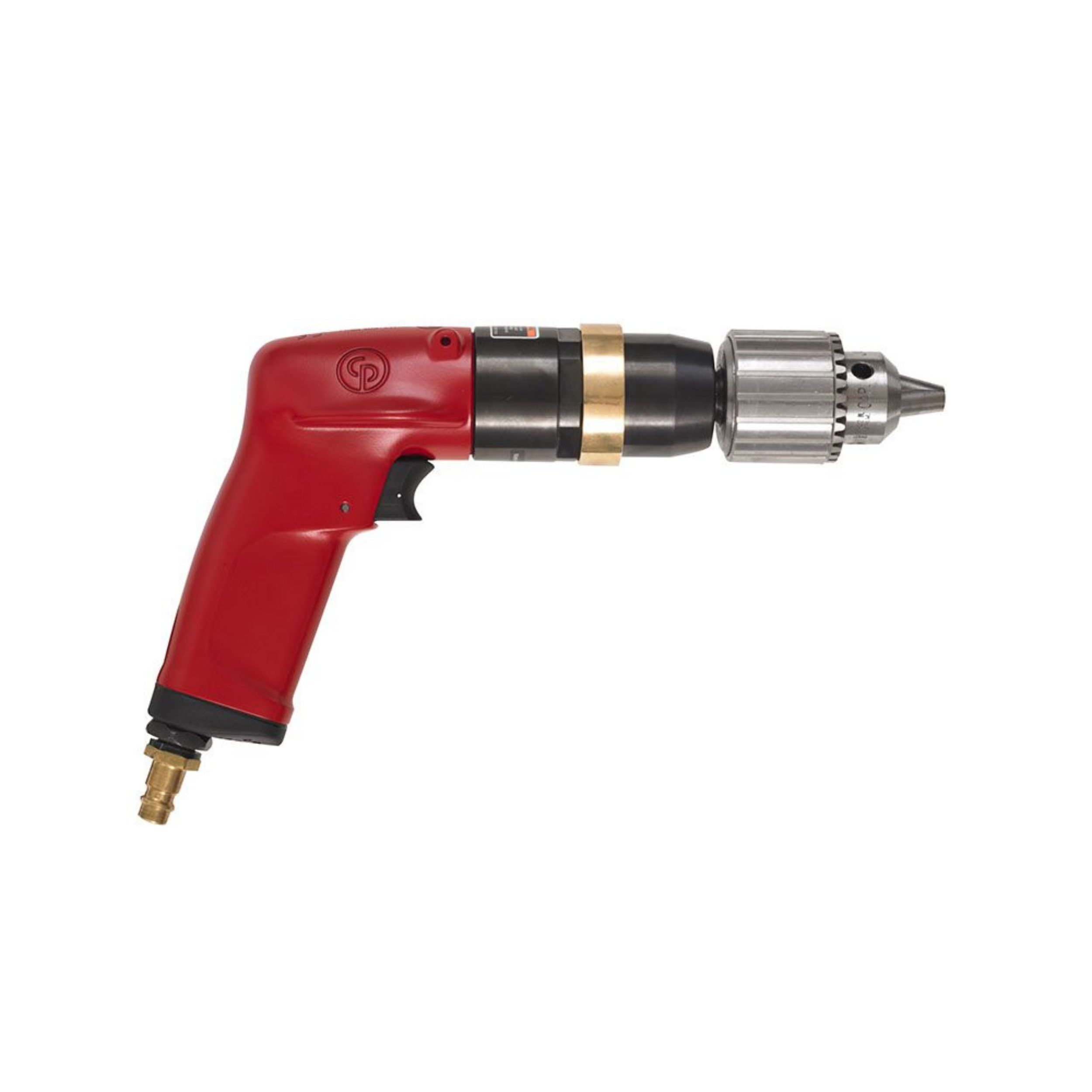

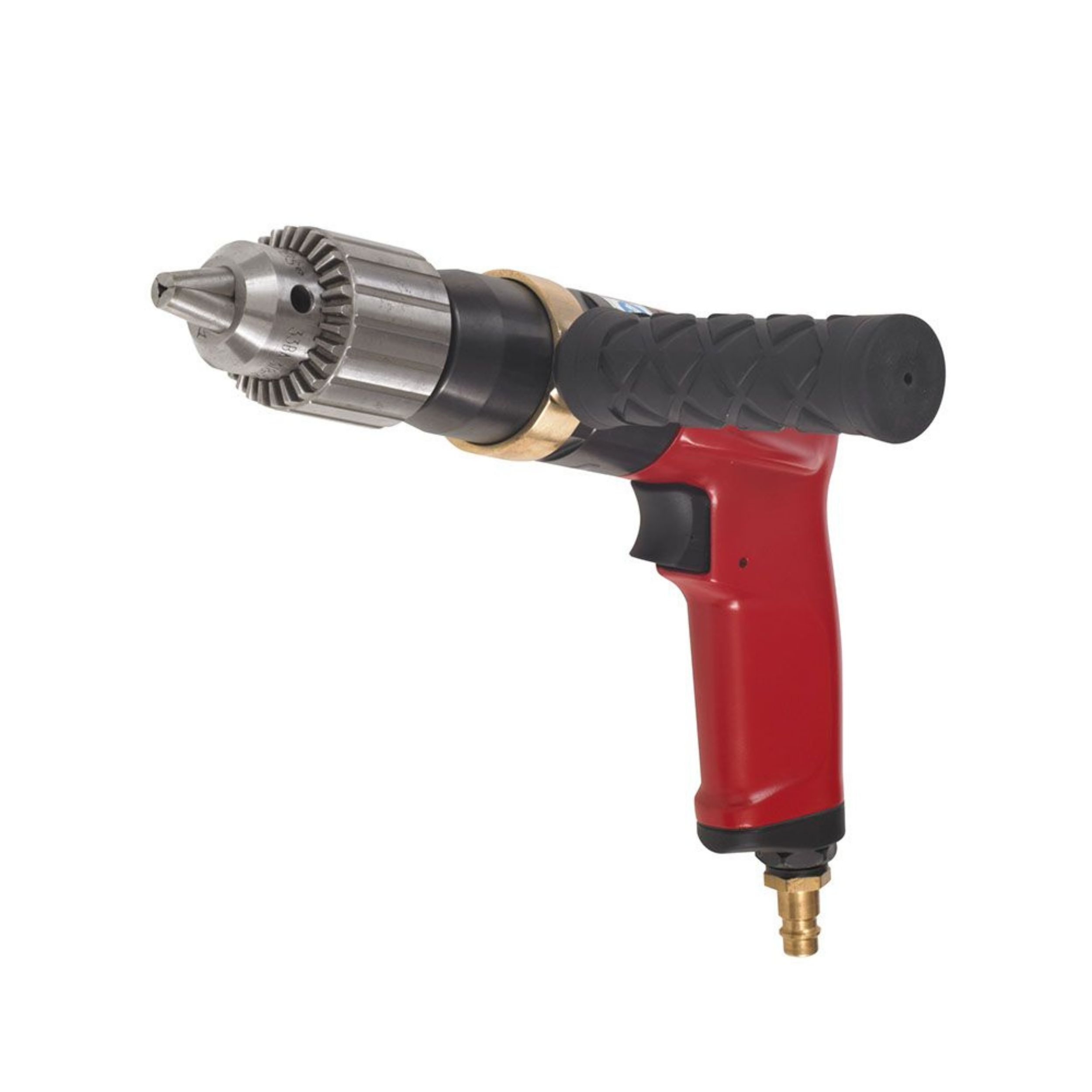

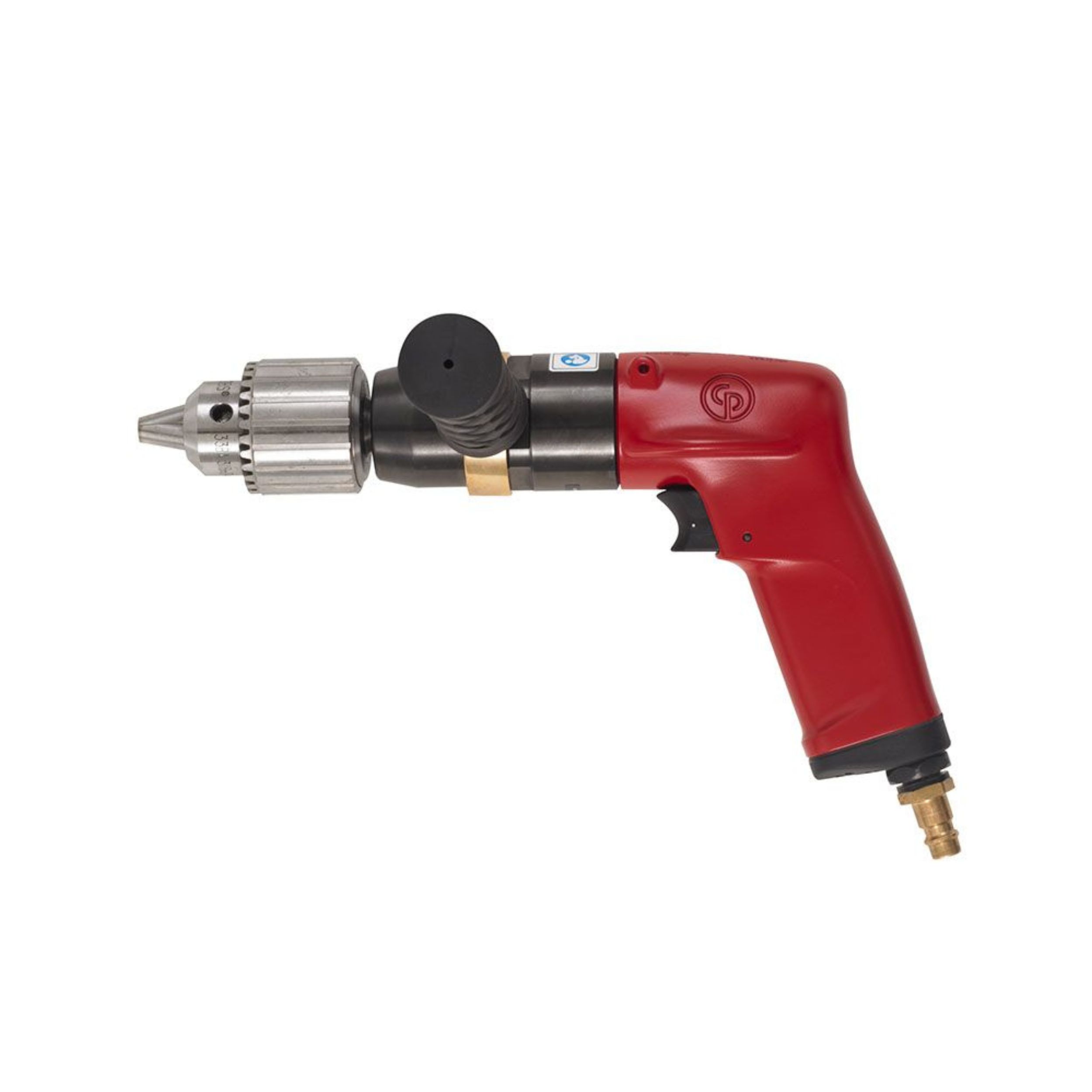

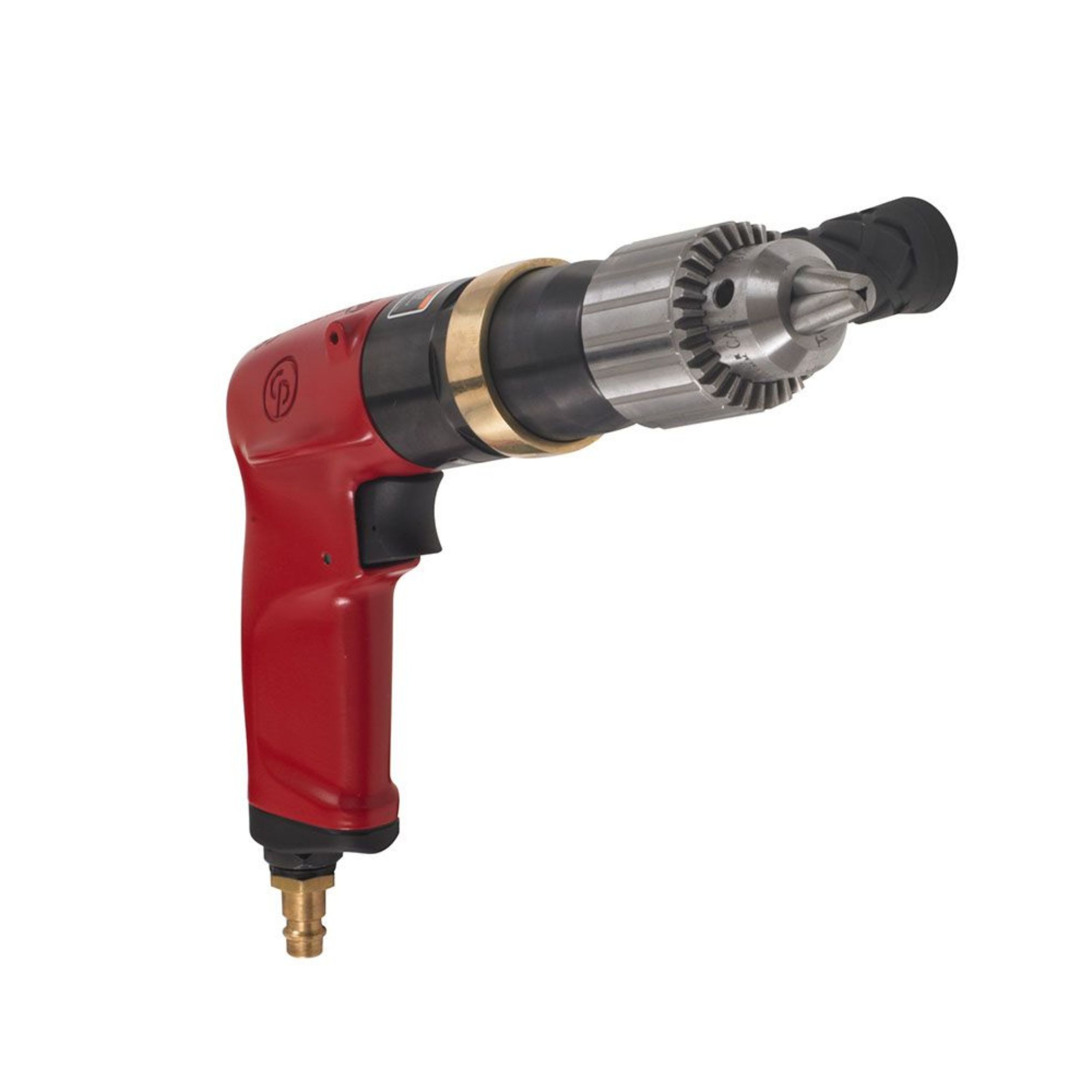

1/2"(13 Mm) pistol pneumatic drill

Take advantages of this CP1117 range of ergonomic, high speed, durable and precise drills.
The CP1117 range is defined by 15 models with 1 Hp (750 W) pneumatic motor from 500 to 6000 RPM and from 3.4 Nm (2.5 ft.lb) to 30 Nm (22.2 ft.lb) stall torque.
Full range offers a selection of drills without, keyless or Keyed chuck.
Country of origin is TW. Customs tariff is 84671190

SEND INQUIRY
Category:

Technical Specifications

Design & Functions
Chuck max capacity (in) 1/2
Chuck max capacity (mm) 13
Chuck type Keyed
Handle type Pistol
Main Material type Aluminum
Reversible No
Starting system Trigger
Trigger type Progressive

Noise & vibrations
Sound Power 94 dB(A)
Sound Pressure 83 dB(A)
Uncertainty vibration-K 2 m/s²

Air information
Air consumption at load 14 l/s
Air inlet thread size (in) 1/4
Max dynamic air working pressure 6.3 bar
Min hose diam (16 ft hose length) 0.38 in
Min hose diam (5 m hose length) 10 mm

Power & Battery
Max power 750 W

Torque
Stall torque 30 Nm

Speed
Free Speed 500 rpm
Air consumption at free speed 16 l/s

Size & Weight
Length (L) 203 mm
Weight 1.53 kg
Weight 2,4 kg
Dimensions 25 × 17,5 × 7,5 cm
