CP2141

    8941021410

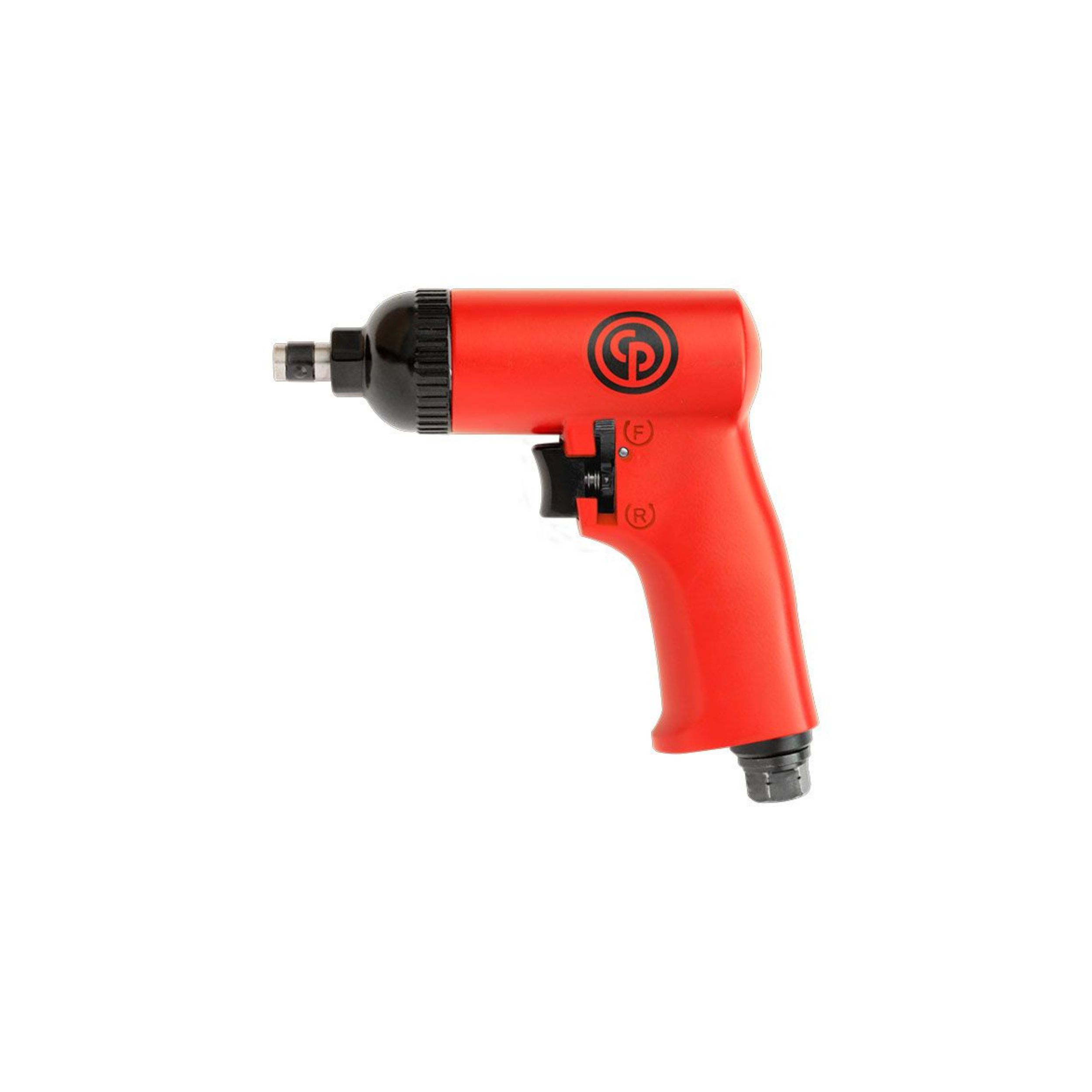

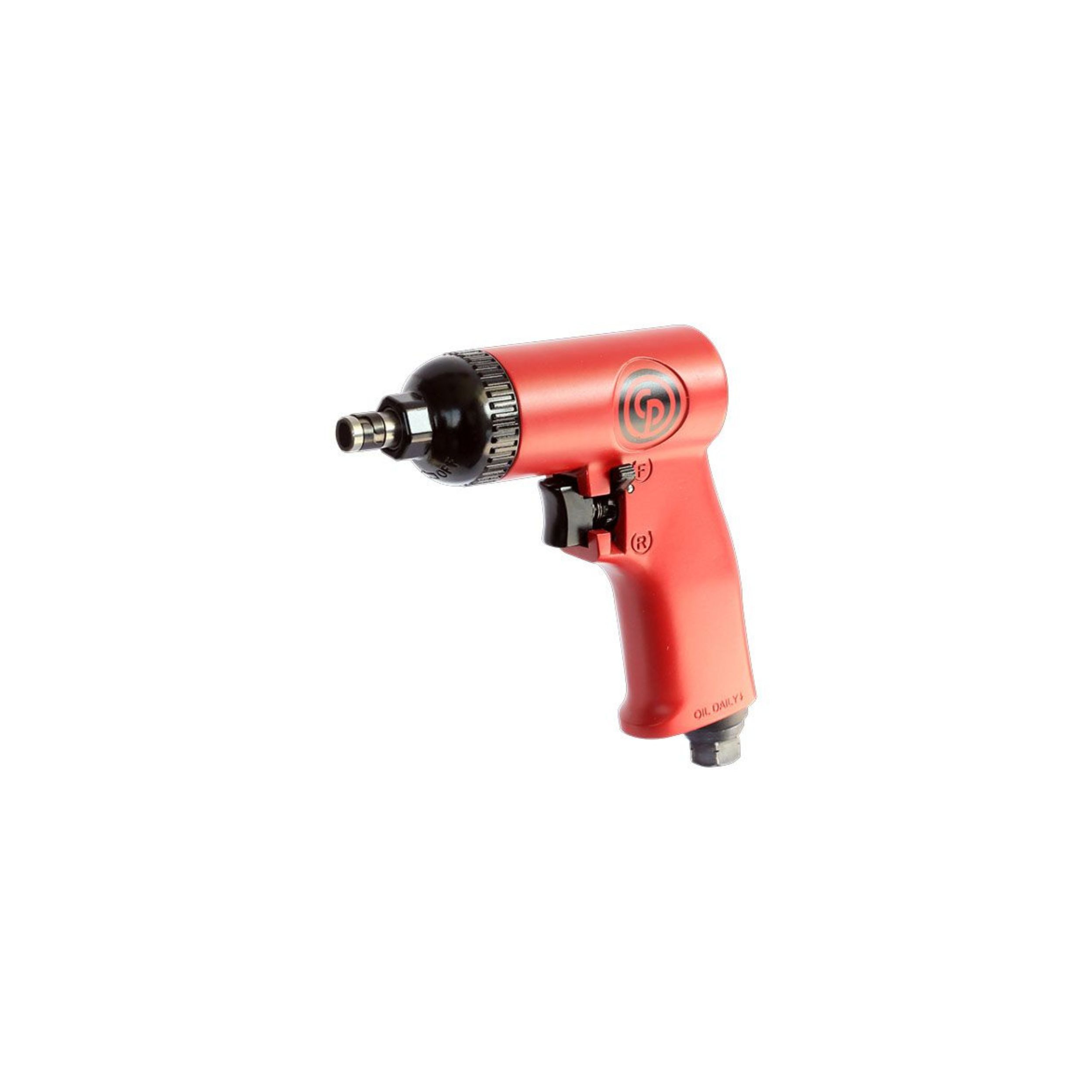

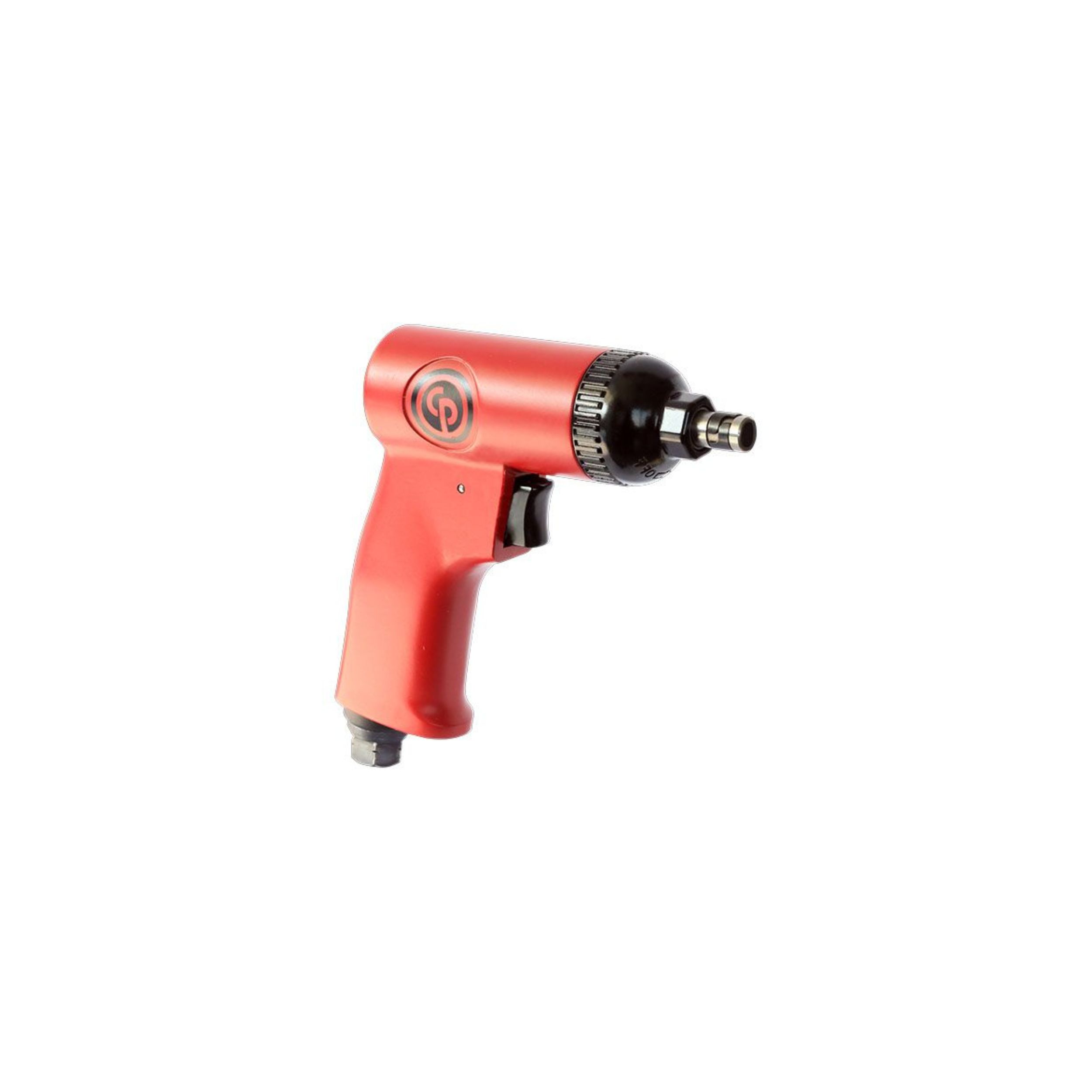

    1/4" Hex pneumatic impact screwdriver

    The CP2141 is a 1/4" hex pistol impact screwdriver with quick change.
    Perfectly suitable for various MRO applications, it can reach a speed of 13,000 rpm.

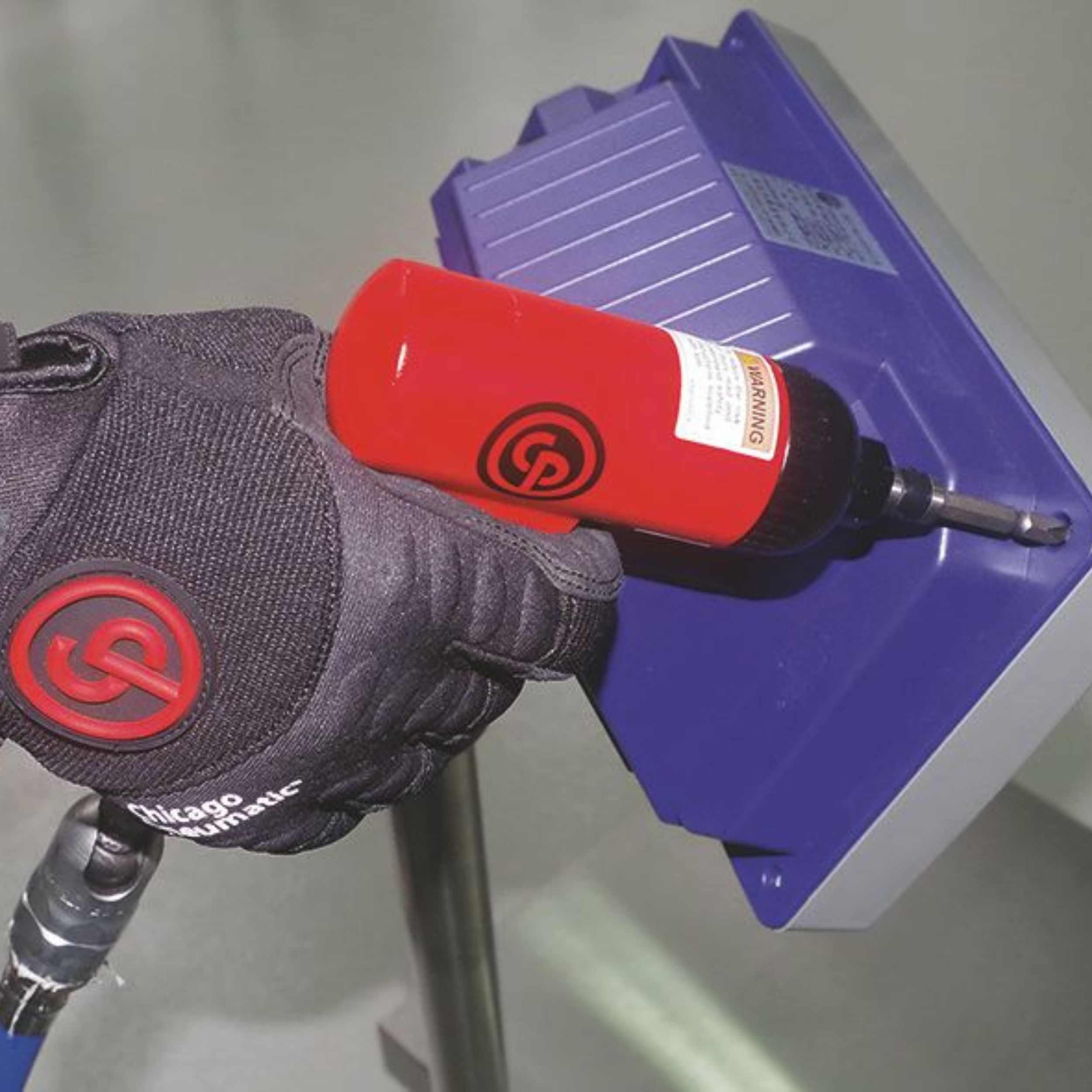

    Operator comfort is ensured with its limited noise level and its ability to access tight spaces.
    Country of origin is TW. Customs tariff is 84671190

    Compare
    SEND INQUIRY
    Category:

      Technical Specifications

      Torque
      Max torque in forward24 Nm
      Min torque in forward10 Nm
      Torque Control SystemNon shut-off clutch

      Design & Functions
      BodyAluminum
      Clutch housingAluminum
      Clutch TypeImpact clutch (Rocking Dog)
      Handle typePistol
      Main Material typeAluminium
      Output drive size (in)1/4
      Output drive typeHex
      Output retainer typeBall detent
      ReversibleYes
      Starting systemTrigger

      Speed
      Free Speed13000 rpm
      Air consumption at free speed8.5 l/s

      Air information
      Air inlet thread size (in)1/4
      Max dynamic air working pressure6.3 bar
      Min hose diam (16 ft hose length)0.38 in
      Min hose diam (5 m hose length)10 mm

      Size & Weight
      Height (H)150 mm
      Length (L)143 mm
      Weight0.87 kg

      Noise & vibrations
      Sound Power88 dB(A)
      Sound Pressure77 dB(A)
      Uncertainty vibration-K2.1 m/s²
      Vibration5.3 m/s²
      Weight1,15 kg
      Dimensions19 × 17,5 × 9 cm
