CP2612

    6151922612

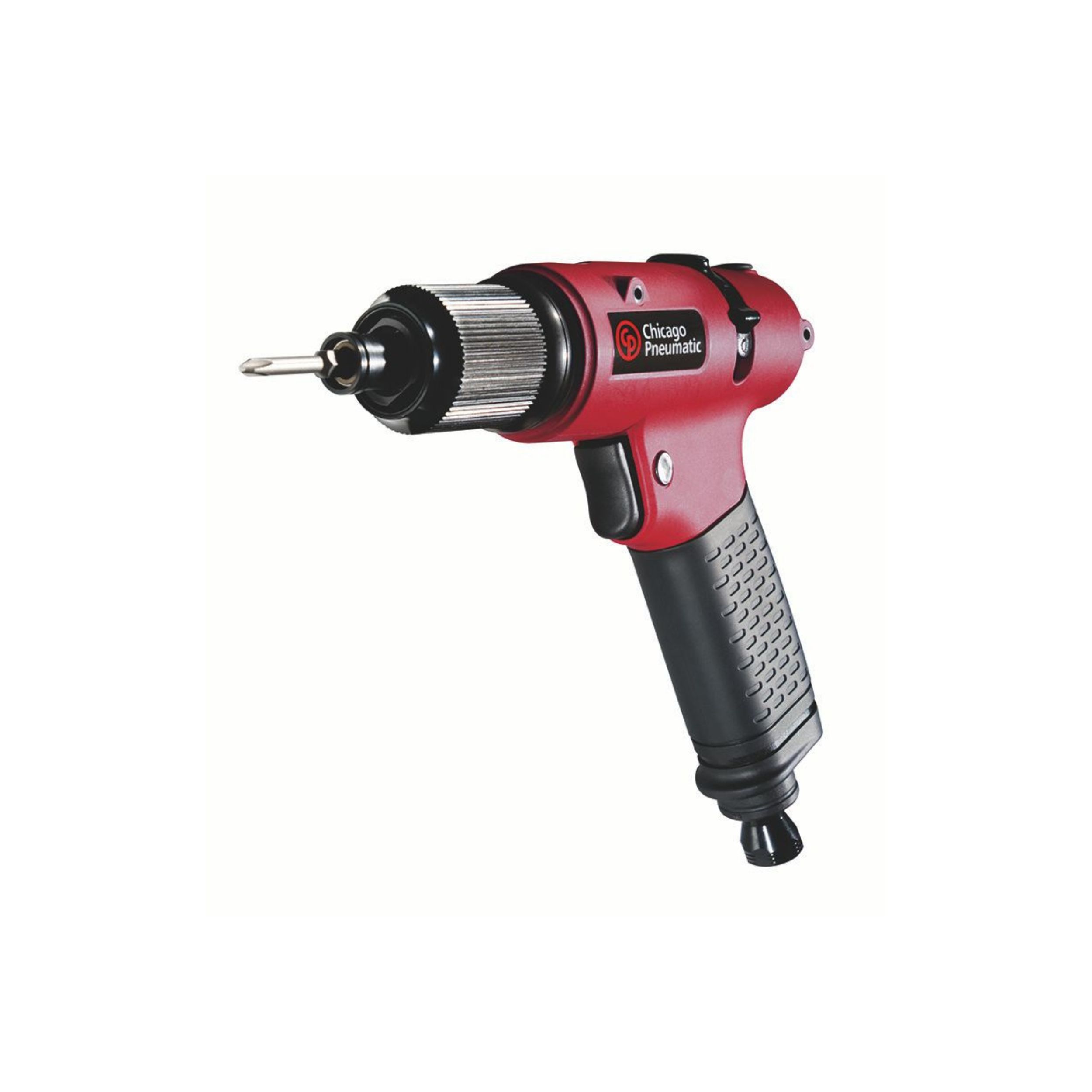

    1/4" Hex pistol cushion reverse pneumatic screwdriver

    The CP2612 is a keyless torque setting 1/4" hex pistol cushion clutch screwdriver offering a wide torque range, speed and high reliability in high rate fastening operations.
    Operator comfort is ensured with its limited noise level and the 3 pneumatic inlets to ensure vertical and horizontal applications.
    Country of origin is TW. Customs tariff is 84671190

    SEND INQUIRY
    Category:

      Technical Specifications

      Torque
      Max torque in forward 6 Nm
      Min torque in forward 1 Nm
      Torque Control System Non shut-off-clutch

      Design & Functions
      Adjustment Rotative ring
      Body Composite
      Clutch housing Steel
      Clutch Type Cushion clutch
      Handle type Pistol
      Main Material type Aluminium
      Output drive size (in) 1/4
      Output drive type Hex
      Output retainer type Quick change
      Reversible Yes
      Starting system Trigger

      Speed
      Free Speed 1700 rpm
      Air consumption at free speed 10 l/s

      Air information
      Air inlet thread size (in) 1/4
      Air inlet thread type NPT
      Max dynamic air working pressure 6.3 bar
      Min hose diam (16 ft hose length) 0.38 in
      Min hose diam (5 m hose length) 10 mm

      Size & Weight
      Height (H) 175 mm
      Length (L) 190 mm
      Weight 0.9 kg

      Noise & vibrations
      Sound Power 88 dB(A)
      Sound Pressure 77 dB(A)
      Vibration (m/s²) <2.5
      Weight 1,32 kg
      Dimensions 29,3 × 16,2 × 6,3 cm
