CP2621

6151922621

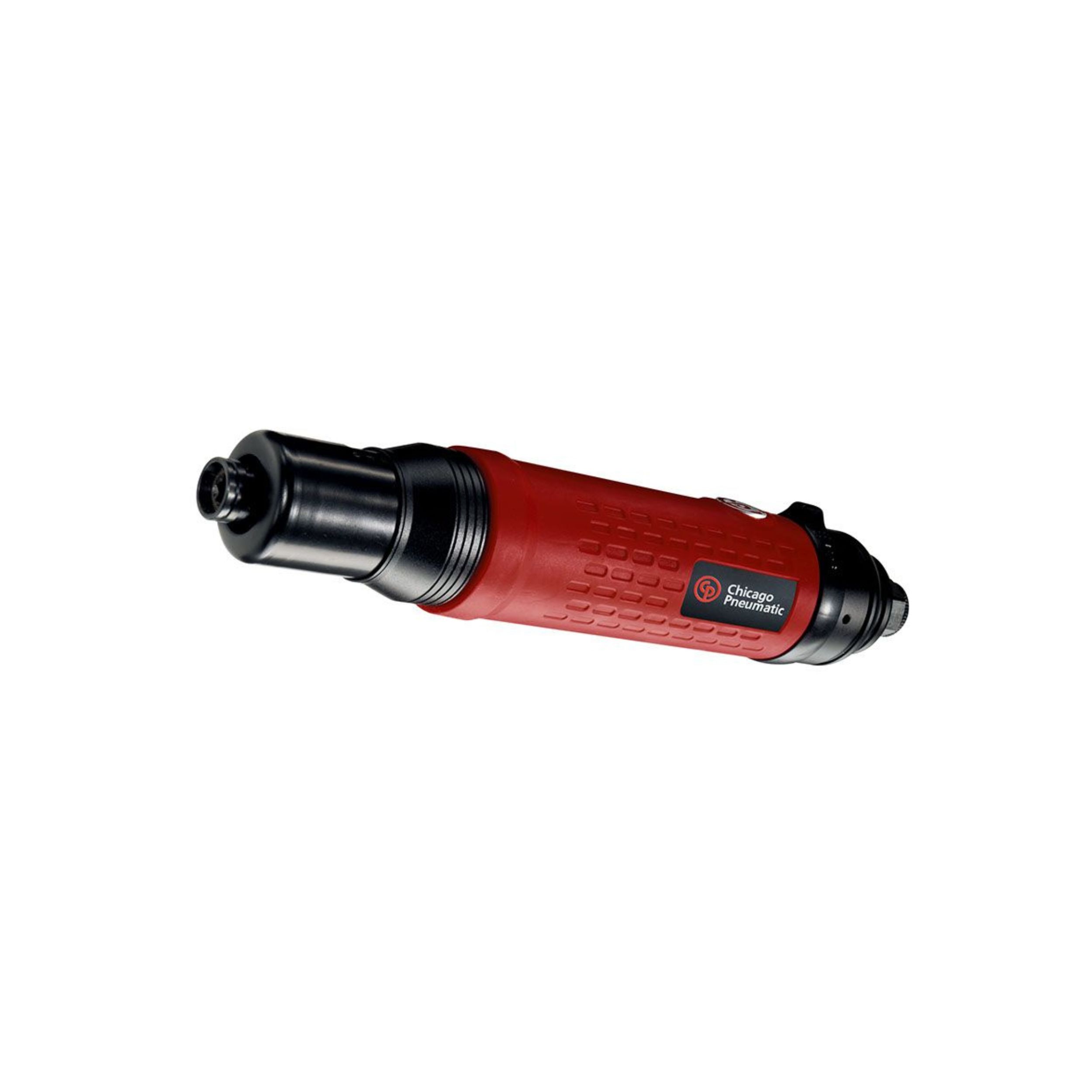

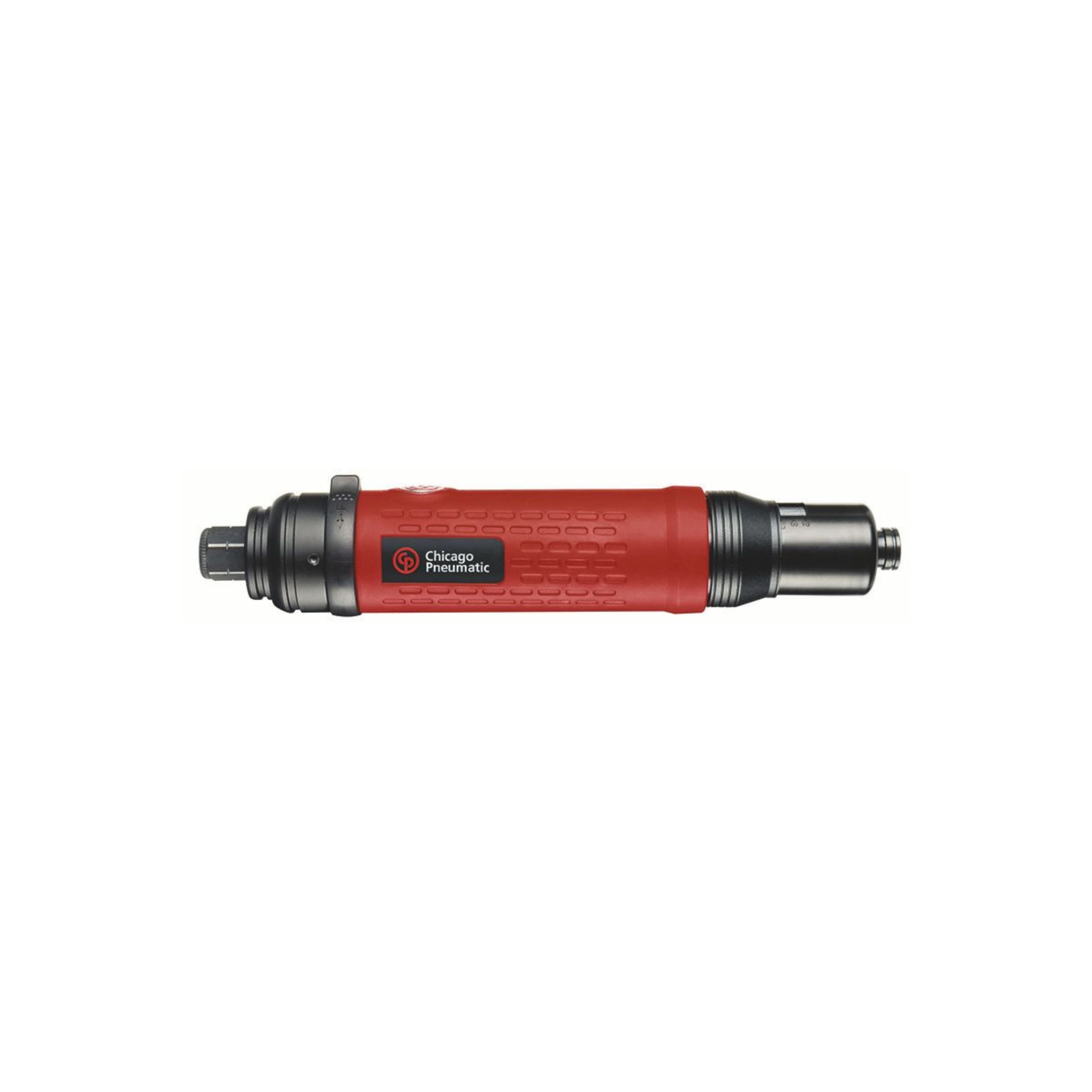

1/4" Hex straight shut off reverse pneumatic screwdriver

The CP2621/CP2622 Series are pistol 1/4" hex pneumatic screwdrivers offering keyless torque setting with color rings and a shut-off clutch for accurate tightening.
Operator comfort is ensured with its limited noise level and the straight push-to-start operation.
Available in 2 free speed levels: Medium (CP2621) and high speed (CP2622) for high productivity.
Country of origin is TW. Customs tariff is 84671190

Compare
SEND INQUIRY
Category:

Technical Specifications

Torque
Max torque in forward6.5 Nm
Min torque in forward0.8 Nm
Torque Control SystemShut-off pneumatic valve

Design & Functions
AdjustmentRotative ring
BodySteel
Clutch housingSteel
Clutch TypeBall clutch
Handle typeStraight handle
Main Material typeAluminium, Composite over-sleeve
Output drive size (in)1/4
Output drive typeHex
Output retainer typeQuick change
ReversibleYes
Starting systemPush start

Speed
Free Speed1000 rpm
Air consumption at free speed14 l/s

Air information
Air inlet thread size (in)1/4
Air inlet thread typeNPT
Max dynamic air working pressure6.3 bar
Min hose diam (16 ft hose length)0.38 in
Min hose diam (5 m hose length)10 mm

Size & Weight
Length (L)232 mm
Weight0.8 kg

Noise & vibrations
Sound Power87 dB(A)
Sound Pressure76 dB(A)
Vibration (m/s²)<2.5
Weight1,13 kg
Dimensions28,3 × 10,4 × 5,3 cm
