CP2810

6151630070

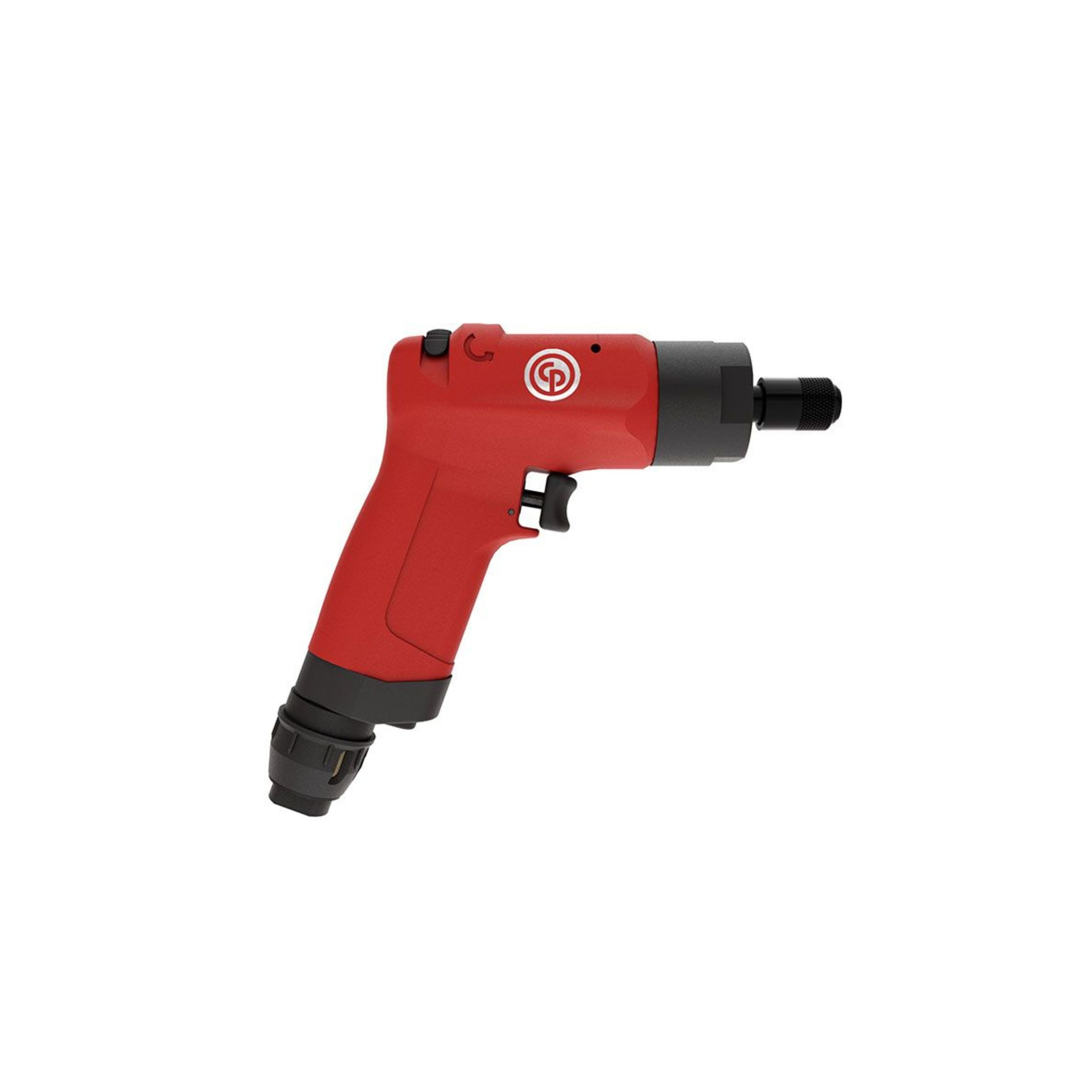

1/4" HEX PISTOL DIRECT DRIVE PNEUMATIC SCREWDRIVER

The CP28 series direct drive pneumatic screwdriver have a high robustness with aluminum body.
Designed for heavy duty applications.
It has a speed of 2400 rpm and offers a tightening torque up to 3.32 ft.lb/4.5 Nm for the CP2810.
CP2811 offers a speed of 750 rpm and a tightening torque up to 8.85 ft.lb/12 Nm.
Good handling is ensured thanks to its convenient progressive trigger and one-hand reverse button.
Country of origin is HU. Customs tariff is 84671190

Compare
SEND INQUIRY
Category:

Technical Specifications

Torque
Max torque in forward4.5 Nm
Torque Control SystemNone

Design & Functions
BodyAluminum
Clutch housingSteel
Clutch TypeDirect drive
Handle typePistol
Output drive size (in)1/4
Output drive typeHex
Output retainer typeQuick change
ReversibleYes
Starting systemTrigger

Speed
Free Speed2400 rpm
Air consumption at free speed5.6 l/s

Air information
Air inlet thread size (in)1/4
Air inlet thread typeBSP
Max dynamic air working pressure6.3 bar
Min hose diam (16 ft hose length)0.31 in
Min hose diam (5 m hose length)8 mm

Size & Weight
Height (H)160 mm
Length (L)183 mm
Width (W)49 mm
Weight0.8 kg

Noise & vibrations
Sound Power94 dB(A)
Sound Pressure83 dB(A)
Vibration (m/s²)<2.5
Weight1,24 kg
Dimensions38,5 × 18 × 6,8 cm
