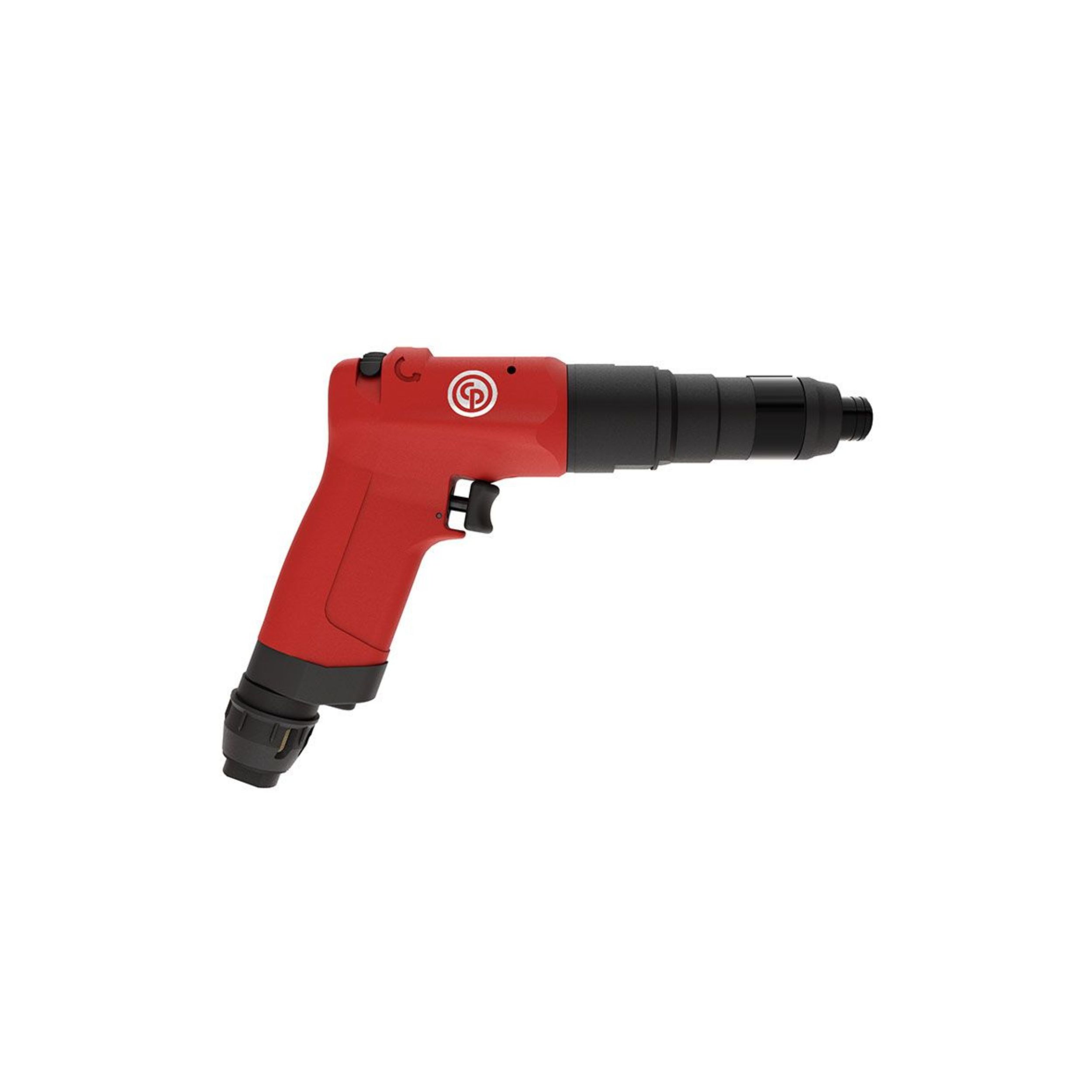

1/4" HEX PISTOL CUSHION PNEUMATIC SCREWDRIVER

The CP2816/CP2817 Series are 1/4" hex pistol cushion clutch screwdrivers designed for your heavy duty applications.
Well-balanced and lightweight design based on rugged aluminum housing with a comfortable rubber grip to ensure operator comfort.
Available in 2 free speed levels: 800 rpm CP2817 and 1900 rpm CP2816.
Country of origin is HU. Customs tariff is 84671190

Compare
ADD TO QUOTE
Category:

Technical Specifications

Torque
Max torque in forward11 Nm
Min torque in forward2.5 Nm
Torque Control SystemNon shut-off clutch

Design & Functions
AdjustmentKey
BodyAluminum
Clutch housingSteel
Clutch TypeCushion clutch
Handle typePistol
Main Material typeAluminium, Composite over-sleeve
Output drive size (in)1/4
Output drive typeHex
Output retainer typeQuick change
ReversibleYes
Starting systemPush start

Speed
Free Speed950 rpm
Air consumption at free speed8.4 l/s

Air information
Air inlet thread size (in)1/4
Air inlet thread typeBSP
Max dynamic air working pressure6.3 bar
Min hose diam (16 ft hose length)0.38 in
Min hose diam (5 m hose length)10 mm

Size & Weight
Height (H)160 mm
Length (L)232 mm
Width (W)49 mm
Weight1.1 kg

Noise & vibrations
Sound Power93 dB(A)
Sound Pressure82 dB(A)
Vibration (m/s²)<2.5
Weight1,47 kg
Dimensions38,5 × 7 × 18 cm
