CP3000-600CR 3mm

Part No: 6151600330

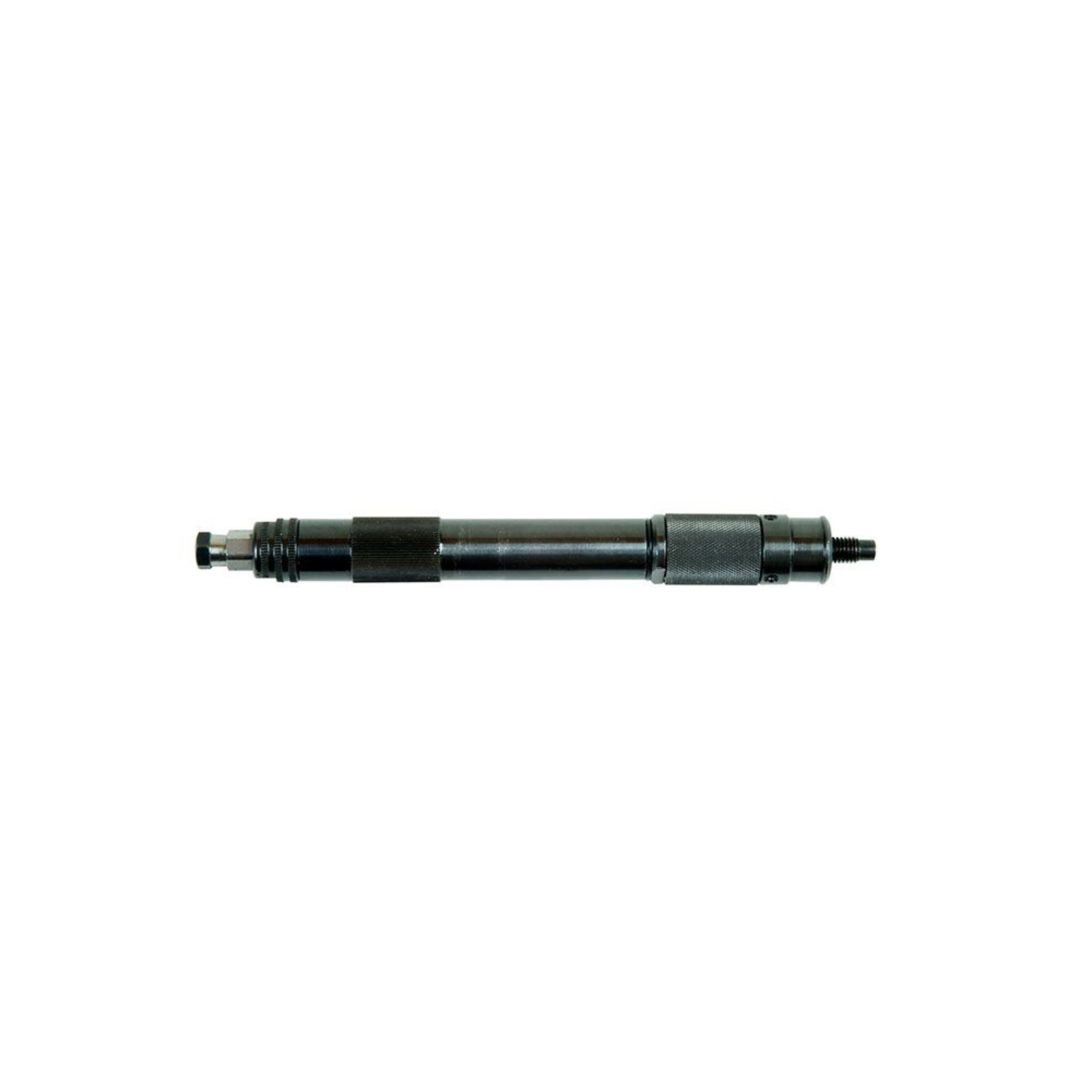

1/8″(3 mm) PNEUMATIC DIE GRINDER

The CP3000-600CR pneumatic Pencil Grinders, with a collet capacity of 1/8 (3 mm) is made of steel for great durability while also being lightweight for operator comfort. This model features a rotary valve for smooth power adjustment and a grooved housing for an incomparable working precision. Silencer hose is included.Country of origin is JP. Customs tariff is 84671110

Compare
ADD TO QUOTE
Category:

Technical Specifications

Size & Weight
Length (L)153 mm
Weight0.14 kg

Speed
Free Speed60000 rpm
Air consumption at free speed3.6 l/s

Air information
Air consumption at load2.6 l/s
Air inlet thread size (in)1/4
Air inlet thread typeNPT-male
Max dynamic air working pressure6.3 bar
Min hose diam (16 ft hose length)0.25 in
Min hose diam (5 m hose length)6 mm

Noise & vibrations
Sound Power82 dB(A)
Sound Pressure71 dB(A)
Vibration (m/s²)<2.5

Tightening Strategies
Angle TypeStraight

Power
Max power90 W

Design & Functions
Collet max capacity3mm (only for Die Grinders)
ExhaustRear
Governor typeNA
Main Material typeSteel
Rotative inletNo
Spindle lockNo
Weight0,539 kg
Dimensions22,1 × 18,5 × 7,1 cm
