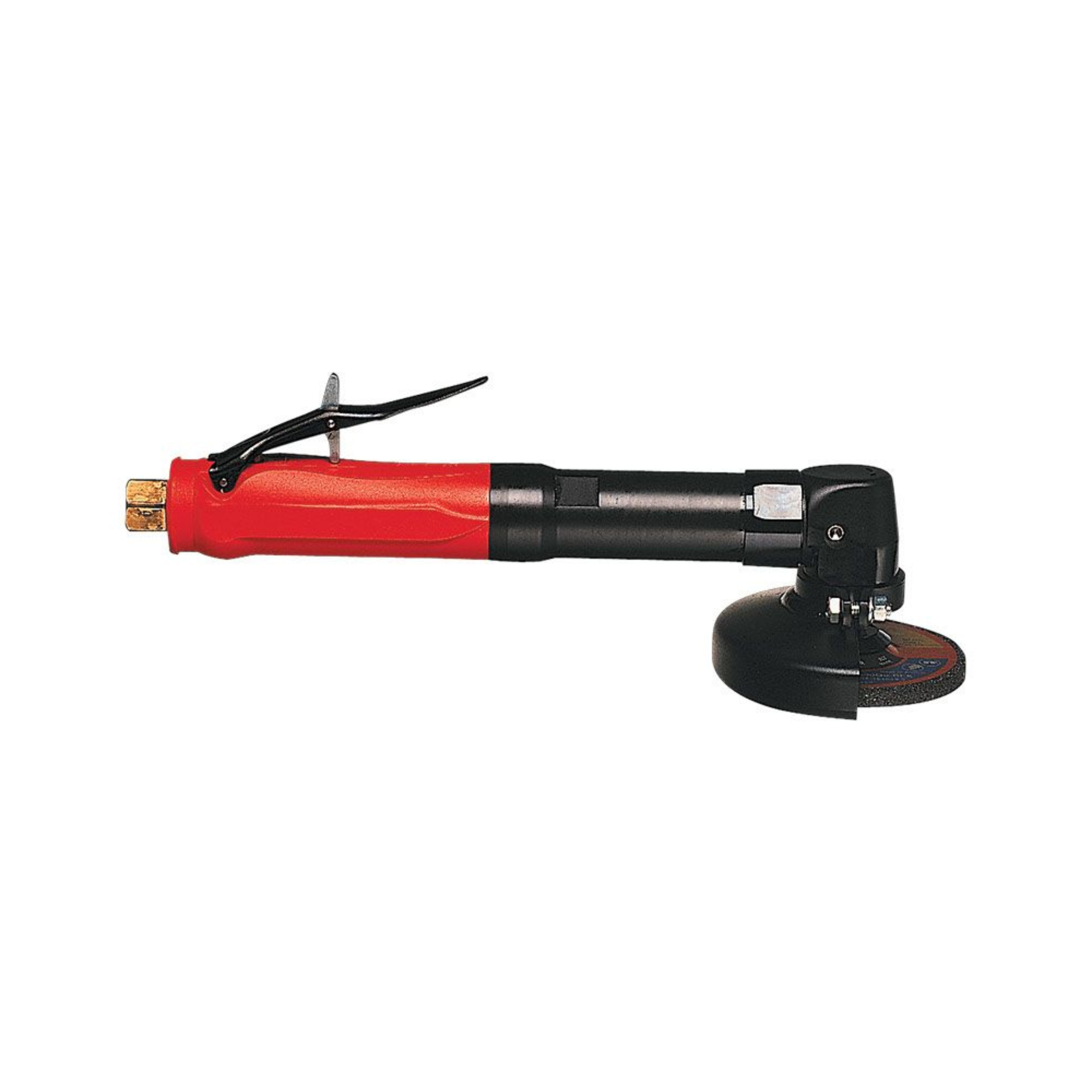

CP3019 20AES3 1

CP3019-20AES3

Part No: 6151700460

Long angle grinder for grinding diameter 76 mm.

The combination of extreme durability and powerful motor makes the CP3019 Angle Grinders range a great product for strong productivity. Designed with a governed motor and streamlined safety level, it offers a strong safety level for the operator. 3 models from 3’ (75mm) to 4’ (100mm) max wheel capacity and a 0.5 hp (375 W) powerful motor define the range. CP3019 compact Angle Grinder range free speed is from 13,500 to 20,000 rotations per minute.Country of origin is HU. Customs tariff is 84671110
SEND INQUIRY
Category:

Technical Specifications

Speed
Free Speed20000 rpm
Air consumption at free speed6 l/s
Design & Functions
AutobalancerNo
Guard max rotation360°
Guard positions0
Main Material typeAluminium, Composite over-sleeve
Output Spindle Thread3/8-24 UNF
Rotative guard typeBand
Spindle lockNo
Starting systemLever
Swiveling guardKey
Wheel/Disc diameter (in)3
Wheel/Disc diameter (mm)75 mm
Noise & Vibrations
Sound Power94 dB(A)
Sound Pressure83 dB(A)
Uncertainty vibration-K3.2 m/s²
Vibration13.3 m/s²
Air Information
Air consumption at load9 l/s
Air inlet thread size (in)1/4
Air inlet thread typeNPT
Max dynamic air working pressure6.3 bar
Min hose diam (16 ft hose length)0.31 in
Min hose diam (5 m hose length)8 mm
Power
Max power375 W
Size & Weight
Length (L)243 mm
Weight0.8 kg
Weight1,46 kg
Dimensions22,7 × 38,2 × 9,8 cm
