CP3040GASTIM

Part No: 6151607020

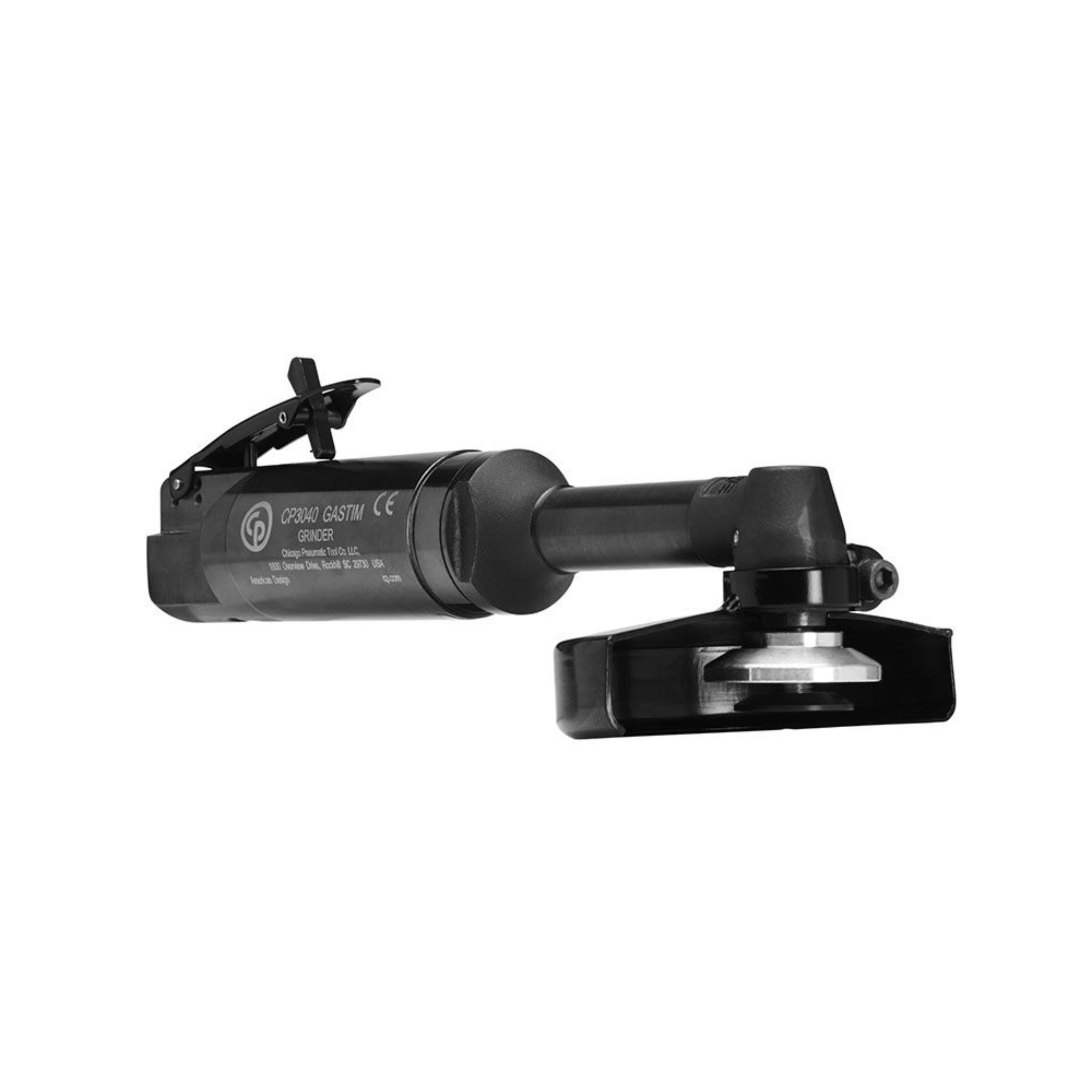

4″(100 mm) PNEUMATIC ANGLE GRINDER

The CP3040, 4″ (100 mm) steel construction angle grinder is a perfect match when working in industrial maintenance and production. With a generated power of 0.5 hp (375 W) and designed with a 3/8-24′ spindle thread. CP3040 is ultra compact and provide a free speed of 13 500 rotation per minutes. 2 models available: Standard and extended shaft.Country of origin is TW. Customs tariff is 84671110

SEND INQUIRY
Category:

Technical Specifications

Speed
Free Speed13500 rpm
Air consumption at free speed15 l/s

Design & Functions
Guard positions0
Main Material typeSteel
Output Spindle Thread3/8-24 UNF
Starting systemSafety lever
Wheel/Disc diameter (in)4
Wheel/Disc diameter (mm)100

Noise & vibrations
Sound Power103 dB(A)
Sound Pressure92 dB(A)
Uncertainty vibration-K3.3 m/s²
Vibration9.6 m/s²

Air information
Air consumption at load12 l/s
Air inlet thread size (in)3/8
Max dynamic air working pressure6.3 bar
Min hose diam (16 ft hose length)0.38 in
Min hose diam (5 m hose length)13 mm

Power
Max power750 W

Size & Weight
Length (L)270 mm
Weight1.7 kg
Weight2,2 kg
Dimensions30 × 12,5 × 9,5 cm
