CP3109 15ES CNOMO 1

CP3109-24ES CNOMO

Part No: 6151701060

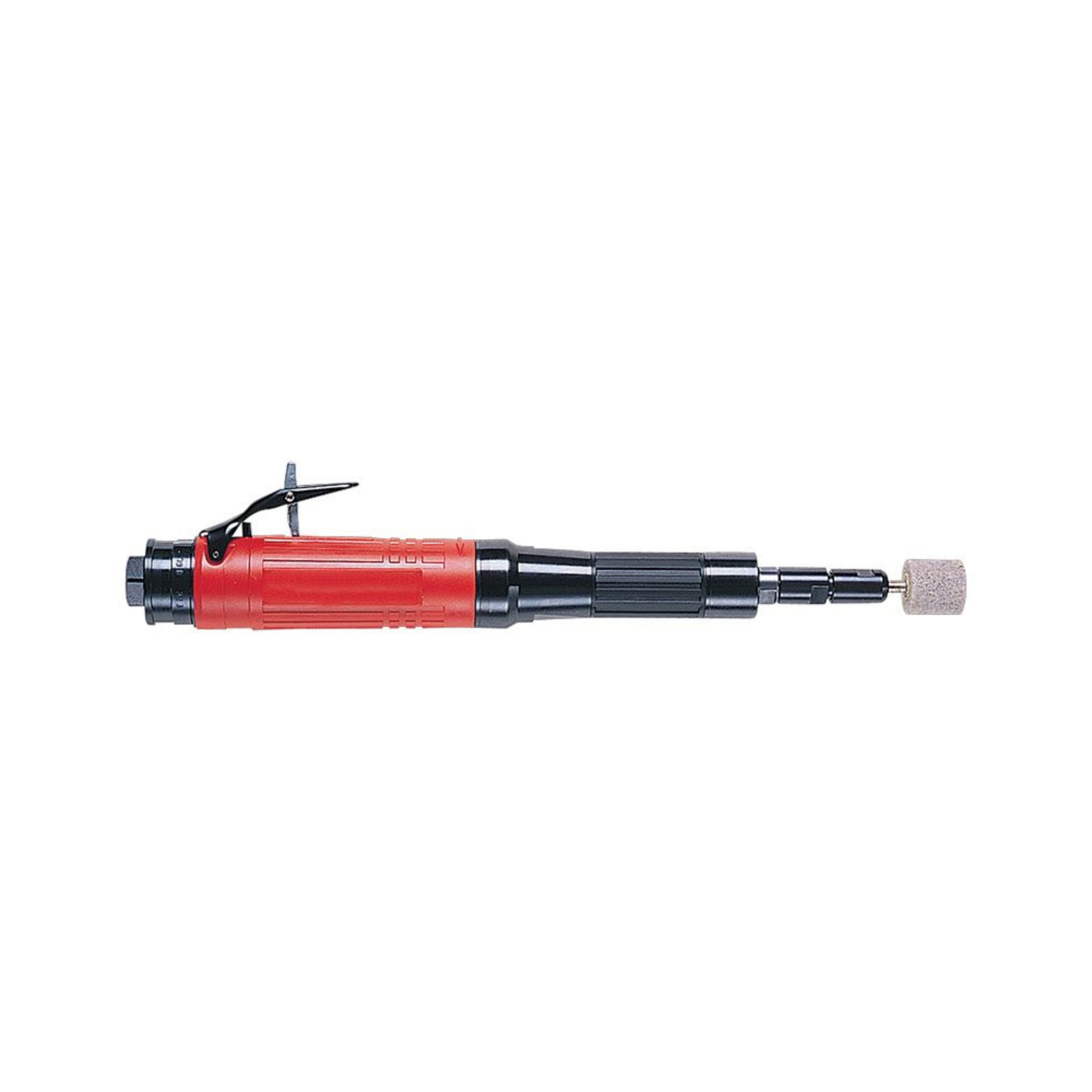

1/4″(6 mm) PNEUMATIC DIE GRINDER

The CP3109 Series – pneumatic Straight Die Grinders – meets the intensive needs of grinding, contouring, deburring, and cleaning with carbide burrs, mounted points, abrasive wheels, and flap wheels. This model with an extended straight housing has a CNOMO collet with a very durable bevel gear and a powerful 0.8 hp (600 W) motor. It has a free speed of 24,000 rpm.Country of origin is HU. Customs tariff is 84671110

SEND INQUIRY
Category:

Technical Specifications

Size & Weight
Length (L) 363 mm
Weight 1.3 kg

Speed
Free Speed 24000 rpm
Air consumption at free speed 6 l/s

Air information
Air consumption at load 15 l/s
Air inlet thread size (in) 3/8
Air inlet thread type BSP
Min hose diam (16 ft hose length) 0.38 in
Min hose diam (5 m hose length) 10 mm

Noise & vibrations
Sound Power 92 dB(A)
Sound Pressure 81 dB(A)
Uncertainty vibration-K 1.5 m/s²
Vibration (m/s²) 2.6

Tightening Strategies
Angle Type Straight

Power
Max power 600 W

Design & Functions
Collet max capacity 15/64 (6.0mm)
Collet/Collet holder/Collet nut type Cnomo type
Exhaust Rear
Governor type Ball
Main Material type Aluminium, Composite over-sleeve
Rotative inlet No
Spindle lock No
Starting system Safety lever
Weight 1,83 kg
Dimensions 22,1 × 38 × 9,8 cm
