CP6500-RSR

T025216

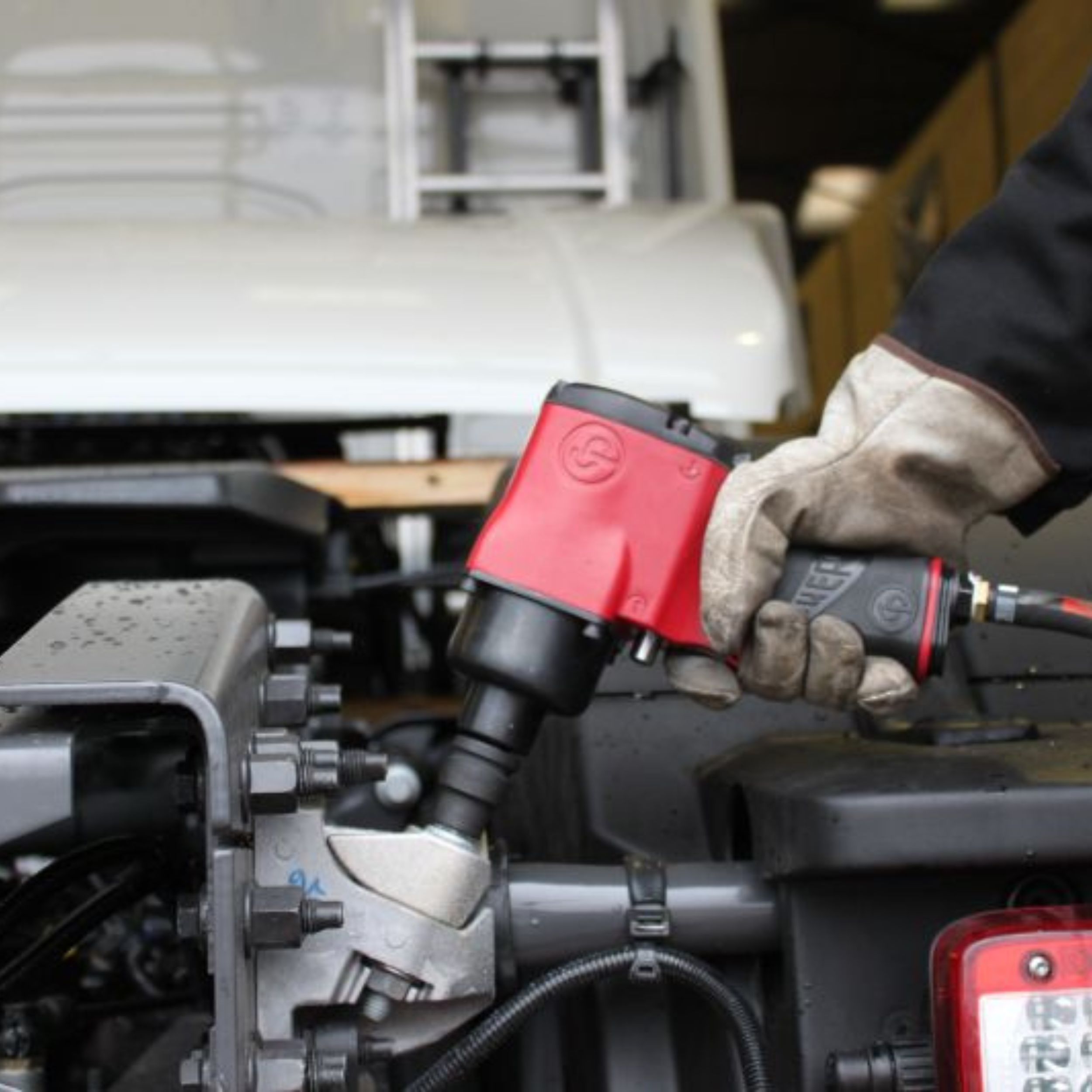

1/2″ Pistol pneumatic impact wrench

The CP6500 1/2″ impact wrench is a safe bet. With its powerful oil bath twin hammer clutch mechanism, aluminium body, and steel clutch housing, it is a perfect bolting tool for tough environments. It delivers max reverse torque up to 850 Nm / 625 ft.lb. The oil bath clutch mechanism guarantees a low level of friction, which increases clutch component lifespan. The CP6500 Series includes 2 models: RS : ring socket retainer and PSR : pin socket retainer. Country of origin is JP. Customs tariff is 84671190

Included Items
1/2″ Pistol pneumatic impact wrench (x1)

SEND INQUIRY
Category:

Technical Specifications

Torque
Max working torque fwd 680 Nm
Max torque reverse 850 Nm
Min working torque fwd 170 Nm
Torque limited No

Air information
Air inlet thread size (in) 1/4
Max dynamic air working pressure 6.3 bar
Min hose diam (5 m hose length) 10 mm

Noise & vibrations
Sound Power 107 dB(A)
Sound Pressure 96 dB(A)
Uncertainty vibration-K 2.5 m/s²
Vibration (m/s²) 8
Vibration 8 m/s²

Speed
Free Speed 6400 rpm

Size & Weight
Length (L) 178 mm
Power weight ratio 320 Nm/kg
Side to Center 32 mm
Weight 2.65 kg

Design & Functions
Blow per minute 1320
Body Aluminium
Clutch housing Steel
Clutch lubrication type Oil bath
Handle type Pistol
Impact mecanism Twin hammer
Main Material type Aluminium
Output drive size (in) 1/2
Output drive type Sq
Output retainer type Friction ring
Starting system Trigger
Weight 3,02 kg
Dimensions 21,5 × 22,3 × 9 cm
