CP6930-D35

Part No: 6151590390

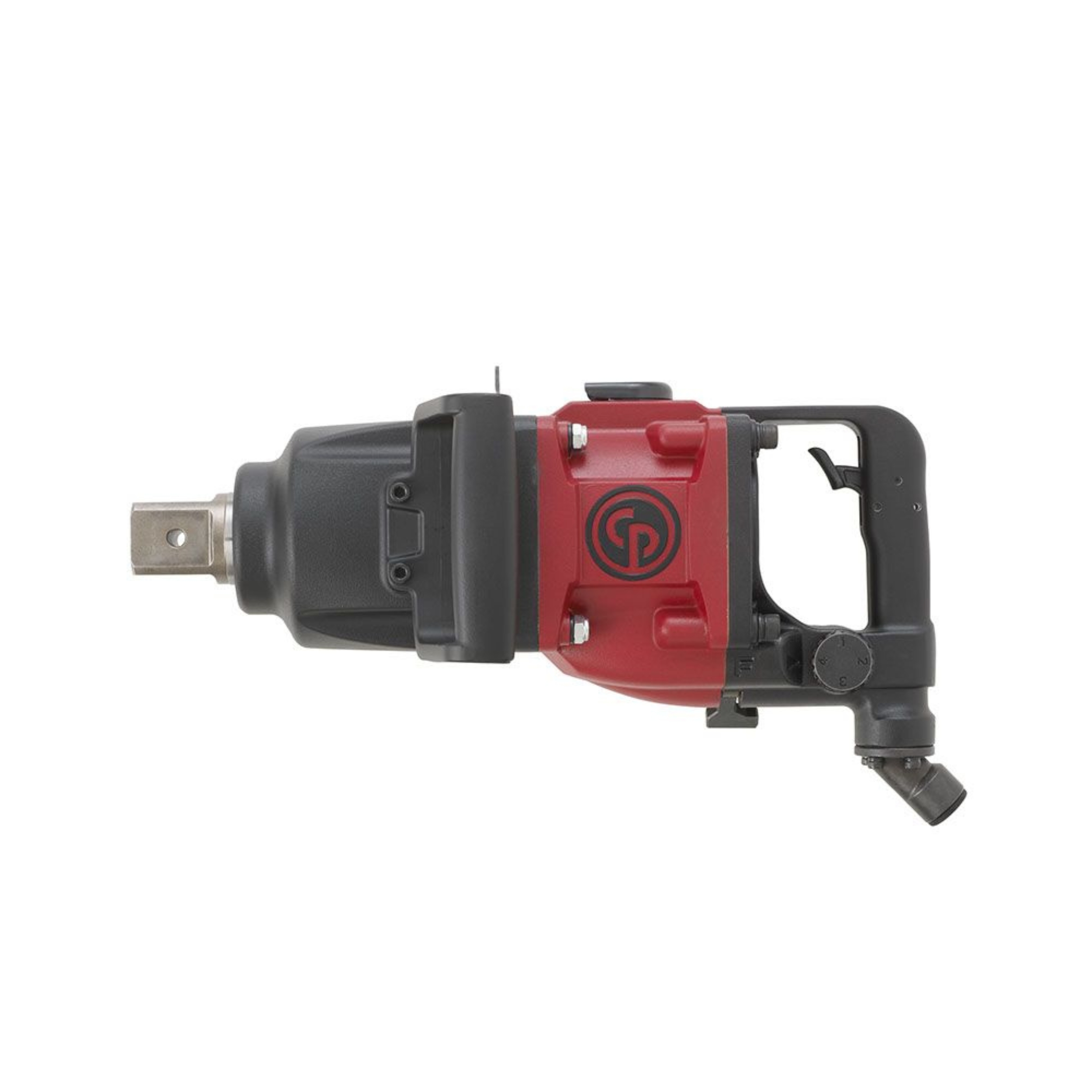

1-1/2″ D-handle pneumatic impact wrench

Increased robustness thanks to the powerful 1-1/2″ impact wrench, designed with oil bath twin hammer clutch mechanism, aluminium body, and clutch housing. With a maximum reverse torque of up to 3,900 Nm / 2,875 ft.lb., the CP6930-D35 is the ideal solution for maintenance applications. It is reversible and its steel trigger allows makes it easy to use in the bolting phases. The CP6930-D35 is equipped with a hole socket retainer for maximum safety.Country of origin is TW. Customs tariff is 84671190

Compare
ADD TO QUOTE
Category:

Technical Specifications

Torque
Max working torque fwd2650 Nm
Max torque reverse3900 Nm
Min working torque fwd600 Nm
Torque limitedNo

Air information
Air inlet thread size (in)1/2
Max dynamic air working pressure6.3 bar
Min hose diam (16 ft hose length)0.75 in
Min hose diam (5 m hose length)16 mm

Noise & vibrations
Sound Power112.5 dB(A)
Sound Pressure101.5 dB(A)
Uncertainty vibration-K5.5 m/s²
Vibration (m/s²)15.1
Vibration15.1 m/s²

Speed
Free Speed4300 rpm
Air consumption at free speed47 l/s

Size & Weight
Length (L)440 mm
Power weight ratio270 Nm/kg
Side to Center65 mm
Weight14.3 kg

Design & Functions
Blow per minute850
BodyAluminium
Clutch housingAluminium
Clutch lubrication typeOil bath
Handle typeD-handle
Impact mecanismTwin hammer
Output drive size (in)1-1/2
Output drive typeSq
Output retainer typeHole
Side handleYes
Starting systemTrigger
Weight16,4 kg
Dimensions50,5 × 28,5 × 19 cm
