CP721

    T021963

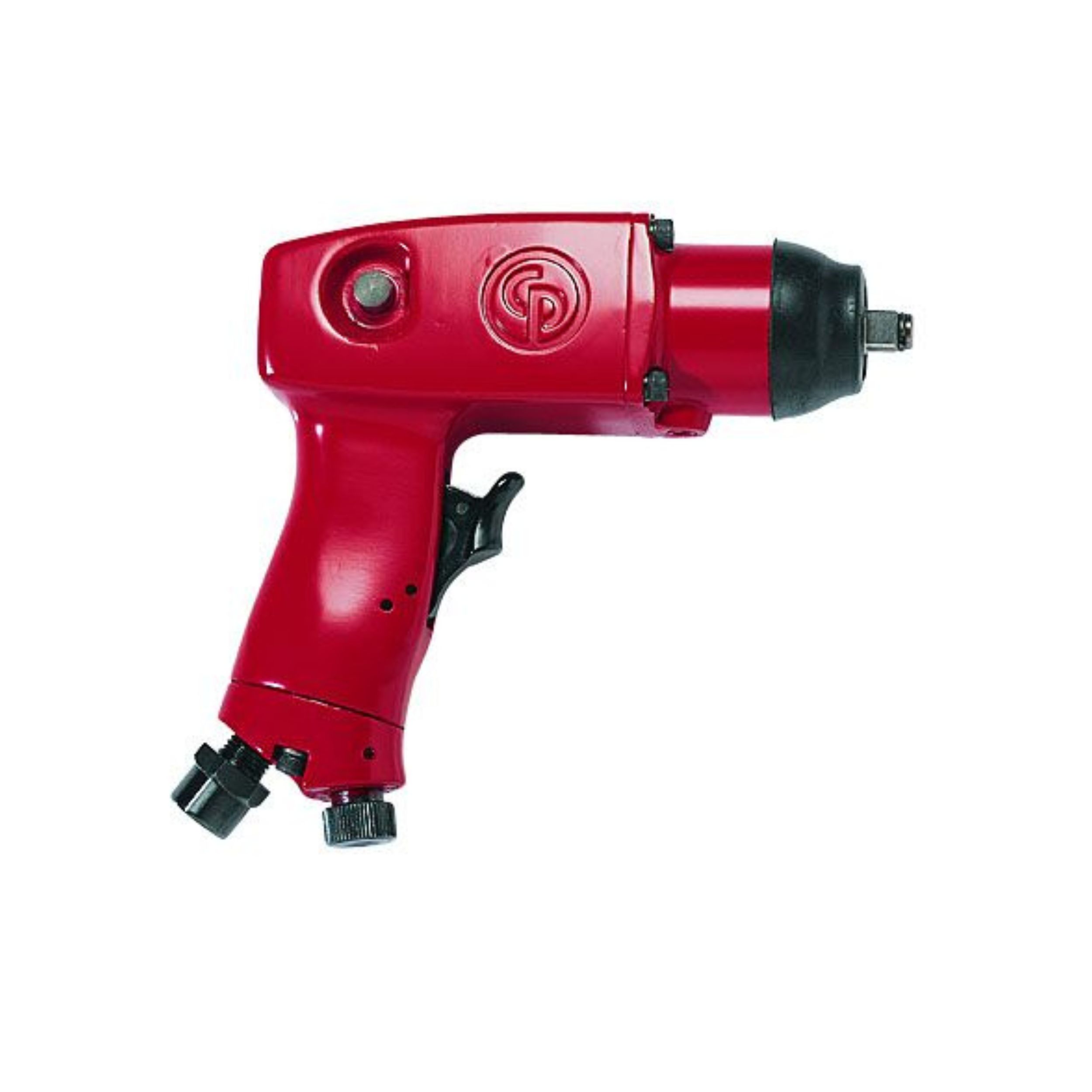

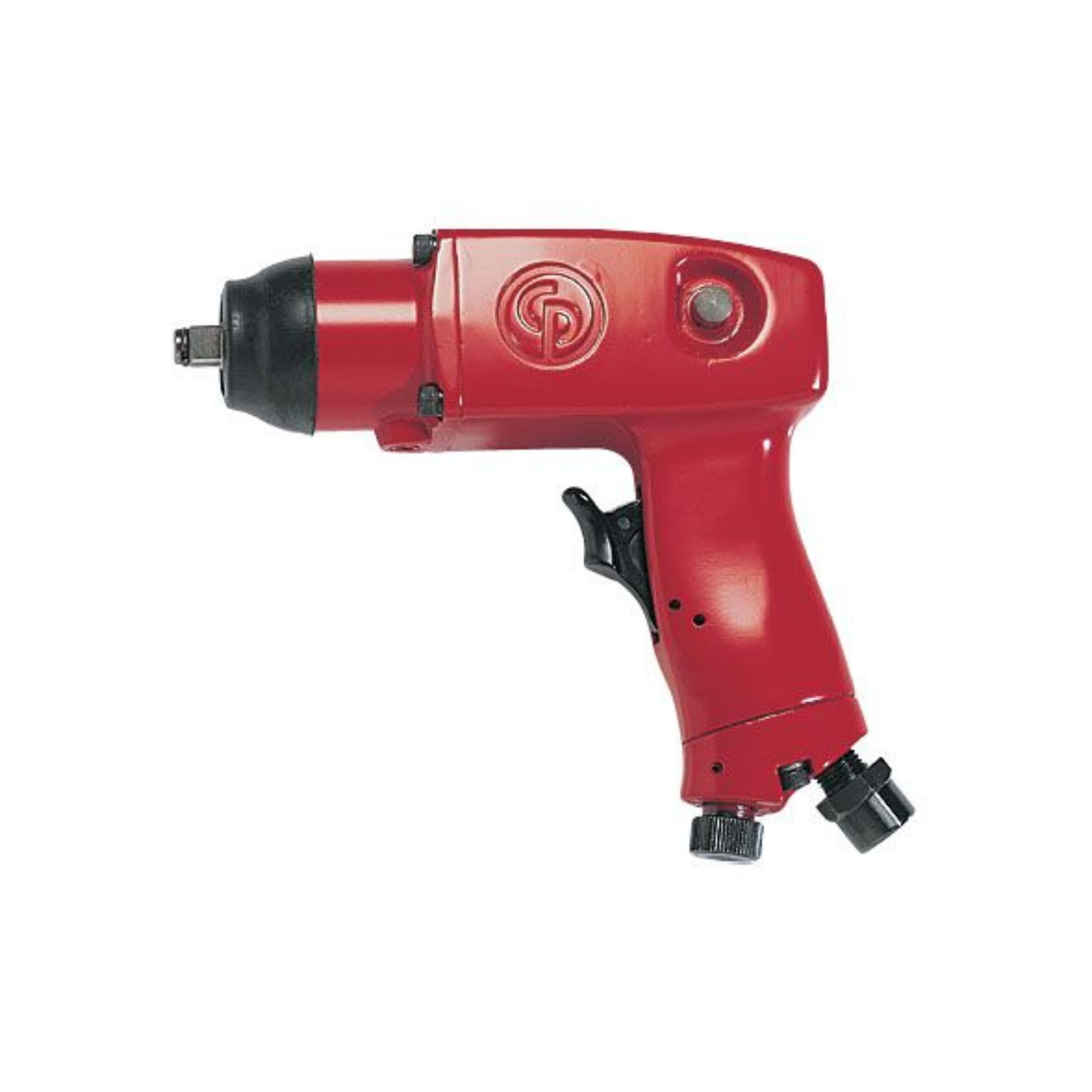

    3/8″ Pneumatic impact wrench

    The CP721 Series 3/8″ impact wrench offers a rocking dog mechanism and a metal motor housing for high durability and smooth operation. High productivity is ensured with a torque of 75 ft.lbs / 102 Nm while also being compact and comfortable to use. Country of origin is JP. Customs tariff is 84671190

    Included Items
    3/8″ Pneumatic impact wrench (x1)

    SEND INQUIRY
    Category:

      Technical Specifications

      Torque
      Max working torque fwd 68 Nm
      Max torque reverse 102 Nm
      Min working torque fwd 7 Nm
      Torque limited No

      Air information
      Air consumption at load 4.7 l/s
      Air inlet thread size (in) 1/4
      Max dynamic air working pressure 6.3 bar
      Min hose diam (16 ft hose length) 0.38 in
      Min hose diam (5 m hose length) 10 mm

      Noise & vibrations
      Sound Power 98 dB(A)
      Sound Pressure 87 dB(A)
      Uncertainty vibration-K 3.3 m/s²
      Vibration 4.7 m/s²

      Speed
      Free Speed 11000 rpm

      Size & Weight
      Length (L) 146 mm
      Power weight ratio 85 Nm/kg
      Weight 1.2 kg

      Design & Functions
      Blow per minute 1620
      Body Aluminum
      Clutch housing Aluminum
      Clutch lubrication type Oil bath
      Handle type Pistol
      Impact mecanism Rocking dog
      Main Material type Aluminium
      Output drive size (in) 3/8
      Output drive type Sq
      Output retainer type Friction ring
      Starting system Trigger
      Weight 1,46 kg
      Dimensions 23,5 × 16,8 × 6 cm
