CP749

    T024587

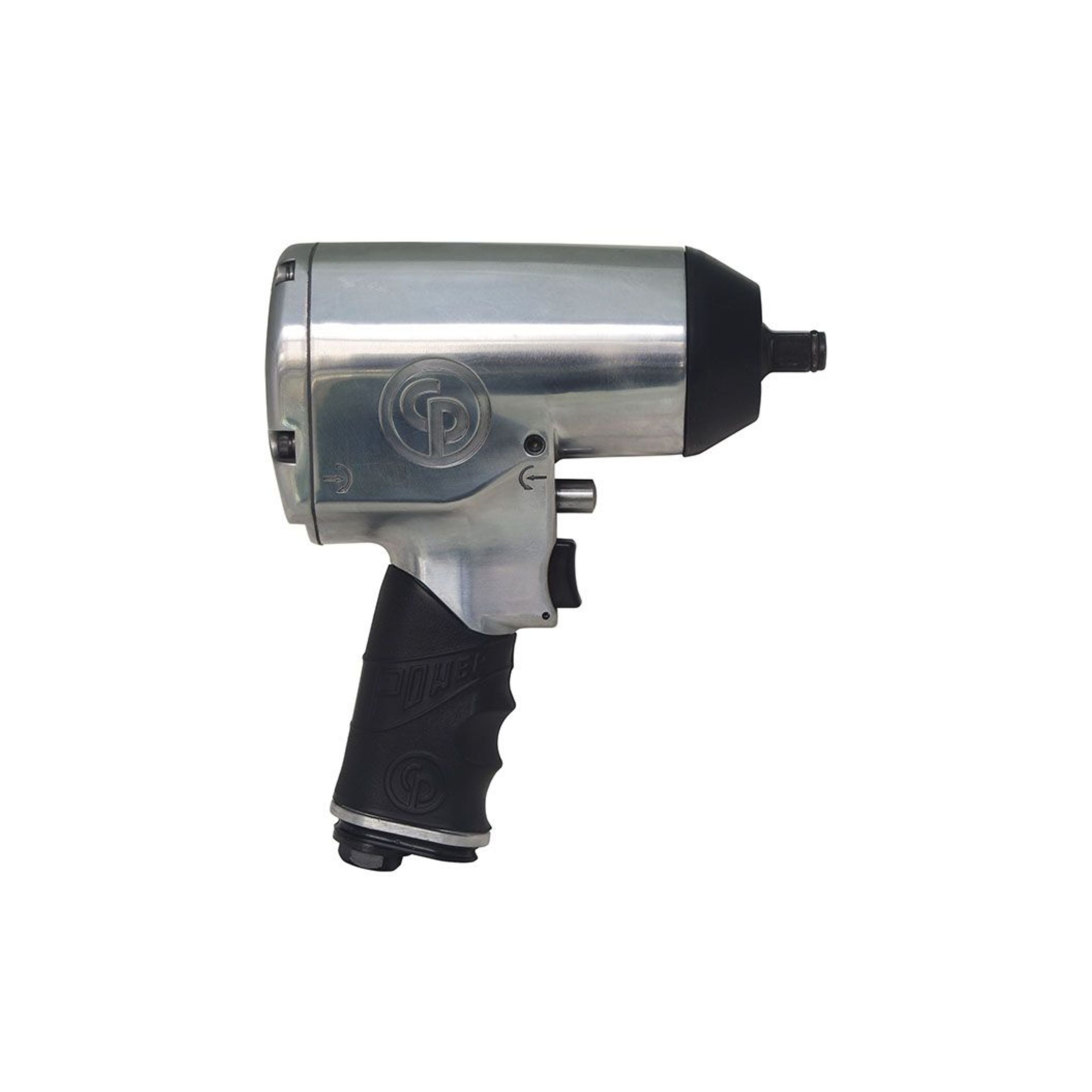

    1/2″ Pneumatic impact wrench

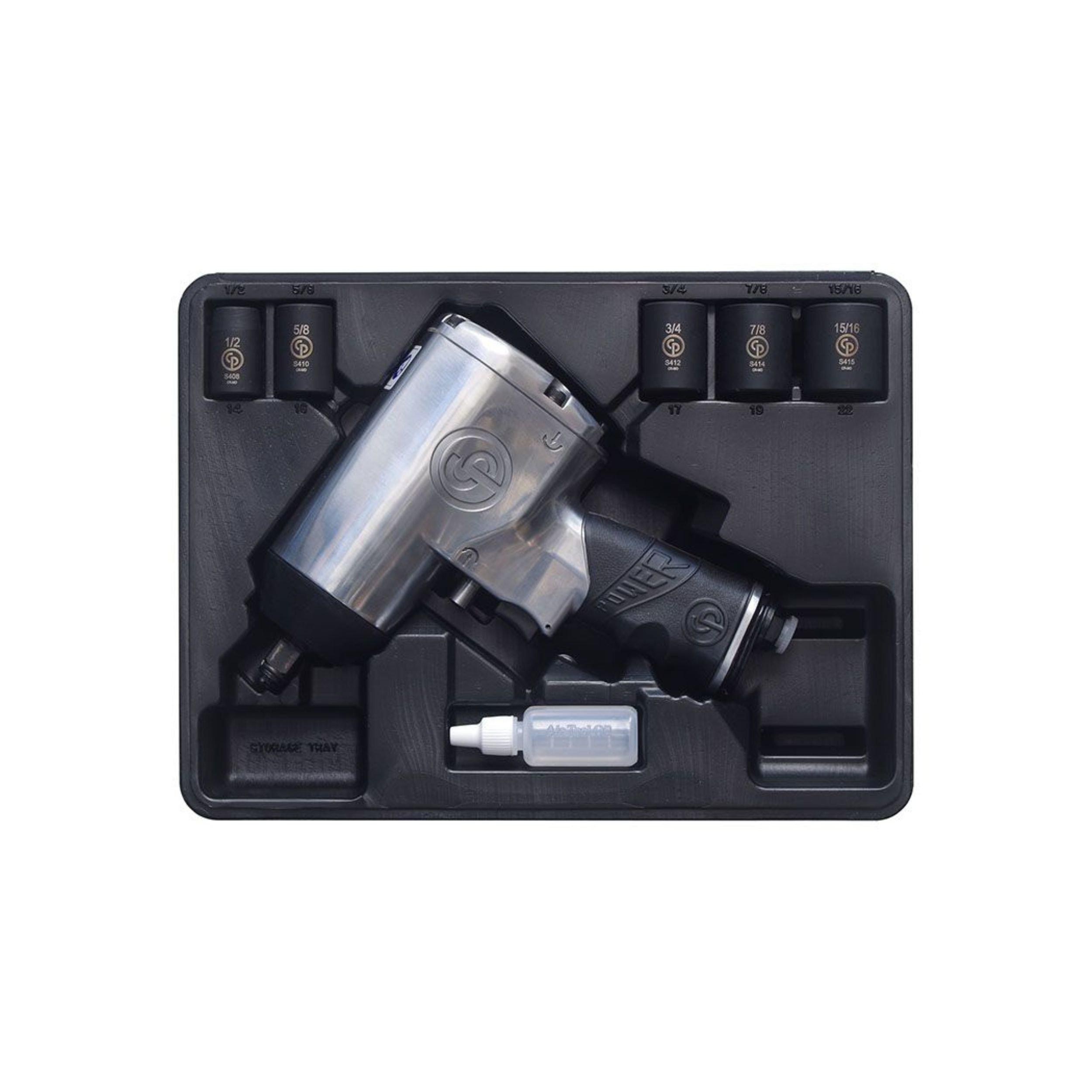

    CP749 Series 1/2″ impact wrench belongs to our Classic range. With its patented clutch mechanism in oil bath and metal motor housing, it is renowned for its durability. Efficient loosening and tightening of nuts is ensured with a torque of 610 ft.lbs / 827 Nm. The CP749 Series consists of 2 models: 1/2″ short anvil and 1/2″ long anvil. Country of origin is JP. Customs tariff is 84671190

    Included Items
    1/2″ Pneumatic impact wrench (x1)

    SEND INQUIRY
    Category:

      Technical Specifications

      Torque
      Max working torque fwd 610 Nm
      Max torque reverse 827 Nm
      Min working torque fwd 68 Nm
      Torque limited No

      Air information
      Air inlet thread size (in) 1/4
      Max dynamic air working pressure 6.3 bar
      Min hose diam (16 ft hose length) 0.38 in
      Min hose diam (5 m hose length) 10 mm

      Noise & vibrations
      Sound Power 107 dB(A)
      Sound Pressure 96 dB(A)
      Uncertainty vibration-K 2 m/s²
      Vibration (m/s²) 6.2
      Vibration 6.2 m/s²

      Speed
      Free Speed 6400 rpm

      Size & Weight
      Length (L) 178 mm
      Power weight ratio 330 Nm/kg
      Weight 2.5 kg

      Design & Functions
      Blow per minute 1320
      Body Aluminum
      Clutch housing Aluminum
      Clutch lubrication type Oil bath
      Handle type Pistol
      Impact mecanism Twin hammer
      Main Material type Aluminium
      Output drive size (in) 1/2
      Output drive type Sq
      Output retainer type Friction ring
      Starting system Trigger
      Weight 2,85 kg
      Dimensions 22 × 21,5 × 8,5 cm
