CP7500DK

Part No: 8941075002

2″(50 mm) PNEUMATIC ANGLE GRINDER

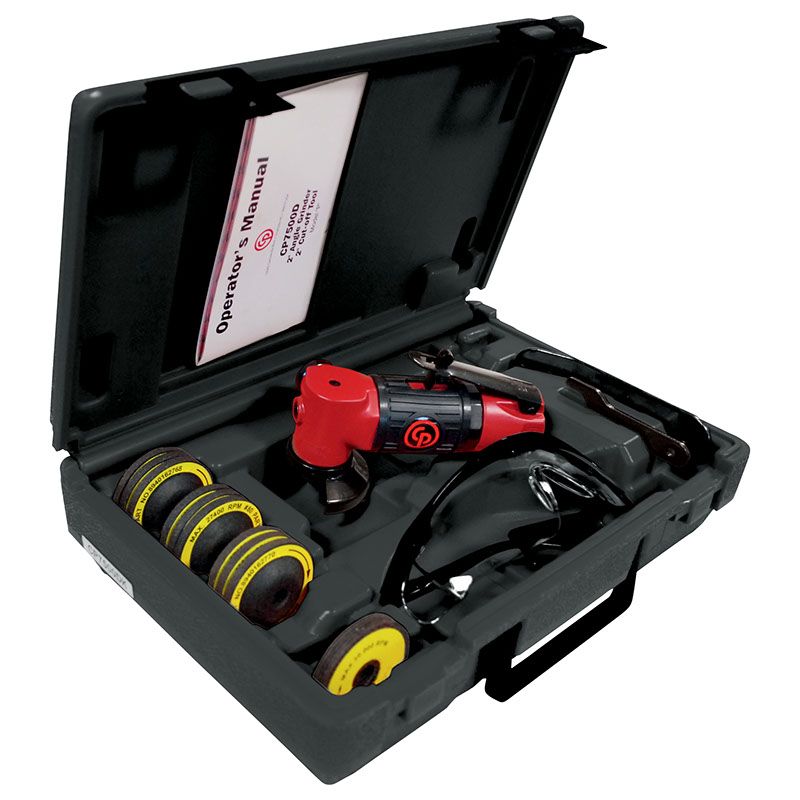

The CP7500 angle grinder series – 2″ (50 mm)-offers a compact design with its length of 5-1/2″ (140 mm) and its weight of 1.2 lbs – 0.59 kg. It is designed for general maintenance and is suitable for applications where space is limited. The CP7500 series is available as a bare tool or as a kit with a range of wheels.Country of origin is TW. Customs tariff is 84671110

Compare
SEND INQUIRY
Category:

Technical Specifications

Speed
Free Speed22000 rpm
Air consumption at free speed8 l/s

Design & Functions
AutobalancerNo
Guard max rotation360 °
Guard positions0
Main Material typeAluminium, Composite over-sleeve
Output Spindle Thread3/8-24 UNF
Rotative guard typeScrews
Spindle lockNo
Starting systemSafety lever
Swiveling guardKey
Wheel/Disc diameter (in)2
Wheel/Disc diameter (mm)50

Noise & vibrations
Sound Power92 dB(A)
Sound Pressure81 dB(A)
Uncertainty vibration-K6.7 m/s²
Vibration19.9 m/s²

Air information
Air consumption at load3.8 l/s
Air inlet thread size (in)1/4
Air inlet thread typeNPT
Max dynamic air working pressure6.3 bar
Min hose diam (16 ft hose length)0.38 in
Min hose diam (5 m hose length)10 mm

Power
Max power150 W

Size & Weight
Length (L)140 mm
Weight0.59 kg
Weight1,49 kg
Dimensions31 × 21 × 8,5 cm
