CP7630

    8941076300

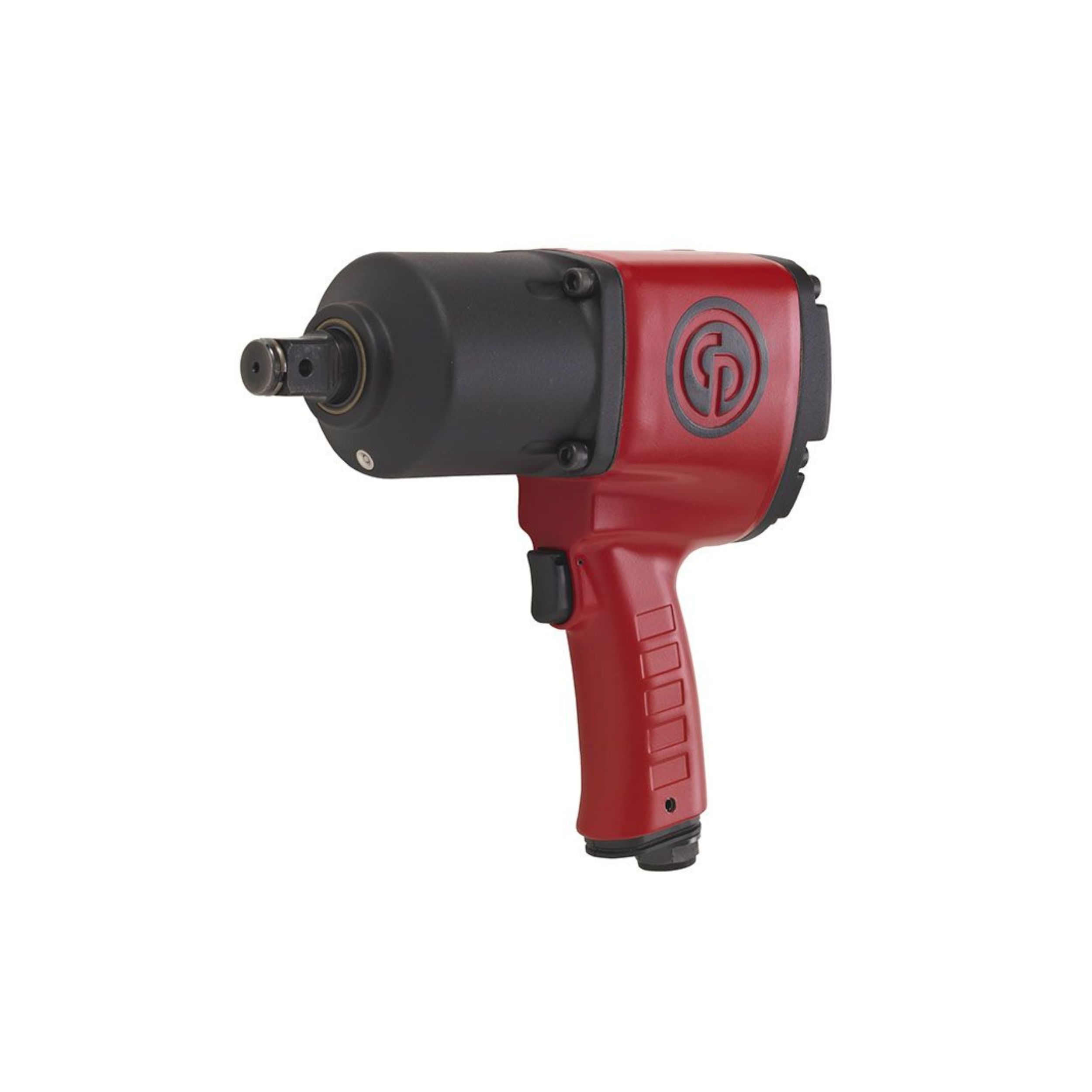

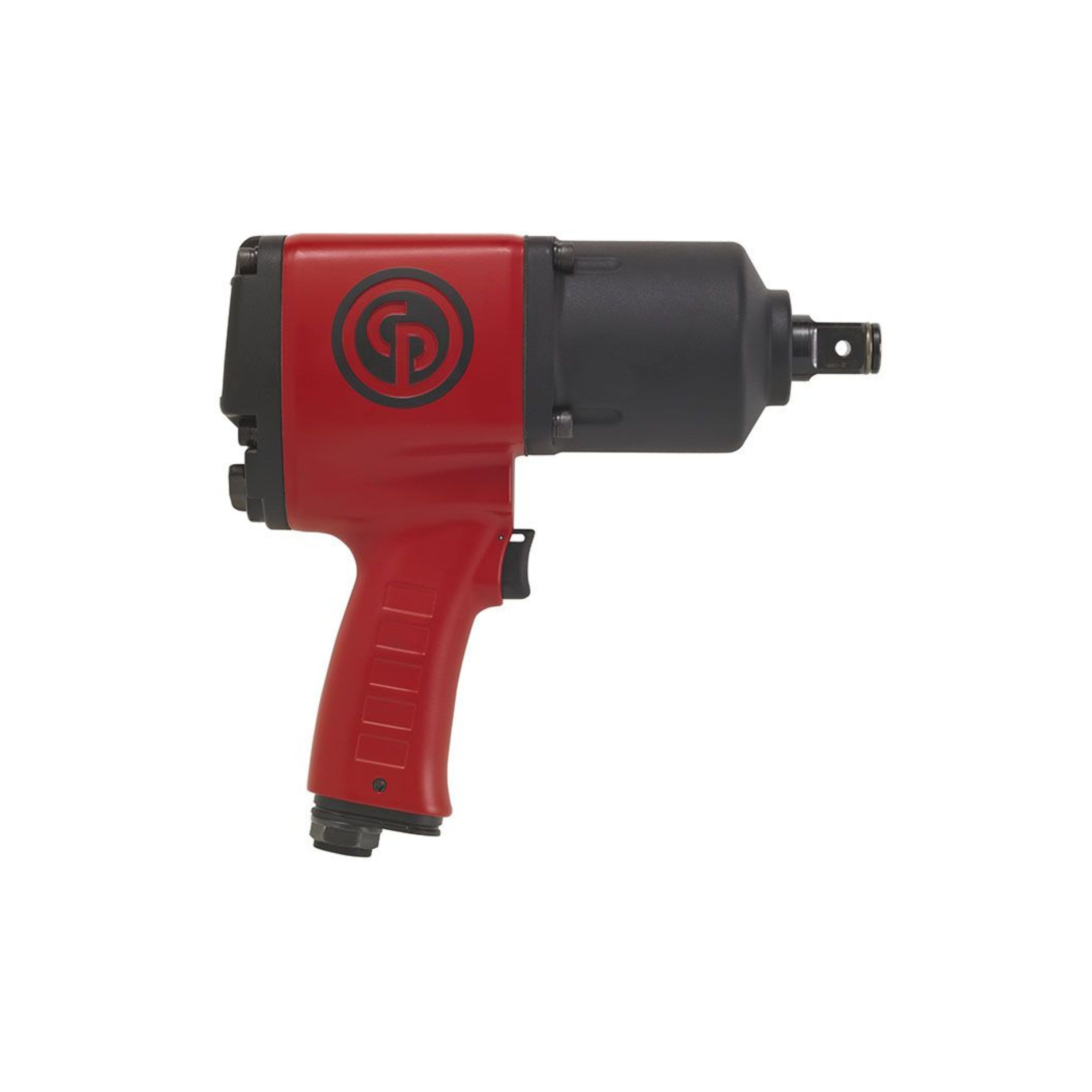

    3/4″ Pneumatic impact wrench

    This 3/4″ impact wrench, designed with a twin hammer impact mechanism and a metal motor housing for good performance is highly recommended. High productivity is ensured with a torque of 1,100 ft.lbs / 1,500 Nm. This model belongs to the CP7630 series which is composed of 2 models: 3/4″ short anvil and 3/4″ long anvil (6″ anvil). Country of origin is CN. Customs tariff is 84671190

    Included Items
    3/4″ Pneumatic impact wrench (x1)

    SEND INQUIRY
    Category:

      Technical Specifications

      Torque
      Max working torque fwd 1090 Nm
      Max torque reverse 1500 Nm
      Min working torque fwd 177 Nm
      Torque limited No

      Air information
      Air consumption at load 9.6 l/s
      Air inlet thread size (in) 3/8
      Max dynamic air working pressure 6.3 bar
      Min hose diam (16 ft hose length) 0.5 in
      Min hose diam (5 m hose length) 13 mm

      Noise & vibrations
      Sound Power 116.3 dB(A)
      Sound Pressure 105.3 dB(A)
      Uncertainty vibration-K 3 m/s²
      Vibration (m/s²) 9.8
      Vibration 9.8 m/s²

      Speed
      Free Speed 6900 rpm
      Air consumption at free speed 22 l/s

      Size & Weight
      Length (L) 240 mm
      Weight 4.8 kg

      Design & Functions
      Body Aluminium
      Clutch housing Steel
      Clutch lubrication type Grease
      Handle type Pistol
      Impact mecanism Twin hammer
      Main Material type Aluminium
      Output drive size (in) 3/4
      Output drive type Sq
      Output retainer type Dual
      Starting system Trigger
      Weight 5,38 kg
      Dimensions 28 × 24,7 × 10 cm
