    8941076428

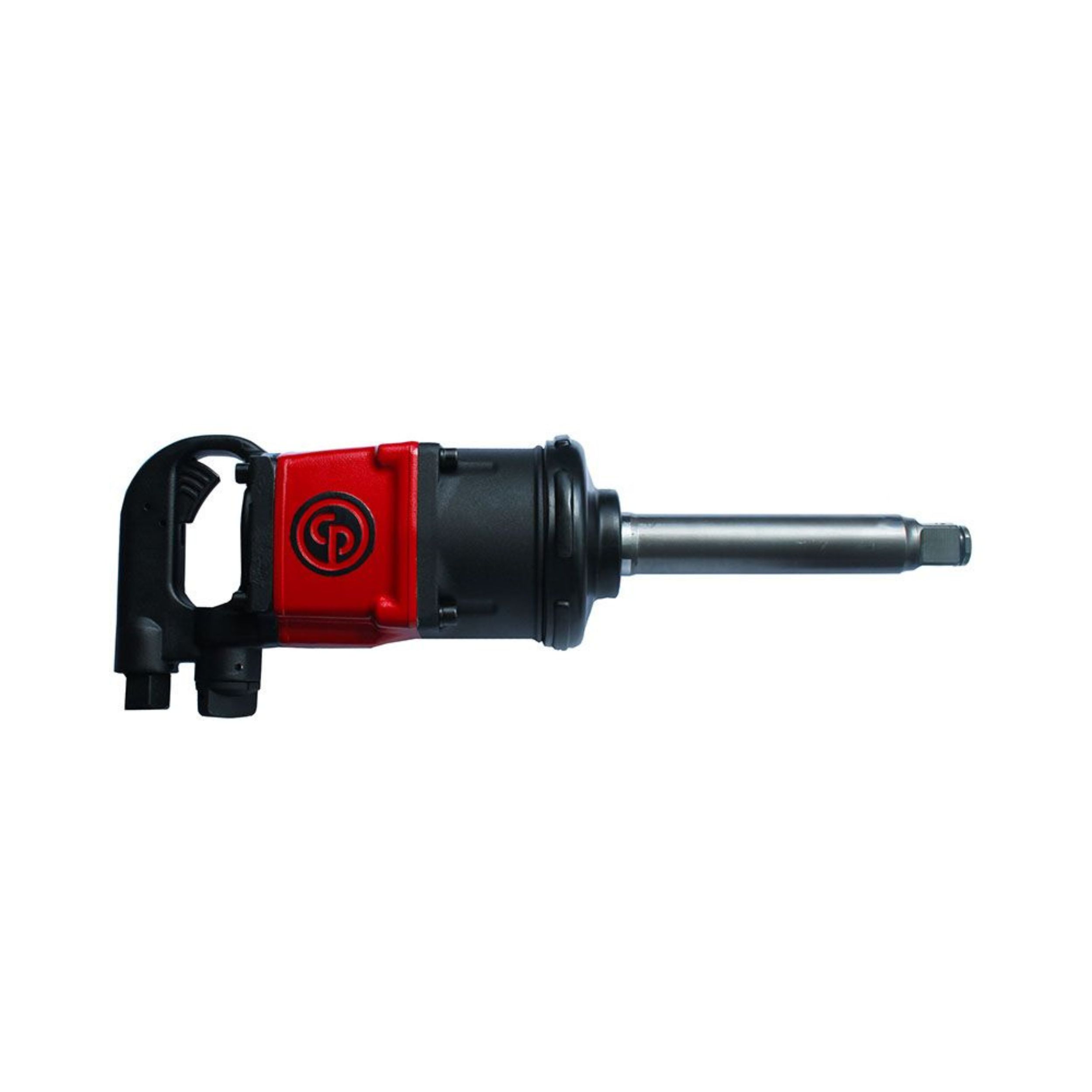

    1″ Pneumatic impact wrench

    The 8941076428 is a professional 1″ pneumatic impact wrench with a 6″ anvil, designed for heavy-duty industrial applications requiring high torque and durability.
    Country of origin is CN. Customs tariff is 84671190

    Included Items
    1″ Pneumatic impact wrench with 6″ anvil (x1)

    SEND INQUIRY
    Category:

      Technical Specifications

      Torque
      Max working torque fwd 1800 Nm
      Min working torque fwd 760 Nm
      Torque limited No

      Air information
      Air inlet thread size (in) 3/4
      Max dynamic air working pressure 6.3 bar
      Min hose diam (16 ft hose length) 0.5 in
      Min hose diam (5 m hose length) 13 mm

      Noise & vibrations
      Sound Power 114.3 dB(A)
      Sound Pressure 103.3 dB(A)
      Uncertainty vibration-K 1.6 m/s²
      Vibration 11.3 m/s²

      Speed
      Air consumption at free speed 34 l/s

      Size & Weight
      Length (L) 530 mm
      Power weight ratio 0 Nm/kg
      Weight 11 kg

      Design & Functions
      Body Aluminium
      Clutch housing Aluminium
      Clutch lubrication type Grease
      Handle type D-handle
      Impact mecanism Pinless rocking dog
      Output drive size (in) 1
      Output drive type Sq
      Output retainer type Dual
      Starting system Trigger
      Weight 15,11 kg
      Dimensions 80 × 29,3 × 16,9 cm
