| Torque | |
|---|---|
| Max working torque fwd | 88 Nm |
| Max torque reverse | 122 Nm |
| Min working torque fwd | 7 Nm |
| Torque limited | No |
| Air information | |
| Air consumption at load | 4.7 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (5 m hose length) | 10 mm |
| Noise & vibrations | |
| Sound Power | 108 dB(A) |
| Sound Pressure | 97 dB(A) |
| Uncertainty vibration-K | 1.4 m/s² |
| Vibration (m/s²) | 4 |
| Vibration | 4 m/s² |
| Speed | |
| Free Speed | 9500 rpm |
| Size & Weight | |
| Length (L) | 160 mm |
| Power weight ratio | 120 Nm/kg |
| Weight | 1 kg |
| Design & Functions | |
| Blow per minute | 1400 |
| Body | Aluminum |
| Clutch housing | Aluminum |
| Clutch lubrication type | Grease |
| Handle type | Butterfly |
| Impact mecanism | Rocking dog |
| Main Material type | Aluminium |
| Output drive size (in) | 3/8 |
| Output drive type | Sq |
| Output retainer type | Friction ring |
| Starting system | Butterfly trigger |

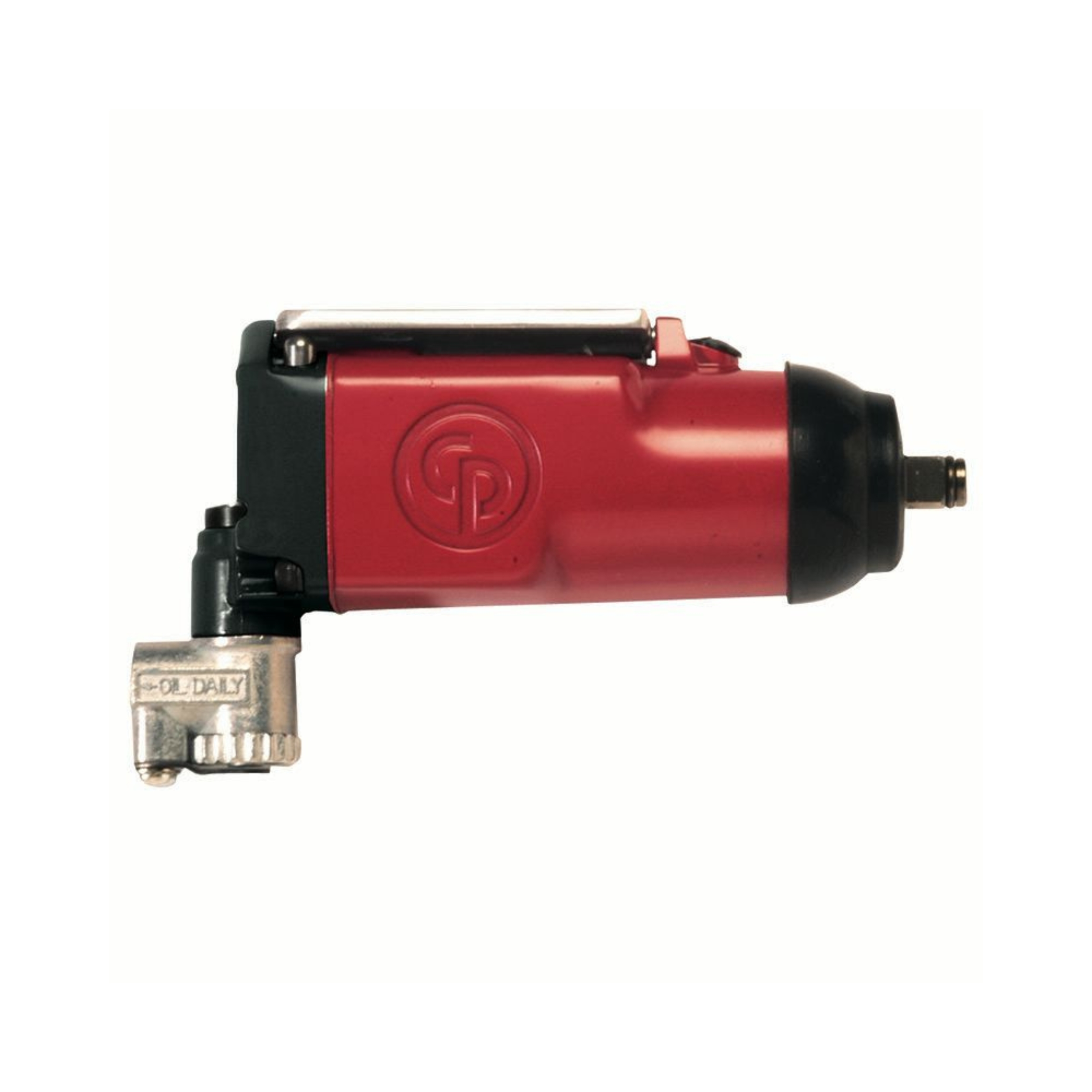

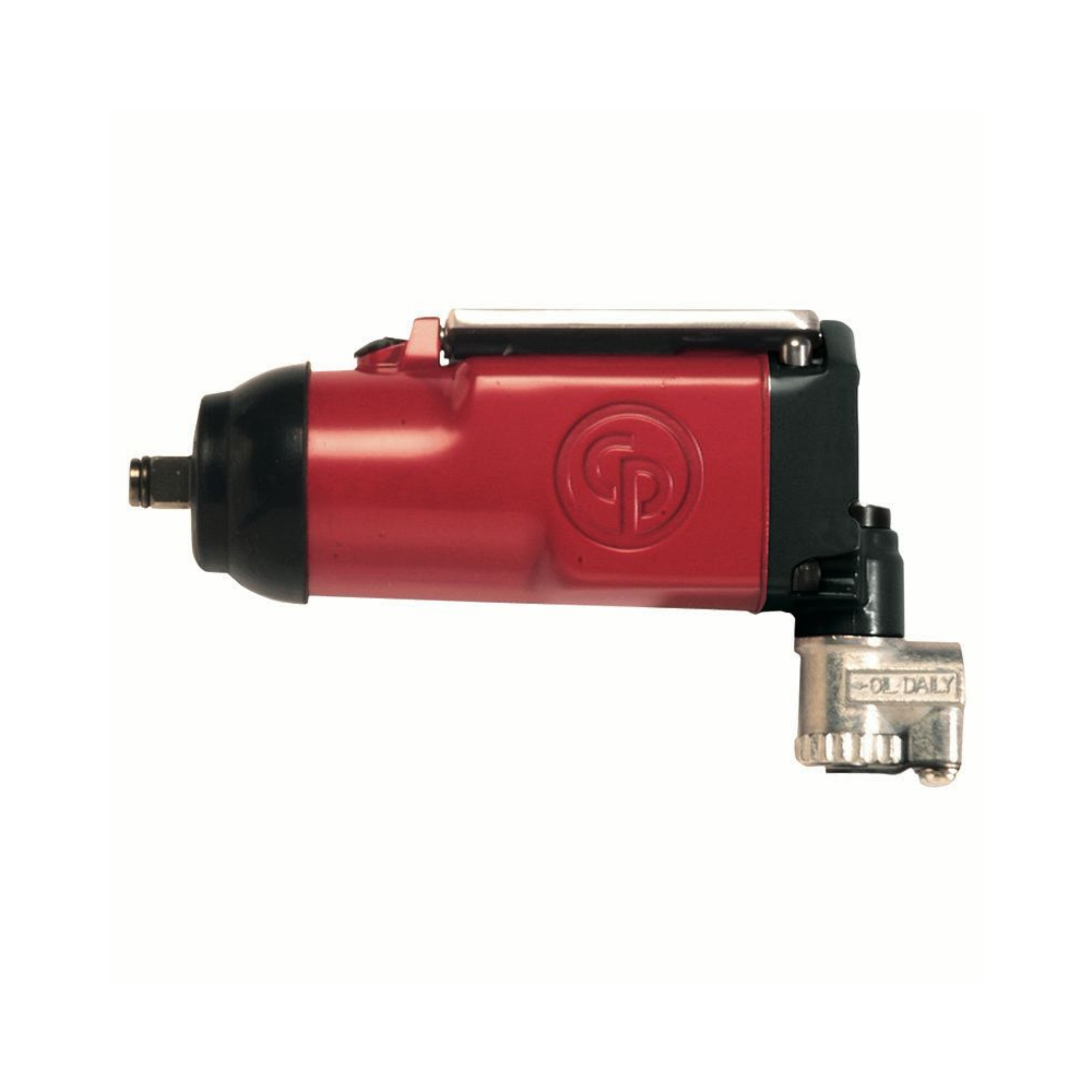

CP7722
Part No: 8941077220
3/8″Pneumatic impact wrench
This impact wrench series designed for tight applications and is highly recommended. Its rocking dog impact mechanism and metal motor housing offer high durability. High productivity is ensured with a torque of 90 ft.lbs / 122 Nm.
Country of origin is TW. Customs tariff is 84671190
