CP7731 1

CP7731

8941077310

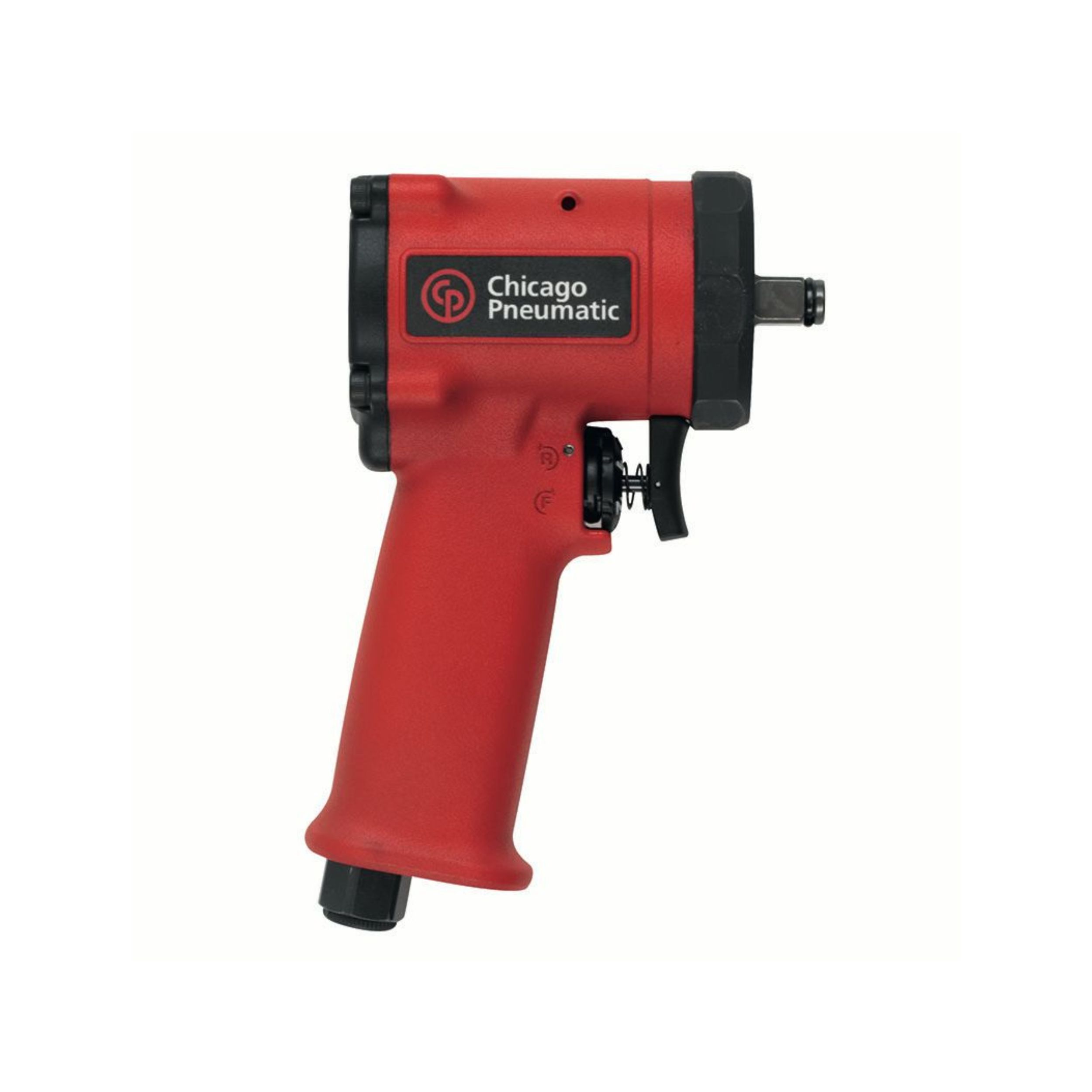

3/8″ Pneumatic impact wrench

This impact wrench, designed to be the best tool for general maintenance with its torque of 450 ft.lbs / 610 Nm and its compactness of 4.4″ / 112 mm, is highly recommended. Its jumbo hammer impact mechanism and metal housing offer high durability. The CP7731/CP7732 series is composed of 2 models: 3/8″ short anvil and 1/2″ short anvil. Country of origin is TW. Customs tariff is 84671190

Included Items
3/8″ Pneumatic impact wrench (x1)

SEND INQUIRY
Category:

Technical Specifications

Torque
Max working torque fwd 328 Nm
Max torque reverse 415 Nm
Min working torque fwd 96 Nm
Torque limited No

Air information
Air consumption at load 8.3 l/s
Air inlet thread size (in) 1/4
Max dynamic air working pressure 6.3 bar
Min hose diam (16 ft hose length) 0.38 in
Min hose diam (5 m hose length) 10 mm

Noise & vibrations
Sound Power 104 dB(A)
Sound Pressure 93 dB(A)
Uncertainty vibration-K 1.5 m/s²
Vibration 8.5 m/s²

Speed
Free Speed 6400 rpm

Size & Weight
Length (L) 112 mm
Power weight ratio 310 Nm/kg
Side to Center 25 mm
Weight 1.3 kg

Design & Functions
Blow per minute 1200
Body Aluminum
Clutch housing Aluminum
Clutch lubrication type Grease
Handle type Pistol
Impact mecanism Single hammer
Output drive size (in) 3/8
Output drive type Sq
Output retainer type Friction ring
Starting system Trigger
Weight 1,56 kg
Dimensions 19,8 × 17,7 × 7,2 cm
