CP7737

    8941077370

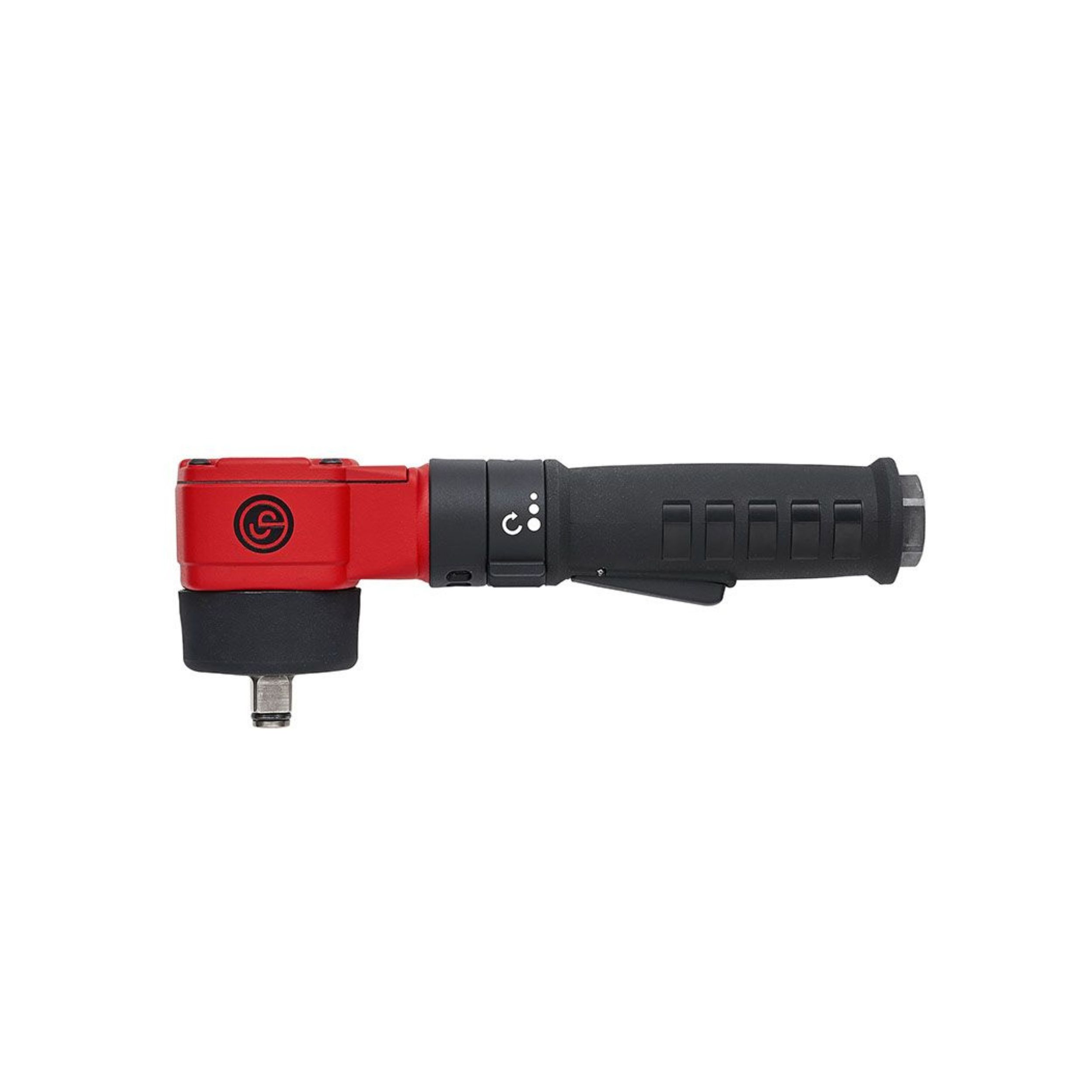

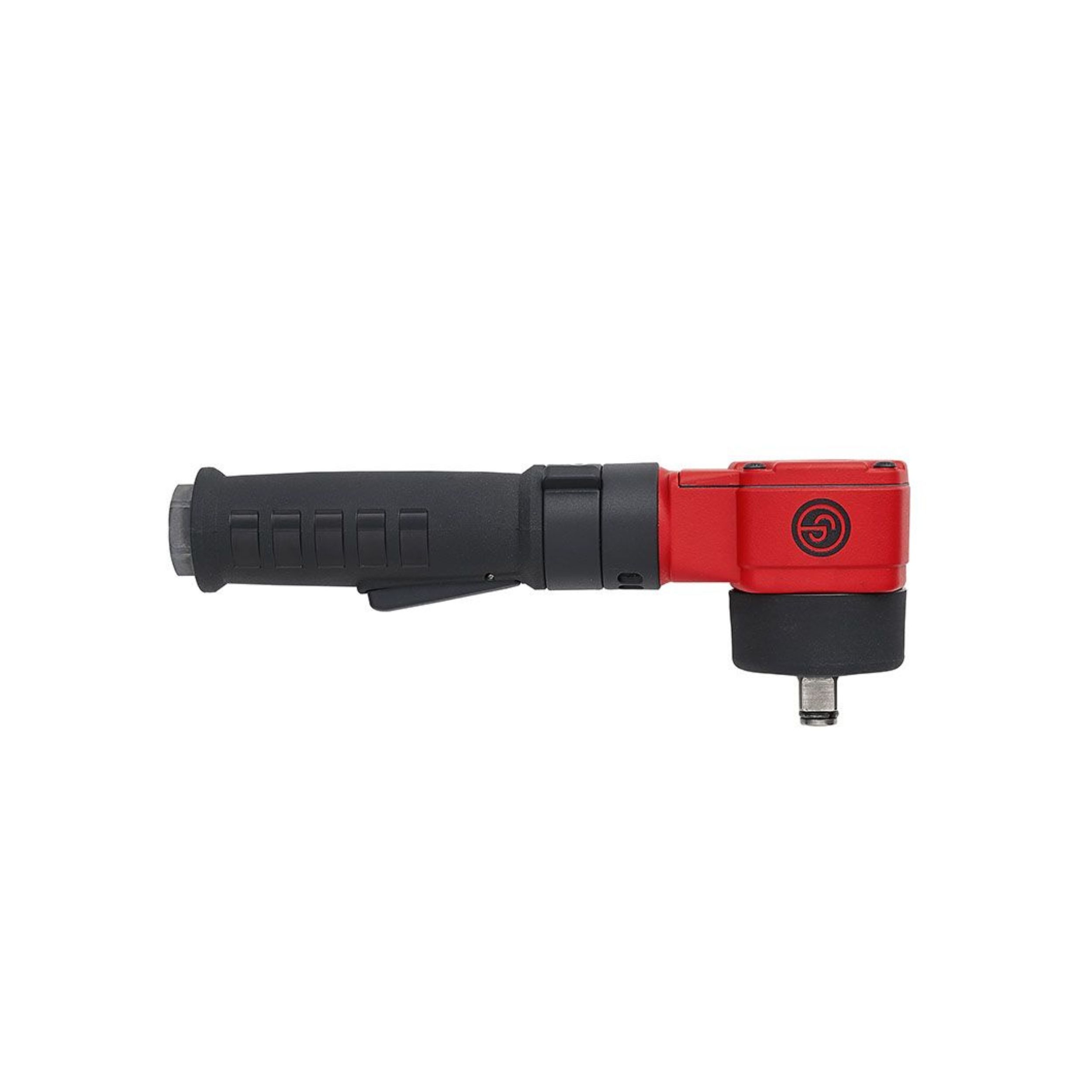

    1/2″ Pneumatic impact wrench

    Optimise opportunities with this angle impact wrench, designed for tight loosening and tightening applications thanks to its angled head and its single-handed forward – reverse ring. Its jumbo hammer impact mechanism, its metal housing, and its steel motor all offer high durability. High productivity is ensured with a torque of 220 ft.lbs / 300 Nm. The CP7727/CP7737 series is composed of 2 models: 3/8″ short anvil and 1/2″ short anvil. Country of origin is TW. Customs tariff is 84671190

    Included Items
    1/2″ Pneumatic angle impact wrench (x1)

    SEND INQUIRY
    Category:

      Technical Specifications

      Torque
      Max working torque fwd 224 Nm
      Max torque reverse 300 Nm
      Min working torque fwd 34 Nm
      Torque limited No

      Air information
      Air consumption at load 7.5 l/s
      Air inlet thread size (in) 1/4
      Max dynamic air working pressure 6.3 bar
      Min hose diam (16 ft hose length) 0.38 in
      Min hose diam (5 m hose length) 10 mm

      Noise & vibrations
      Sound Power 104 dB(A)
      Sound Pressure 93 dB(A)
      Uncertainty vibration-K 1.3 m/s²
      Vibration 10.3 m/s²

      Speed
      Free Speed 9000 rpm
      Air consumption at free speed 11 l/s

      Size & Weight
      Length (L) 240 mm
      Side to Center 30 mm
      Weight 1.13 kg

      Design & Functions
      Blow per minute 1600
      Body Aluminum
      Clutch housing Aluminum
      Clutch lubrication type Grease
      Handle type Pistol
      Impact mecanism Single hammer
      Main Material type Aluminium
      Output drive size (in) 1/2
      Output drive type Sq
      Output retainer type Friction ring
      Starting system Trigger
      Weight 1,39 kg
      Dimensions 29,7 × 10,5 × 7 cm
