| Torque | |
|---|---|
| Max working torque fwd | 414 Nm |
| Max torque reverse | 610 Nm |
| Min working torque fwd | 68 Nm |
| Torque limited | No |
| Air information | |
| Air consumption at load | 9.4 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Noise & vibrations | |
| Sound Power | 103 dB(A) |
| Sound Pressure | 92 dB(A) |
| Uncertainty vibration-K | 2.5 m/s² |
| Vibration (m/s²) | 6.9 |
| Vibration | 6.9 m/s² |
| Speed | |
| Free Speed | 9900 rpm |
| Size & Weight | |
| Length (L) | 163 mm |
| Power weight ratio | 500 Nm/kg |
| Side to Center | 26 mm |
| Weight | 1.2 kg |
| Design & Functions | |
| Blow per minute | 1700 |
| Body | Composite |
| Clutch housing | Aluminium |
| Clutch lubrication type | Grease |
| Handle type | Pistol |
| Impact mecanism | Twin hammer |
| Main Material type | Composite |
| Output drive size (in) | 1/2 |
| Output drive type | Sq |
| Output retainer type | Friction ring |
| Starting system | Trigger |
CP7739
Part No: 8941077390

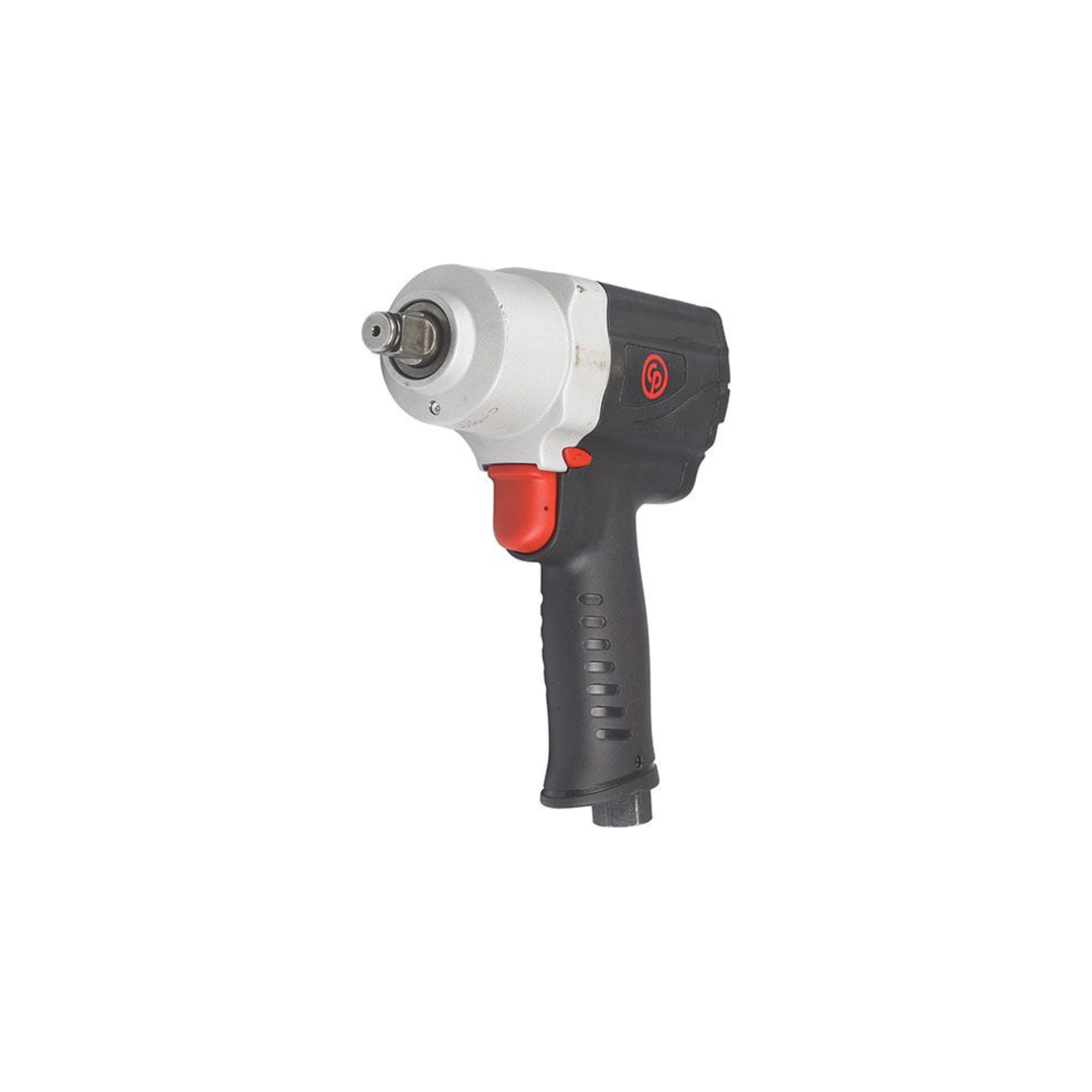

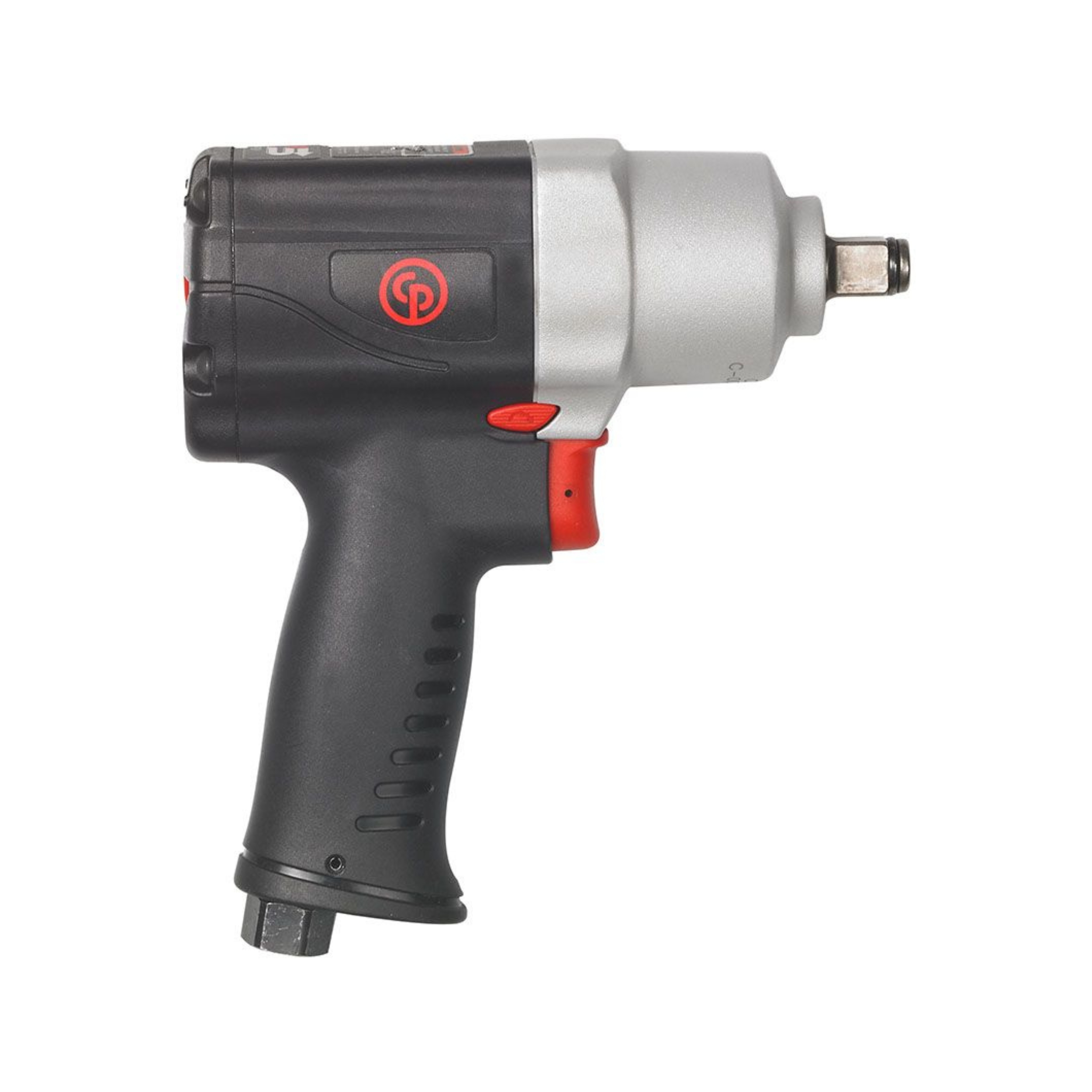

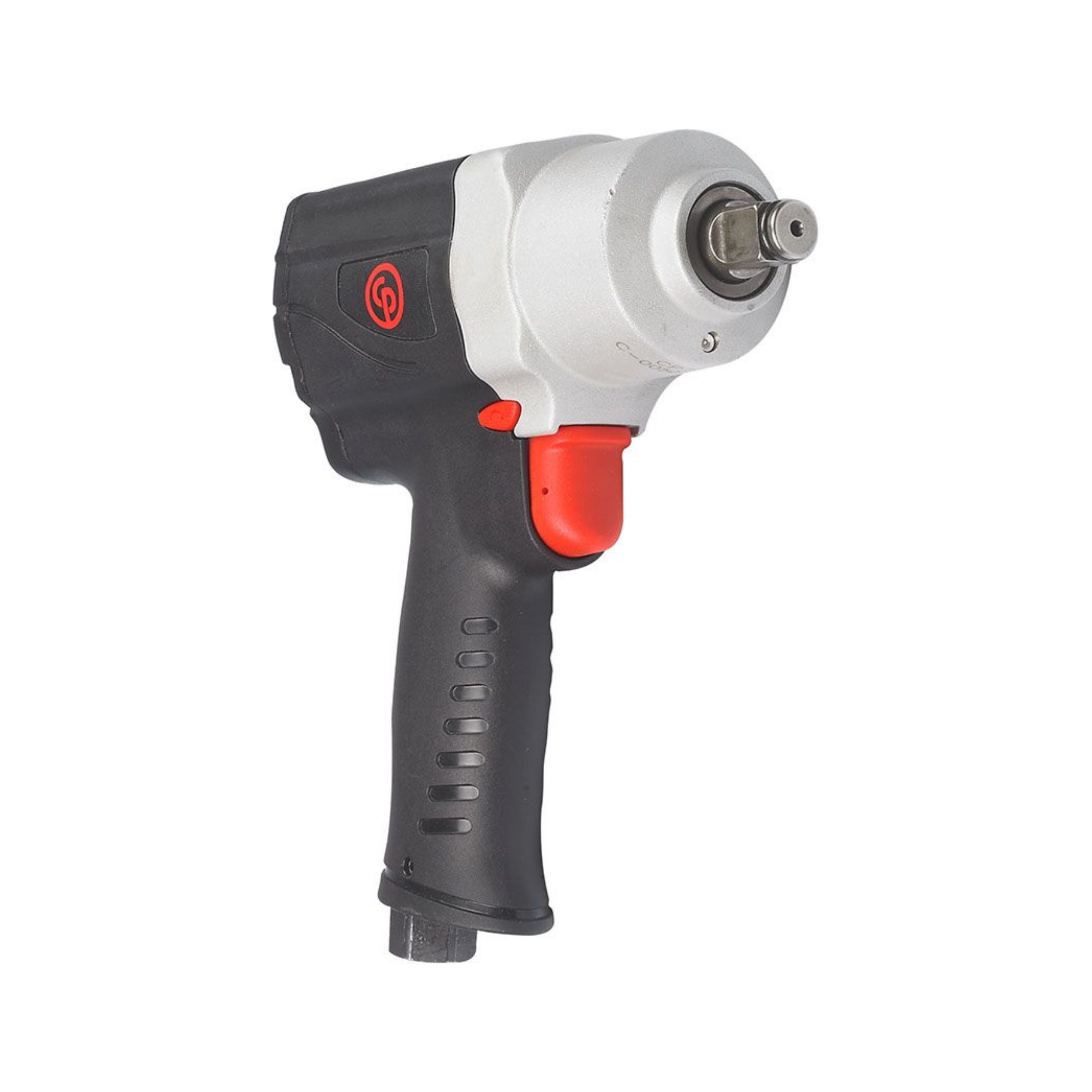

1/2″Pneumatic impact wrench
A range designed for general maintenance with its Side-2-Side reverse / forward technology. Its twin hammer impact mechanism and its composite housing offer high durability. High productivity is ensured with a torque of 450 ft.lbs / 610 Nm. The CP7729 series is composed of 3 models: 3/8″ short anvil with Friction Ring retainer; 3/8″ short anvil with Pin-Style retainer; 1/2″ short anvil with Friction Ring Retainer.
Country of origin is TW. Customs tariff is 84671190
