CP7762

    8941077620

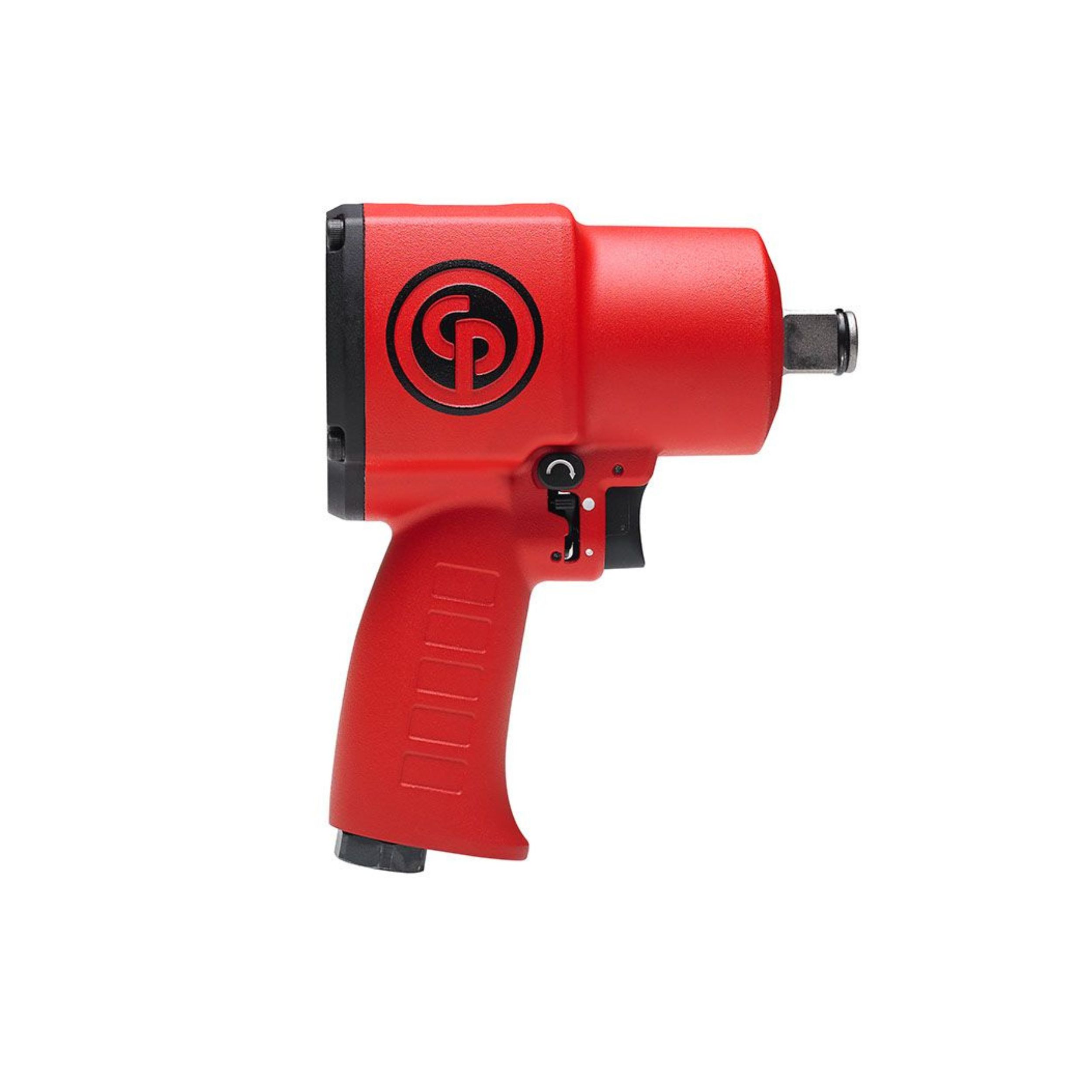

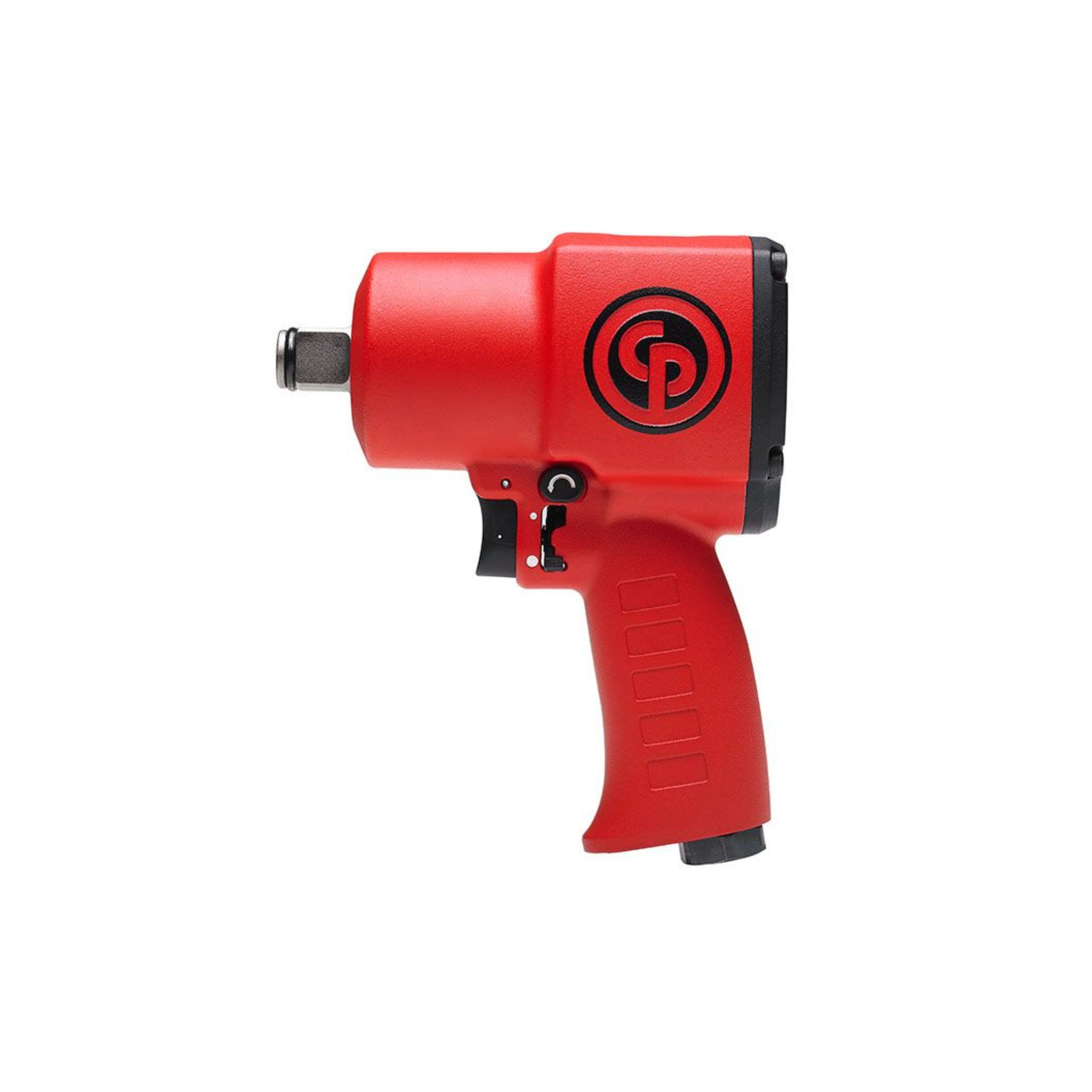

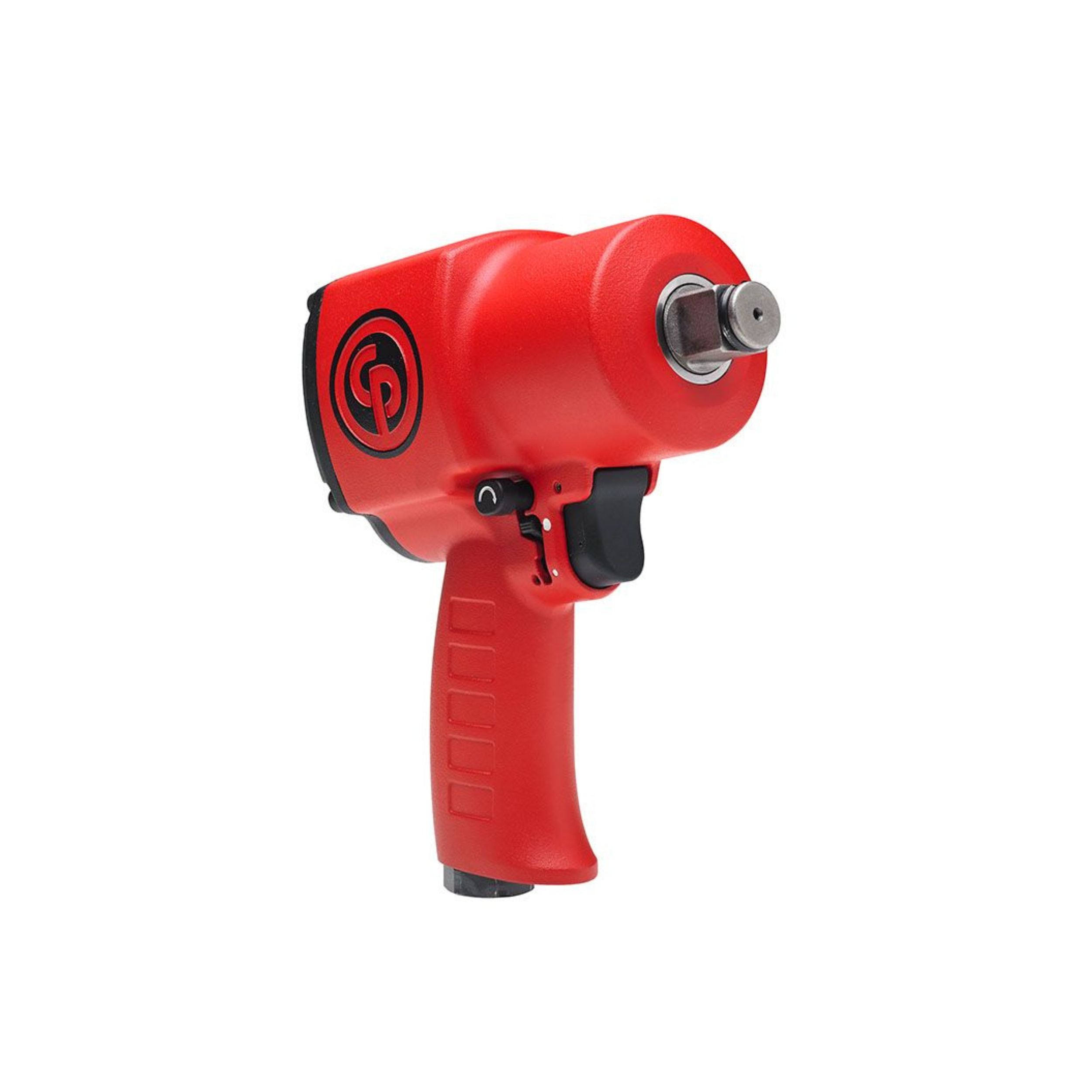

    3/4″ Pneumatic impact wrench

    This ultra compact 3/4″ impact wrench benefits from S2S technology for an excellent handling experience. With a torque of up to 1,050 ft.lbs / 1,420 Nm, the CP7762 Series has an excellent power-to-weight ratio. Its twin hammer impact mechanism and metal housing are both durable and lightweight. Country of origin is TW. Customs tariff is 84671190

    Included Items
    3/4″ Pneumatic impact wrench (x1)

    SEND INQUIRY
    Category:

      Technical Specifications

      Torque
      Max working torque fwd 900 Nm
      Max torque reverse 1420 Nm
      Min working torque fwd 201 Nm
      Torque limited No

      Air information
      Air consumption at load 16 l/s
      Air inlet thread size (in) 3/8
      Max dynamic air working pressure 6.3 bar
      Min hose diam (16 ft hose length) 0.5 in
      Min hose diam (5 m hose length) 13 mm

      Noise & vibrations
      Sound Power 103.8 dB(A)
      Sound Pressure 92.8 dB(A)
      Uncertainty vibration-K 2.8 m/s²
      Vibration 10.7 m/s²

      Speed
      Free Speed 4850 rpm
      Air consumption at free speed 26 l/s

      Size & Weight
      Length (L) 158 mm
      Power weight ratio 480 Nm/kg
      Side to Center 42 mm
      Weight 2.9 kg

      Design & Functions
      Blow per minute 960
      Body Aluminum
      Clutch housing Aluminum
      Clutch lubrication type Grease
      Handle type Pistol
      Impact mecanism Twin hammer
      Output drive size (in) 3/4
      Output drive type Sq
      Output retainer type Friction ring
      Starting system Trigger
      Weight 3,41 kg
      Dimensions 23,8 × 21,1 × 9,7 cm
