| Torque | |
|---|---|
| Max working torque fwd | 2000 Nm |
| Max torque reverse | 2600 Nm |
| Min working torque fwd | 500 Nm |
| Torque limited | No |
| Air information | |
| Air consumption at load | 19 l/s |
| Air inlet thread size (in) | 1/2 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Noise & vibrations | |
| Sound Power | 111 dB(A) |
| Sound Pressure | 100 dB(A) |
| Uncertainty vibration-K | 1.8 m/s² |
| Vibration (m/s²) | 7.8 |
| Vibration | 7.8 m/s² |
| Speed | |
| Free Speed | 5200 rpm |
| Size & Weight | |
| Length (L) | 370 mm |
| Power weight ratio | 250 Nm/kg |
| Weight | 10.1 kg |
| Design & Functions | |
| Blow per minute | 500 |
| Body | Aluminium |
| Clutch housing | Aluminium |
| Clutch lubrication type | Grease |
| Handle type | D-handle |
| Impact mecanism | Pinless rocking dog |
| Main Material type | Aluminium |
| Output drive size (in) | 1 |
| Output drive type | Sq |
| Output retainer type | Dual |
| Side handle | Yes |
| Starting system | Trigger |
CP7782
Part No: 8941077820

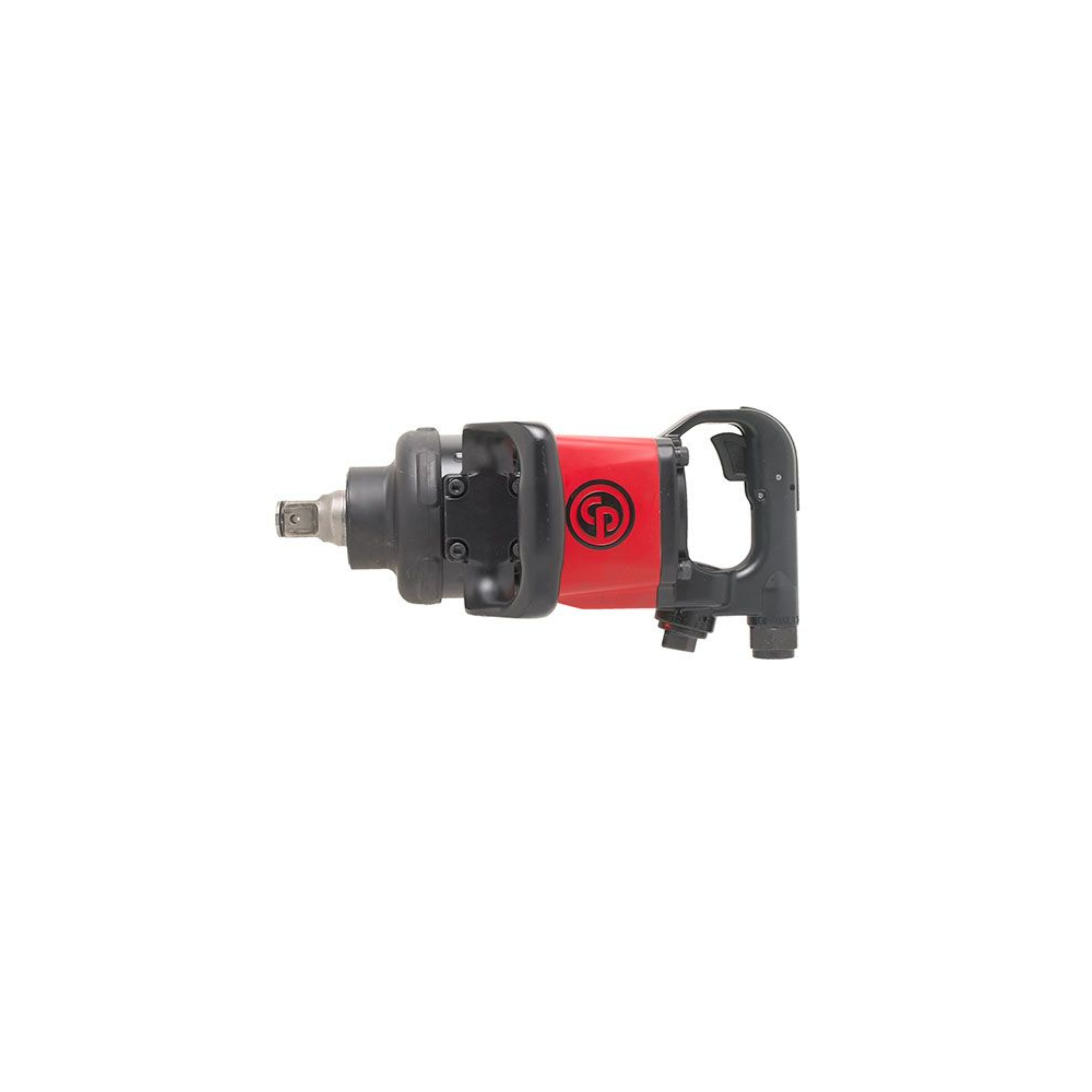

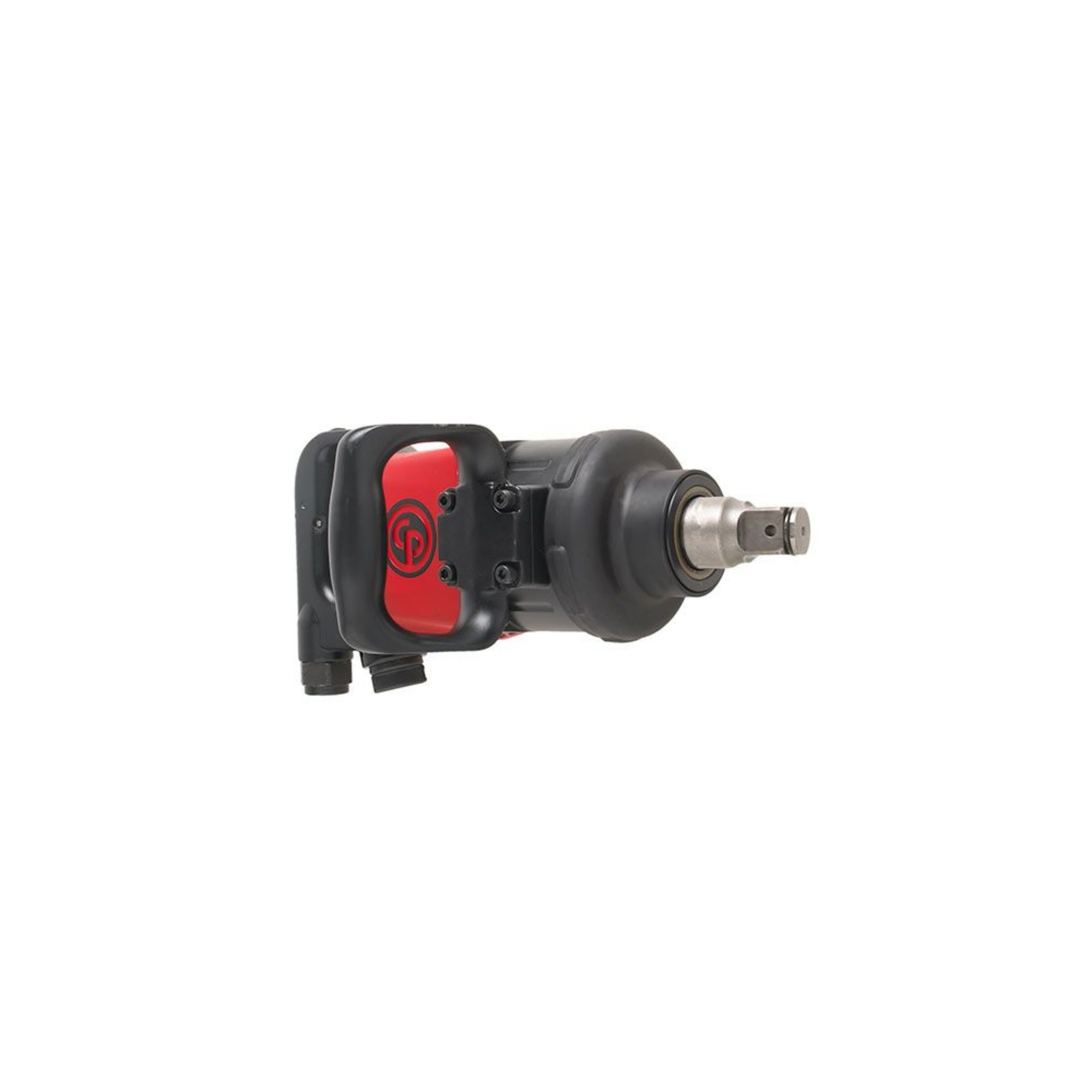

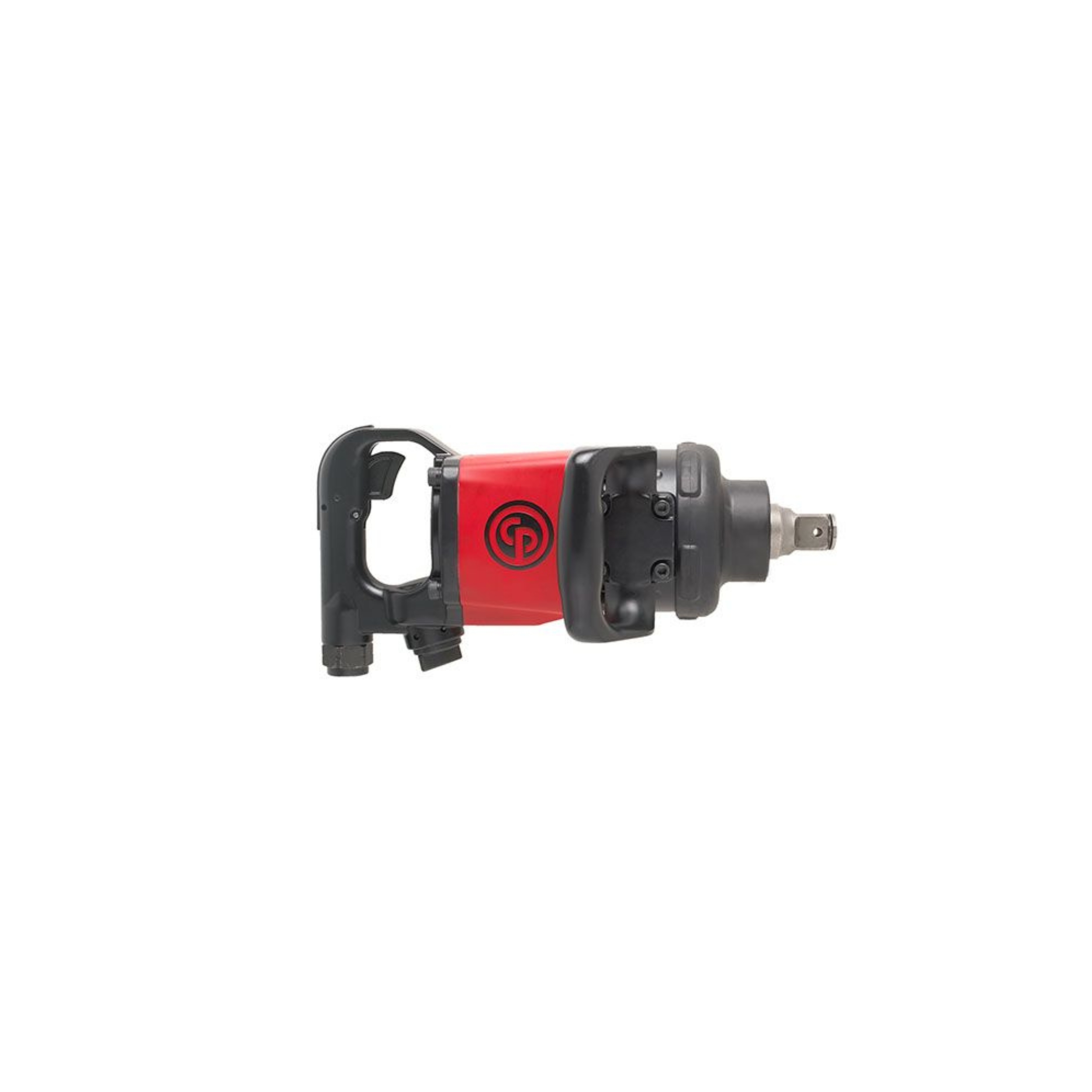

1″ Pneumatic impact wrench

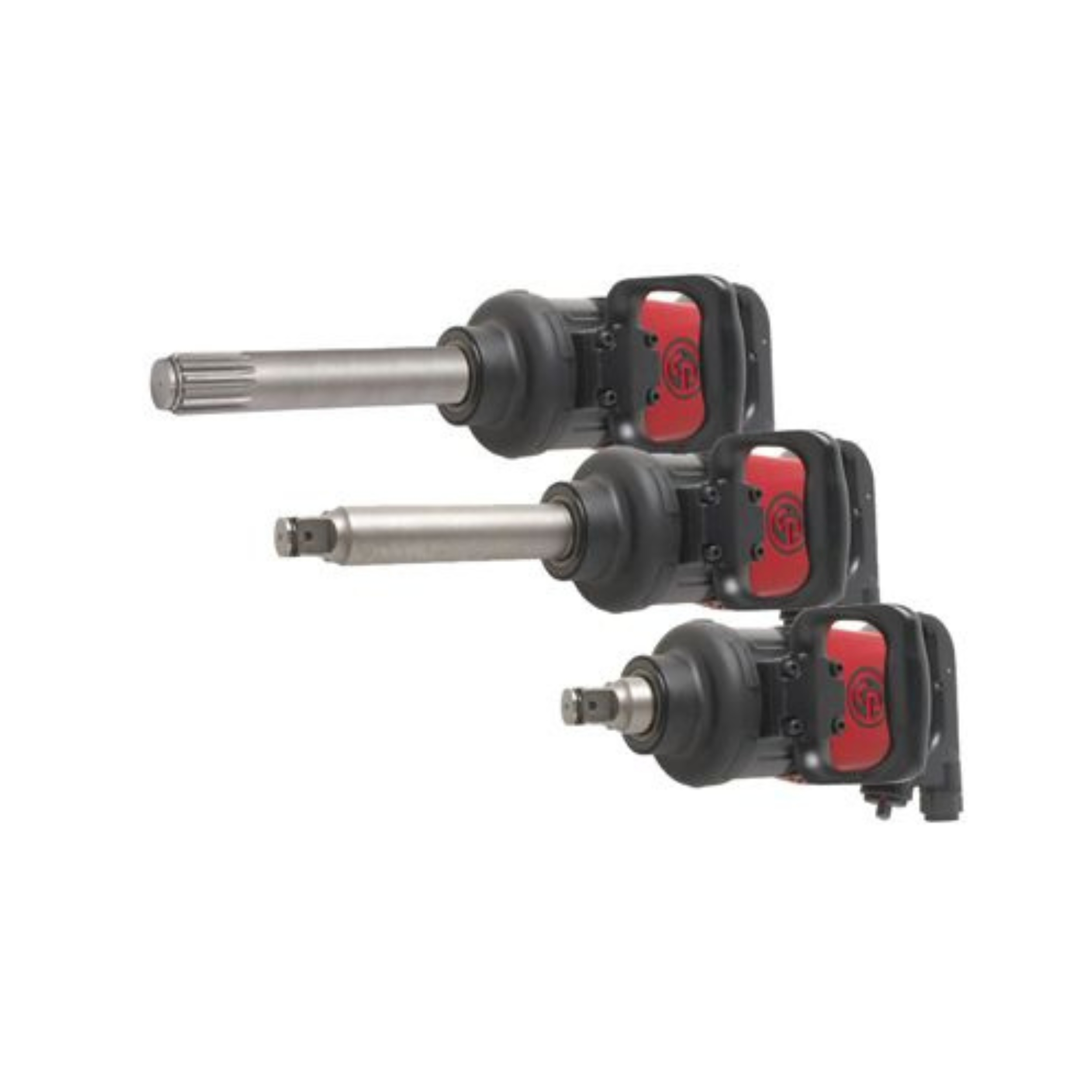

Designed for tire changing applications, this 1″ impact wrench with its high torque of 1,920 ft.lbs / 2,600 Nm is highly recommended. The pinless closed reinforced rocking dog impact mechanism and metal housing offer high durability. The CP7782 series includes 3 models: 1″ short anvil, 1″ long anvil (6″ anvil) and 1″ long anvil (6″ anvil) with spline retainer.
Country of origin is TW. Customs tariff is 84671190
