CP7782TL-6

    8941077827

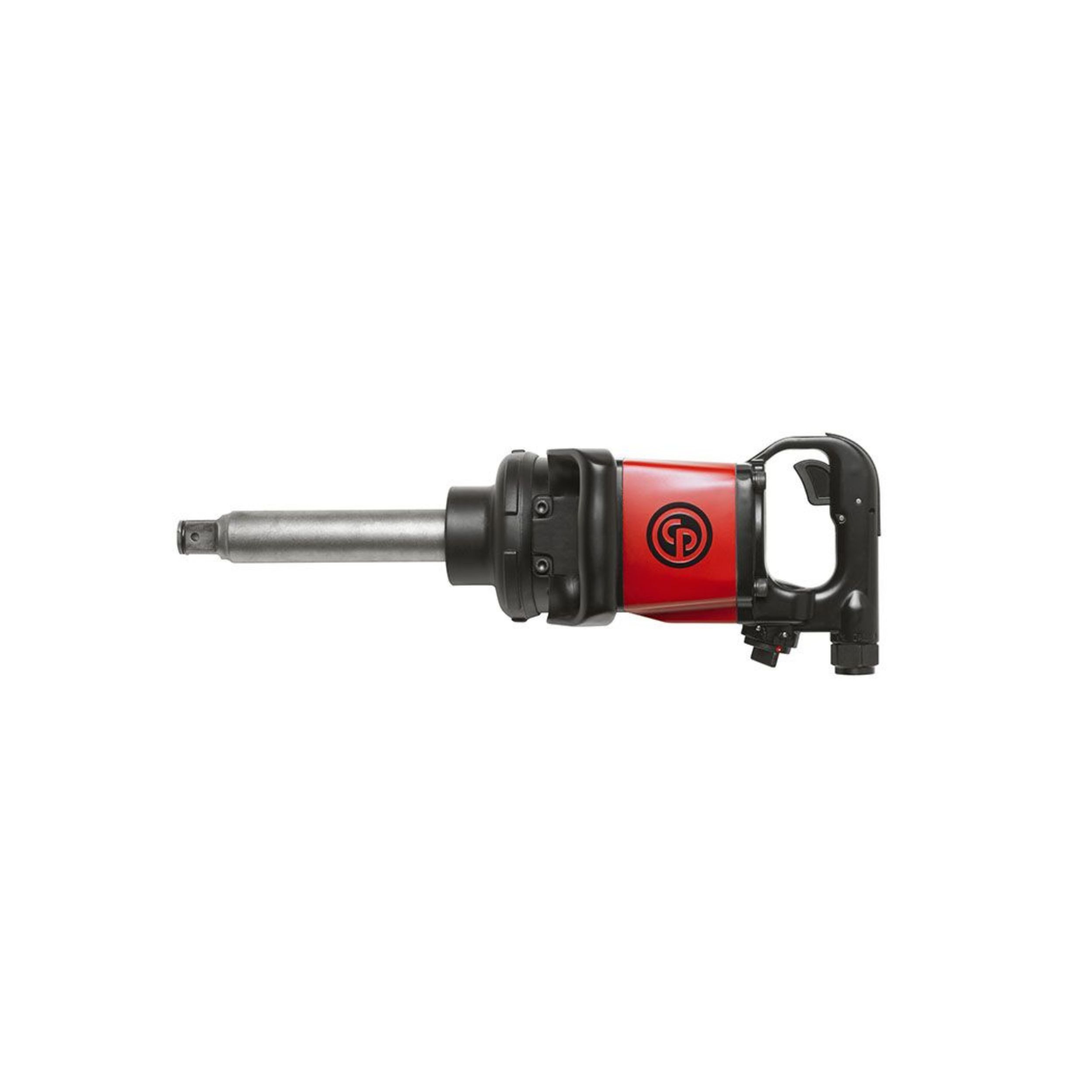

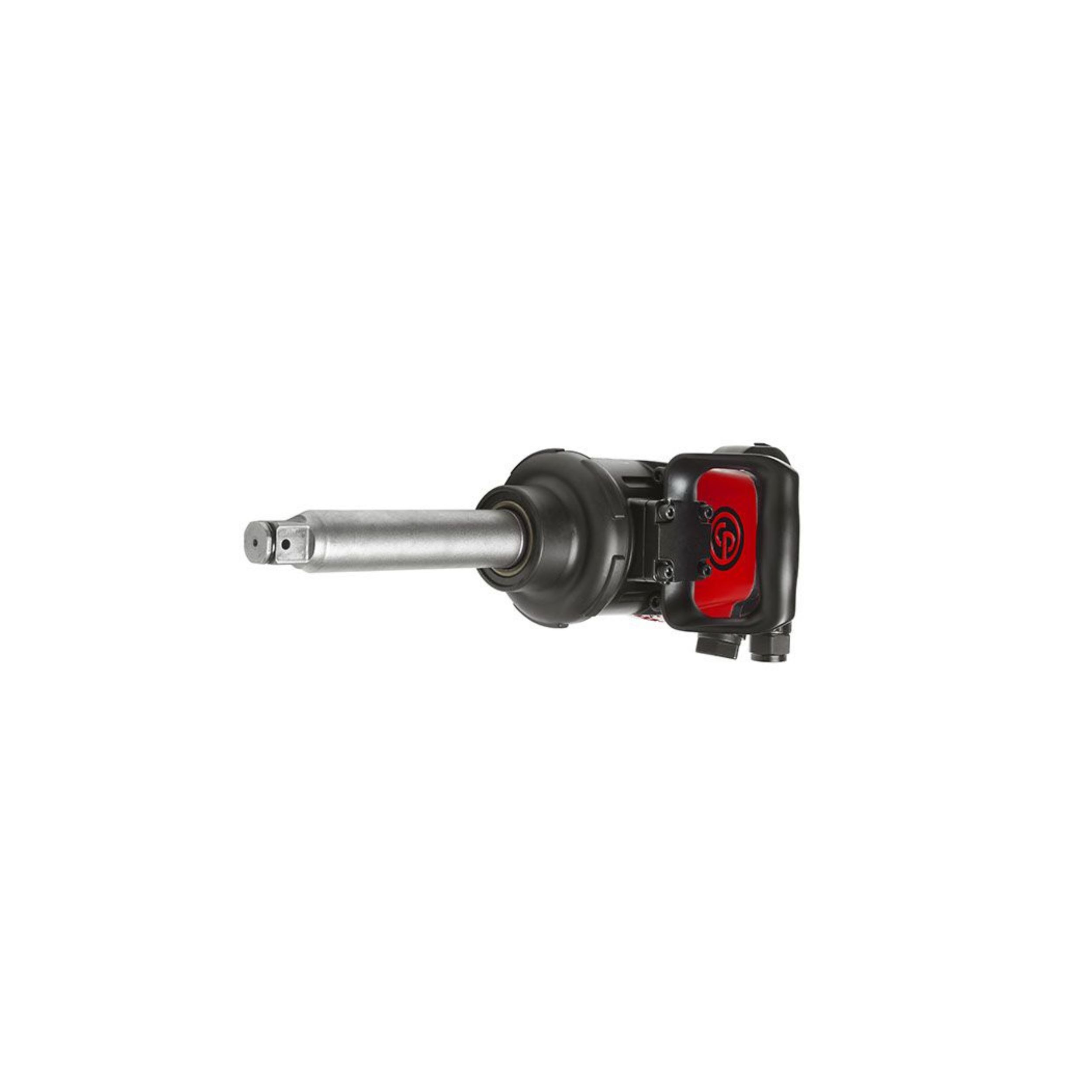

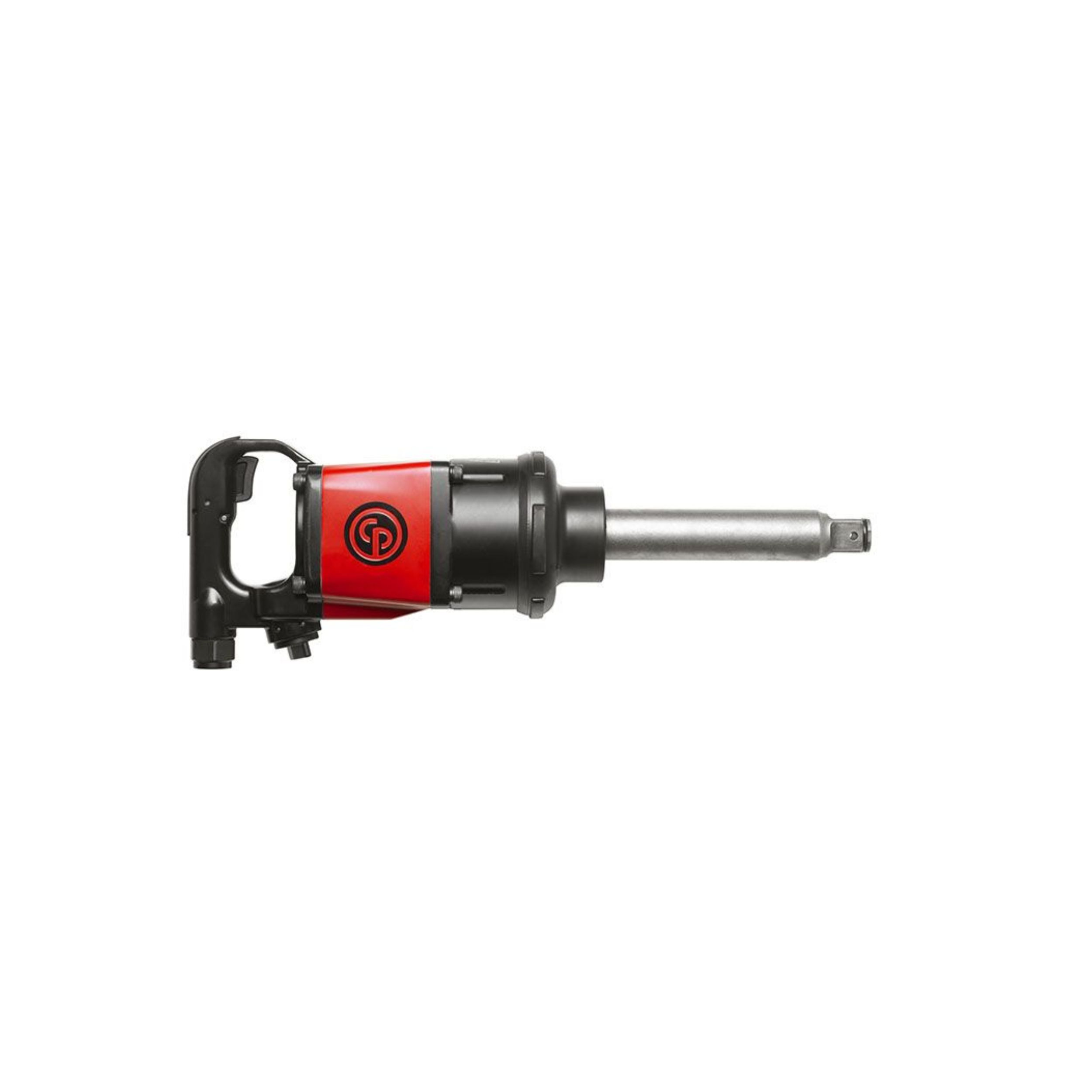

    1″ Pneumatic impact wrench – torque limited

    Designed for heavy tire changing applications with its torque limited in forward of 370 ft.lbs / 500 Nm and its maximum torque in reverse of 1,920 ft.lbs / 2,600 Nm, the 1″ impact wrench CP7782TL series limits the risk of over tightening during the tightening phase, while at the same time being very powerful once nuts or bolts have to be removed. In addition, the pinless closed reinforced rocking dog impact mechanism and metal housing offer high durability. Country of origin is TW. Customs tariff is 84671190

    Included Items
    1″ Pneumatic impact wrench – torque limited (x1)

    SEND INQUIRY
    Category:

      Technical Specifications

      Torque
      Max working torque fwd 440 Nm
      Max torque reverse 2600 Nm
      Min working torque fwd 400 Nm
      Torque Control System Non shut-off-stall
      Torque limited Yes

      Air information
      Air consumption at load 19 l/s
      Air inlet thread size (in) 1/2
      Max dynamic air working pressure 6.3 bar
      Min hose diam (16 ft hose length) 0.5 in
      Min hose diam (5 m hose length) 13 mm

      Noise & vibrations
      Sound Power 111 dB(A)
      Sound Pressure 100 dB(A)
      Uncertainty vibration-K 1.8 m/s²
      Vibration 7.8 m/s²

      Speed
      Free Speed 5200 rpm

      Size & Weight
      Height (H) 171.8 mm
      Length (L) 510.8 mm
      Width (W) 210.6 mm
      Power weight ratio 250 Nm/kg
      Weight 11.6 kg

      Design & Functions
      Blow per minute 500
      Body Aluminum
      Clutch housing Aluminum
      Clutch lubrication type Grease
      Handle type D-handle
      Impact mecanism Pinless rocking dog
      Output drive size (in) 1
      Output drive type Sq
      Output retainer type Dual
      Side handle Yes
      Starting system Trigger
      Weight 13,5 kg
      Dimensions 55,6 × 19,6 × 13,4 cm
