CP7783

8941077830

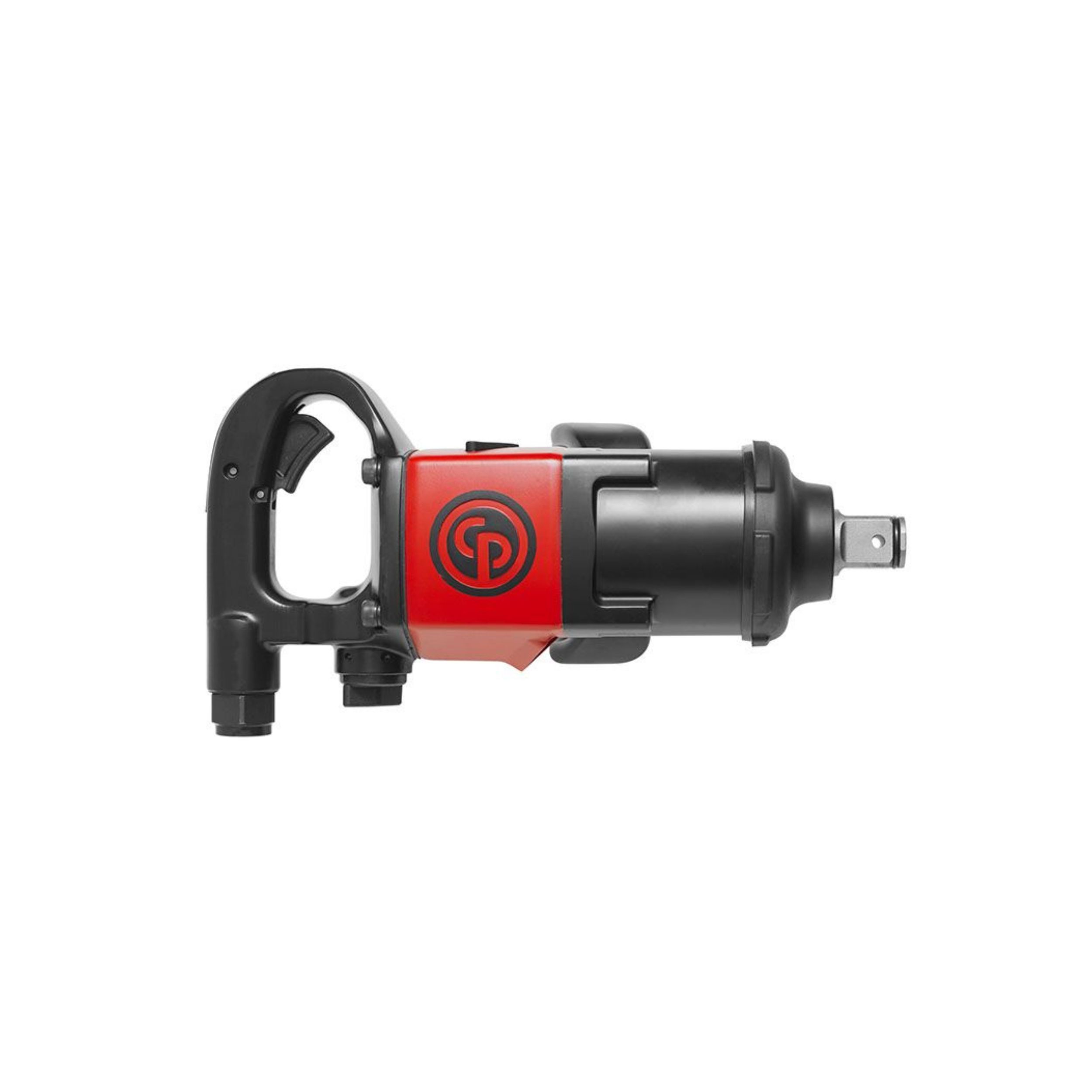

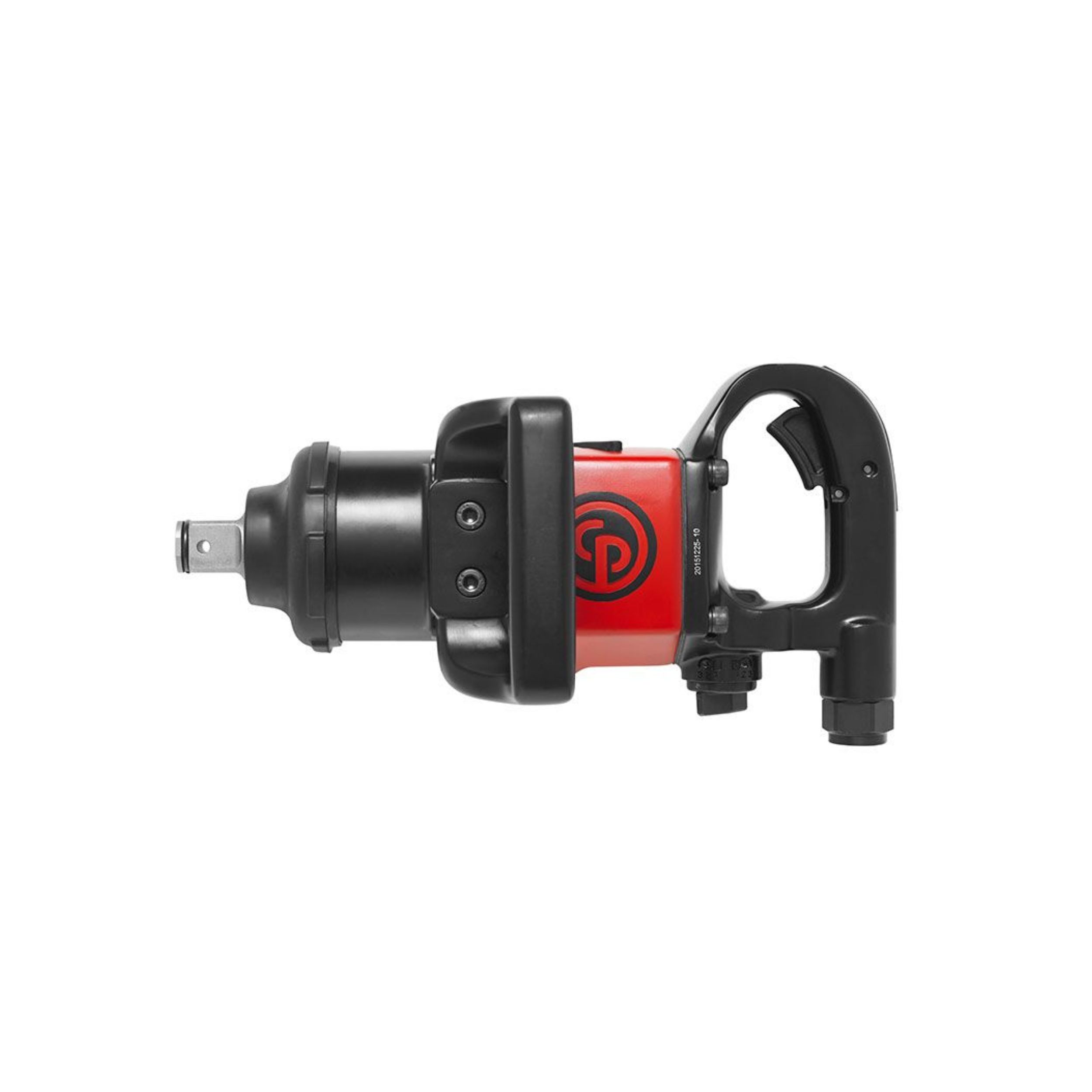

1″ Pneumatic impact wrench

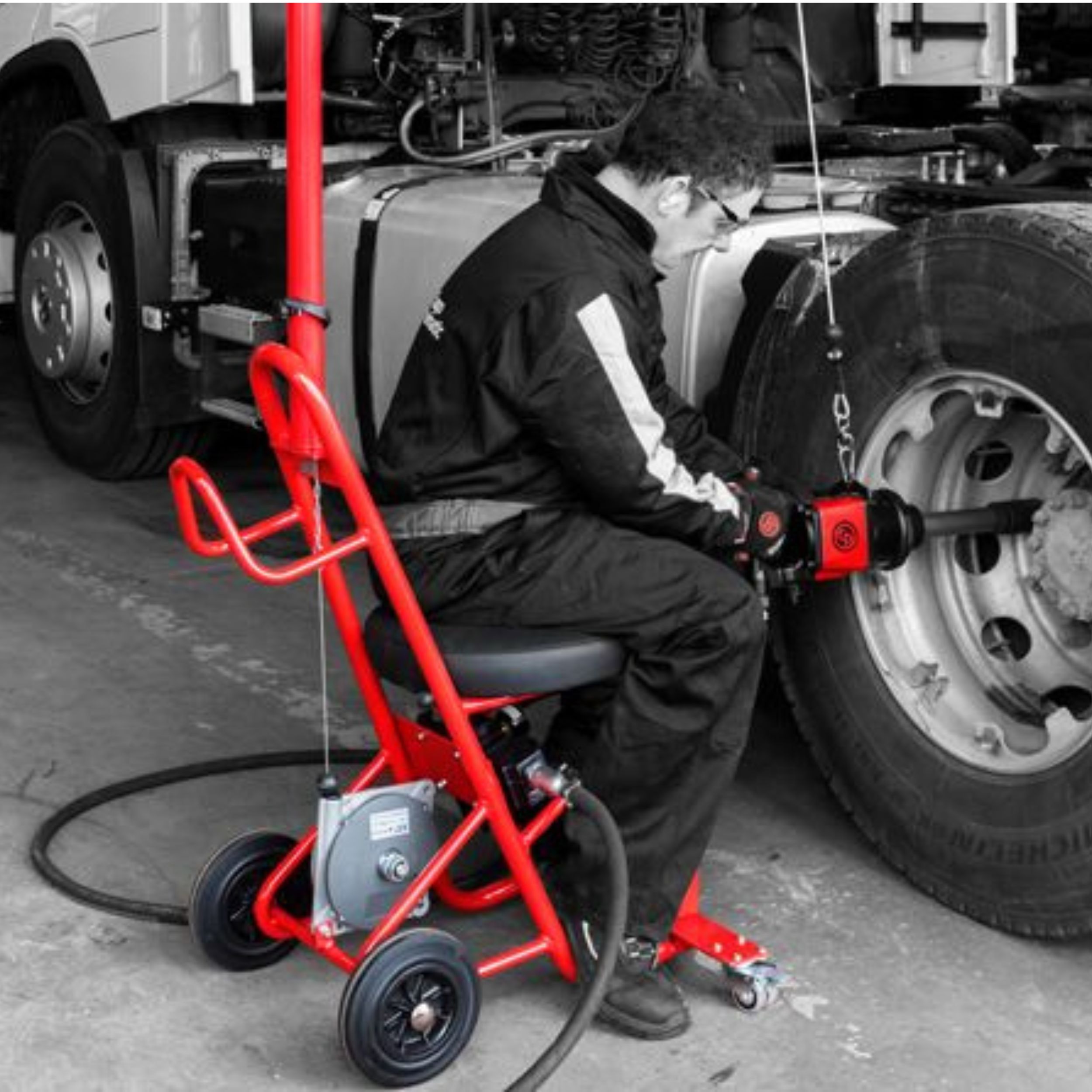

Optimal fastening and unbolting processes with this ultra lightweight 1″ impact wrench. Featuring a pinless closed reinforced rocking dog impact mechanism and metal housing, this tool is designed to optimise tire changing. It delivers a maximum reverse torque up to 1,770 ft.lbs / 2,400 N. The CP7783 series consists of 2 models: 1″ short anvil and 1″ long anvil (6″ anvil). Country of origin is TW. Customs tariff is 84671190

Included Items
1″ Pneumatic impact wrench (x1)

SEND INQUIRY
Category:

Technical Specifications

Torque
Max working torque fwd 1700 Nm
Max torque reverse 2400 Nm
Min working torque fwd 560 Nm
Torque limited No

Air information
Air consumption at load 19 l/s
Air inlet thread size (in) 1/2
Max dynamic air working pressure 6.3 bar
Min hose diam (16 ft hose length) 0.75 in
Min hose diam (5 m hose length) 13 mm

Noise & vibrations
Sound Power 113 dB(A)
Sound Pressure 102 dB(A)
Uncertainty vibration-K 4.1 m/s²
Vibration 15.1 m/s²

Speed
Free Speed 6200 rpm

Size & Weight
Length (L) 350 mm
Weight 8.4 kg

Design & Functions
Blow per minute 900
Body Aluminum
Clutch housing Aluminum
Clutch lubrication type Grease
Handle type D-handle
Impact mecanism Pinless rocking dog
Main Material type Aluminum
Output drive size (in) 1
Output drive type Sq
Output retainer type Dual
Side handle Yes
Starting system Trigger
Weight 9,54 kg
Dimensions 41 × 22,5 × 15,5 cm
