CP797 11

CP797

T019139

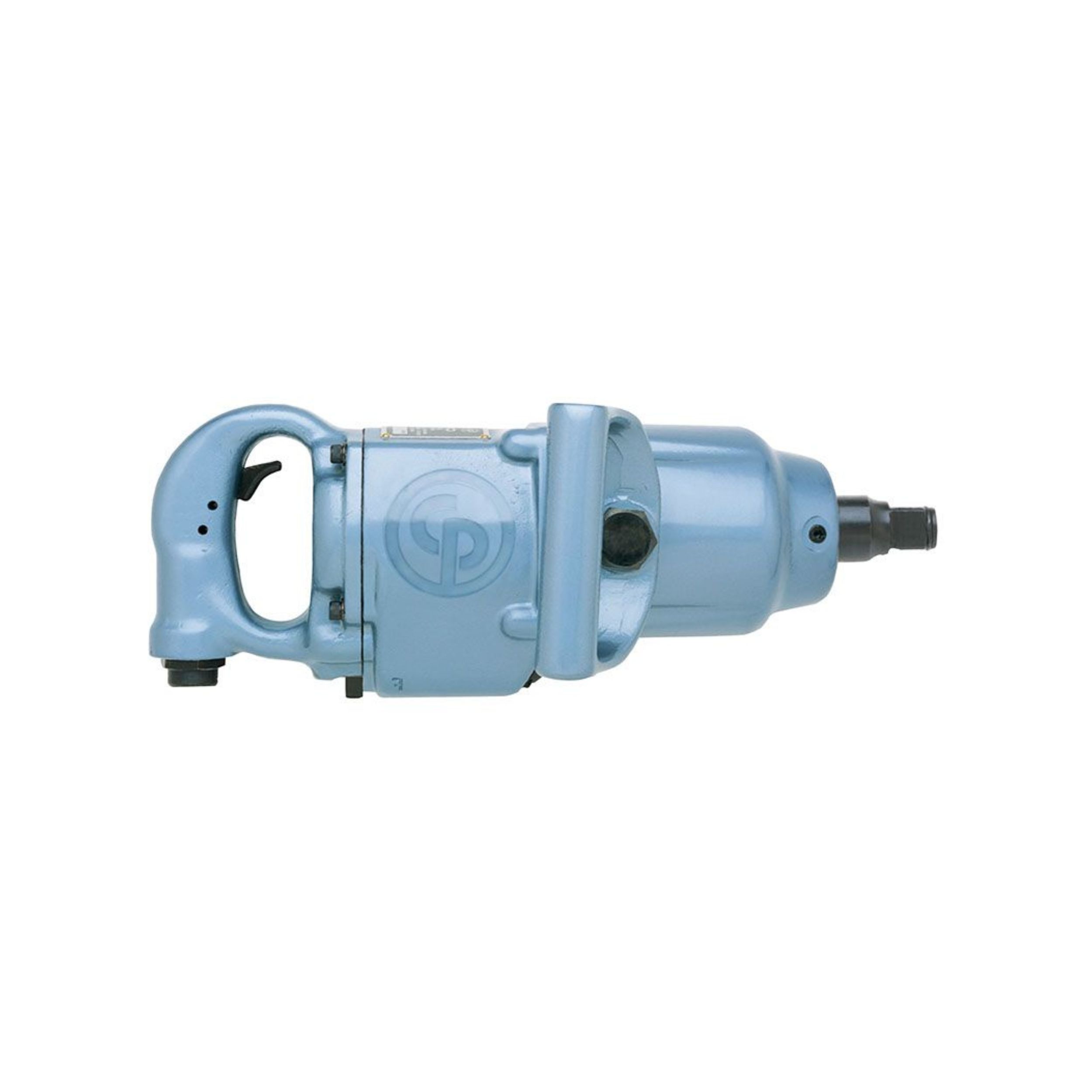

1″ Pneumatic impact wrench

Designed for heavy vehicle tire changing applications, the CP797 Series 1″ impact wrench provides a torque of up to 1,400 ft.lbs / 1,898 Nm. The rocking dog impact mechanism and metal housing offer high durability for bolting applications. The CP797 series is available in 3 models: 1″ short anvil, 1″ long anvil (6″ anvil) and 1″ long anvil (6″ anvil) with spline retainer. Country of origin is JP. Customs tariff is 84671190

Included Items
1″ Pneumatic impact wrench (x1)

SEND INQUIRY
Category:

Technical Specifications

Torque
Max working torque fwd 1220 Nm
Max torque reverse 1890 Nm
Min working torque fwd 203 Nm
Torque limited No

Air information
Air inlet thread size (in) 1/2
Max dynamic air working pressure 6.3 bar
Min hose diam (16 ft hose length) 0.5 in
Min hose diam (5 m hose length) 13 mm

Noise & vibrations
Sound Power 121 dB(A)
Sound Pressure 110 dB(A)
Uncertainty vibration-K 4.3 m/s²
Vibration (m/s²) 12.8
Vibration 12.8 m/s²

Speed
Free Speed 4200 rpm

Size & Weight
Length (L) 394 mm
Power weight ratio 150 Nm/kg
Weight 12.2 kg

Design & Functions
Blow per minute 1080
Body Aluminium
Clutch housing Aluminium
Clutch lubrication type Oil bath
Handle type D-handle
Impact mecanism Double rocking dog
Main Material type Aluminium
Output drive size (in) 1
Output drive type Sq
Output retainer type Dual
Side handle Yes
Starting system Trigger
Weight 14,26 kg
Dimensions 63 × 18,9 × 16,2 cm
