CP825C

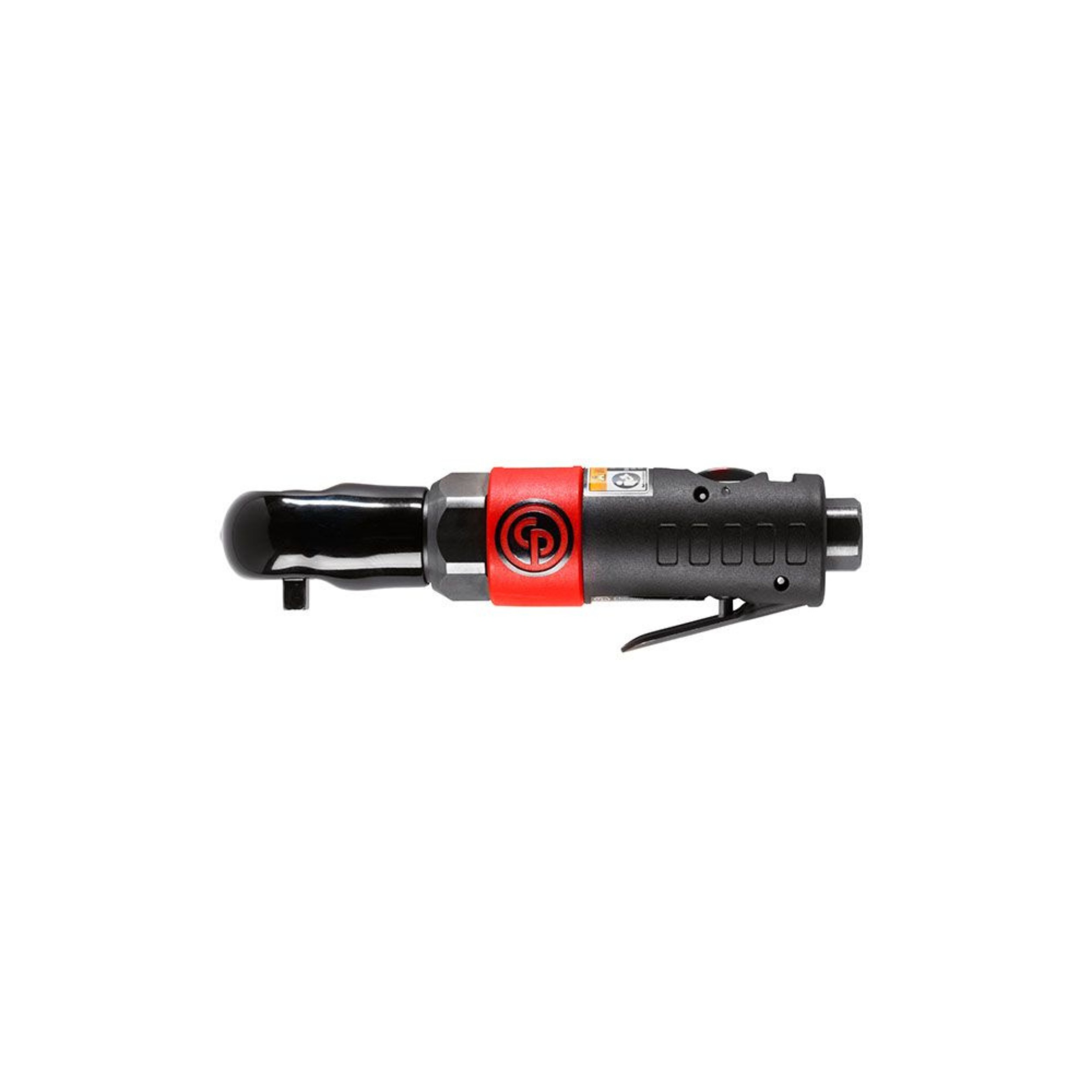

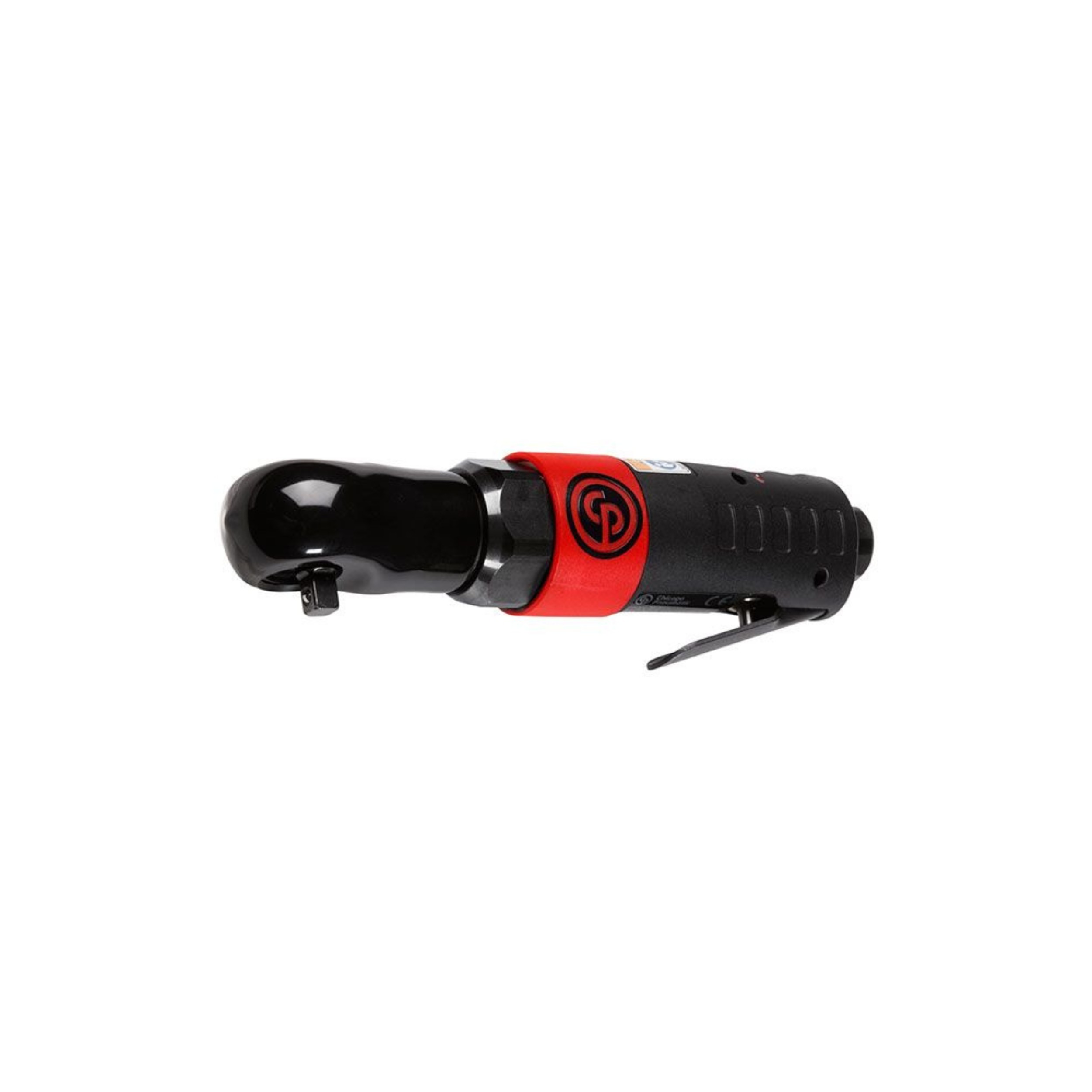

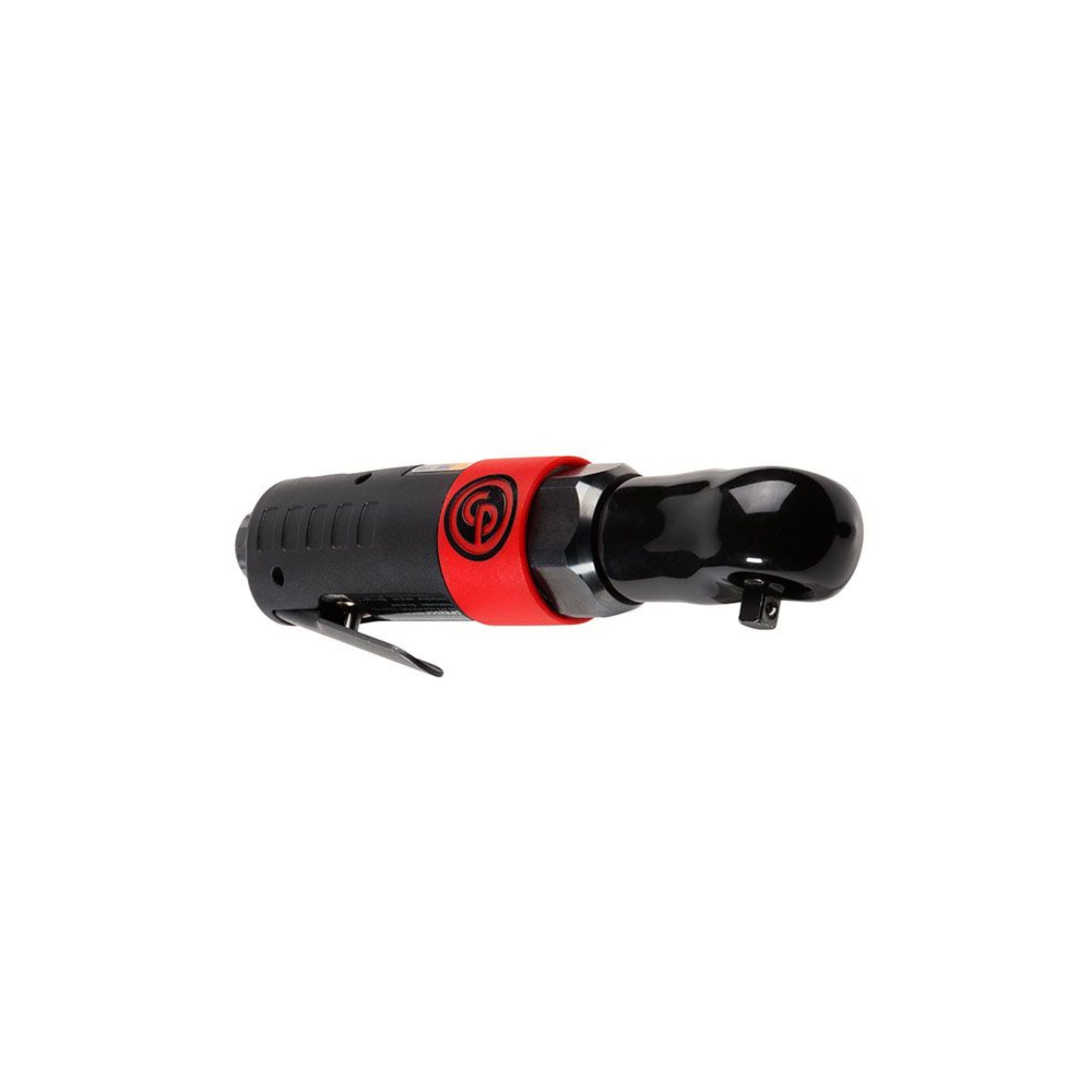

1/4" Pneumatic ratchet wrench

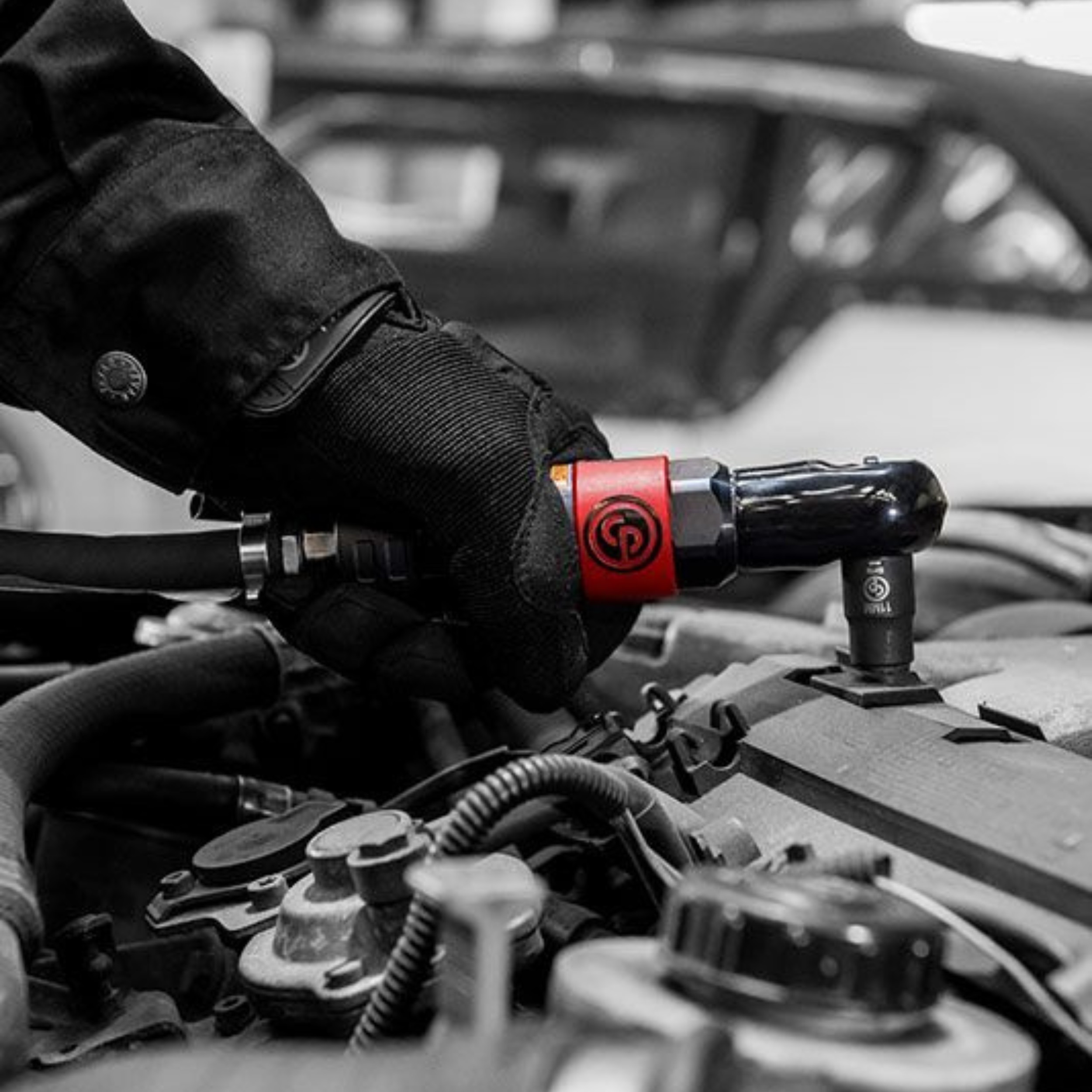

The CP825 pneumatic ratchet wrench with aluminium body and composite housing has up to 26 ft.lbs / 35 Nm of max torque making it a great fastening solution for general automotive maintenance.
This tool is extremely compact in length, which allows for improved access in tight spaces.
It features a regulator to ensure speed regulation and teasing trigger to adjust torque.
The CP825 Series is composed of 2 models: 3/8" and 1/4" anvil.
Country of origin is JP. Customs tariff is 84671190

SEND INQUIRY
SKU: 8941082511 Category:

Technical Specifications

Speed
Free Speed 280 rpm

Torque
Max working torque reverse 25 Nm
Max torque reverse 35 Nm
Min working torque reverse 5 Nm

Size & Weight
Height (H) 34 mm
Length (L) 169 mm
Width (W) 38 mm
Side to Center 19 mm
Weight 0.5 kg

General
Subfamily Pneumatic Ratchet Wrenches

Noise & Vibrations
Sound Power 93 dB(A)
Sound Pressure 82 dB(A)
Uncertainty vibration-K 1.5 m/s?
Vibration (m/s?) 4

Air Information
Air consumption at load 5.1 l/s
Air inlet thread size (in) 1/4
Max dynamic air working pressure 6.3 bar
Min hose diam (5 m hose length) 10 mm

Design & Functions
Main Material type Composite
Output drive size (in) 1/4
Output drive type Sq
Output retainer type Ball detent
Starting system Lever
Weight 0,725 kg
Dimensions 19,2 × 5 cm
