CP854E

CP854E

Part No: T023187

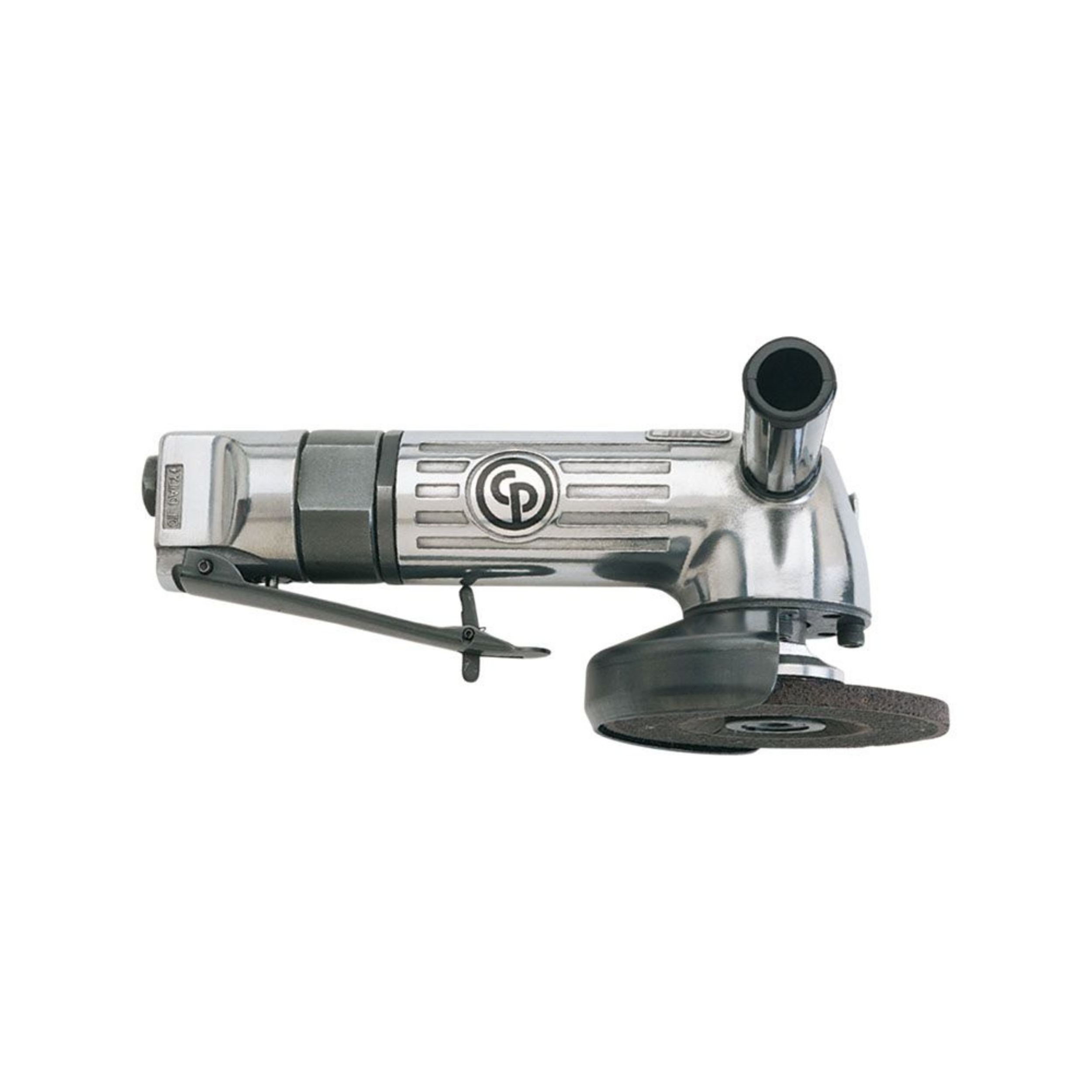

5″(125 mm) PNEUMATIC GRINDER

Designed for general maintenance applications, the CP854 angle grinder series offer efficiency with its power of 0.6 hp (450W) and high durability with its helical bevel gear design & aluminum alloy housing. The range consists of 2 models: 1x 4″ wheel (3/8″- 24 spindle thread) and 1x 5″ wheel (M10 spindle thread).Country of origin is JP. Customs tariff is 84671110

Compare
SEND INQUIRY
Category:

Technical Specifications

Speed
Free Speed12000 rpm
Air consumption at free speed7.5 l/s

Design & Functions
AutobalancerNo
Guard positions0
Main Material typeAluminium
Rotative guard typeScrews
Spindle lockNo
Starting systemSafety lever
Swiveling guardKey
Wheel/Disc diameter (in)5
Wheel/Disc diameter (mm)125

Noise & Vibrations
Sound Power96 dB(A)
Sound Pressure85 dB(A)
Uncertainty vibration-K1.5 m/s²
Vibration4.9 m/s²

Air Information
Air consumption at load7.6 l/s
Air inlet thread size (in)1/4
Air inlet thread typeNPT
Max dynamic air working pressure6.3 bar
Min hose diam (16 ft hose length)0.38 in
Min hose diam (5 m hose length)10 mm

Power
Max power525 W

Size & Weight
Length (L)229 mm
Weight1.7 kg
