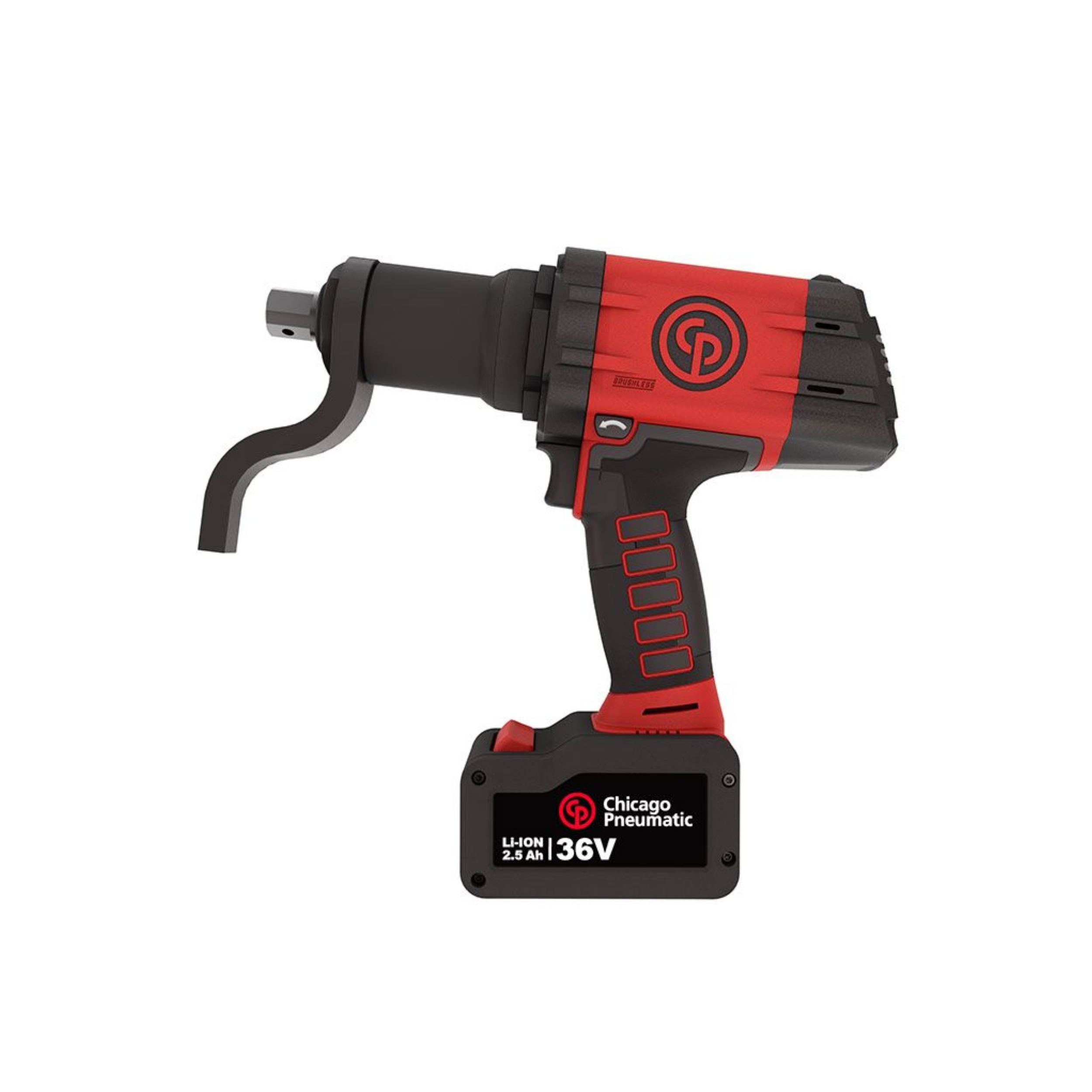

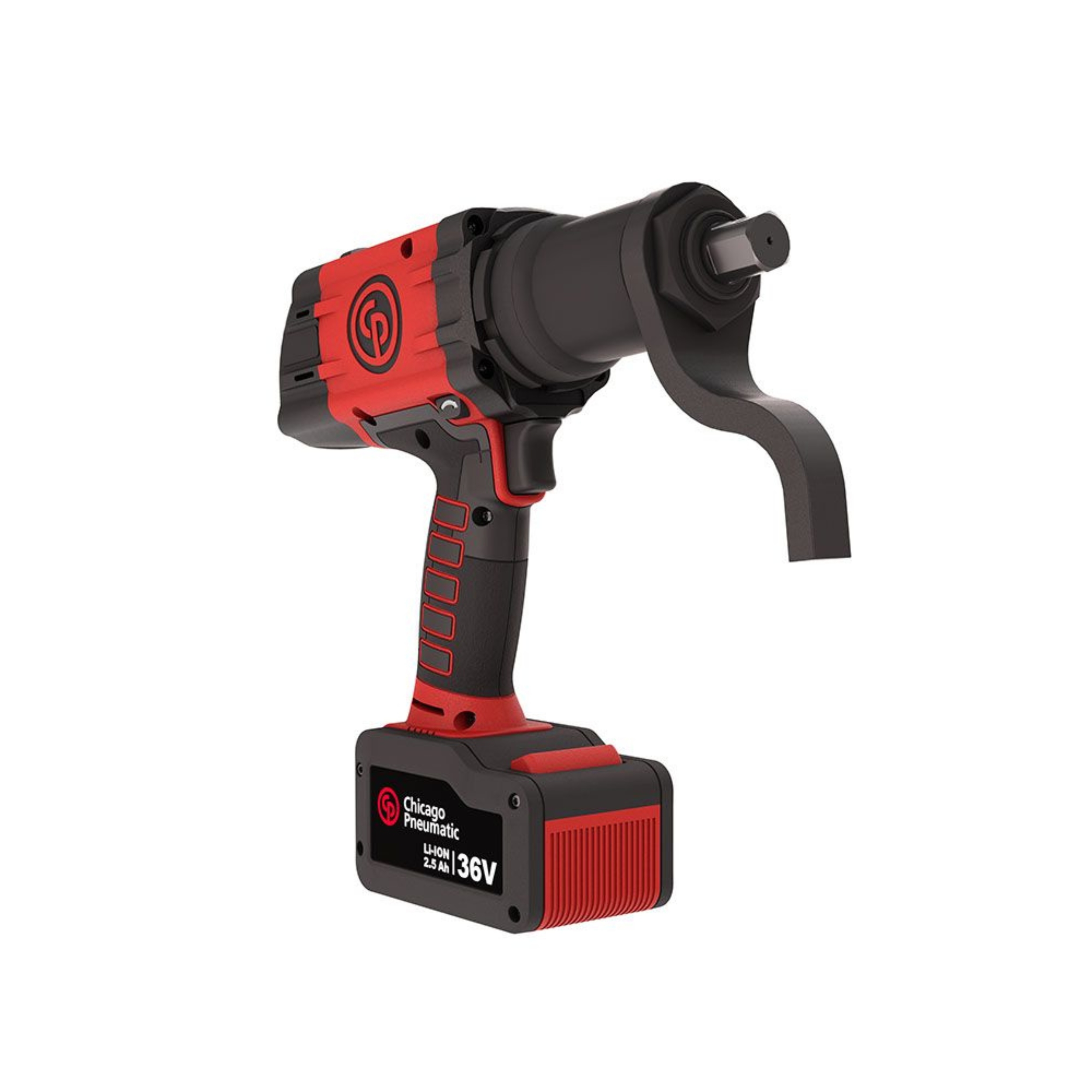

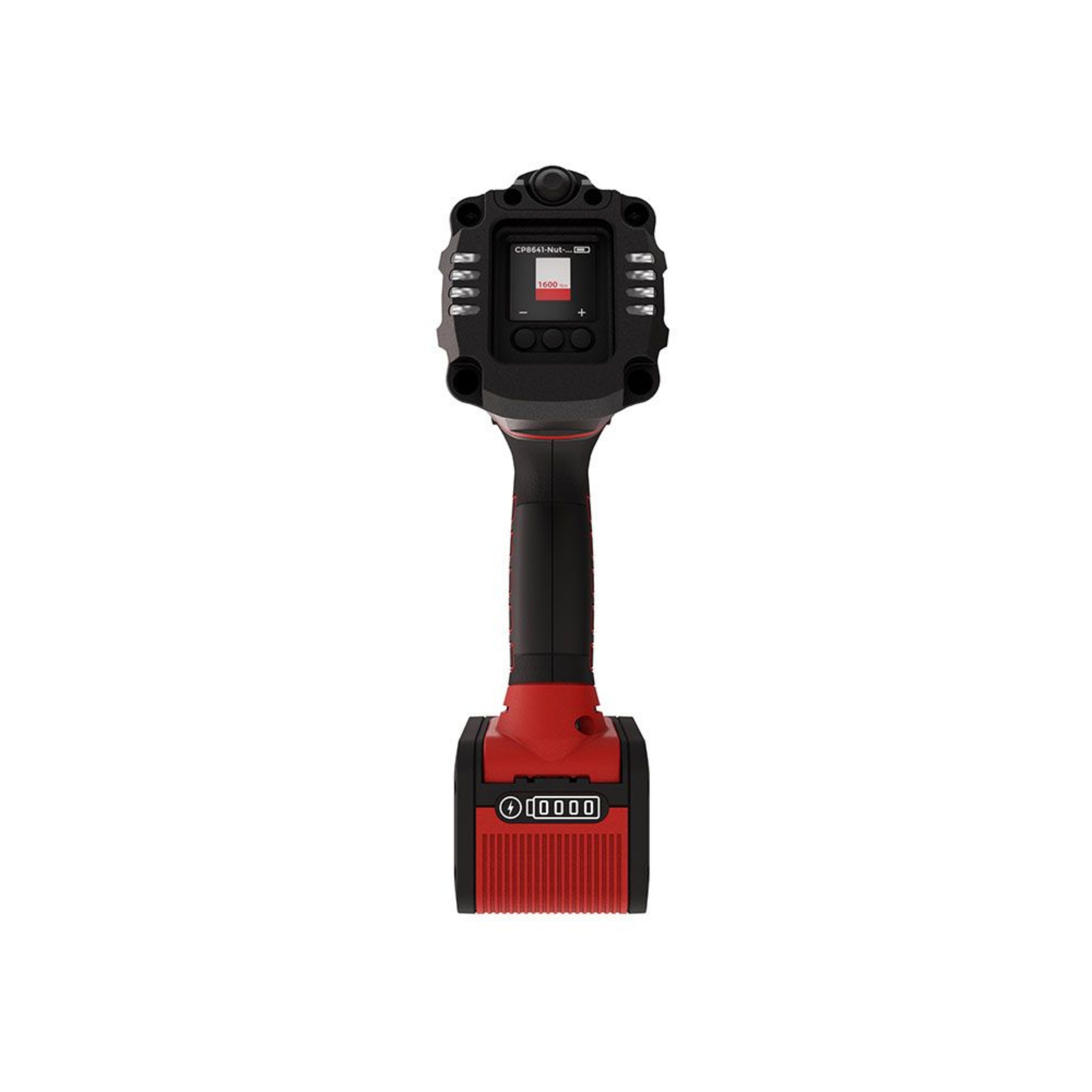

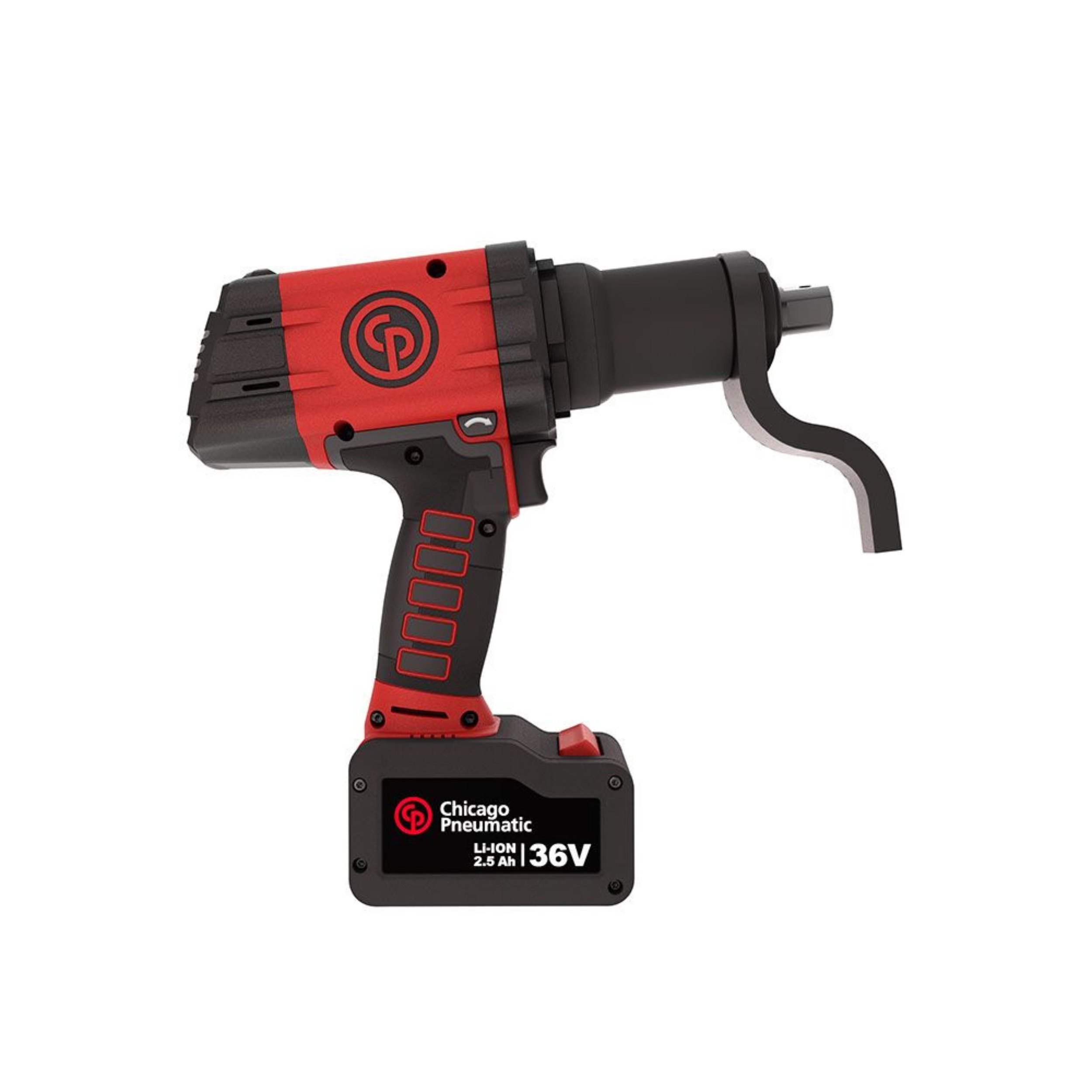

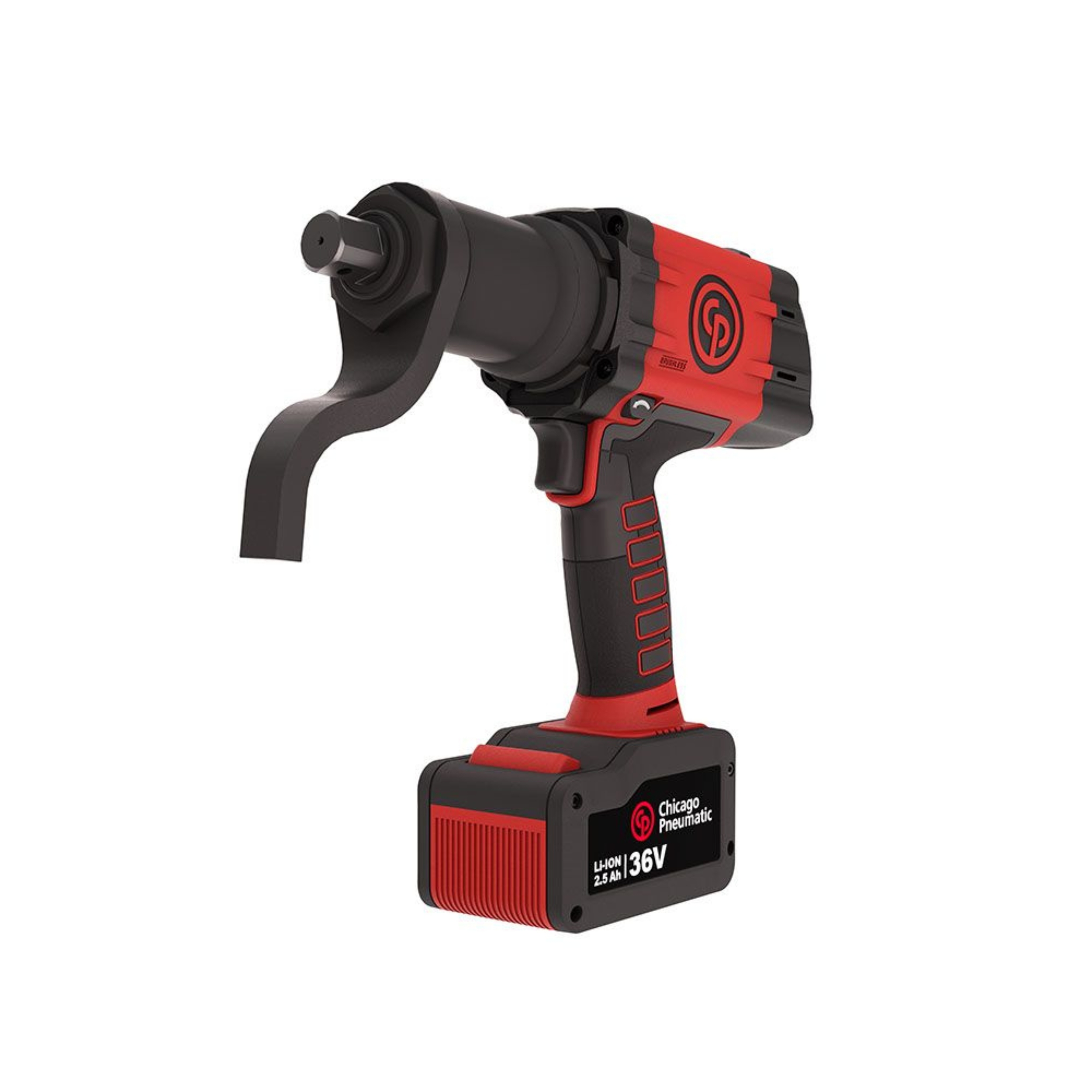

CP8603C PACK 36V 2.5AH

Part No: 6151570390

3/4″ Battery Torque Wrench Connected

Torque tightening from 70 Nm / 50 ft.lb to 325 Nm / 240 ft.lb with high precision (+/- 4%) and angle tightening. Intuitive handling on digital screen of the tool or via CPLinQ app. Pack includes 1 S type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, 1 plastic case. This tool is eligible for CP Care, which includes calibration as part of its preventive maintenance package to ensure optimal performance and long-term reliability. Calibration is also available as a standalone service. Contact us to learn more.Country of origin is HU. Customs tariff is 84672920

Included Items

1 CP8603C, 1 S type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, 1 plastic case

SEND INQUIRY

Category: CP86 Series – Battery Torque Wrenches

Technical Specifications

Battery information
Battery capacity	2.5 Ah
Battery type	Lithium-ion
Battery voltage	36 V
Max Ambient Operating Temperature	60 °C
Max Recommended Ambient Charging Temperature	45 °C
Min Ambient Operating Temperature	0 °C
Min Recommended Ambient Charging Temperature	0 °C

Noise & vibrations
Sound Power (dBA)	<72
Sound Power	58.9 dB(A)
Vibration (m/s²)	<2.5

Storage
Max Ambient Storage Temperature	60 °C
Min Ambient Storage Temperature	-20 °C

Size & Weight
Battery Weight	0.8 kg
Height (H)	285 mm
Length (L)	363 mm
Width (W)	77 mm
Power weight ratio	110 Nm/kg
Weight	2.9 kg
Weight without reaction arm	2.9 kg
Weight with reaction arm	3.3 kg

Speed
Free Speed	20 rpm

Torque
Max torque in forward	325 Nm
Max torque reverse	325 Nm
Min torque in forward	70 Nm
Recommended Torque	260 Nm
Torque Control System	Shut-off-current control

Design & Functions
Accuracy (%)	± 4 %
Adjustment	Digital
Handle type	Pistol
Joint Type	Hard & Soft
Main Material type	Steel
Output drive size (in)	3/4
Output drive type	Sq
Output retainer type	Hole
Reaction bar type	S-type
Reversible	Yes
Spline type	0
Starting system	Double-trigger
Suspension option	Optional

Weight	12,8 kg
Dimensions	60 × 40 × 50 cm
