CP8609CQ-B PACK 36V 2.5AH

Part No: 6151570520

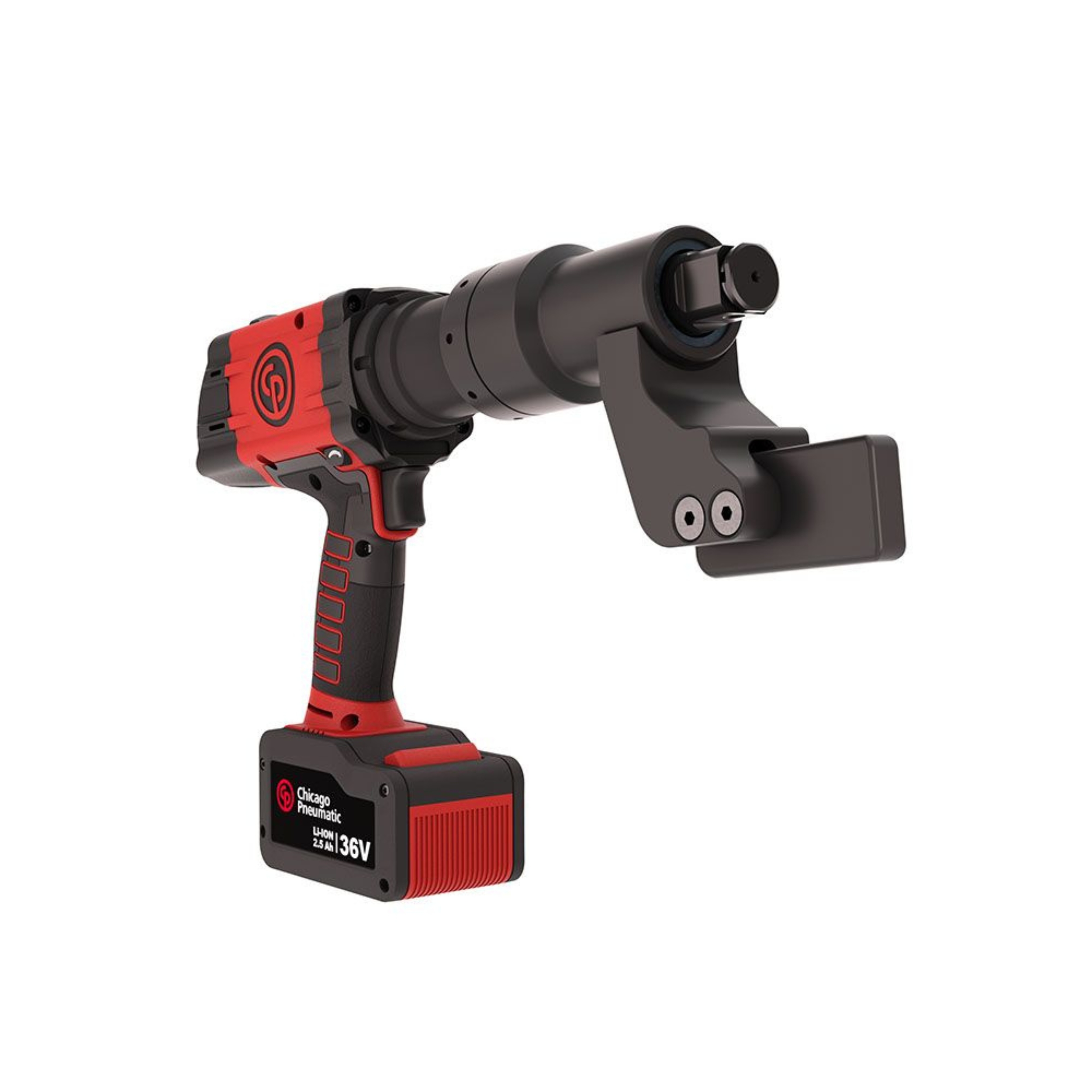

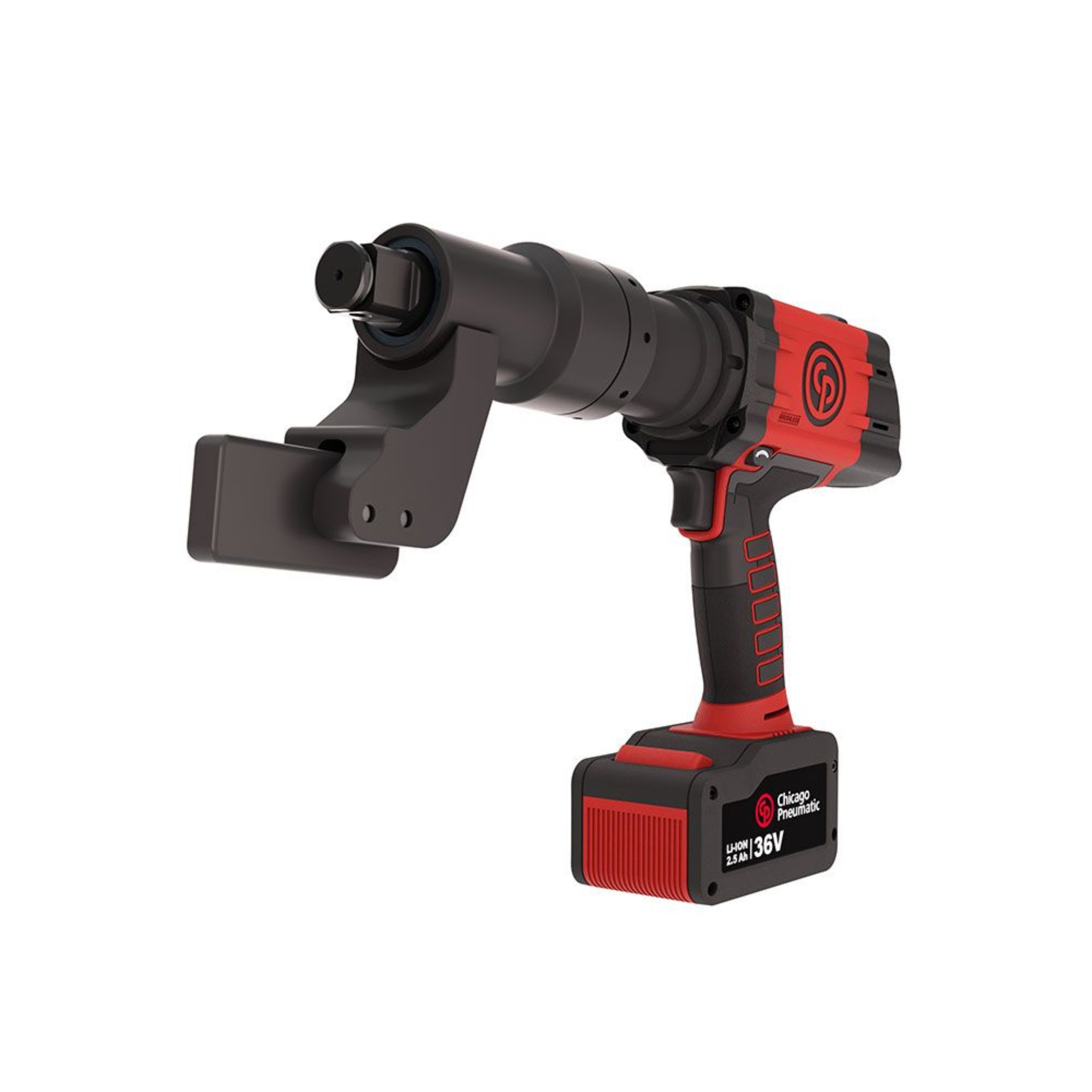

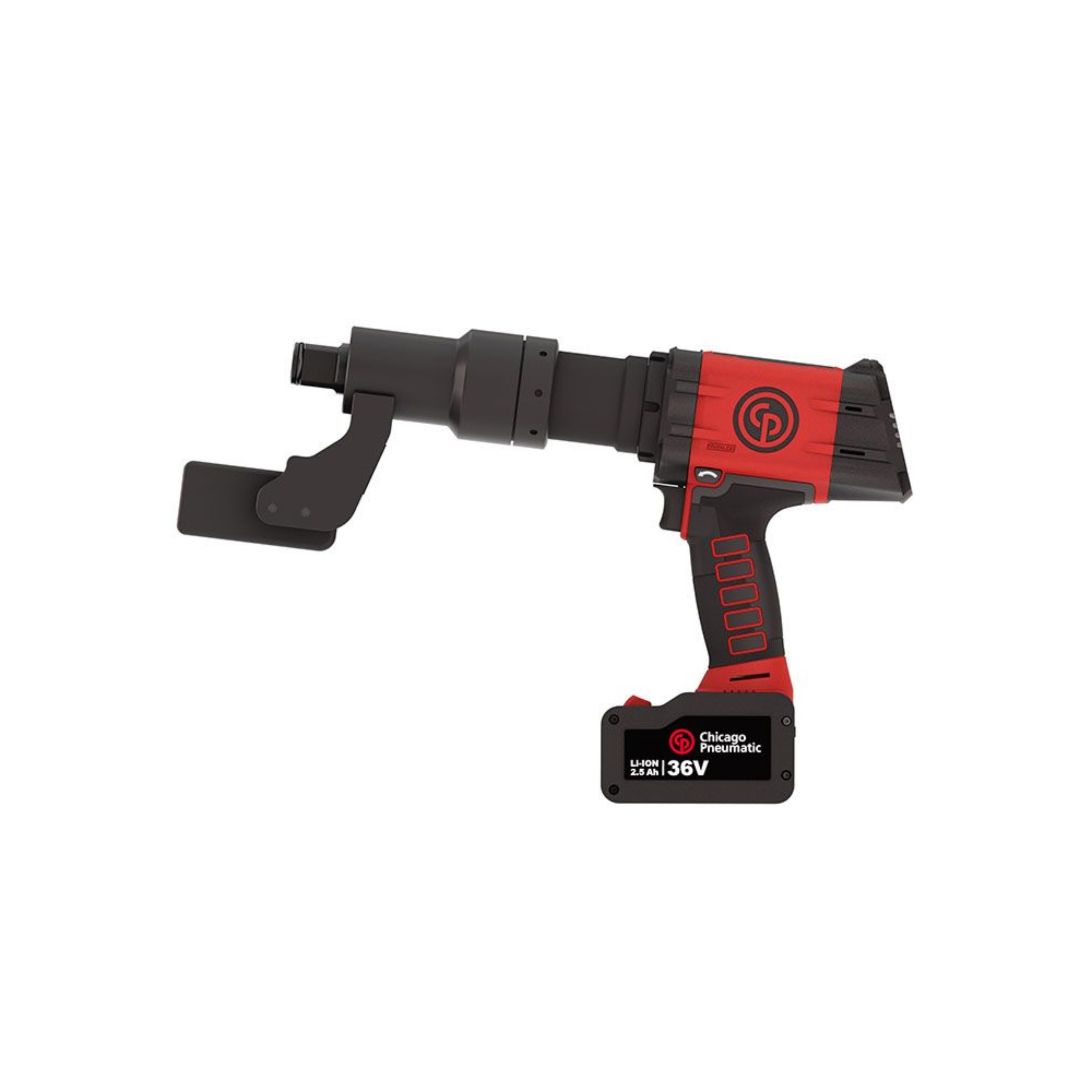

1″ Battery Torque Wrench Connected Quality – Blade

CP8609 eBlueTork with Blade reaction arm. Torque tightening from 300 Nm / 220 ft.lb to 900 Nm / 665 ft.lb with high precision (+/- 4%), as well as angle tightening and counting sequence. Intuitive handling on digital screen of the tool or via CPLinQ app, which also includes data collection for traceability. This tool is eligible for CP Care, which includes calibration as part of its preventive maintenance package to ensure optimal performance and long-term reliability. Calibration is also available as a standalone service. Contact us to learn more.Country of origin is HU. Customs tariff is 84672920

Included Items

1 CP8609CQ-B, 2 batteries, 1 battery charger, 1 charger cable, 1 plastic case

SEND INQUIRY

Category: CP8609 eBlueTork series - Battery torque wrench

Technical Specifications

Noise & vibrations
Sound Power (dba)	<83
Sound Power	73 dB(A)
Sound Pressure	62 dB(A)
Uncertainty vibration-K	0.6 m/s²
Vibration (m/s²)	<2.5
Vibration	0.6 m/s²

Storage
Max Ambient Storage Temperature	60 °C
Min Ambient Storage Temperature	-20 °C

Speed
Free Speed	15 rpm

Size & Weight
Battery Weight	0.8 kg
Height (H)	285 mm
Length (L)	380 mm
Width (W)	77 mm
Power weight ratio	150 Nm/kg
Side to Center	33.5 mm
Weight	5.8 kg
Weight without reaction arm	5.8 kg
Weight with reaction arm	6.3 kg

Torque
Max torque in forward	900 Nm
Max torque reverse	900 Nm
Min torque in forward	300 Nm
Recommended Torque	720 Nm
Torque Control System	Shut-off-current control

Design & Functions
Accuracy (%)	±4 %
Adjustment	Digital
Handle type	Pistol
Joint Type	Hard & Soft
Main Material type	Steel
Output drive size (in)	1
Output drive type	Sq
Output retainer type	Dual
Reaction bar type	Blade included
Reversible	Yes
Spline type	0
Starting system	Double-trigger
Suspension option	Optional
