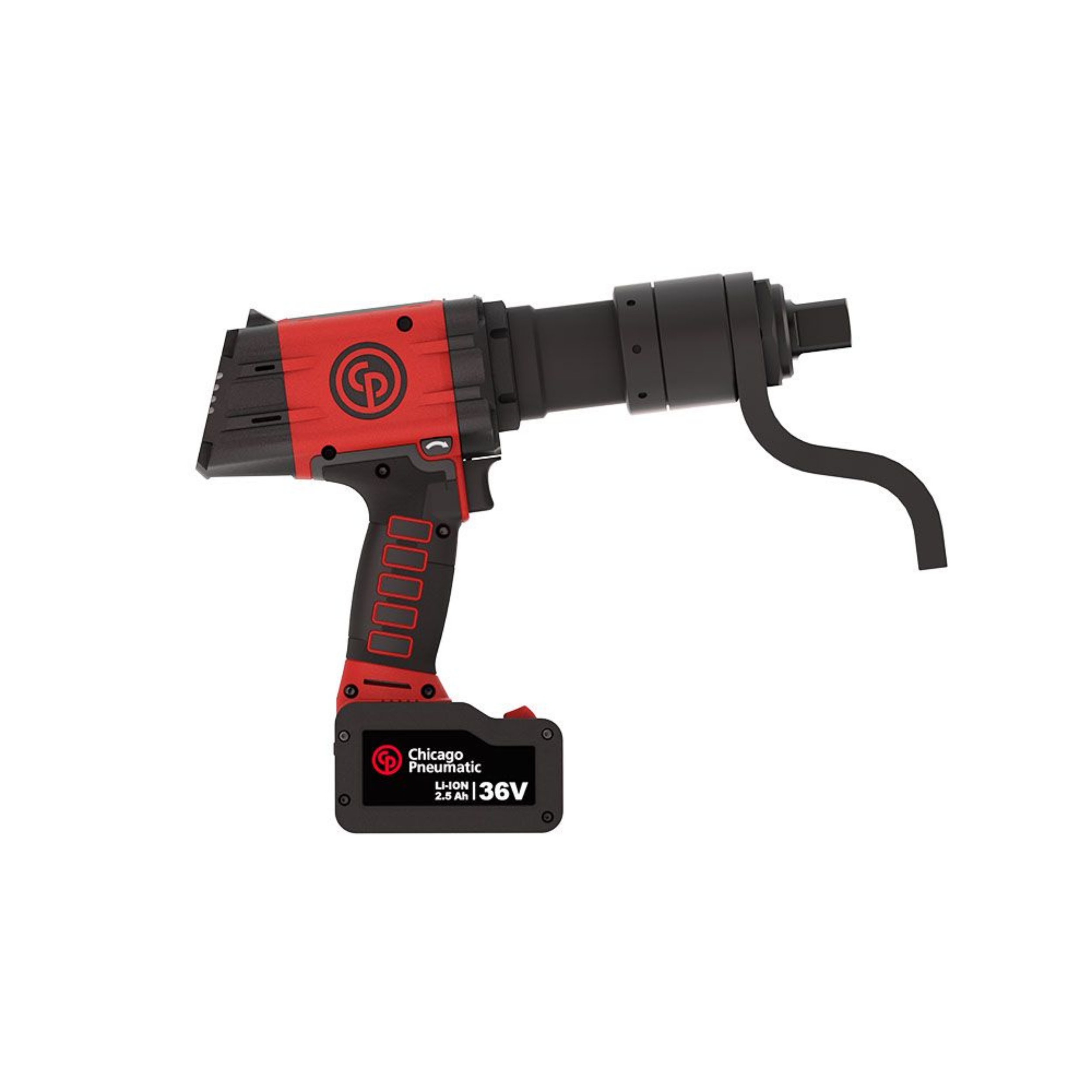

CP8609TC PACK 36V 2.5AH

Part No: 6151571140

1″ Battery Torque Wrench Connected Quality

Torque tightening from 250 Nm / 185 ft.lb to 900 Nm / 665 ft.lb with high precision (+/- 4%), as well as angle tightening and counting sequence. Intuitive handling on digital screen of the tool or via CPLinQ app, which also includes data collection for traceability. Pack includes 1 S type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, 1 plastic case. This tool is eligible for CP Care, which includes calibration as part of its preventive maintenance package to ensure optimal performance and long-term reliability. Calibration is also available as a standalone service. Contact us to learn more.Country of origin is HU. Customs tariff is 84672920

Included Items

1 CP8609CQ, 1 S type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, 1 plastic case

Compare

ADD TO QUOTE

Category: CP86 Series – Battery Torque Wrenches

Technical Specifications

Battery information
Battery capacity	2.5 Ah
Battery type	Lithium-ion
Battery voltage	36 V
Max Ambient Operating Temperature	60 °C
Max Recommended Ambient Charging Temperature	45 °C
Min Ambient Operating Temperature	0 °C
Min Recommended Ambient Charging Temperature	0 °C

Noise & vibrations
Sound Power (dba)	<83
Sound Power	69 dB(A)
Sound Pressure	58 dB(A)
Uncertainty vibration-K	0.5 m/s²
Vibration (m/s²)	<2.5
Vibration	0.4 m/s²

Storage
Max Ambient Storage Temperature	60 °C
Min Ambient Storage Temperature	-20 °C

Size & Weight
Battery Weight	0.8 kg
Height (H)	285 mm
Length (L)	341 mm
Width (W)	77 mm
Power weight ratio	180 Nm/kg
Side to Center	33.5 mm
Weight	4.2 kg
Weight without reaction arm	4.2 kg
Weight with reaction arm	4.86 kg

Speed
Free Speed	15 rpm

Torque
Max torque in forward	900 Nm
Max torque reverse	900 Nm
Min torque in forward	250 Nm
Recommended Torque	720 Nm
Torque Control System	Shut-off-current control

Design & Functions
Accuracy (%)	± 4 %
Adjustment	Digital
Handle type	Pistol
Joint Type	Hard & Soft
Main Material type	Steel
Output drive size (in)	1
Output drive type	Sq
Output retainer type	Hole
Reaction bar type	S-type
Reversible	Yes
Spline type	0
Starting system	Double-trigger
Suspension option	Optional

Weight	14,56 kg
Dimensions	60 × 40 × 50 cm
