CP8613TC WOB PACK 36V 2.5AH

Part No: 6151570710

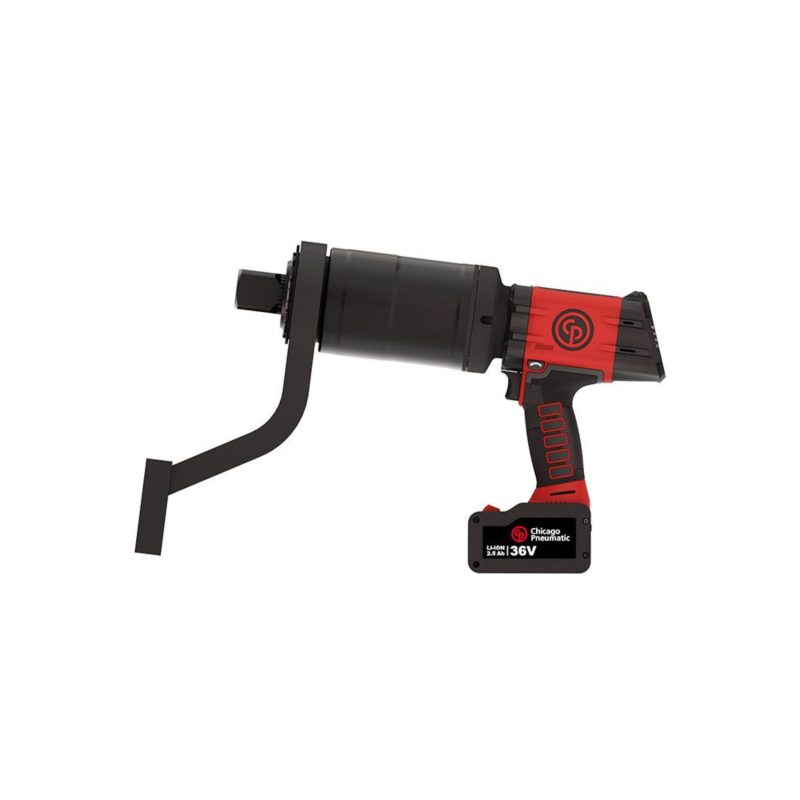

3/4″ Battery Torque Wrench Torque Check without reaction arm

Torque tightening and torque check from 300 Nm / 220 ft.lb to 1300 Nm / 960 ft.lb with high precision (+/- 4%), as well as angle tightening and counting sequence. Intuitive handling on digital screen of the tool or via CPLinQ app, which also includes data collection for traceability. Pack includes 1 S type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, 1 plastic case. This tool is eligible for CP Care, which includes calibration as part of its preventive maintenance package to ensure optimal performance and long-term reliability. Calibration is also available as a standalone service. Contact us to learn more.Country of origin is HU. Customs tariff is 84672920

Included Items

1 CP8613TC, 2 batteries, 1 battery charger, 1 charger cable, 1 plastic case

SEND INQUIRY

Category: CP86 Series – Battery Torque Wrenches

Technical Specifications

Battery information
Battery capacity	2.5 Ah
Battery type	Lithium-ion
Battery voltage	36 V
Max Ambient Operating Temperature	60 °C
Max Recommended Ambient Charging Temperature	45 °C
Min Ambient Operating Temperature	0 °C
Min Recommended Ambient Charging Temperature	0 °C

Noise & vibrations
Sound Power (dba)	<72
Sound Power	72 dB(A)
Sound Pressure	83 dB(A)
Vibration (m/s²)	<2.5

Storage
Max Ambient Storage Temperature	60 °C
Min Ambient Storage Temperature	-20 °C

Speed
Free Speed	10 rpm

Size & Weight
Battery Weight	0.8 kg
Height (H)	285 mm
Length (L)	318 mm
Width (W)	77 mm
Power weight ratio	350 Nm/kg
Weight	3.7 kg
Weight without reaction arm	3.7 kg

Torque
Max torque in forward	1300 Nm
Max torque reverse	1300 Nm
Min torque in forward	300 Nm
Recommended Torque	1040 Nm
Torque Control System	Shut-off-current control

Design & Functions
Accuracy (%)	±4 %
Adjustment	Digital
Handle type	Pistol
Joint Type	Hard & Soft
Main Material type	Steel
Output drive size (in)	3/4
Output drive type	Sq
Output retainer type	Hole
Reversible	Yes
Spline type	0
Starting system	Double-trigger
Suspension option	Optional
