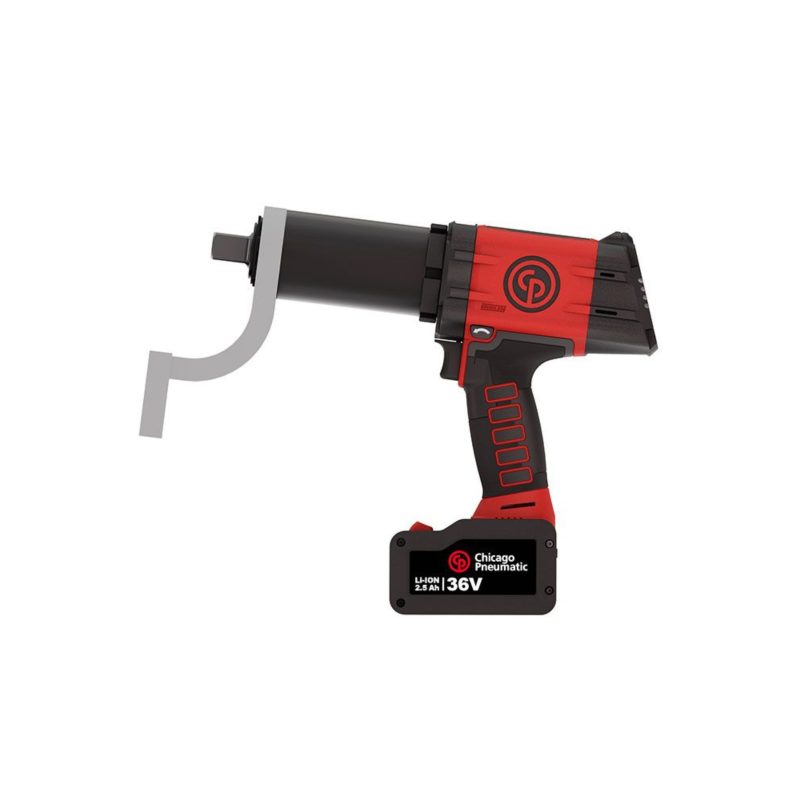

CP8626 PACK 36V 2.5AH

Part No: 6151570030

1″ Battery Torque Wrench

Torque tightening from 700 Nm / 520 ft.lb to 2600 Nm / 1910 ft.lb with high precision (+/- 4%). Intuitive handling on digital screen of the tool. Pack includes 1 S type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, 1 plastic case. This tool is eligible for CP Care, which includes calibration as part of its preventive maintenance package to ensure optimal performance and long-term reliability. Calibration is also available as a standalone service. Contact us to learn more.Country of origin is HU. Customs tariff is 84672920

Included Items

1 CP8626, 1 S type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, 1 plastic case

SEND INQUIRY

Category: CP86 Series – Battery Torque Wrenches

Technical Specifications

Battery information
Battery capacity	2.5 Ah
Battery type	Lithium-ion
Battery voltage	36 V
Max Ambient Operating Temperature	60 °C
Max Recommended Ambient Charging Temperature	45 °C
Min Ambient Operating Temperature	0 °C
Min Recommended Ambient Charging Temperature	0 °C

Noise & vibrations
Sound Power (dba)	<72
Sound Power	71 dB(A)
Sound Pressure	83 dB(A)
Vibration (m/s²)	<2,5

Storage
Max Ambient Storage Temperature	60 °C
Min Ambient Storage Temperature	-20 °C

Size & Weight
Battery Weight	0.8 kg
Height (H)	285 mm
Length (L)	363 mm
Width (W)	77 mm
Power weight ratio	520 Nm/kg
Weight	5 kg
Weight without reaction arm	5 kg
Weight with reaction arm	6.4 kg

Speed
Free Speed	5 rpm

Torque
Max torque in forward	2600 Nm
Max torque reverse	2600 Nm
Min torque in forward	700 Nm
Recommended Torque	2080 Nm
Torque Control System	Shut-off-current control

Design & Functions
Accuracy (%)	± 4 %
Adjustment	Digital
Handle type	Pistol
Joint Type	Hard & Soft
Main Material type	Steel
Output drive size (in)	1
Output drive type	Sq
Output retainer type	Hole
Reaction bar type	S-type included
Reversible	Yes
Spline type	0
Starting system	Double-trigger
Suspension option	Optional
