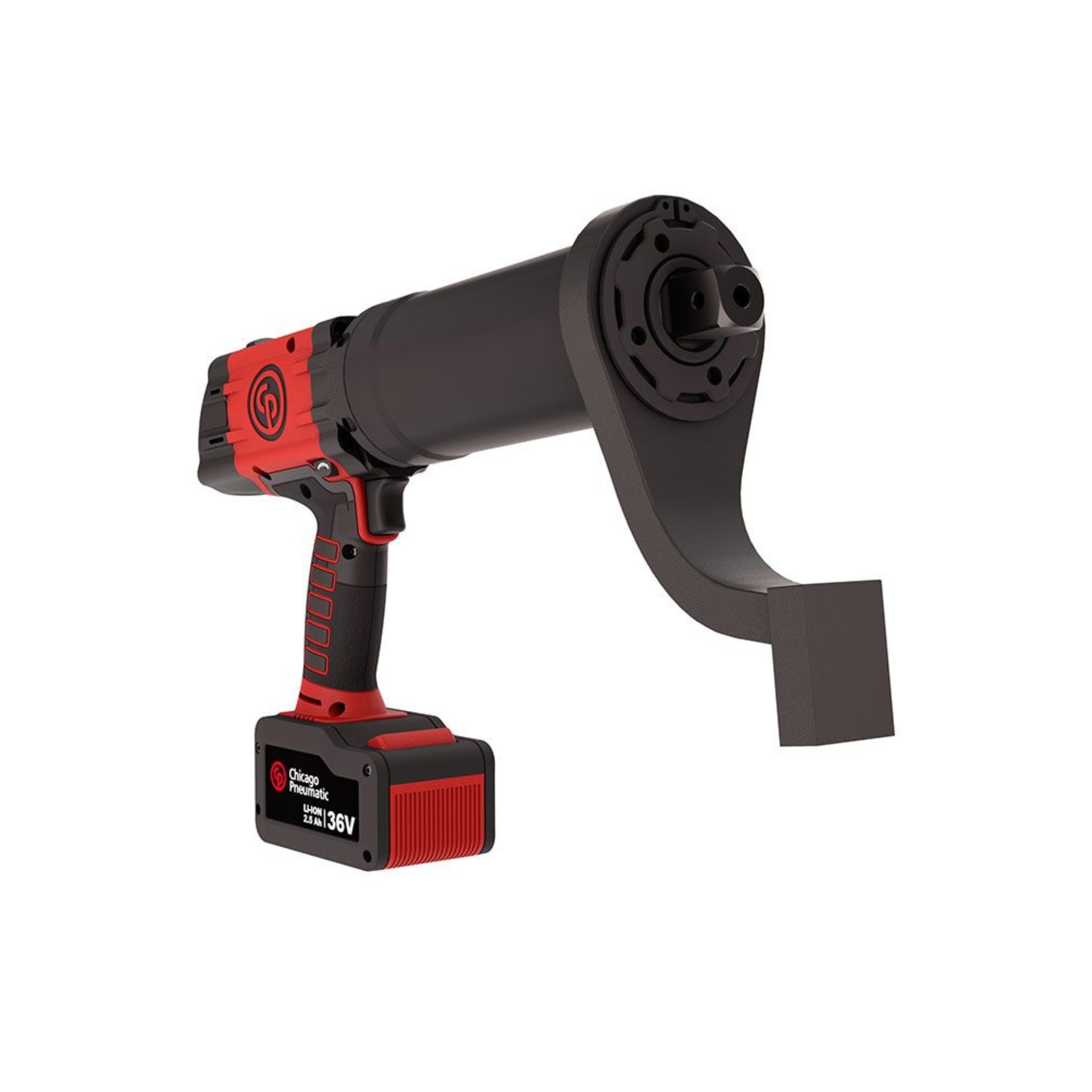

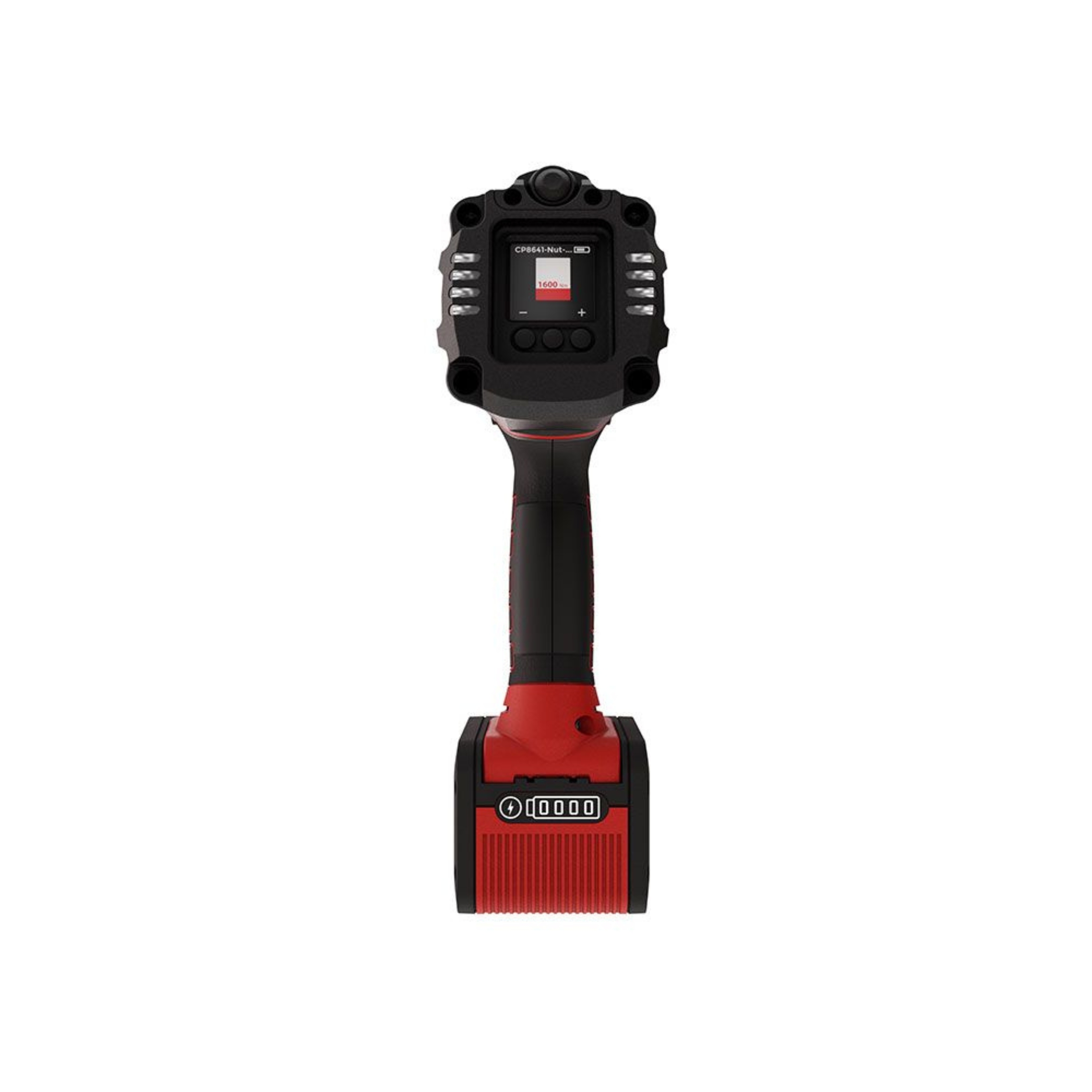

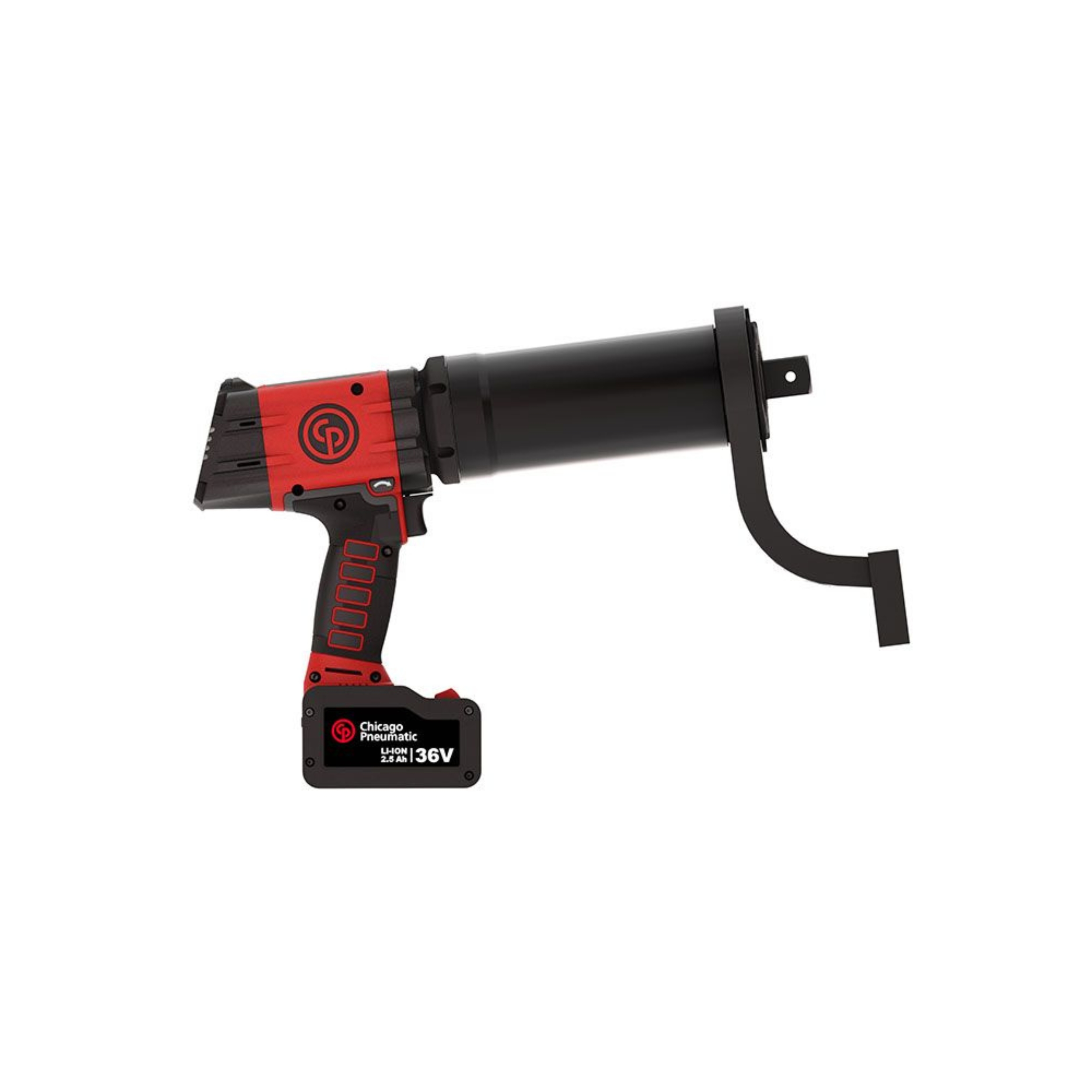

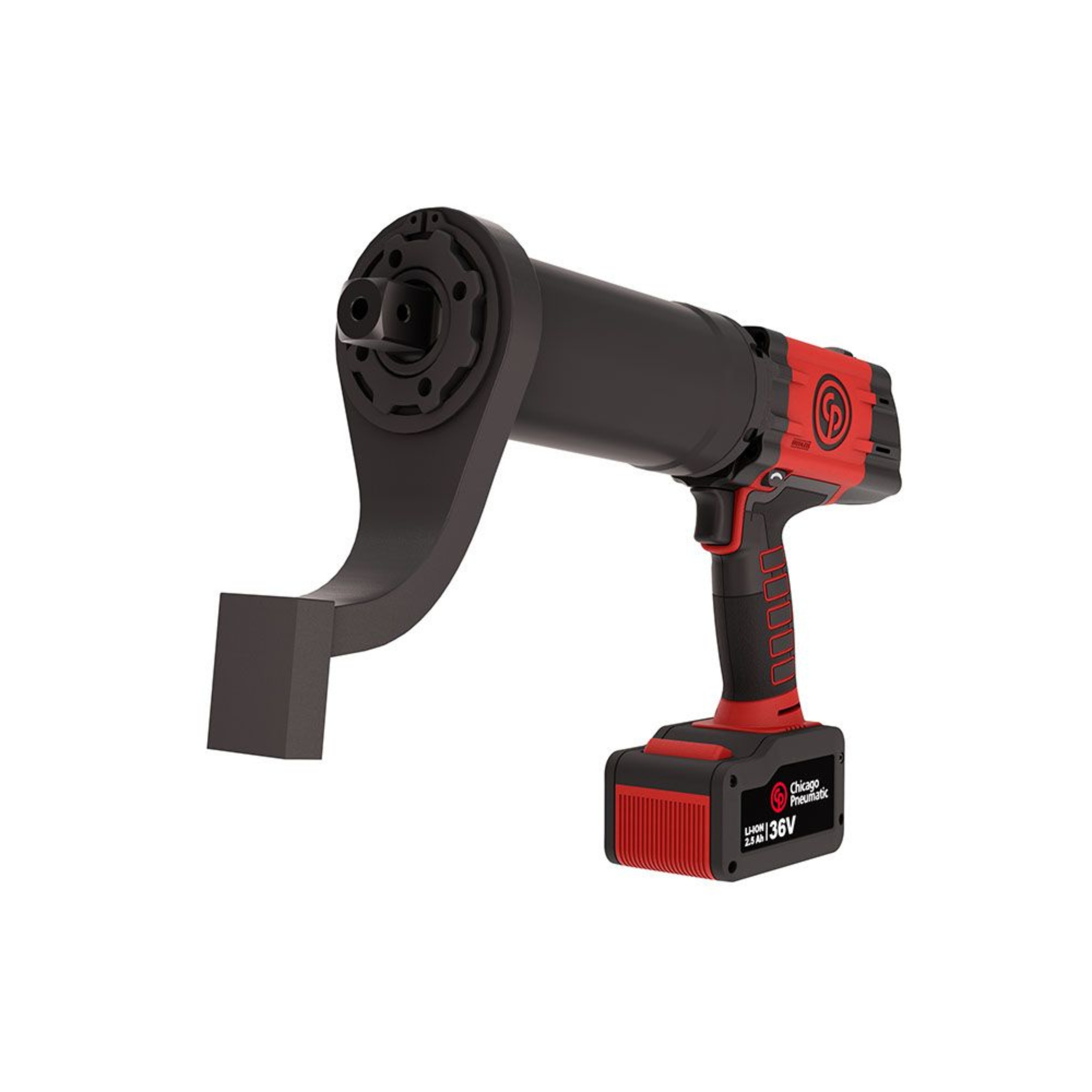

CP8641TC PACK 36V 2.5AH

Part No: 6151570690

1″ Battery Torque Wrench Torque Check

Torque tightening and torque check from 1000 Nm / 740 ft.lb to 4100 Nm / 3020 ft.lb with high precision (+/- 4%), as well as angle tightening and counting sequence. Intuitive handling on digital screen of the tool or via CPLinQ app, which also includes data collection for traceability. Pack includes 1 S type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, 1 plastic case. This tool is eligible for CP Care, which includes calibration as part of its preventive maintenance package to ensure optimal performance and long-term reliability. Calibration is also available as a standalone service. Contact us to learn more.Country of origin is HU. Customs tariff is 84672920

Included Items

1 CP8641TC, 1 S type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, 1 plastic case

SEND INQUIRY

Category: CP86 Series – Battery Torque Wrenches

Technical Specifications

Battery information
Battery capacity	2.5 Ah
Battery type	Lithium-ion
Battery voltage	36 V
Max Ambient Operating Temperature	60 °C
Max Recommended Ambient Charging Temperature	45 °C
Min Ambient Operating Temperature	0 °C
Min Recommended Ambient Charging Temperature	0 °C

Noise & vibrations
Sound Power (dBA)	<72
Sound Power	66 dB(A)
Sound Pressure	83 dB(A)
Vibration (m/s²)	<2,5

Storage
Max Ambient Storage Temperature	60 °C
Min Ambient Storage Temperature	-20 °C

Size & Weight
Battery Weight	0.8 kg
Height (H)	285 mm
Length (L)	409 mm
Width (W)	101 mm
Power weight ratio	470 Nm/kg
Weight	8.6 kg
Weight without reaction arm	8.6 kg
Weight with reaction arm	10.6 kg

Speed
Free Speed	3 rpm

Torque
Max torque in forward	4100 Nm
Max torque reverse	4100 Nm
Min torque in forward	1000 Nm
Recommended Torque	3280 Nm
Torque Control System	Shut-off-current control

Design & Functions
Accuracy (%)	± 4 %
Adjustment	Digital
Handle type	Pistol
Joint Type	Hard & Soft
Main Material type	Steel
Output drive size (in)	1
Output drive type	Sq
Output retainer type	Hole
Reaction bar type	S-type
Reversible	Yes
Spline type	0
Starting system	Double-trigger
Suspension option	Optional
