CP8681 PACK 36V 2.5AH

Part No: 6151570090

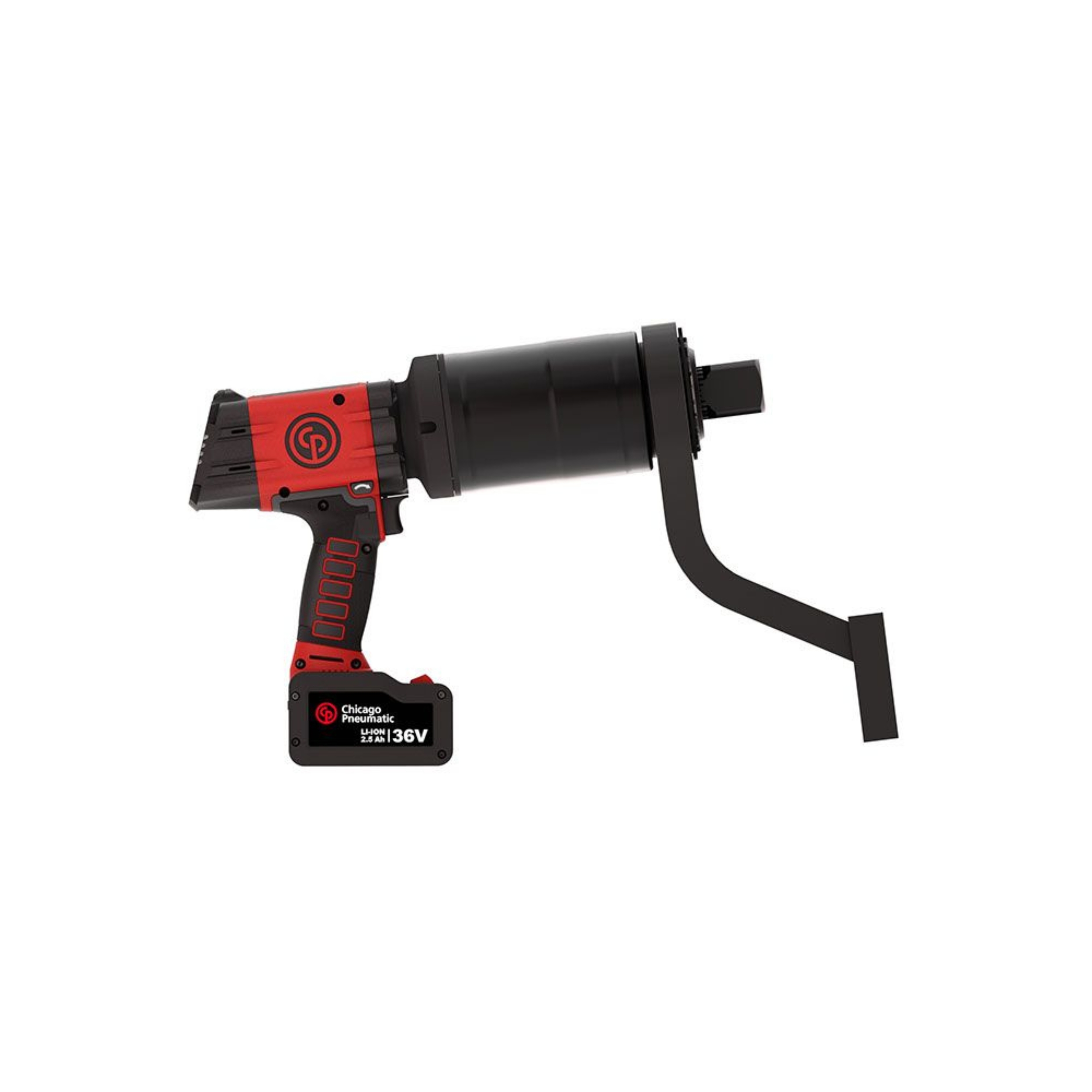

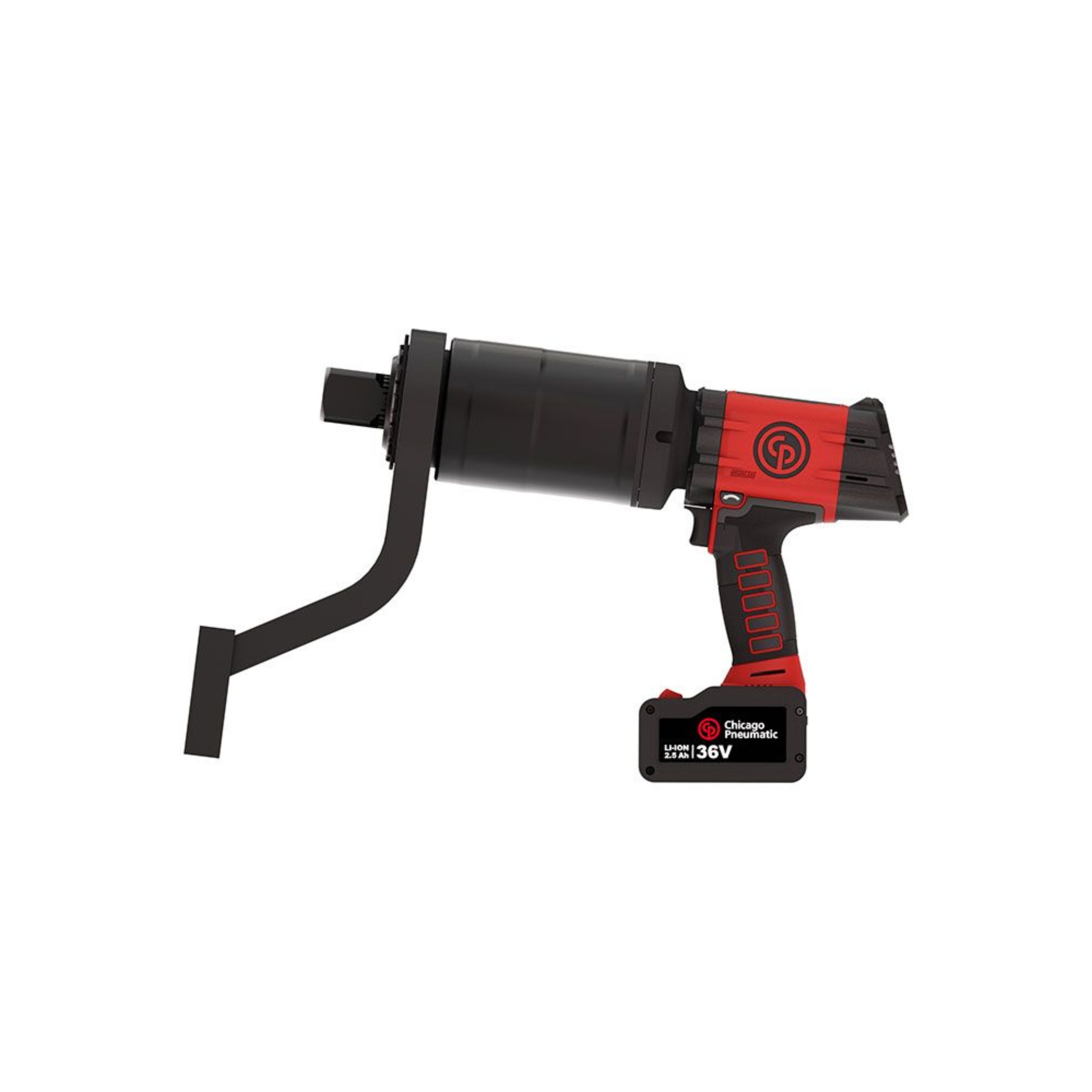

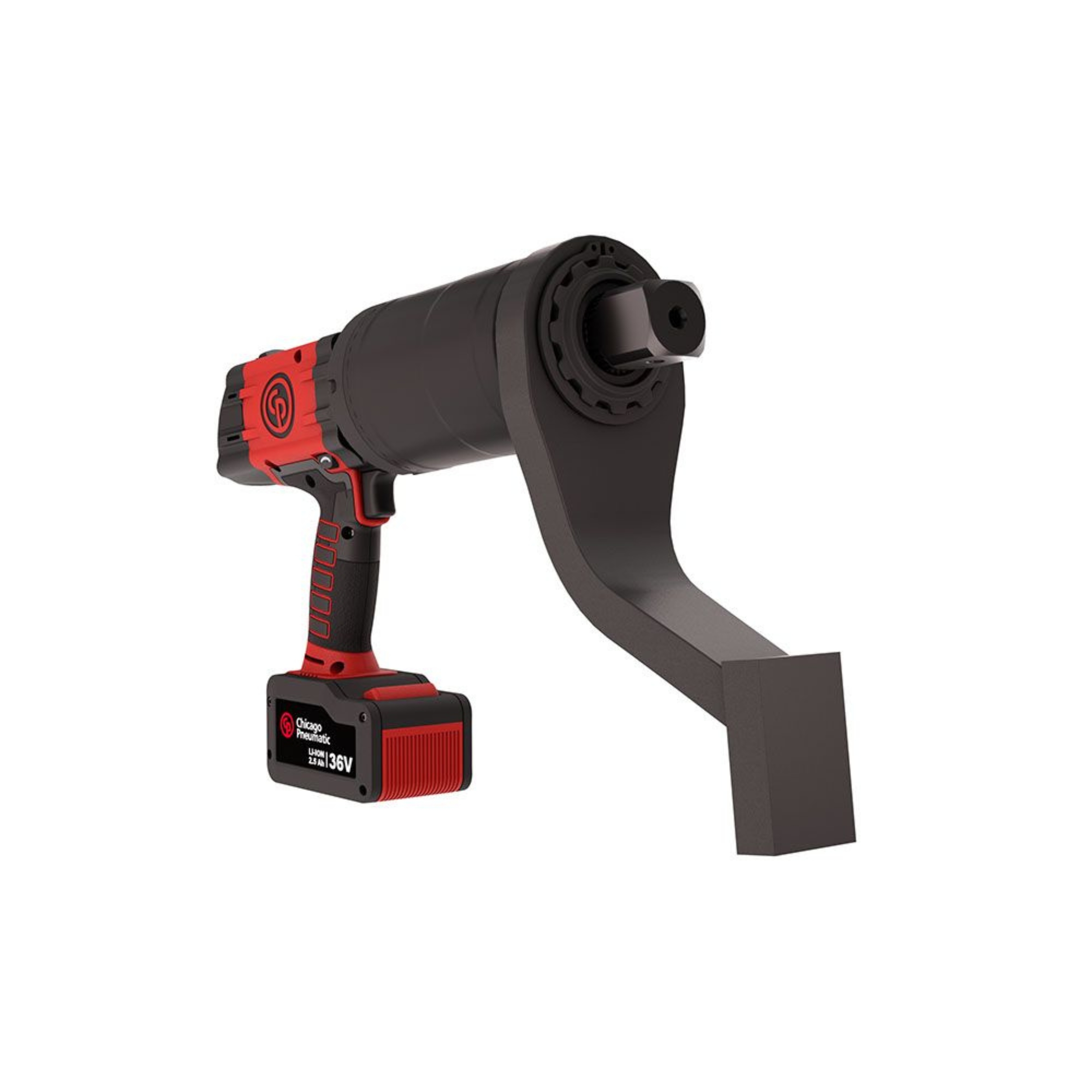

1-1/2″ Battery Torque Wrench

Torque tightening from 2000 Nm / 1470 ft.lb to 8100 Nm / 5970 ft.lb with high precision (+/- 4%). Intuitive handling on digital screen of the tool. This tool is eligible for CP Care, which includes calibration as part of its preventive maintenance package to ensure optimal performance and long-term reliability. Calibration is also available as a standalone service. Contact us to learn more.Country of origin is HU. Customs tariff is 84672920

Included Items

1 CP8681, 1 S type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, 1 plastic case

SEND INQUIRY

Category: CP8609 eBlueTork series - Battery torque wrench

Technical Specifications

Battery information
Battery capacity	2.5 Ah
Battery type	Lithium-ion
Battery voltage	36 V
Max Ambient Operating Temperature	60 °C
Max Recommended Ambient Charging Temperature	45 °C
Min Ambient Operating Temperature	0 °C
Min Recommended Ambient Charging Temperature	0 °C

Noise & vibrations
Sound Power (dba)	<72
Sound Power	64 dB(A)
Sound Pressure	83 dB(A)
Vibration (m/s²)	<2.5

Storage
Max Ambient Storage Temperature	60 °C
Min Ambient Storage Temperature	-20 °C

Speed
Free Speed	1 rpm

Size & Weight
Battery Weight	0.8 kg
Height (H)	285 mm
Length (L)	414 mm
Width (W)	106 mm
Power weight ratio	710 Nm/kg
Weight	11.4 kg
Weight without reaction arm	11.4 kg
Weight with reaction arm	15.7 kg

Torque
Max torque in forward	8100 Nm
Max torque reverse	8100 Nm
Min torque in forward	2000 Nm
Recommended Torque	6480 Nm
Torque Control System	Shut-off-current control

Design & Functions
Accuracy (%)	±4 %
Adjustment	Digital
Handle type	Pistol
Joint Type	Hard & Soft
Main Material type	Steel
Output drive size (in)	1-1/2
Output drive type	Sq
Output retainer type	Hole
Reaction bar type	S-type
Reversible	Yes
Spline type	0
Starting system	Double-trigger
Suspension option	Optional
