CP9113G

Part No: 6151600010

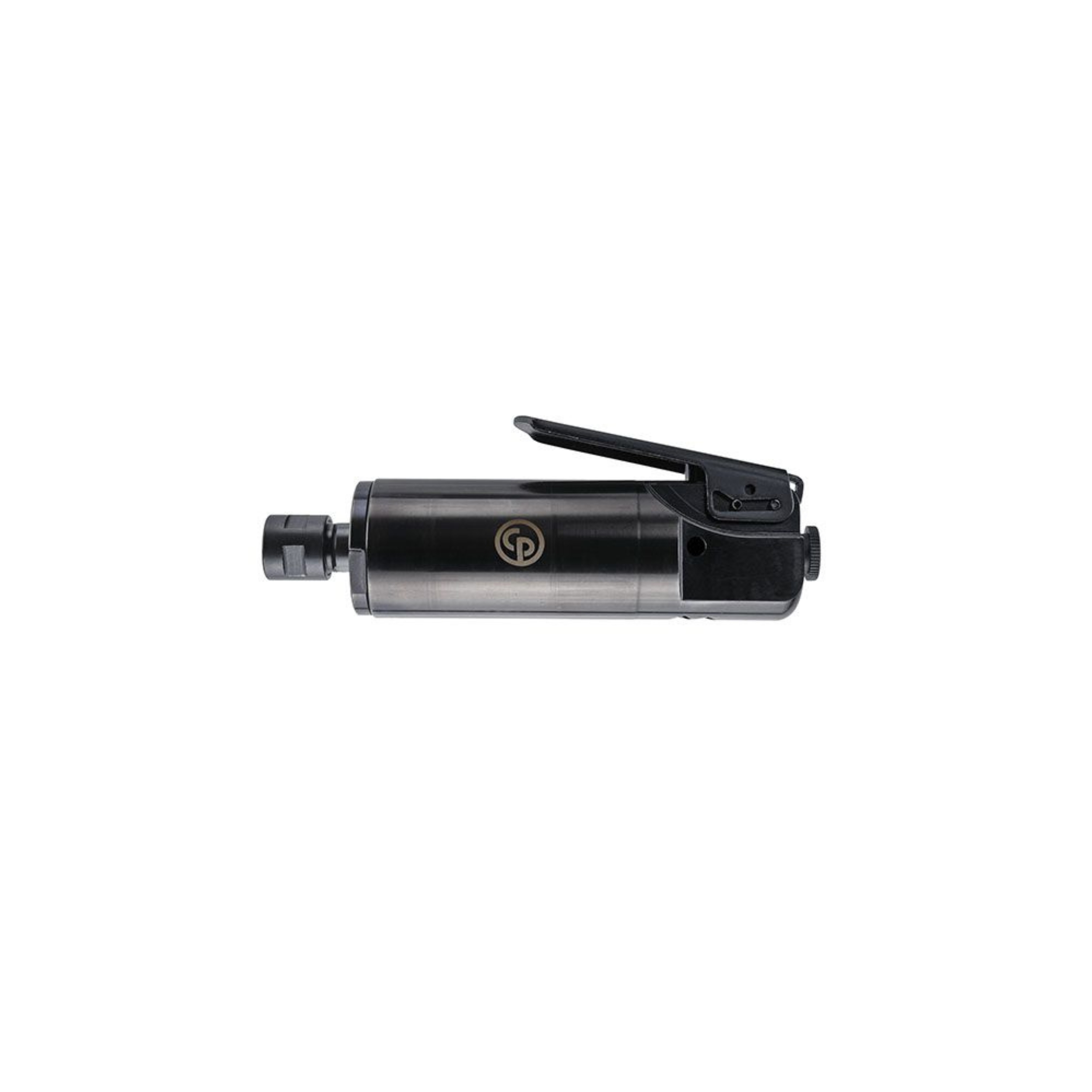

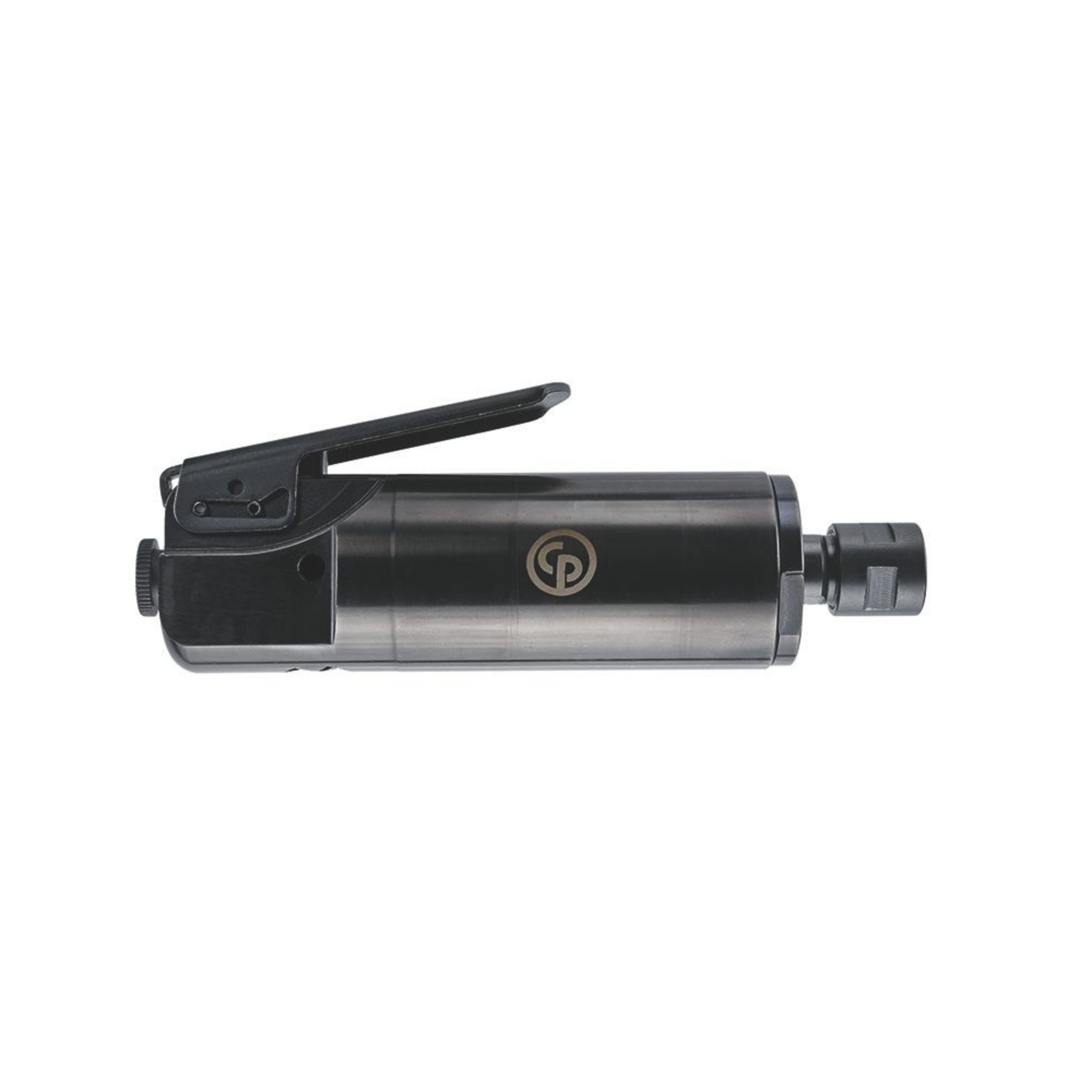

1/4″(6 mm) PNEUMATIC DIE GRINDER

The CP9113G Series, a 1/4′ (6.35 mm) capacity die grinder with collet is an industrial maintenance and production tool for grinding, contouring, deburring, and cleaning applications. It delivers a powerful governed motor of 1 hp (750 W) and a free speed up to 25,000 rpm. Available in straight or extended housing collet spindle.Country of origin is TW. Customs tariff is 84671110

SEND INQUIRY
Category:

Technical Specifications

Size & Weight
Length (L) 170 mm
Weight 1.15 kg

Speed
Free Speed 25000 rpm
Air consumption at free speed 17 l/s

Air information
Air consumption at load 15 l/s
Air inlet thread size (in) 1/4
Max dynamic air working pressure 6.3 bar
Min hose diam (16 ft hose length) 0.38 in
Min hose diam (5 m hose length) 13 mm

Noise & vibrations
Sound Power 103.9 dB(A)
Sound Pressure 92.9 dB(A)
Uncertainty vibration-K 1.8 m/s²
Vibration 3.6 m/s²

Tightening Strategies
Angle Type Straight

Power
Max power 750 W

Design & Functions
Collet max capacity 1/4 (6.35mm)
Collet/Collet holder/Collet nut type Erickson serie 200 type
Exhaust Front
Governor type NA
Main Material type Steel
Rotative inlet No
Spindle lock No
Starting system Safety lever
Weight 1,38 kg
Dimensions 23,1 × 7,4 × 6 cm
