CP9356NS

    T022165

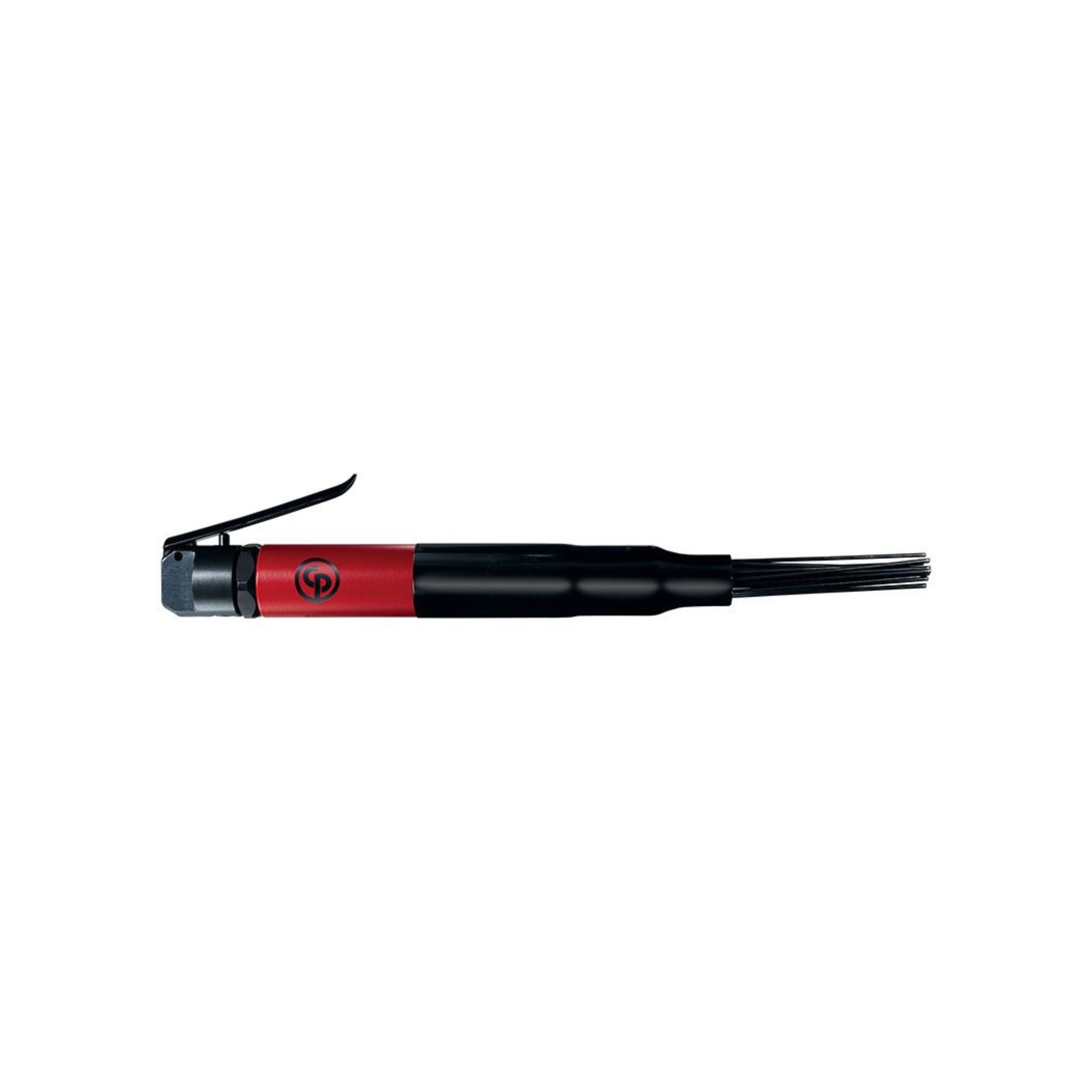

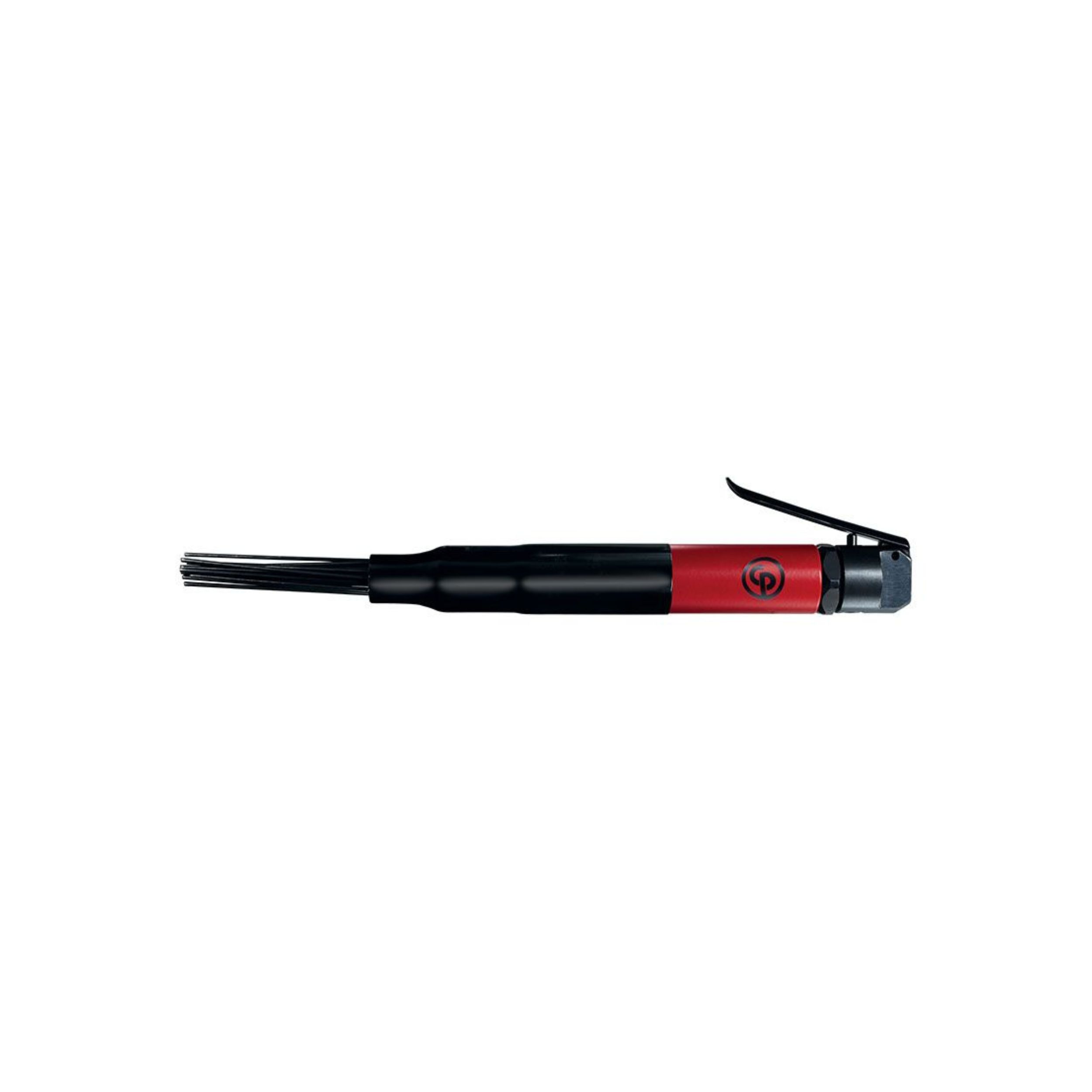

    1/8" X19 pneumatic needle scaler

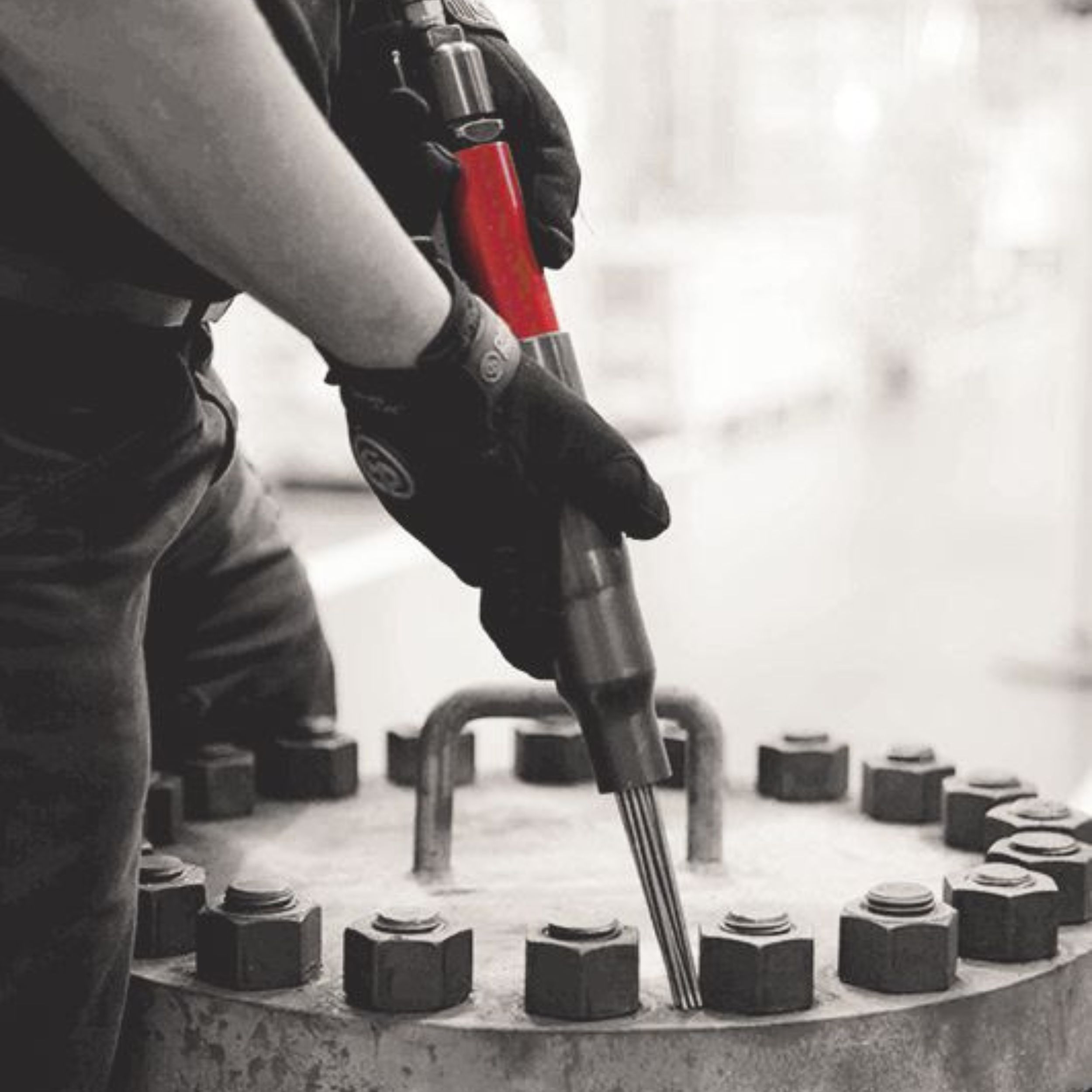

    The CP9356 needle scaler is the one you need. This straight needle scaler is designed for industrial maintenance and production applications. Country of origin is JP. Customs tariff is 84671900

    SEND INQUIRY
    Category:

      Technical Specifications

      Air information
      Air consumption at load 4.8 l/s
      Air inlet thread size (in) 3/8
      Max dynamic air working pressure 6.3 bar
      Min hose diam (16 ft hose length) 0.38 in
      Min hose diam (5 m hose length) 10 mm

      Design & Functions
      Blow per minute 4600
      Chisel shank Square
      Chisel shank diameter (in) 1/2
      Chisel shank diameter (mm) 12.7
      Energy 5.5 J
      Needle capacity 19×1/8 (3)
      Starting system Safety lever

      Size & Weight
      Bore diameter 25.4 mm
      Length (L) 445 mm
      Stroke 28.6 mm
      Weight 2.2 kg

      Noise & vibrations
      Sound Power 101 dB(A)
      Sound Pressure 90 dB(A)
      Uncertainty vibration-K 3.4 m/s²
      Vibration 17.3 m/s²
      Weight 3,18 kg
      Dimensions 57 × 10 × 8,5 cm
