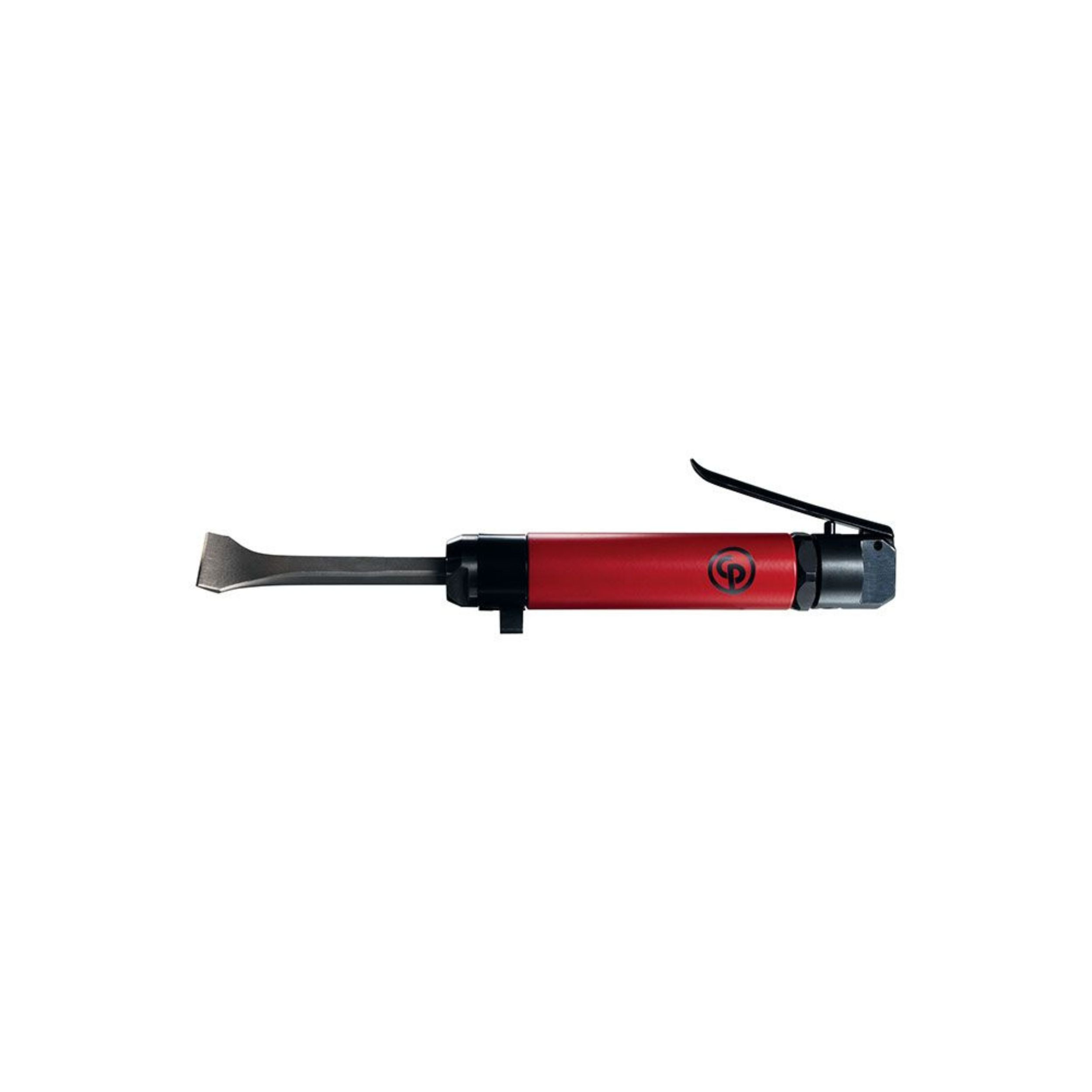

CP9356WF 57

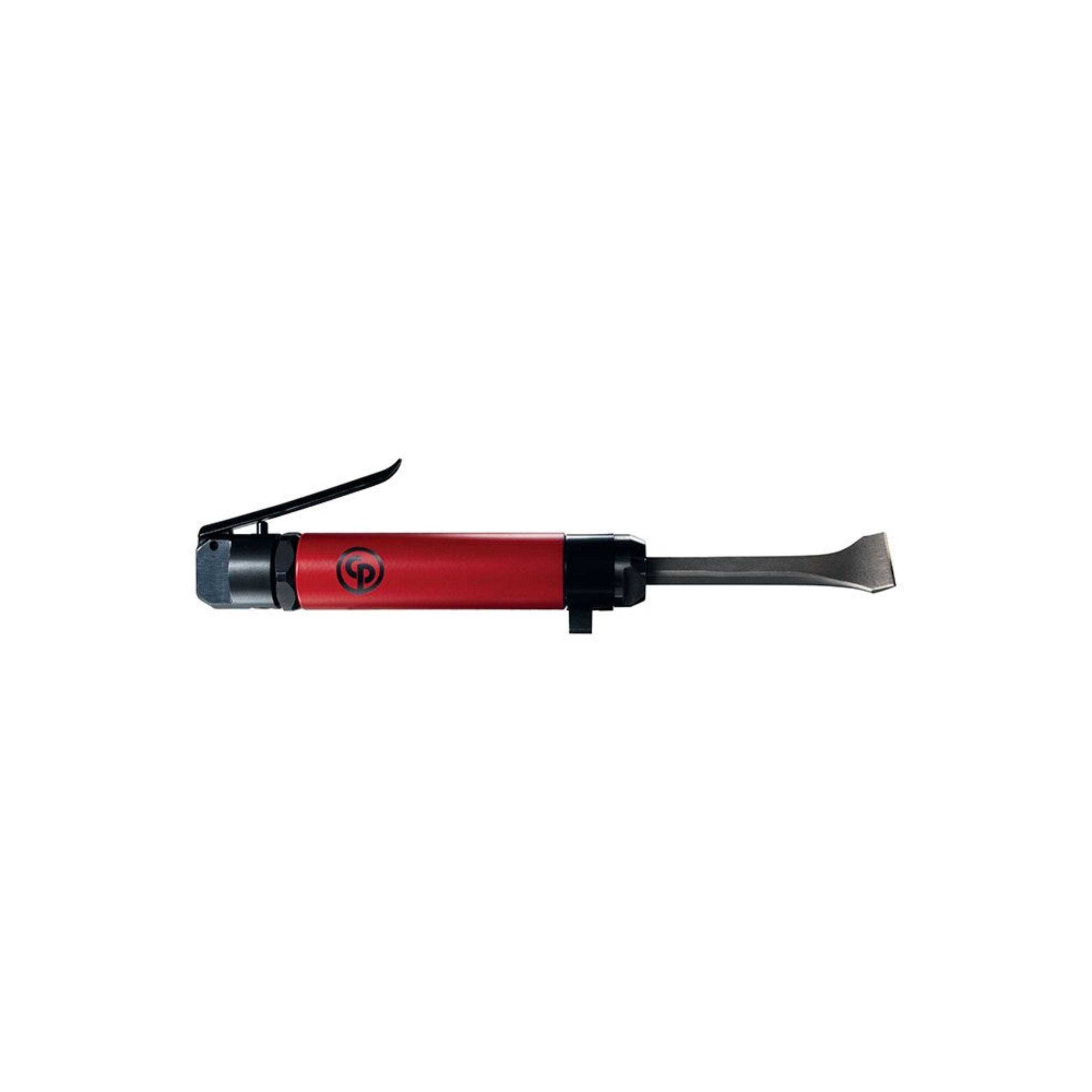

CP9356WF 58
CP9356WF 57
CP9356WF 58

CP9356WF

    T021959

    1/2"(12.7mm) pneumatic weld flux chipper

    The CP9356WF weld-flux chipper has a versatile design with good durability for industrial application. It provides an effective way of removing coatings, corrosion and other accumulated materials. If needed, it can easily be convert into a needle scaler. Country of origin is JP. Customs tariff is 84671900

    SEND INQUIRY
    Category:

      Technical Specifications

      Noise & vibrations
      Sound Power 101 dB(A)
      Sound Pressure 90 dB(A)
      Uncertainty vibration-K 8 m/s²
      Vibration 21.3 m/s²

      Design & Functions
      Blow per minute 4600
      Chisel shank Square
      Chisel shank diameter (in) 1/2
      Chisel shank diameter (mm) 12.7
      Energy 5.5 J
      Main Material type Steel
      Starting system Lever

      Size & Weight
      Bore diameter 25.4 mm
      Length (L) 238 mm
      Stroke 28.6 mm
      Weight 1.7 kg

      Air information
      Air consumption at load 4.8 l/s
      Air inlet thread size (in) 3/8
      Max dynamic air working pressure 6.3 bar
      Min hose diam (16 ft hose length) 0.38 in
      Min hose diam (5 m hose length) 13 mm
