CP9561

Part No: 6151909561

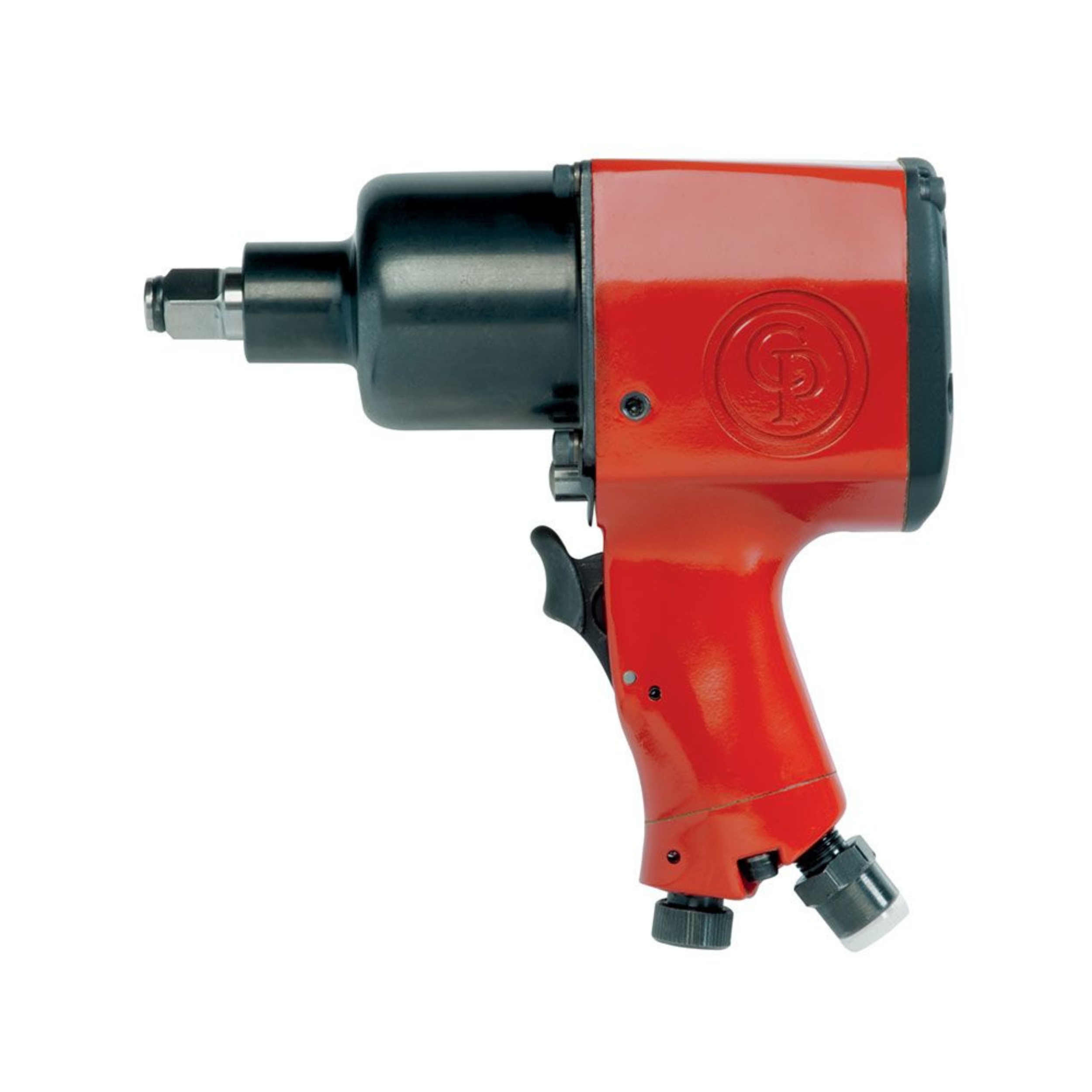

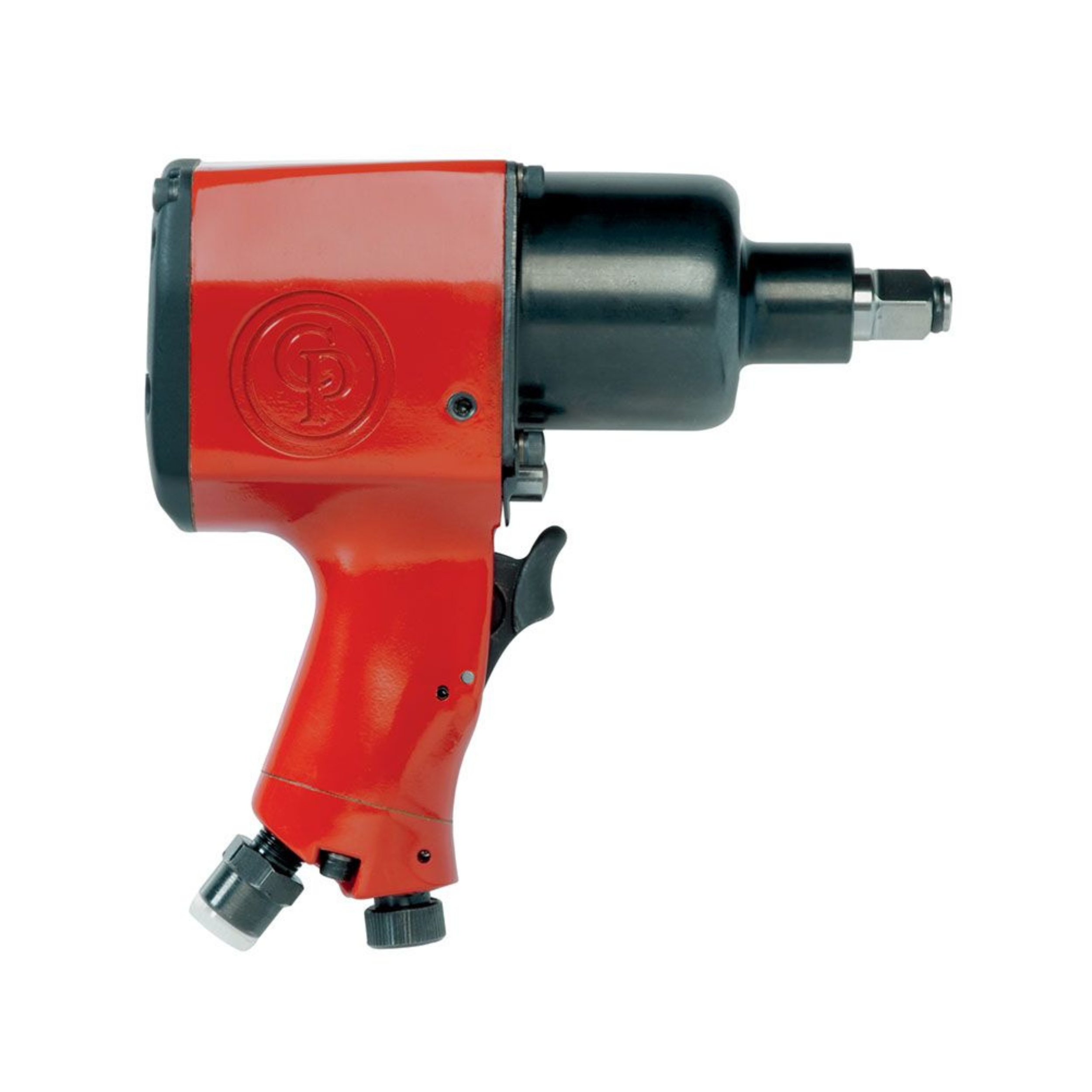

3/4″ Pistol pneumatic impact wrench

The CP9541/42/61 series of 3/4″, 1″ impact wrenches – features the fast and reliable Dyna-Pact pin clutch mechanism, an aluminium body, and steel clutch housing. The design offers high performance in term of torque, vibration, and durability for MRO applications. The range consists of 3 models: CP9541 with ring socket retainer, CP9542 with pin socket retainer for a maximum reverse torque of up to 610 Nm /450 ft.lb. and the 3/4″ CP9561 with hole socket retainer, which delivers a maximum reverse torque of up to 1,250 Nm /885 ft.lb.Country of origin is JP. Customs tariff is 84671190

SEND INQUIRY
Category:

Technical Specifications

Torque
Max working torque fwd 950 Nm
Max torque reverse 1250 Nm
Min working torque fwd 200 Nm
Torque limited No

Air information
Air inlet thread size (in) 3/8
Max dynamic air working pressure 6.3 bar
Min hose diam (5 m hose length) 13 mm

Noise & vibrations
Sound Power 111 dB(A)
Sound Pressure 100 dB(A)
Uncertainty vibration-K 2.4 m/s²
Vibration (m/s²) 7.7
Vibration 7.7 m/s²

Speed
Free Speed 5500 rpm

Size & Weight
Length (L) 216 mm
Power weight ratio 240 Nm/kg
Side to Center 39 mm
Weight 5.1 kg

Design & Functions
Blow per minute 900
Body Aluminium
Clutch housing Steel
Clutch lubrication type Grease
Handle type Pistol
Impact mecanism Pin clutch
Main Material type Aluminium
Output drive size (in) 3/4
Output drive type Sq
Output retainer type Hole
Starting system Trigger
Weight 5,52 kg
Dimensions 32 × 23 × 26 cm
