CP9882

    Part No: 8941098820

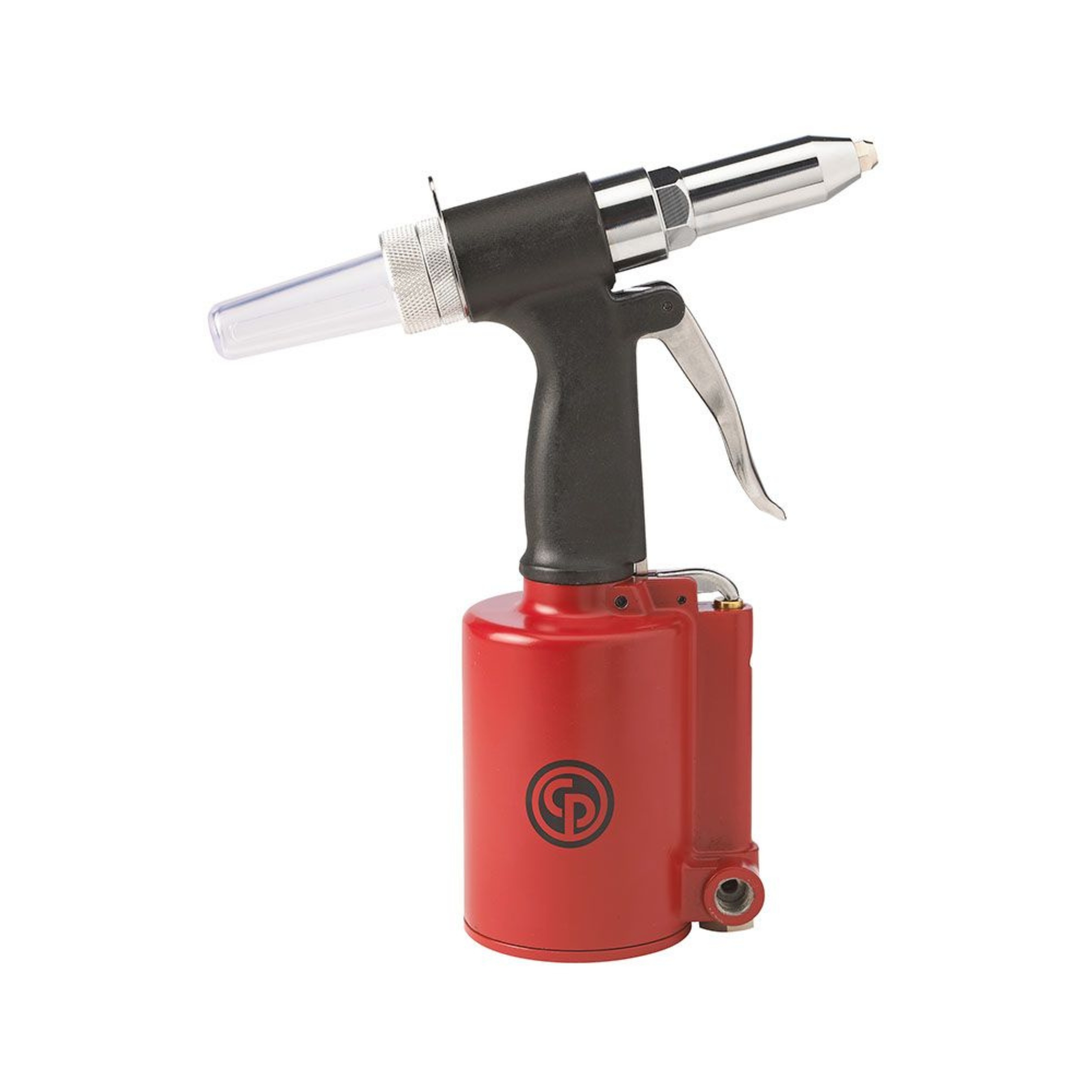

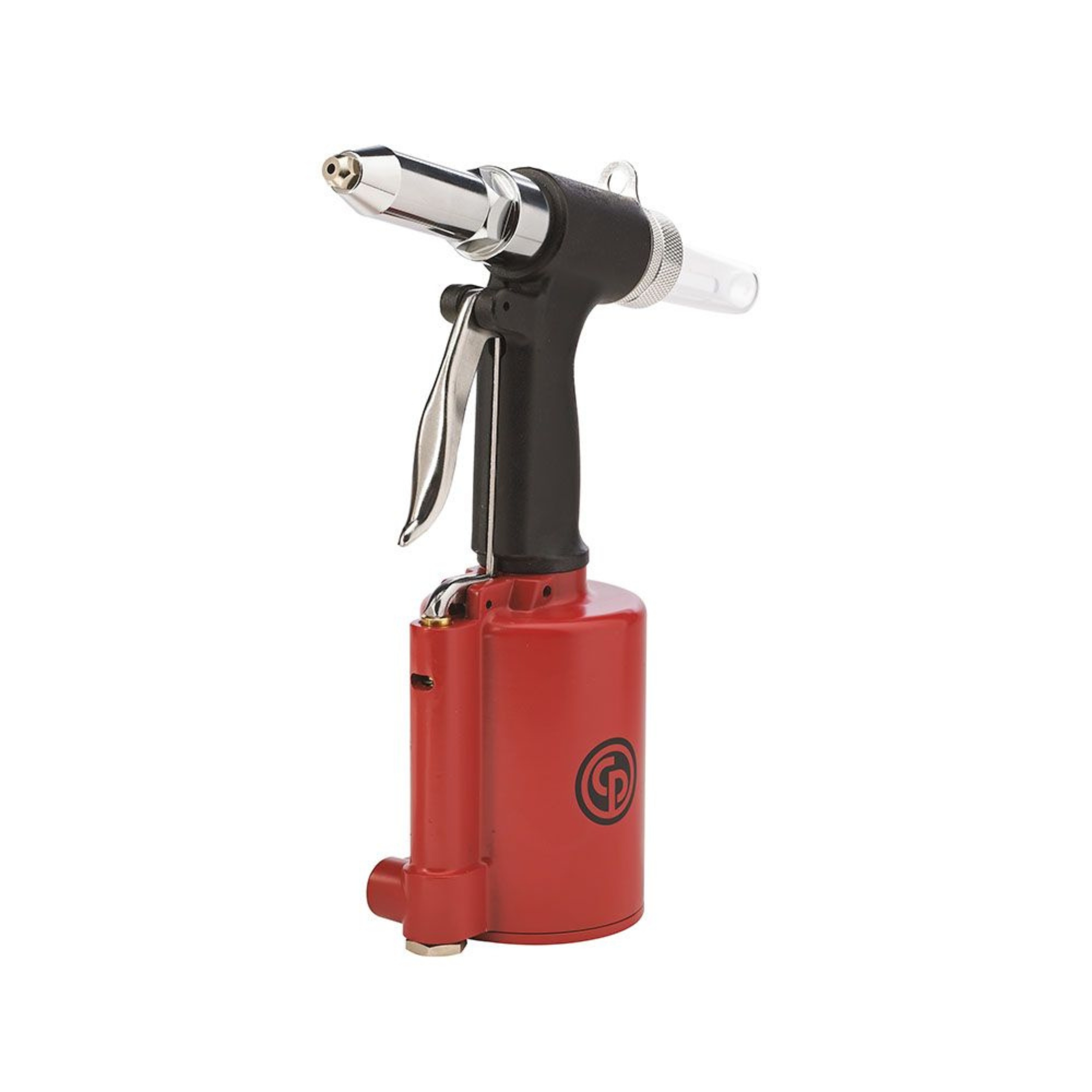

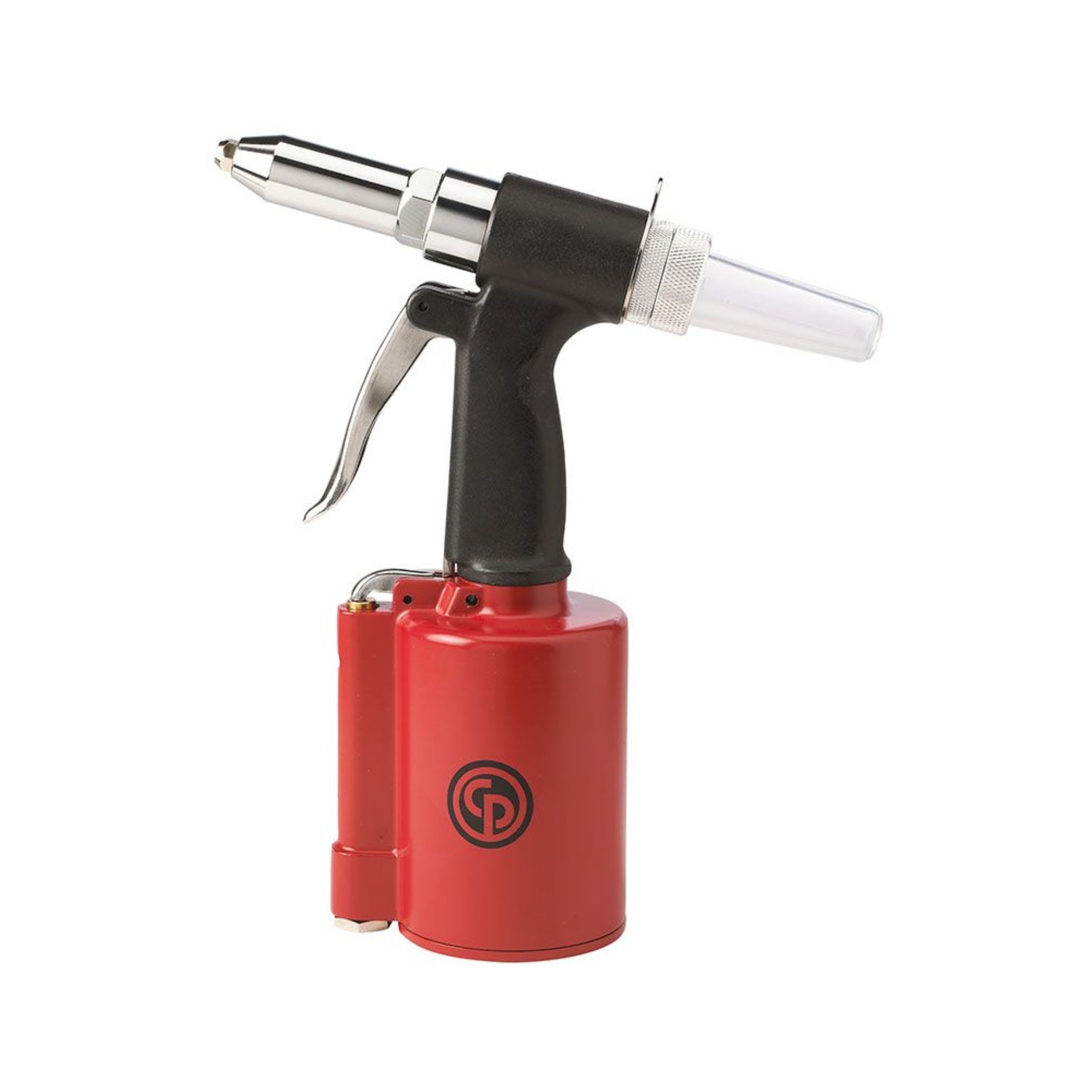

    PNEUMATIC RIVETER

    Designed for body shops or general maintenance applications such as trailer panels, number plates, and any type of panels maintenance, the CP9882 series offers ease of use and reliability. This pneumatic riveter can be used with aluminum, copper and softer materials rivets with a maximum capacity of 3/16″ (4.8 mm).Country of origin is TW. Customs tariff is 84671900

    SEND INQUIRY
    Category:

      Technical Specifications

      Size & Weight
      Length (L) 225 mm
      Pulling force 1000 kg
      Weight 1.5 kg

      Noise & vibrations
      Sound Power 62 dB(A)
      Sound Pressure 73 dB(A)
      Vibration (m/s²) <2.5 m/s²

      Design & Functions
      Max rivet size (in) 3/16
      Max rivet size (mm) 4.8
      Mouthpiece delivered 4
      Pulling force 2200 lb
      Rivet type Blind
      Starting system Lever

      Air information
      Air consumption at load 1.9 l/s
      Air inlet thread size (in) 1/4
      Max dynamic air working pressure 6.3 bar
      Min hose diam (16 ft hose length) 0.38 in
      Min hose diam (5 m hose length) 10 mm
