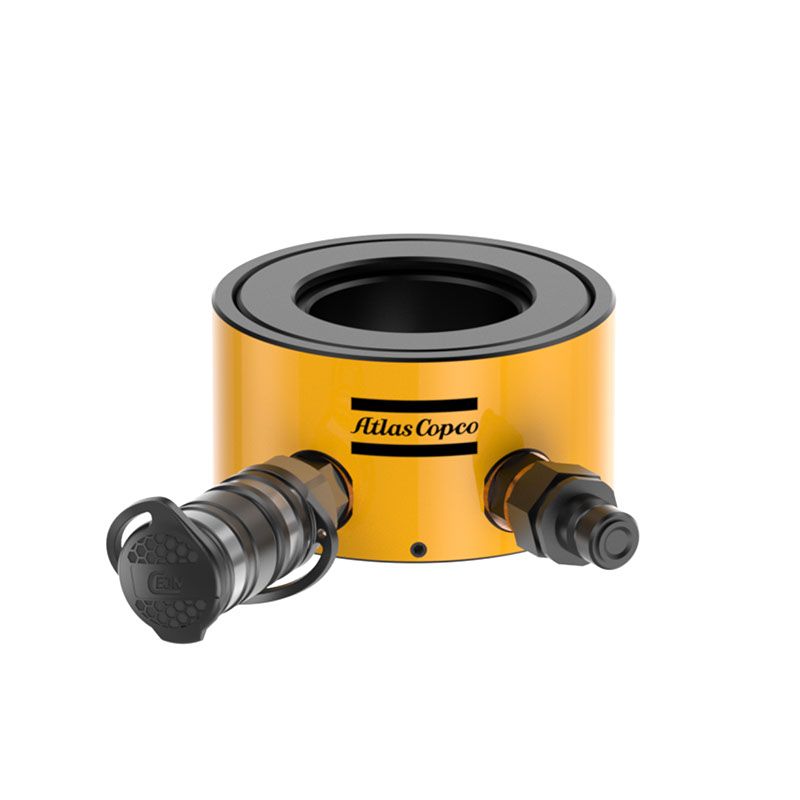

The Topside tensioner CTST is reliable, economical and dependable insert type hydraulic tensioner that is proven in the marketplace. The tool is designed to fit on to most ANSI B16.5, ANSI B16.47 Series 1, MSS-SP44, API-6A and API17D flanges. Simple to use and designed to fit many applications, each base tool can be converted for use on a different bolt size by the use of conversion kits. Country of origin is GB. Customs tariff is 84799070
Technical Specifications
| Identification | |
|---|---|
| Order number | 8434 2201 26 |
| Design & function | |
| Type | Tensioner |
| Performance | |
| Max working pressure | 1500 bar |
| Hydraulic pressure area | 17627.48 mm2 |
| Max load capacity | 265.37 Ton |
| Dimensions & weight | |
| A/F | 117.47 mm |
| A | 233 mm |
| B | 77 mm |
| C | 126 mm |
| D | 153 mm |
| E | 64 mm |
| F | 196 mm |
| G | 169 mm |
| Size | CTST No. 6 |
| stroke | 15 mm |
| Thread Size | 3"-8UN |
| Weight | 39.67 kg |
| Packaging | |
| Package dimensions | 31 x 26 x 25 cm |
| Package weight | 42.8 kg |
Benefits
- Easy to use
- Easy to maintain
- Minimal downtime
- Cost effective tensioning
- Reliability
Features
- Long ram stroke
- High quality material
- Three main components
- Industry standard hydraulic connections
- Customized versions available
Atlas Copco CTST STD No.6 – 3IN CTST COMPLETE
CTST STD No.6 – 3IN CTST COMPLETE (part no. 8434 2201 26) is listed in the Atlas Copco Bolt Tensioning Equipment range. Check the thread, size and configuration against your application before ordering.
Atlas Copco CTST STD No.6 – 3IN CTST COMPLETE Information
Contact Middle East ABC for technical product information, availability and quotation support for part no. 8434 2201 26 and other Atlas Copco products.
