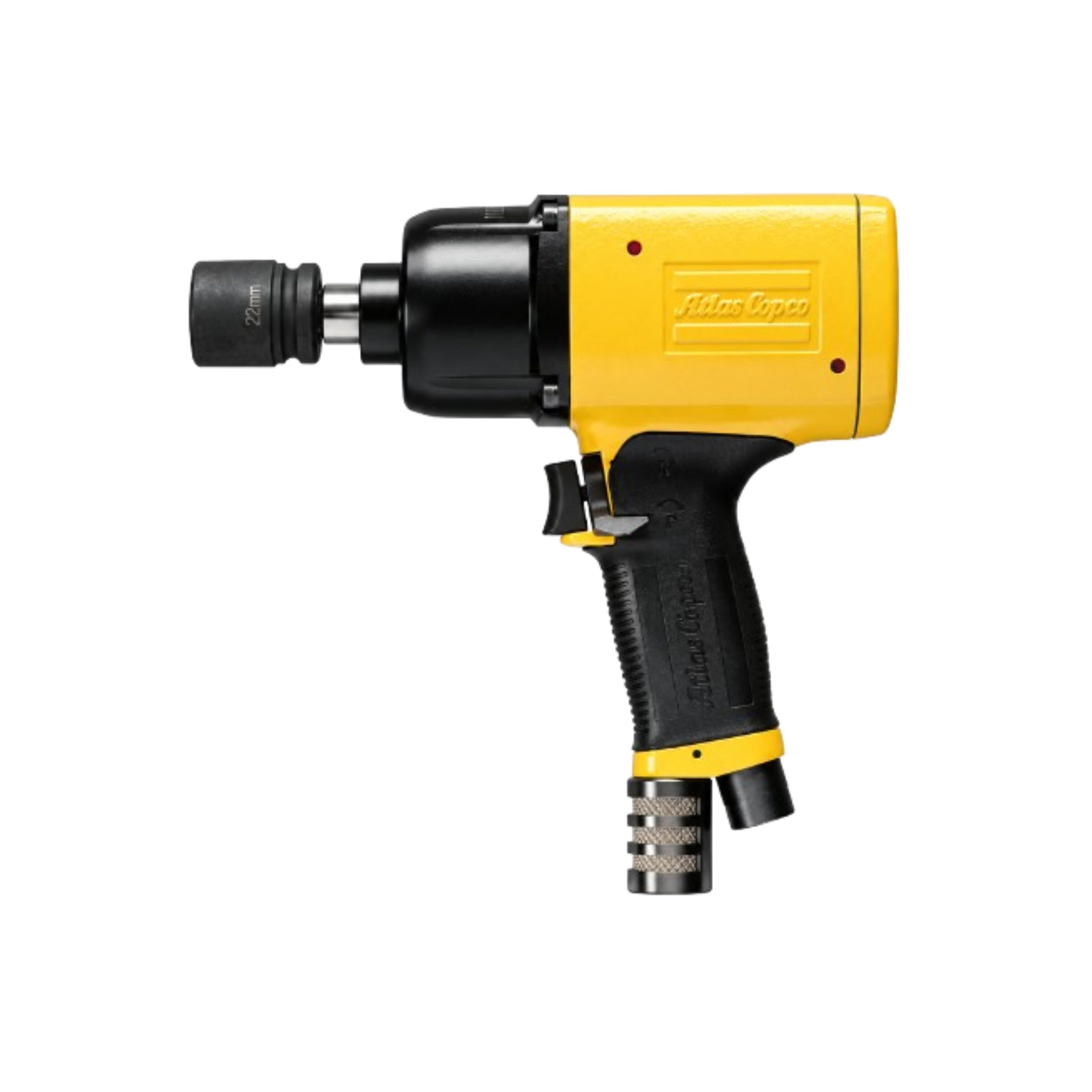

The Atlas Copco EP10XS HR13 is a non-shut-off pneumatic pulse tool developed for professional fastening and industrial assembly applications. As part of the Atlas Copco ErgoPulse Non-shut-off range, it is designed for production environments that require efficient fastening, practical operator handling and reliable performance across repetitive assembly tasks.
Technical Specifications
| Dimension & Weight | |
|---|---|
| Air inlet thread | 1/4 in |
| Bolt size | M10 mm |
| CS distance | 26 mm |
| Length | 168 mm |
| Output size | 1/2″ |
| Recommended hose size | 10 mm |
| Square drive | 1/2 in |
| Weight | 1.3 kg |
| Speed | |
|---|---|
| Free speed | 6000 r/min |
| Air Information | |
|---|---|
| Air consumption under load | 11 l/s |
| Max working pressure | 7 bar |
| Nominal working pressure | 6.3 bar |
| Torque | |
|---|---|
| Torque range max | 70 Nm |
| Torque range min | 50 Nm |
| Noise & Vibrations | |
|---|---|
| Sound power | 94 dB(A) |
| Sound pressure | 83 dB(A) |
| Sound standard | ISO15744 |
| Sound uncertainty | 3 dB(A) |
| Vibration standard | ISO28927-2 |
| Vibration uncertainty | 0.8 m/s2 |
| Vibration value | 4.6 m/s2 |
| Certifications, Standards & Directives | |
|---|---|
| EAC certified | Yes |
| EU directives | 2006/42/EC |
| EC standard | EN ISO 11148-6:2012 |
| UK legislation | S.I. 2008/1597 |
| UK standard | EN ISO 11148-6:2012 |
| Design & Functions | |
|---|---|
| Model type | Pistol |
| Output type | Square, Male |
| SCIP | 9e6972b2-2f4b-487b-bd1c-d051871d8321 |
| Shut-off | No |
Atlas Copco EP10XS HR13 ErgoPulse Non-Shut-Off Tool
The Atlas Copco EP10XS HR13 is a pistol-type pneumatic pulse tool designed for professional fastening and industrial assembly applications. It provides a torque range of 50–70 Nm and a free speed of 6,000 r/min, giving the model a technical profile suited to fastening operations where this torque capacity and operating speed match the joint and production requirements.
The EP10XS HR13 uses a 1/2 inch male square output and is specified for M10 bolt size applications. The tool has an overall length of 168 mm, a CS distance of 26 mm and a weight of 1.3 kg. Its compact pistol configuration can be considered where access, tool dimensions and operator handling are important factors in the assembly workstation.
For pneumatic installation, the tool has a nominal working pressure of 6.3 bar and a maximum working pressure of 7 bar. Air consumption under load is 11 l/s, while the recommended hose size is 10 mm and the air inlet thread is 1/4 inch.
Applications
The Atlas Copco EP10XS HR13 is intended for industrial fastening applications requiring a 50–70 Nm torque range, 6,000 r/min free speed and 1/2 inch square drive. Its M10 bolt size specification and pistol-type configuration make it suitable for assembly processes where these technical requirements correspond to the fastening task.
As a non-shut-off model, the EP10XS HR13 belongs to the Atlas Copco ErgoPulse – Non-shut-off category. Buyers should compare torque range, output size, bolt size, operating pressure, air consumption and tool dimensions when selecting between models in this range.
Key Features
- Non-shut-off pneumatic pulse tool
- Pistol model configuration
- Torque range: 50–70 Nm
- Free speed: 6,000 r/min
- M10 bolt size
- 1/2 inch male square output
- 1/2 inch square drive
- Nominal working pressure: 6.3 bar
- Maximum working pressure: 7 bar
- Air consumption under load: 11 l/s
- Recommended hose size: 10 mm
- Air inlet thread: 1/4 inch
- Weight: 1.3 kg
- Length: 168 mm
- CS distance: 26 mm
Why Choose the Atlas Copco EP10XS HR13?
The Atlas Copco EP10XS HR13 combines a 50–70 Nm torque range with a free speed of 6,000 r/min and a 1/2 inch square drive. For buyers, the important selection points are whether this torque range matches the fastening requirement, whether the M10 bolt size and 1/2 inch output are compatible with the application, and whether the available compressed-air system can support the specified pressure and airflow requirements.
Its 168 mm overall length and 1.3 kg weight should also be considered when planning the workstation, particularly where the tool will be used repeatedly or where access around the fastener is limited.
Compressed-Air Requirements
The EP10XS HR13 is specified for a nominal working pressure of 6.3 bar with a maximum working pressure of 7 bar. Air consumption under load is 11 l/s, and Atlas Copco specifies a 10 mm recommended hose size together with a 1/4 inch air inlet thread.
Before installation, buyers should confirm that the compressed-air supply, hose and connection at the workstation can meet these requirements. The pneumatic setup should be considered together with the fastening requirements when selecting the tool.
Noise, Vibration and Standards
The EP10XS HR13 has a sound power level of 94 dB(A) and a sound pressure level of 83 dB(A), measured according to ISO15744 with a sound uncertainty of 3 dB(A). The listed vibration value is 4.6 m/s2, with a vibration uncertainty of 0.8 m/s2, according to ISO28927-2.
The model is EAC certified. Its listed EC standard is EN ISO 11148-6:2012 and the applicable EU directive is 2006/42/EC. UK legislation is listed as S.I. 2008/1597 with EN ISO 11148-6:2012 as the UK standard.
Related Atlas Copco Pneumatic Assembly Tools
Middle East ABC supplies a range of Atlas Copco Pneumatic Assembly Tools for different industrial fastening and assembly requirements. Buyers looking for other pulse-tool configurations can also compare models within the ErgoPulse – Non-shut-off category according to torque range, speed, drive size, bolt size, air requirements and tool dimensions.
Atlas Copco EP10XS HR13 Availability
Contact Middle East ABC for technical product information, availability and quotation support for the Atlas Copco EP10XS HR13 and other Atlas Copco pneumatic assembly tools.
