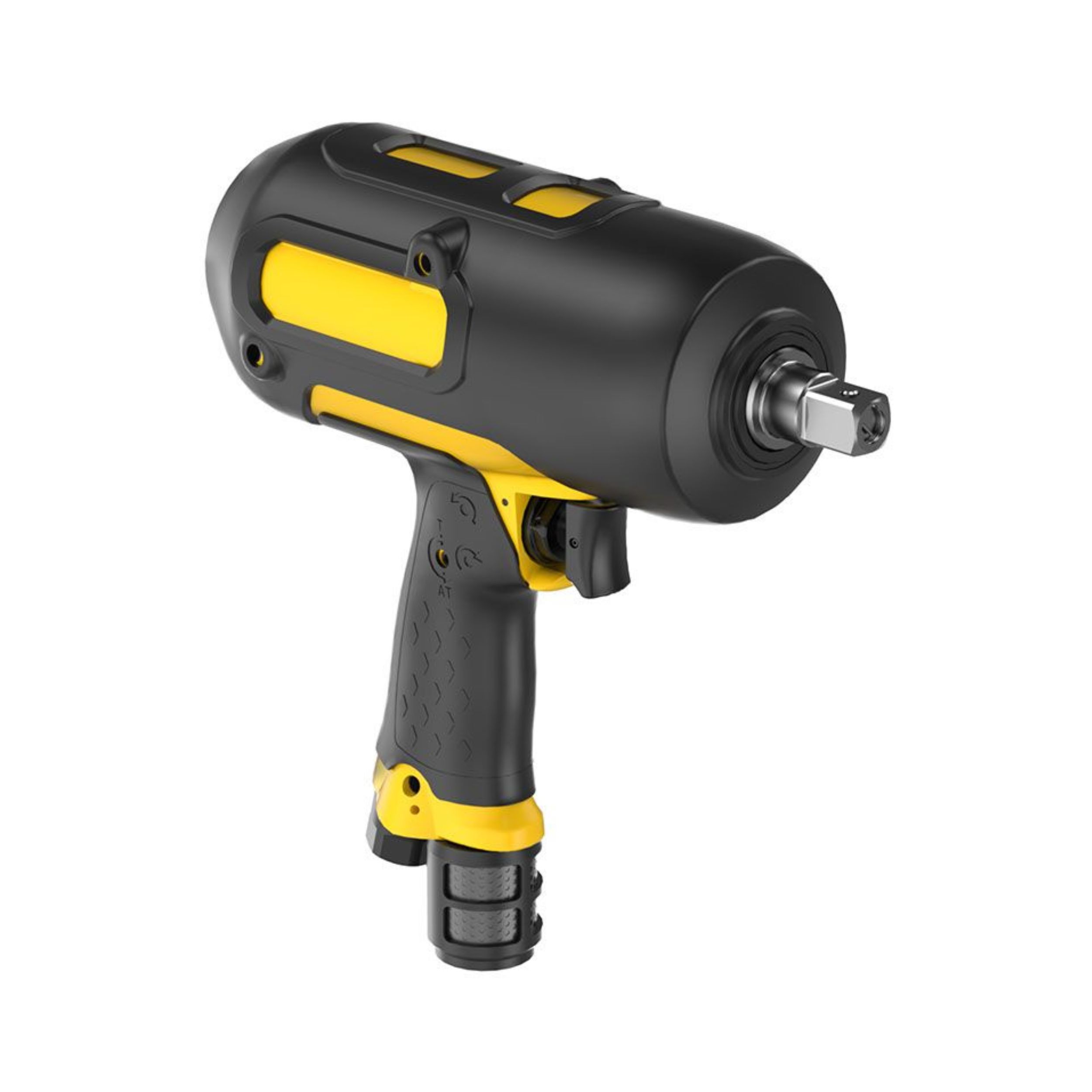

The Atlas Copco EP13PTI110 HR13-MT-L is a shut-off pneumatic pulse tool developed for professional fastening and industrial assembly applications. As part of the Atlas Copco ErgoPulse Shut-Off range, it is designed for production environments that require controlled fastening, reliable operation and consistent performance across repetitive assembly tasks.
Technical Specifications
| Design & Functions | |
|---|---|
| Model type | Pistol |
| Output type | Square, Male |
| Pulsing freq. CCW | 12-19 Hz |
| SCIP | 9e6972b2-2f4b-487b-bd1c-d051871d8321 |
| Shut-off | Yes |
| Dimension & Weight | |
|---|---|
| Air inlet thread | 3/8 in |
| Bolt size | M14 mm |
| CS distance | 36 mm |
| Length | 201 mm |
| Output size | 1/2″ |
| Recommended hose size | 13 mm |
| Square drive | 1/2 in |
| Weight | 2.3 kg |
| X-Gague diameter | 1.5 mm |
| Speed | |
|---|---|
| Free speed | 3600 r/min |
| Capacity | |
|---|---|
| Oil volume in full Pulse unit | 30 ml |
| Air Information | |
|---|---|
| Air consumption under load | 16 l/s |
| Max working pressure | 5 bar |
| Nominal working pressure | 4 bar |
| Torque | |
|---|---|
| Fixed transducer torque CCW service | 120 Nm |
| Pulse unit casing tightening Torque | 35 Nm |
| Torque range max | 110 Nm |
| Torque range min | 63 Nm |
| Noise & Vibrations | |
|---|---|
| Sound power | 94 dB(A) |
| Sound pressure | 83 dB(A) |
| Sound standard | ISO15744 |
| Sound uncertainty | 3 dB(A) |
| Vibration standard | ISO28927-2 |
| Vibration uncertainty | 0.66 m/s? |
| Vibration value | 2.37 m/s? |
| Certifications, Standards & Directives | |
|---|---|
| EAC certified | Yes |
| EU directives | 2006/42/EC (MD) |
| EC standard | EN ISO 11148-6:2012 |
| UK legislation | S.I. 2008/1597 |
| UK standard | BS EN ISO 11148-6:2012 |
Atlas Copco EP13PTI110 HR13-MT-L ErgoPulse Shut-Off Tool
The Atlas Copco EP13PTI110 HR13-MT-L is a pistol-type shut-off pneumatic pulse tool designed for professional fastening and industrial assembly applications. It provides a torque range of 63–110 Nm and a free speed of 3,600 r/min, making it suitable for repetitive fastening operations where this torque capacity and operating speed match the assembly requirement.
The EP13PTI110 HR13-MT-L is specified for M14 bolt size applications and uses a 1/2 inch male square output with a 1/2 inch square drive. The tool has an overall length of 201 mm, a CS distance of 36 mm and a weight of 2.3 kg. The supplied specifications also list an X-Gauge diameter of 1.5 mm.
The pulse system has an oil volume of 30 ml and a listed CCW pulsing frequency of 12–19 Hz. The supplied service specifications also list a fixed transducer torque of 120 Nm for CCW service and a pulse unit casing tightening torque of 35 Nm.
For pneumatic operation, the model has a nominal working pressure of 4 bar and a maximum working pressure of 5 bar. Air consumption under load is 16 l/s, while the recommended hose size is 13 mm and the air inlet thread is 3/8 inch.
Applications
The Atlas Copco EP13PTI110 HR13-MT-L is intended for industrial fastening applications requiring a 63–110 Nm torque range, M14 bolt size capability, 3,600 r/min free speed and a 1/2 inch square drive. Its pistol configuration can be considered for repetitive production and assembly tasks where these torque, speed, drive and dimensional requirements correspond to the fastening application.
As a shut-off pulse tool, the EP13PTI110 HR13-MT-L belongs to the Atlas Copco ErgoPulse – ShutOff range. Buyers can compare models in this category according to torque range, bolt size, drive size, speed, pulse characteristics, pneumatic requirements and physical dimensions.
Key Features
- Shut-off pneumatic pulse tool
- Pistol model configuration
- Torque range: 63–110 Nm
- Free speed: 3,600 r/min
- M14 bolt size
- 1/2 inch male square output
- 1/2 inch square drive
- CCW pulsing frequency: 12–19 Hz
- Oil volume in full pulse unit: 30 ml
- Fixed transducer torque CCW service: 120 Nm
- Pulse unit casing tightening torque: 35 Nm
- Nominal working pressure: 4 bar
- Maximum working pressure: 5 bar
- Air consumption under load: 16 l/s
- Recommended hose size: 13 mm
- Air inlet thread: 3/8 inch
- Weight: 2.3 kg
- Length: 201 mm
- CS distance: 36 mm
- X-Gauge diameter: 1.5 mm
Why Choose the Atlas Copco EP13PTI110 HR13-MT-L?
The Atlas Copco EP13PTI110 HR13-MT-L combines a 63–110 Nm operating torque range with a 3,600 r/min free speed and a 1/2 inch square drive. For buyers, the main selection points are whether the required fastening torque falls within this range, whether the M14 bolt size and drive configuration match the application, and whether the available compressed-air system can support the specified airflow and pressure.
Its 201 mm overall length, 36 mm CS distance and 2.3 kg weight should also be considered when evaluating workstation access, operator handling and repetitive production requirements. The listed pulse-unit and service specifications can also be useful when planning maintenance and servicing.
Compressed-Air Requirements
The EP13PTI110 HR13-MT-L operates at a nominal working pressure of 4 bar and a maximum working pressure of 5 bar. Air consumption under load is 16 l/s. Atlas Copco specifies a 13 mm recommended hose size together with a 3/8 inch air inlet thread.
Before installation, buyers should confirm that the compressed-air supply at the workstation can maintain the required pressure and airflow and that the hose and air connection are compatible with the tool.
Noise, Vibration and Standards
The EP13PTI110 HR13-MT-L has a sound power level of 94 dB(A) and a sound pressure level of 83 dB(A), measured according to ISO15744 with a sound uncertainty of 3 dB(A).
The supplied specifications list a vibration value of 2.37 m/s? and a vibration uncertainty of 0.66 m/s?, measured according to ISO28927-2.
The model is EAC certified. Its listed EU directive is 2006/42/EC (MD) and the EC standard is EN ISO 11148-6:2012. UK legislation is listed as S.I. 2008/1597, with BS EN ISO 11148-6:2012 listed as the UK standard.
Related Atlas Copco Pneumatic Assembly Tools
Middle East ABC supplies a range of Atlas Copco Pneumatic Assembly Tools for professional fastening and industrial assembly requirements. Buyers looking for other shut-off pulse-tool configurations can also compare products within the ErgoPulse – ShutOff category according to torque range, speed, bolt size, drive size, pneumatic requirements and tool dimensions.
Atlas Copco EP13PTI110 HR13-MT-L Availability
Contact Middle East ABC for technical product information, availability and quotation support for the Atlas Copco EP13PTI110 HR13-MT-L and other Atlas Copco pneumatic assembly tools.
