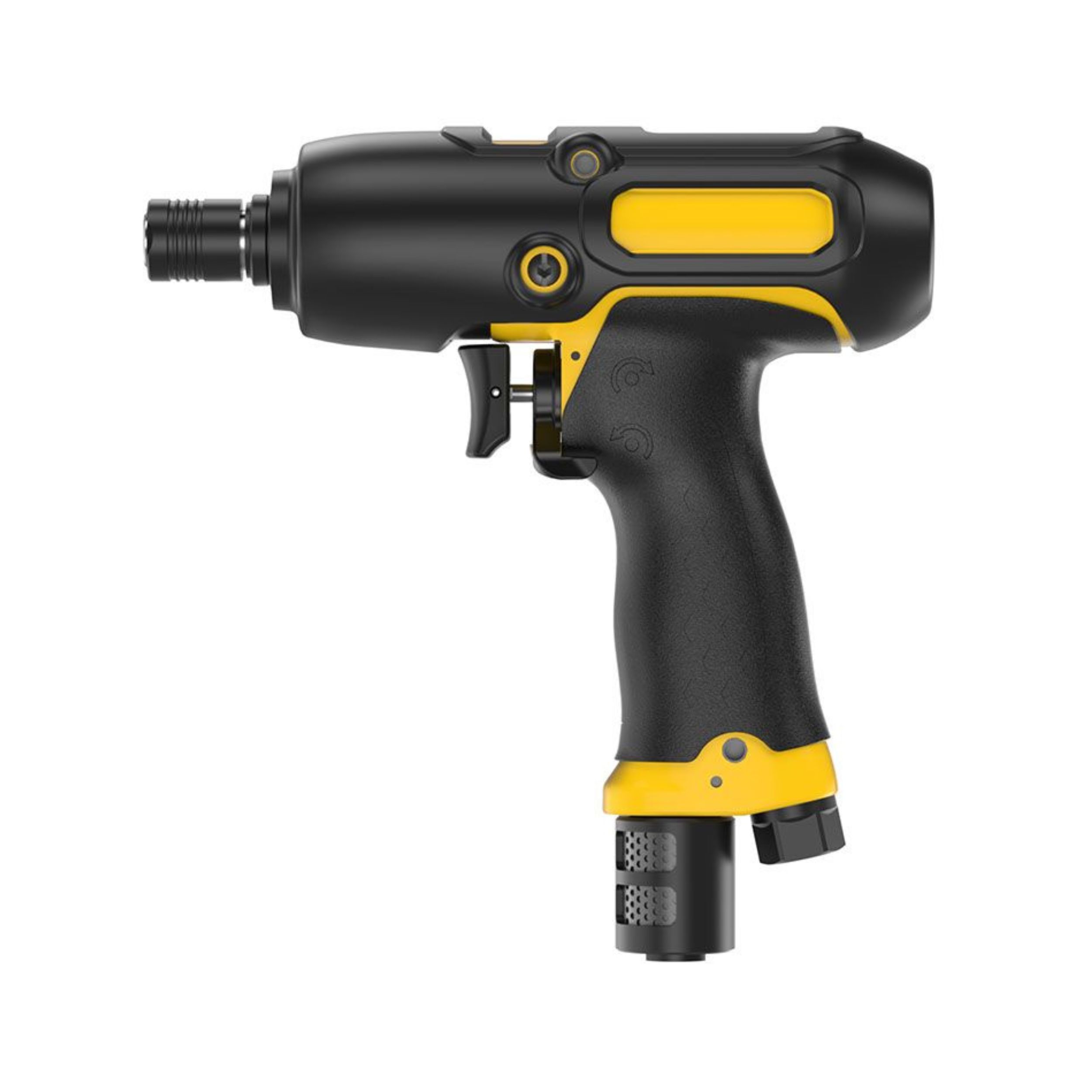

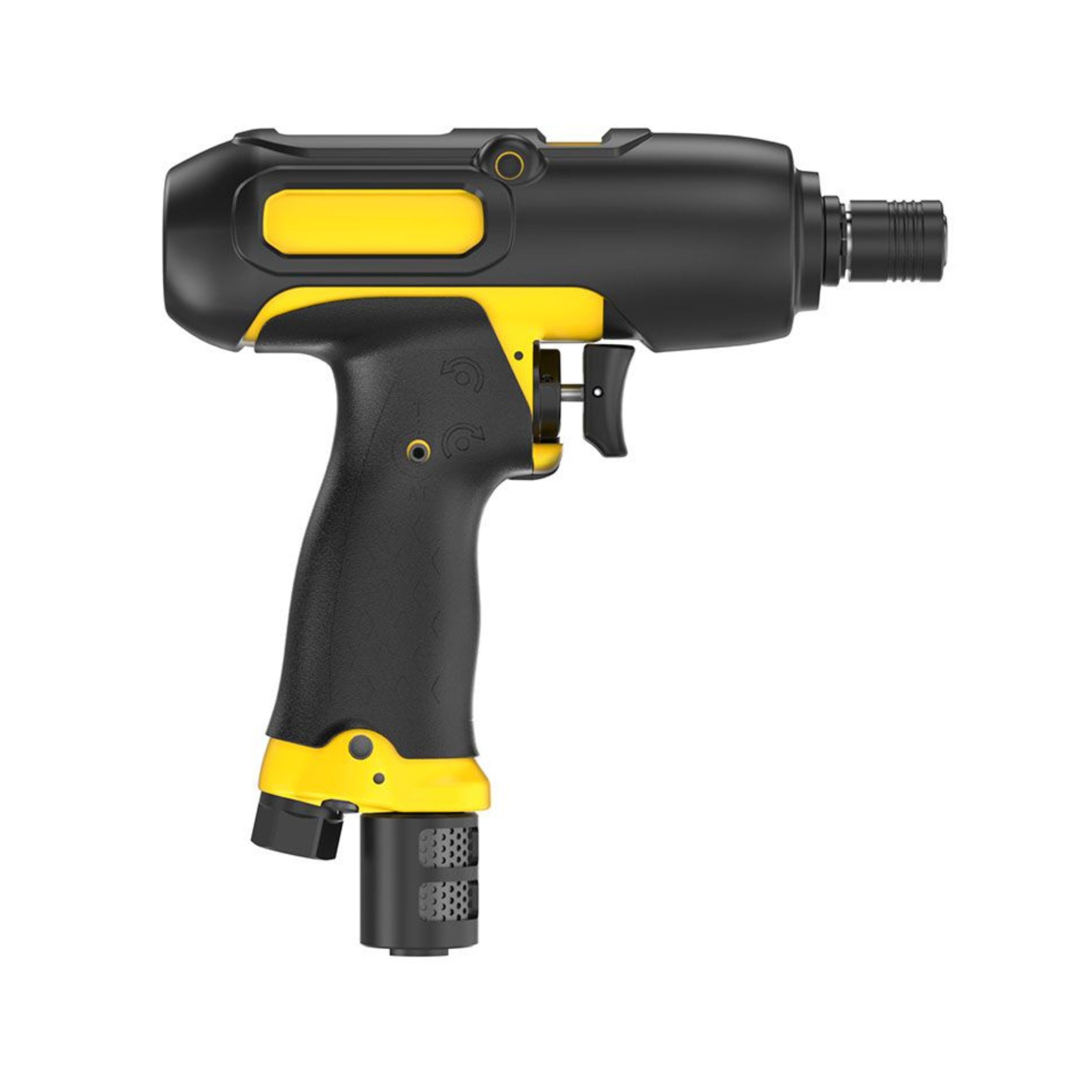

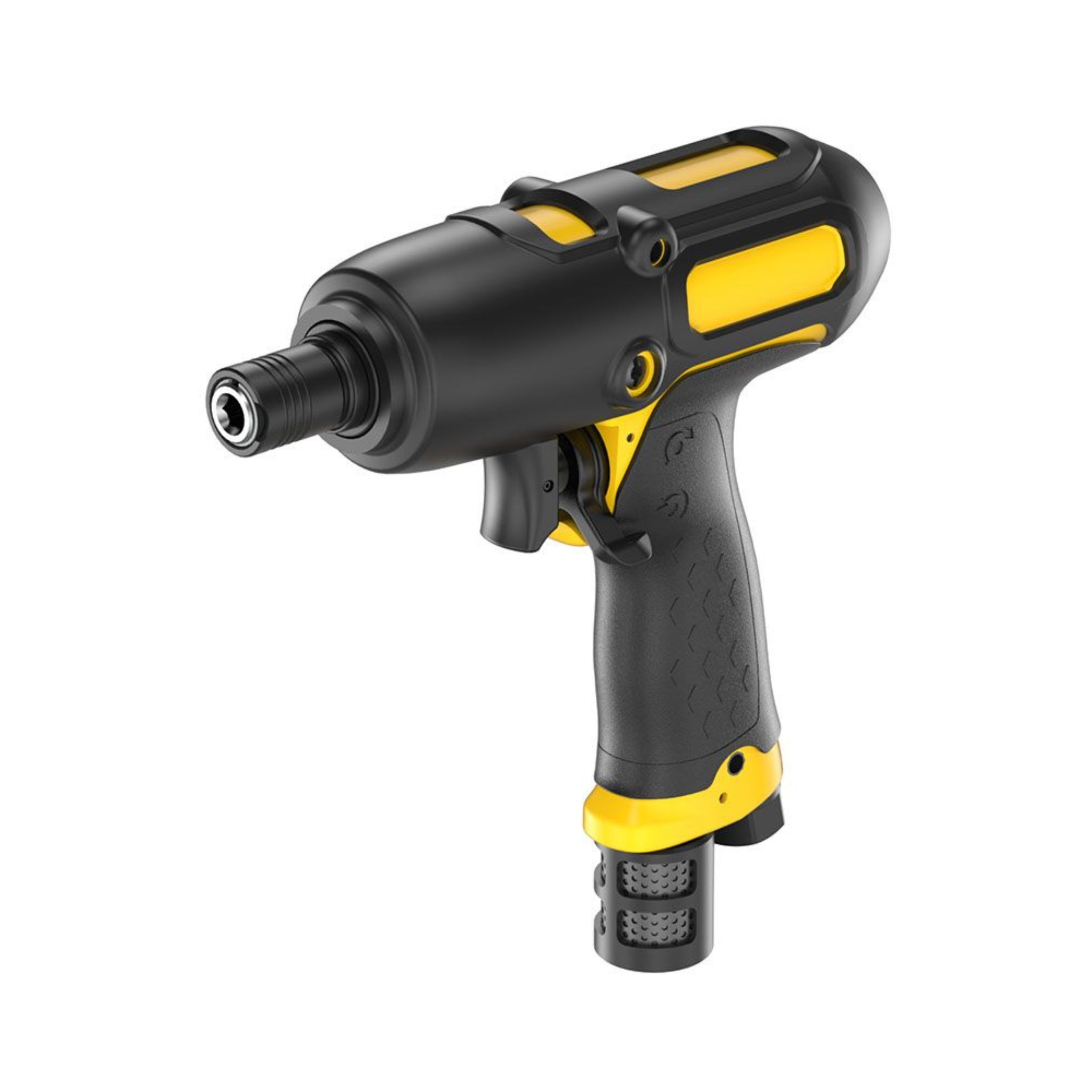

The Atlas Copco EP5PTI13 HR42-MT-L is a shut-off pneumatic pulse tool developed for professional fastening and industrial assembly applications. As part of the Atlas Copco ErgoPulse Shut-Off range, it is designed for production environments that require controlled fastening, reliable operation and consistent performance across repetitive assembly tasks.
Technical Specifications
| Design & Functions | |
|---|---|
| Model type | Pistol |
| Output type | Hexagon, Female |
| Pulsing freq. CCW | 17-29 Hz |
| SCIP | 9e6972b2-2f4b-487b-bd1c-d051871d8321 |
| Shut-off | Yes |
| Dimension & Weight | |
|---|---|
| Air inlet thread | 1/4 in |
| Bolt size | M5 mm |
| CS distance | 23 mm |
| Length | 168 mm |
| Output size | 1/4″ |
| Recommended hose size | 8 mm |
| Square drive | 1/4 in |
| Weight | 0.9 kg |
| X-Gague diameter | 1.8 mm |
| Speed | |
|---|---|
| Free speed | 6900 r/min |
| Capacity | |
|---|---|
| Oil volume in full Pulse unit | 6 ml |
| Air Information | |
|---|---|
| Air consumption under load | 6.3 l/s |
| Max working pressure | 5 bar |
| Nominal working pressure | 4 bar |
| Noise & Vibrations | |
|---|---|
| Sound power | 84 dB(A) |
| Sound pressure | 73 dB(A) |
| Sound standard | ISO15744 |
| Sound uncertainty | 3 dB(A) |
| Vibration standard | ISO28927-2 |
| Vibration uncertainty | 0.7 m/s? |
| Vibration value | 1.5 m/s? |
| Certifications, Standards & Directives | |
|---|---|
| EAC certified | Yes |
| EU directives | 2006/42/EC (MD) |
| EC standard | EN ISO 11148-6:2012 |
| UK legislation | S.I. 2008/1597 |
| UK standard | BS EN ISO 11148-6:2012 |
| Torque | |
|---|---|
| Fixed transducer torque CCW service | 15 Nm |
| Pulse unit casing tightening Torque | 20 Nm |
| Torque range max | 13 Nm |
| Torque range min | 6 Nm |
Atlas Copco EP5PTI13 HR42-MT-L ErgoPulse Shut-Off Tool
The Atlas Copco EP5PTI13 HR42-MT-L is a pistol-type shut-off pneumatic pulse tool designed for professional fastening and industrial assembly applications. It provides a torque range of 6–13 Nm and a free speed of 6,900 r/min, making it suitable for repetitive fastening operations where this torque capacity and operating speed match the assembly requirement.
The EP5PTI13 HR42-MT-L is specified for M5 bolt size applications and has a 1/4 inch output size with a female hexagon output configuration. The supplied specifications also list a 1/4 inch square drive. The tool has an overall length of 168 mm, a CS distance of 23 mm and a weight of 0.9 kg. The supplied specifications also list an X-Gague diameter of 1.8 mm.
The pulse system has an oil volume of 6 ml and a listed CCW pulsing frequency of 17–29 Hz. The supplied service specifications also list a fixed transducer torque of 15 Nm for CCW service and a pulse unit casing tightening torque of 20 Nm.
For pneumatic operation, the model has a nominal working pressure of 4 bar and a maximum working pressure of 5 bar. Air consumption under load is 6.3 l/s, while the recommended hose size is 8 mm and the air inlet thread is 1/4 inch.
Applications
The Atlas Copco EP5PTI13 HR42-MT-L is intended for industrial fastening applications requiring a 6–13 Nm torque range, M5 bolt size capability and a free speed of 6,900 r/min. Its pistol configuration can be considered for repetitive production and assembly tasks where these torque, speed, output and dimensional requirements correspond to the fastening application.
As a shut-off pulse tool, the EP5PTI13 HR42-MT-L belongs to the Atlas Copco ErgoPulse – ShutOff range. Buyers can compare models in this category according to torque range, bolt size, output configuration, speed, pulse characteristics, pneumatic requirements and physical dimensions.
Key Features
- Shut-off pneumatic pulse tool
- Pistol model configuration
- Torque range: 6–13 Nm
- Free speed: 6,900 r/min
- M5 bolt size
- 1/4 inch output size
- Female hexagon output type
- 1/4 inch square drive specification
- CCW pulsing frequency: 17–29 Hz
- Oil volume in full pulse unit: 6 ml
- Fixed transducer torque CCW service: 15 Nm
- Pulse unit casing tightening torque: 20 Nm
- Nominal working pressure: 4 bar
- Maximum working pressure: 5 bar
- Air consumption under load: 6.3 l/s
- Recommended hose size: 8 mm
- Air inlet thread: 1/4 inch
- Weight: 0.9 kg
- Length: 168 mm
- CS distance: 23 mm
- X-Gague diameter: 1.8 mm
Why Choose the Atlas Copco EP5PTI13 HR42-MT-L?
The Atlas Copco EP5PTI13 HR42-MT-L combines a 6–13 Nm operating torque range with a 6,900 r/min free speed and a pistol configuration. For buyers, the main selection points are whether the required fastening torque falls within this range, whether the M5 bolt size and listed output configuration match the application, and whether the available compressed-air system can support the specified airflow and pressure.
Its 168 mm overall length, 23 mm CS distance and 0.9 kg weight should also be considered when evaluating workstation access, tool handling and repetitive production requirements. The listed pulse-unit and service specifications can additionally be useful when planning servicing and maintenance.
Compressed-Air Requirements
The EP5PTI13 HR42-MT-L operates at a nominal working pressure of 4 bar and a maximum working pressure of 5 bar. Air consumption under load is 6.3 l/s. Atlas Copco specifies an 8 mm recommended hose size together with a 1/4 inch air inlet thread.
Before installation, buyers should confirm that the compressed-air supply at the workstation can maintain the required pressure and airflow and that the hose and air connection are compatible with the tool.
Noise, Vibration and Standards
The EP5PTI13 HR42-MT-L has a sound power level of 84 dB(A) and a sound pressure level of 73 dB(A), measured according to ISO15744 with a sound uncertainty of 3 dB(A).
The supplied specifications list a vibration value of 1.5 m/s? and a vibration uncertainty of 0.7 m/s?, measured according to ISO28927-2.
The model is EAC certified. Its listed EU directive is 2006/42/EC (MD) and the EC standard is EN ISO 11148-6:2012. UK legislation is listed as S.I. 2008/1597, with BS EN ISO 11148-6:2012 listed as the UK standard.
Related Atlas Copco Pneumatic Assembly Tools
Middle East ABC supplies a range of Atlas Copco Pneumatic Assembly Tools for professional fastening and industrial assembly requirements. Buyers looking for other shut-off pulse-tool configurations can also compare products within the ErgoPulse – ShutOff category according to torque range, speed, bolt size, output type, pneumatic requirements and tool dimensions.
Atlas Copco EP5PTI13 HR42-MT-L Availability
Contact Middle East ABC for technical product information, availability and quotation support for the Atlas Copco EP5PTI13 HR42-MT-L and other Atlas Copco pneumatic assembly tools.
